ST162-ATMVF (1987)
Toyota Carina Ed

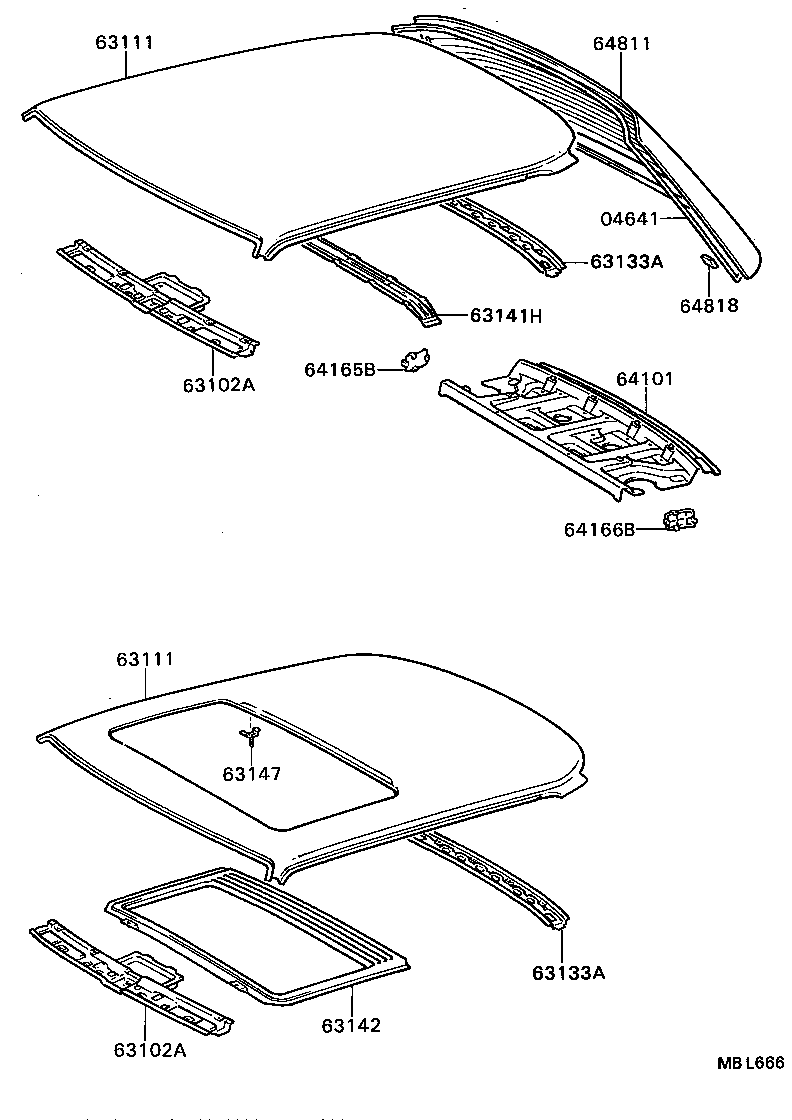

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
ST16# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20050 |
ST162..G G LIMITED |
1 | ||
| 63102-20080 |
ST16#..F,G,L,S |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20050 |
ST162..G G LIMITED |
1 | ||
| 63102-20080 |
ST16#..F,G,L,S |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20280 |
ST16#..F,S,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20280 |
ST16#..F,L,S,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20280 |
ST162..G ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20140 |
ST16# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20280 |
ST16#..F,S,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20280 |
ST16#..F,L,S,X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20280 |
ST162..G ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63111-20140 |
ST16# |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20110 |
ST16# |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-20110 |
ST16# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20050 |
ST16# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-20050 |
ST16#..F,L,S,X |
1 | ||
| 63142-20050 |
ST162..G |
1 | ||
| 63142-20050 |
ST16#..F,S,X |
1 | ||
| 63147 - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-20020 |
ST162..G |
2 | ||
| 63147-20020 |
ST16#..F,S,X |
2 | ||
| 63147-20020 |
ST16#..F,L,S,X |
2 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20210 |
ST16# |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-20020 |
ST16# |
1 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64165-20020 |
ST16# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20630 |
ST16#..F,G,X *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-20610 |
ST16#..F,G,S,X *EHTT,厚さ=3.5,W/ANTENNA |
1 | ||
| 64811-20630 |
ST163;ST162..G *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-20020 |
ST16# |
2 | ||

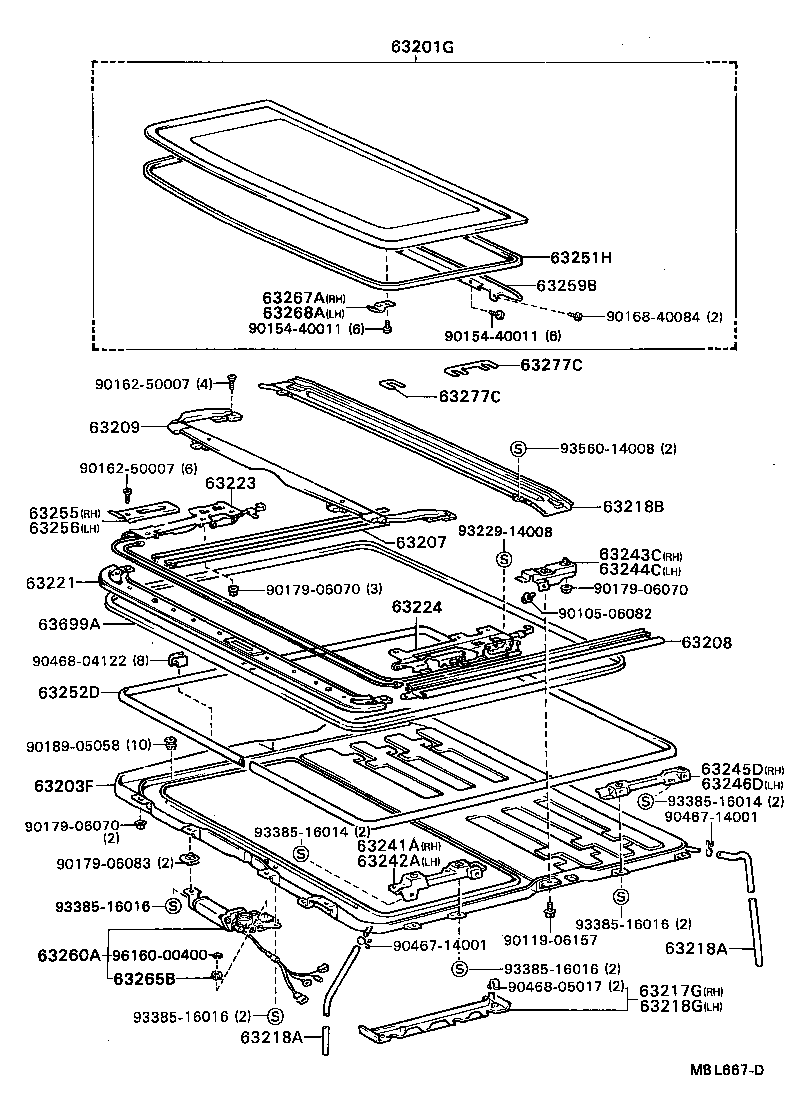

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-20050 |
ST16# ｸﾞﾚｰ |
1 | ||
| 63201-20040 |
ST16#..F,G,S,X ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63201-20050 |
ST16#..F,G,S,X ｸﾞﾚｰ |
1 | ||
| 63201-20040 |
ST16# ﾌﾞﾛﾝｽﾞ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20040 |
ST16#..F,G,S,X |
1 | ||
| 63203-20040 |
ST16# |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20041 |
ST16# |
1 | ||
| 63207-20041 |
ST16#..F,G,S,X |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20041 |
ST16#..F,G,S,X |
1 | ||
| 63208-20041 |
ST16# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20040 |
ST16#..F,G,S,X |
1 | ||
| 63209-20040 |
ST16# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-20010 |
ST16#..F,G,S,X |
1 | ||
| 63217-20010 |
ST16# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20030 |
ST16# RR RH |
1 | ||
| 63249-20050 |
ST16#..F,G,S,X ﾌﾛﾝﾄ |
2 | ||
| 63249-20040 |
ST16#..F,G,S,X RR LH |
1 | ||
| 63249-20040 |
ST16# RR LH |
1 | ||
| 63249-20030 |
ST16#..F,G,S,X RR RH |
1 | ||
| 63249-20050 |
ST16# ﾌﾛﾝﾄ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-20030 |
ST16# RR RH |
1 | ||
| 63249-20050 |
ST16#..F,G,S,X ﾌﾛﾝﾄ |
2 | ||
| 63249-20040 |
ST16#..F,G,S,X RR LH |
1 | ||
| 63249-20040 |
ST16# RR LH |
1 | ||
| 63249-20030 |
ST16#..F,G,S,X RR RH |
1 | ||
| 63249-20050 |
ST16# ﾌﾛﾝﾄ |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-20040 |
ST16#..F,G,S,X |
1 | ||
| 63218-20040 |
ST16# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-20030 |
ST16# |
1 | ||
| 63218-20030 |
ST16#..F,G,S,X |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20040 |
ST16#..F,G,S,X |
1 | ||
| 63221-20040 |
ST16# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20041 |
ST16#..F,G,S,X |
1 | ||
| 63223-20042 |
ST16# |
1 | ||
| 63223-20041 |
ST16# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20041 |
ST16#..F,G,S,X |
1 | ||
| 63224-20042 |
ST16# |
1 | ||
| 63224-20041 |
ST16# |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-20030 |
ST16#..F,G,S,X |
1 | ||
| 63241-20030 |
ST16# |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-20010 |
ST16#..F,G,S,X |
1 | ||
| 63242-20010 |
ST16# |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-20040 |
ST16#..F,G,S,X |
1 | ||
| 63243-20040 |
ST16# |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-20040 |
ST16#..F,G,S,X |
1 | ||
| 63244-20040 |
ST16# |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-20010 |
ST16#..F,G,S,X |
1 | ||
| 63245-20010 |
ST16# |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-20010 |
ST16# |
1 | ||
| 63246-20010 |
ST16#..F,G,S,X |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-20050 |
ST16# |
1 | ||
| 63251-20050 |
ST16#..F,G,S,X |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-20010 |
ST16#..F,G,S,X |
1 | ||
| 63252-20010 |
ST16# |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20030 |
ST16#..F,G,S,X |
1 | ||
| 63255-20030 |
ST16# |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20030 |
ST16# |
1 | ||
| 63255-20030 |
ST16#..F,G,S,X |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-20040 |
ST16#..F,G,S,X |
1 | ||
| 63259-20040 |
ST16# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20041 |
ST16# |
1 | ||
| 63260-20041 |
ST16#..F,G,S,X |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
ST16# |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-20030 |
ST16#..F,G,S,X |
1 | ||
| 63267-20030 |
ST16# |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-20020 |
ST16#..F,G,S,X |
1 | ||
| 63268-20020 |
ST16# |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20030 |
ST16# 厚さ=1.0,T=1.0,28X30 |
1 | ||
| 63277-20020 |
ST16#..F,G,S,X 厚さ=1.0,T=1.0,124X30 |
1 | ||
| 63277-20040 |
ST16# 厚さ=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
ST16#..F,G,S,X 厚さ=2.0,T=2.0,28X30 |
1 | ||
| 63277-20040 |
ST16#..F,G,S,X 厚さ=2.0,T=2.0,124X30 |
1 | ||
| 63277-20030 |
ST16#..F,G,S,X 厚さ=1.0,T=1.0,28X30 |
1 | ||
| 63277-20020 |
ST16# 厚さ=1.0,T=1.0,124X30 |
1 | ||
| 63277-20050 |
ST16# 厚さ=2.0,T=2.0,28X30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20030 |
ST16# 厚さ=1.0,T=1.0,28X30 |
1 | ||
| 63277-20020 |
ST16#..F,G,S,X 厚さ=1.0,T=1.0,124X30 |
1 | ||
| 63277-20040 |
ST16# 厚さ=2.0,T=2.0,124X30 |
1 | ||
| 63277-20050 |
ST16#..F,G,S,X 厚さ=2.0,T=2.0,28X30 |
1 | ||
| 63277-20040 |
ST16#..F,G,S,X 厚さ=2.0,T=2.0,124X30 |
1 | ||
| 63277-20030 |
ST16#..F,G,S,X 厚さ=1.0,T=1.0,28X30 |
1 | ||
| 63277-20020 |
ST16# 厚さ=1.0,T=1.0,124X30 |
1 | ||
| 63277-20050 |
ST16# 厚さ=2.0,T=2.0,28X30 |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-20020 |
ST16#..F,G,S,X |
1 | ||
| 63699-12040 |
ST16#..F,G,S,X |
1 | ||
| 63699-12040 |
ST16# |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90119-06157 | ||||
| 90154-40011 | ||||
| 90162-50007 | ||||
| 90168-40084 | ||||
| 90179-06070 | ||||
| 90179-06083 | ||||
| 90189-05058 | ||||
| 90467-14001 | ||||
| 90468-04122 | ||||
| 90468-05017 | ||||
| 93229-14008 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
