ST162-ATMSK (1987)
Toyota Carina Ed
Production
Aug 1987
-
Aug 1989
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )ST162..S,X

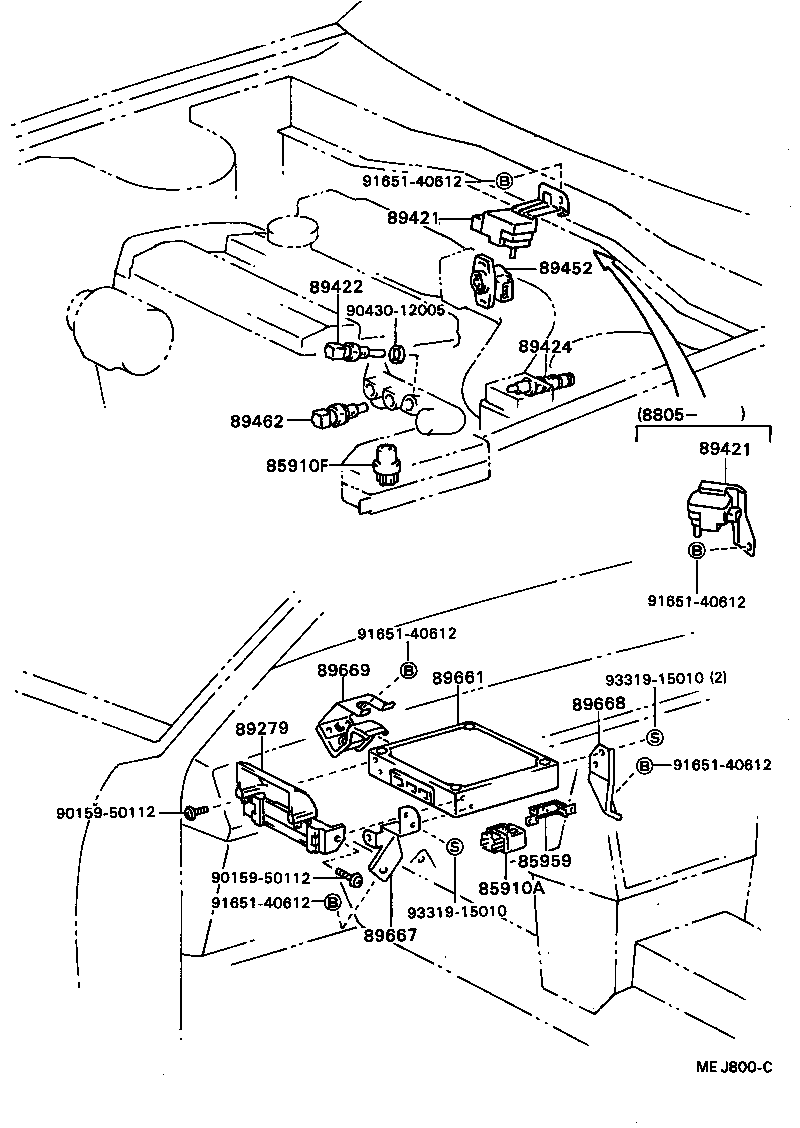

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
ST16# |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
ST16# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20090 |
ST16# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-20020 |
ST16#..F,L,S,X |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-20050 |
ST162..S,X |
1 | ||
| 89420-20130 |
ST16#..F,L,S,X |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-20050 |
ST162..S,X |
1 | ||
| 89420-20130 |
ST16#..F,L,S,X |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
ST16# |
1 | ||
| 89422-30020 |
ST160,162 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-28010 |
ST16#..F,L,S,X |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-32030 |
ST162..5F..S ｱﾘ(ESC) |
1 | ||
| 89452-32020 |
ST162..5F..(S,X) |
1 | ||
| 89452-32020 |
ST162..S,X |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
ST162..5F..S |
1 | ||
| 89462-40010 |
ST16# |
1 | ||
| 89462-20020 |
ST162 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20500 |
ST162..S,X |
1 | ||
| 89661-32430 |
ST162..S,X |
1 | ||
| 89661-32170 |
ST162..S,X |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20170 |
ST16#..F,L,S,X |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20080 |
ST16# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20060 |
ST16# |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||
