ST162-ATMSK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

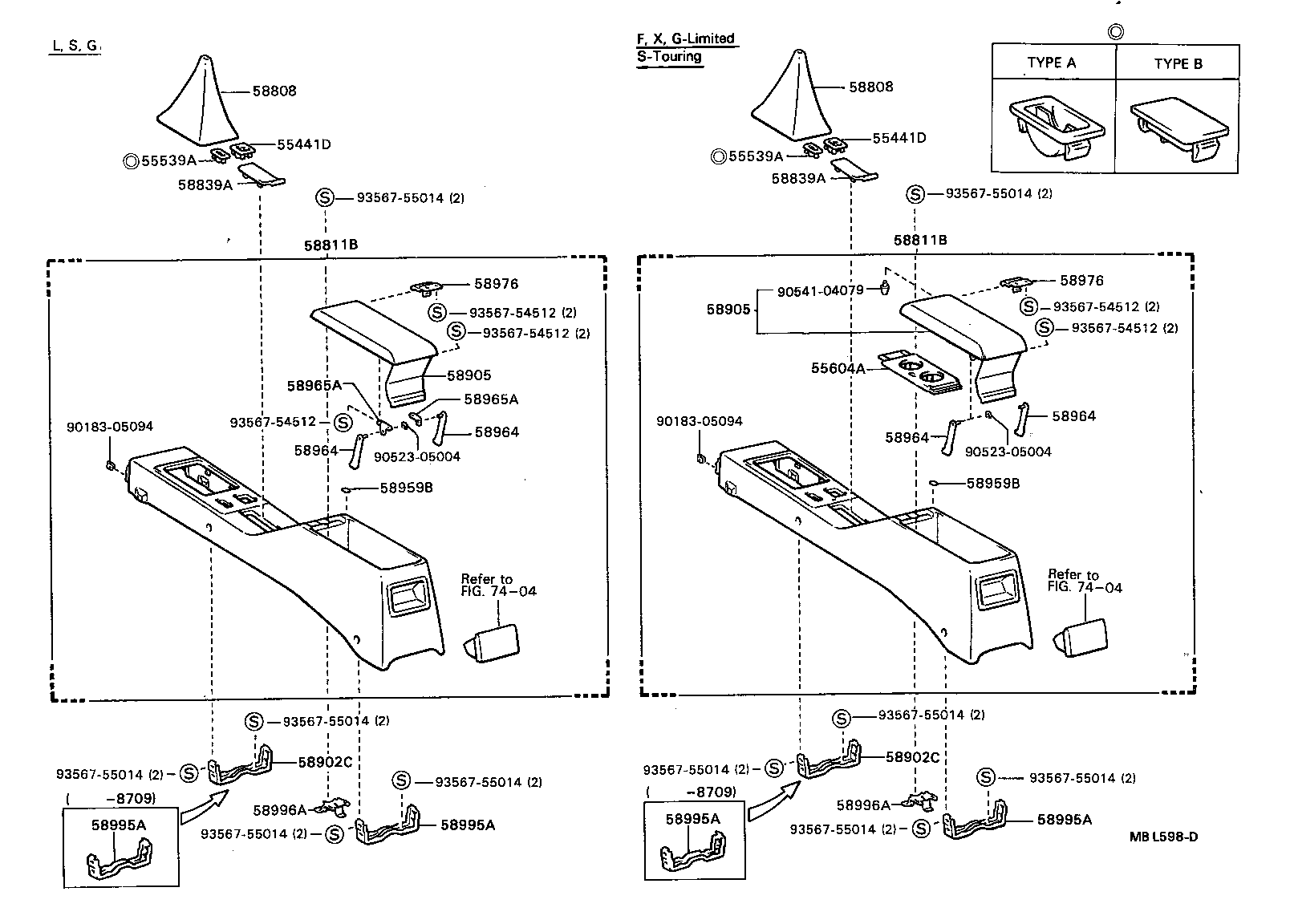

Click highlighted areas on diagram

diagram 55441D 55441D 55539A 55539A 55604A 58808 58808 58811B 58811B 58839A 58839A 58902C 58902C 58905 58905 58959B 58959B 58964 58964 58964 58964 58965A 58965A 58976 58976 58995A 58995A 58995A 58995A 58996A 58996A 7404 7404 9018305094 9018305094 9052305004 9052305004 9054104079 9356754512 9356754512 9356754512 9356754512 9356754512 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014
Part # Description Qty Price
55441D - BOX, INSTRUMENT PANEL COIN
55441-2015004

ST16#

DEEP BLUE,TRIM8#

 1
55441-2015016

ST16#

SABLE,TRIM4#

 1
55441-2015001

ST16#

BLACK,TRIM2#

 1
55441D - BOX, INSTRUMENT PANEL COIN
55441-2015004

ST16#

DEEP BLUE,TRIM8#

 1
55441-2015016

ST16#

SABLE,TRIM4#

 1
55441-2015001

ST16#

BLACK,TRIM2#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-2002004

ST162..5F..G;ST16#..F,L,S,X

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2003001

ST16#

BLACK,TRIM2#,ﾀｲﾌﾟ B

 1
55539-2002011

ST162..5F..G;ST16#..F,L,S,X

BLACK,TRIM2#,ﾀｲﾌﾟ A

 1
55539-2002004

ST163;ST162..5F

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2002011

ST163;ST162..5F

BLACK,TRIM2#,ﾀｲﾌﾟ A

 1
55539-2002036

ST162..5F..G;ST16#..F,L,S,X

TYPE A,SABLE,SABLE,TRIM4#

 1
55539-2003004

ST16#

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2002036

ST163;ST162..5F

TYPE A,SABLE,SABLE,TRIM4#

 1
55539-2003026

ST16#

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
55539A - COVER, SPARE SWITCH HOLE
55539-2002004

ST162..5F..G;ST16#..F,L,S,X

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2003001

ST16#

BLACK,TRIM2#,ﾀｲﾌﾟ B

 1
55539-2002011

ST162..5F..G;ST16#..F,L,S,X

BLACK,TRIM2#,ﾀｲﾌﾟ A

 1
55539-2002004

ST163;ST162..5F

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ A

 1
55539-2002011

ST163;ST162..5F

BLACK,TRIM2#,ﾀｲﾌﾟ A

 1
55539-2002036

ST162..5F..G;ST16#..F,L,S,X

TYPE A,SABLE,SABLE,TRIM4#

 1
55539-2003004

ST16#

DEEP BLUE,TRIM8#,ﾀｲﾌﾟ B

 1
55539-2002036

ST163;ST162..5F

TYPE A,SABLE,SABLE,TRIM4#

 1
55539-2003026

ST16#

SABLE,TRIM4#,ﾀｲﾌﾟ B

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-20010

ST162..S

S ﾂ-ﾘﾝｸﾞ

 1
55604-20010

ST16#..F,X

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2005016

ST16#..5F

SABLE,SABLE,TRIM4#

 1
58808-2005001

ST16#..5F

BLACK,TRIM2#

 1
58808-2005004

ST16#..5F

DEEP BLUE,TRIM8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2005016

ST16#..5F

SABLE,SABLE,TRIM4#

 1
58808-2005001

ST16#..5F

BLACK,TRIM2#

 1
58808-2005004

ST16#..5F

DEEP BLUE,TRIM8#

 1
58811B - BOX, CONSOLE
58801-2014006

ST16#..G,L,S

SABLE,SABLE,TRIM4#

 1
58801-2014004

ST16#..G,L,S

DEEP BLUE,TRIM8#

 1
58801-2015004

ST16#..F,X

DEEP BLUE,TRIM8#

 1
58801-2014001

ST16#..G,L,S

BLACK,TRIM2#

 1
58801-2015001

ST16#..F,X

BLACK,TRIM2#

 1
58801-2015001

ST162..S

S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)#

 1
58801-2015006

ST16#..F,X

SABLE,TRIM4#

 1
58811B - BOX, CONSOLE
58801-2014006

ST16#..G,L,S

SABLE,SABLE,TRIM4#

 1
58801-2014004

ST16#..G,L,S

DEEP BLUE,TRIM8#

 1
58801-2015004

ST16#..F,X

DEEP BLUE,TRIM8#

 1
58801-2014001

ST16#..G,L,S

BLACK,TRIM2#

 1
58801-2015001

ST16#..F,X

BLACK,TRIM2#

 1
58801-2015001

ST162..S

S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)#

 1
58801-2015006

ST16#..F,X

SABLE,TRIM4#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-2002016

ST16#

SABLE,TRIM4#

 1
58839-2002004

ST16#

DEEP BLUE,TRIM8#

 1
58839-2002001

ST16#

BLACK,TRIM2#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-2002016

ST16#

SABLE,TRIM4#

 1
58839-2002004

ST16#

DEEP BLUE,TRIM8#

 1
58839-2002001

ST16#

BLACK,TRIM2#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-20040

ST16#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-20040

ST16#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2007004

ST16#..F,X

DEEP BLUE,TRIM8#

 1
58951-2007004

ST16#..G,L,S

DEEP BLUE,TRIM8#

 1
58951-2007001

ST16#..G,L,S

BLACK,TRIM2#

 1
58905-2007006

ST16#..F,X

SABLE,TRIM4#

 1
58905-2007001

ST162..S

S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)#

 1
58905-2007001

ST16#..F,X

BLACK,TRIM2#

 1
58951-2007016

ST16#..G,L,S

SABLE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2007004

ST16#..F,X

DEEP BLUE,TRIM8#

 1
58951-2007004

ST16#..G,L,S

DEEP BLUE,TRIM8#

 1
58951-2007001

ST16#..G,L,S

BLACK,TRIM2#

 1
58905-2007006

ST16#..F,X

SABLE,TRIM4#

 1
58905-2007001

ST162..S

S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)#

 1
58905-2007001

ST16#..F,X

BLACK,TRIM2#

 1
58951-2007016

ST16#..G,L,S

SABLE,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

ST16#

 2
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

ST16#

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30040

ST16#..F,X

左側

 1
58964-30030

ST16#..G,L,S

左側

 1
58964-90K00

ST16#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30040

ST16#..F,X

左側

 1
58964-30030

ST16#..G,L,S

左側

 1
58964-90K00

ST16#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30040

ST16#..F,X

左側

 1
58964-30030

ST16#..G,L,S

左側

 1
58964-90K00

ST16#

右側

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30040

ST16#..F,X

左側

 1
58964-30030

ST16#..G,L,S

左側

 1
58964-90K00

ST16#

右側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

ST16#..G,L,S

左側

 1
58965-20020

ST16#..G,L,S

右側

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12010

ST16#..G,L,S

左側

 1
58965-20020

ST16#..G,L,S

右側

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

ST16#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

ST16#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20030

ST16#

 2
58995-20030

ST16#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20030

ST16#

 2
58995-20030

ST16#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20030

ST16#

 2
58995-20030

ST16#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-20030

ST16#

 2
58995-20030

ST16#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-20030

ST16#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-20030

ST16#

 1
Common parts
90183-05094
90523-05004
90541-04079
93567-54512
93567-55014
Linked diagrams
7404
