ST162-ATMSK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )F,L,S,X

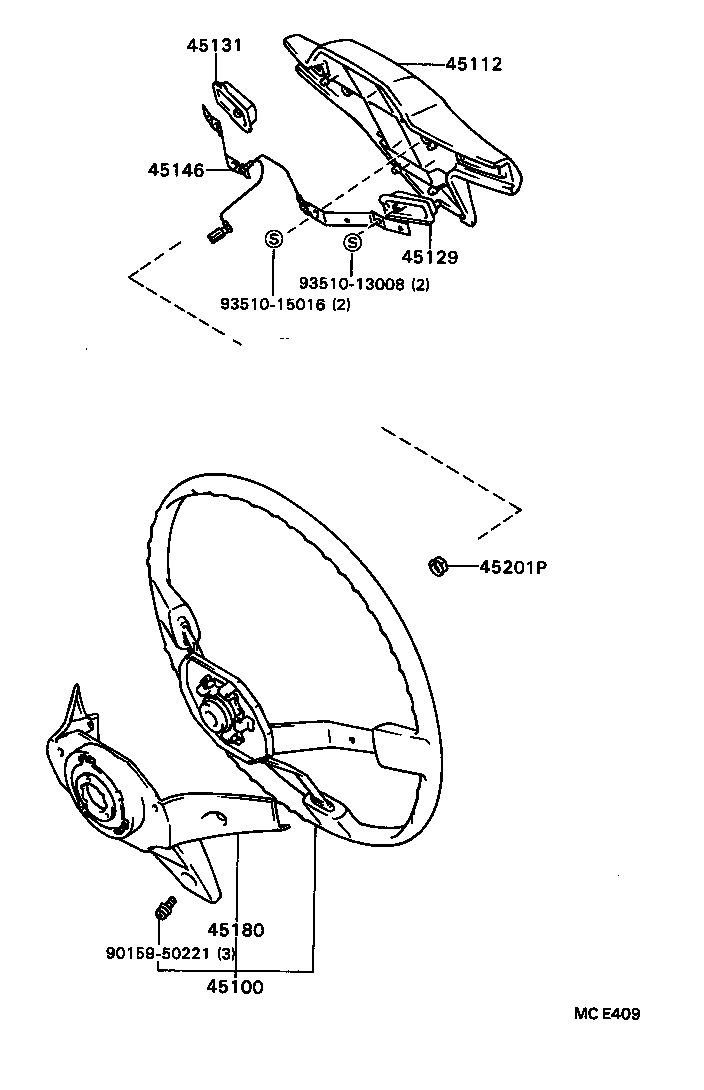

Click highlighted areas on diagram

diagram 45100 45112 45129 45131 45146 45180 45201P 9015950221 9351013008 9351015016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2055004

ST16#..F,L,S,X

DEEP BLUE,TRIM8#

 1
45100-2055006

ST16#..F,L,S,X

BROWN,TRIM4#

 1
45100-2055001

ST16#..F,L,S,X

NEW BLACK,TRIM2#

 1
45112 - PAD, STEERING WHEEL
45112-2038001

ST16#..F,L,S,X

NEW BLACK,TRIM2#

 1
45112-2038004

ST16#..F,L,S,X

DEEP BLUE,TRIM8#

 1
45112-2038006

ST16#..F,L,S,X

BROWN,TRIM4#

 1
45129 - BUTTON, HORN, NO.2
45129-2011001

ST16#..F,L,S,X

NEW BLACK,TRIM2#

 1
45129-2011006

ST16#..F,L,S,X

BROWN,TRIM4#

 1
45129-2011004

ST16#..F,L,S,X

DEEP BLUE,TRIM8#

 1
45131 - BUTTON, HORN, NO.1
45131-2020004

ST16#..F,L,S,X

DEEP BLUE,TRIM8#

 1
45131-2020006

ST16#..F,L,S,X

BROWN,TRIM4#

 1
45131-2020001

ST16#..F,L,S,X

NEW BLACK,TRIM2#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-20161

ST16#..F,L,S,X

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2005001

ST16#..F,L,S,X

NEW BLACK,TRIM2#

 1
45180-2005006

ST16#..F,L,S,X

BROWN,TRIM4#

 1
45180-2005004

ST16#..F,L,S,X

DEEP BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

ST16#

 1
Common parts
90159-50221
93510-13008
93510-15016
