ST162-ATMSK (1987)
Toyota Carina Ed

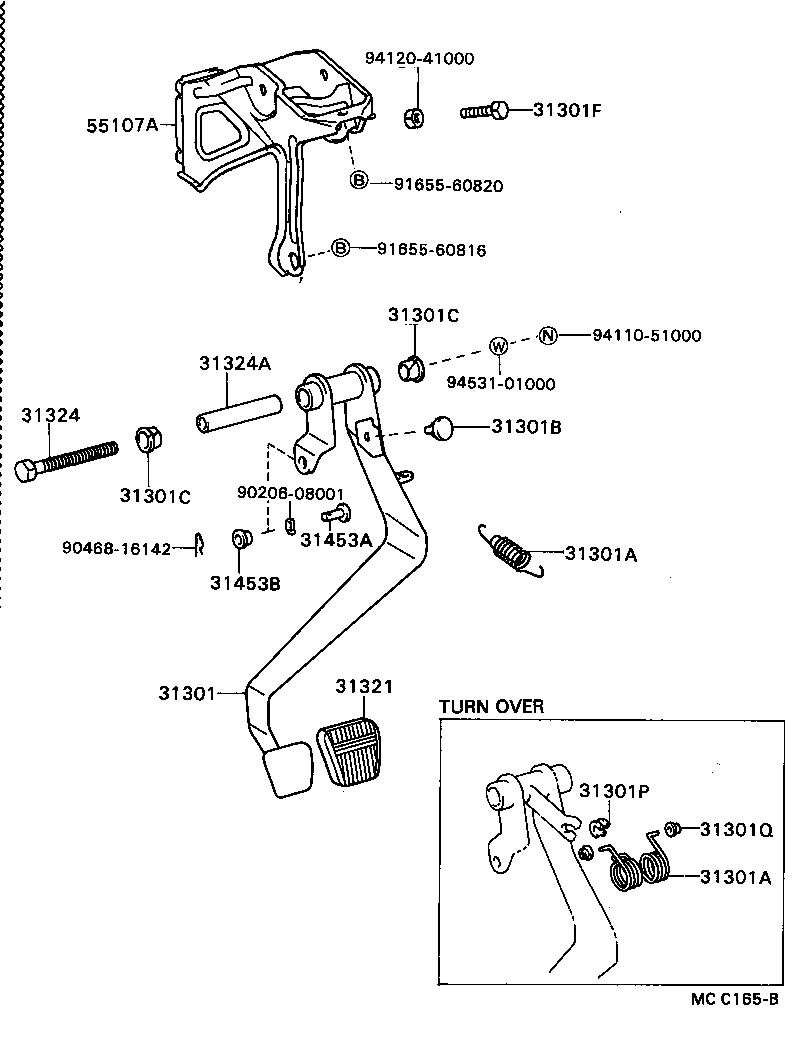

ILLUST NO. 1 OF 2(8708- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20250 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 31310-20010 |
ST162..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35020 |
ST162..5F |
1 | ||
| 90501-50008 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35020 |
ST162..5F |
1 | ||
| 90501-50008 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
ST16#..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
2 | ||
| 90386-13192 |
ST162..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
2 | ||
| 90386-13192 |
ST162..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ST16#..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-04002 |
ST162..5F |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-04009 |
ST162..5F |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
ST16#..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51085 |
ST16#..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10082 |
ST16#..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
ST16#..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
ST16#..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20150 |
ST162..5F TSUTSUMI PLANT |
1 | ||
| 55107-20090 |
ST162..5F TAHARA PLANT |
1 | ||
| 55107-20200 |
ST162..5F TAHARA PLANT,ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 55107-20220 |
ST162..5F TSUTSUMI PLANT,ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60816 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||

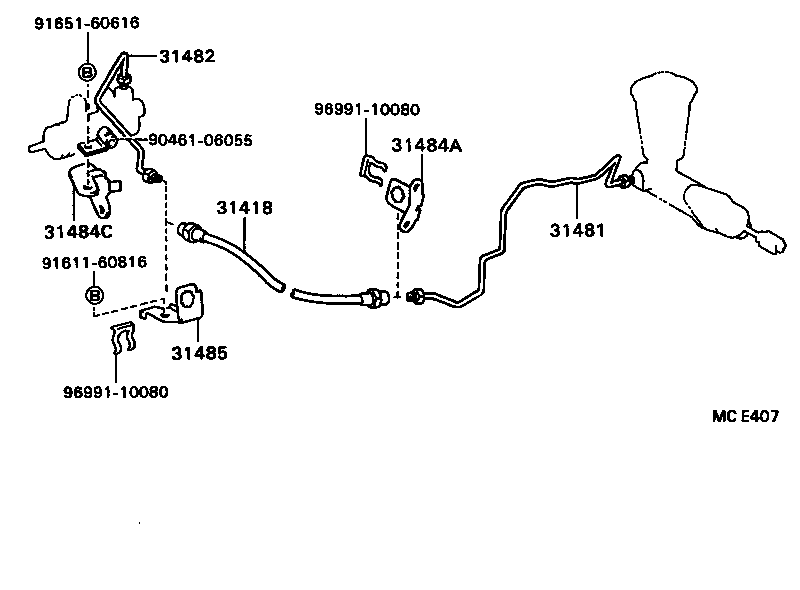

ILLUST NO. 2 OF 2(8708- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01025 |
ST162..5F |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20410 |
ST16#..5F |
1 | ||
| 31481-20220 |
ST16#..5F |
1 | ||
| 31481-20420 |
ST162..5F..(G,S) ｱﾘ(ESC) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20340 |
ST162,163..5F..(F,L,S,X) |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-20240 |
ST16#..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
ST16#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-20300 |
ST16#..5F |
1 | ||
| Common parts | ||||
| 90461-06055 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
| 96991-10080 | ||||

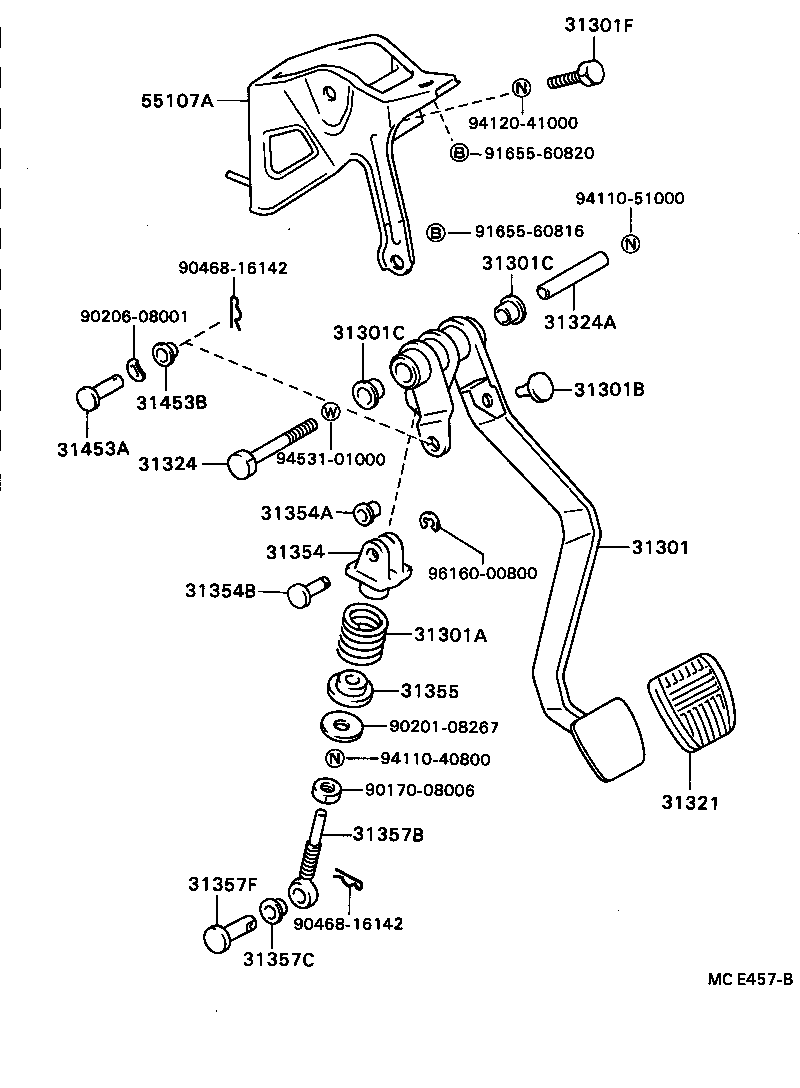

ILLUST NO. 1 OF 2(8708- )ST162..5F
ｵ-ﾄ ﾄﾞﾗｲﾌﾞ , TEMS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20250 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 31310-20010 |
ST162..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35020 |
ST162..5F |
1 | ||
| 90501-50008 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
ST16#..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
2 | ||
| 90386-13192 |
ST162..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ST162..5F..S ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
2 | ||
| 90386-13192 |
ST162..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ST16#..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
ST16#..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51085 |
ST16#..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10082 |
ST16#..5F |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-12010 |
ST162..5F..S |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
ST162..5F..S |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
ST162..5F..S |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-20020 |
ST162..5F..S |
1 | ||
| 31357B - ROD, OVER CENTER ADJUSTING | ||||
| 31357-32010 |
ST162..5F..S |
1 | ||
| 31357C - BUSH(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90386-10019 |
ST162..5F..S |
1 | ||
| 31357F - PIN, W/HOLE(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90240-10017 |
ST162..5F..S |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
ST16#..5F 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
ST16#..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20150 |
ST162..5F TSUTSUMI PLANT |
1 | ||
| 55107-20090 |
ST162..5F TAHARA PLANT |
1 | ||
| 55107-20200 |
ST162..5F TAHARA PLANT,ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 55107-20220 |
ST162..5F TSUTSUMI PLANT,ｱﾘ(TEMS) OR ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| Common parts | ||||
| 90170-08006 | ||||
| 90201-08267 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60816 | ||||
| 91655-60820 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 96160-00800 | ||||
