ST162-ATMSK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

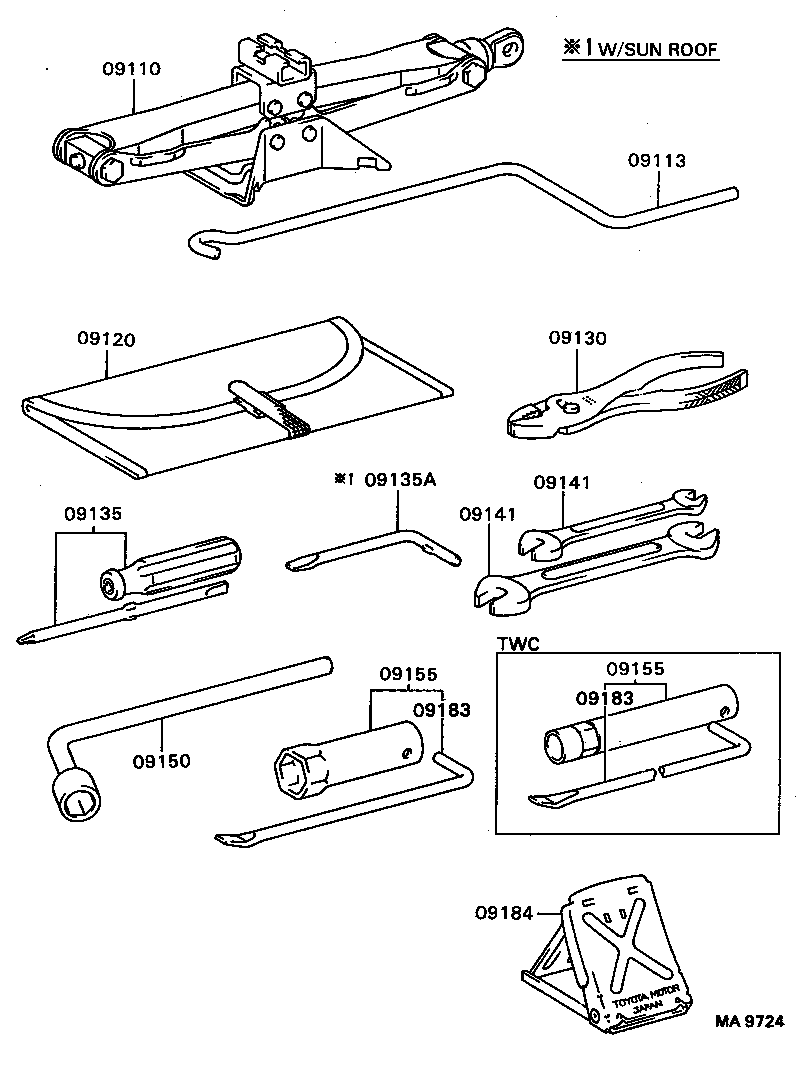

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09135A 09141 09141 09150 09155 09155 09183 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-20060

ST16#

 1
09113 - HANDLE, JACK
09113-20030

ST16#

 1
09120 - BAG, TOOL
09120-10030

ST16#

 1
09130 - PLIERS
99913-11500

ST16#

 1
09135 - DRIVER, SCREW
99915-10700

ST16#

 1
09135A - BIT, SCREW DRIVER
09135-00012

ST160,162..F,G,S,X

 1
09141 - SPANNER
99914-11214

ST16#

12 X 14

 1
99914-10810

ST16#

8 X 10

 1
09141 - SPANNER
99914-11214

ST16#

12 X 14

 1
99914-10810

ST16#

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-26010

ST16#

 1
09155 - WRENCH, SPARK PLUG
09155-74020

ST162..S,X

 1
09155 - WRENCH, SPARK PLUG
09155-74020

ST162..S,X

 1
09183 - WRENCH, WHEEL CAP
09183-00010

ST16#

 1
09183 - WRENCH, WHEEL CAP
09183-00010

ST16#

 1
09184 - STOPPER, WHEEL
09184-00010

ST16#

 1
