Toyota Camry hybrid AVV50 ARMREST & VISOR

AVV50-AEXNB (2011)

Toyota Camry Hybrid

Production Aug 2011 - Sep 2014

Engine 2ARFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1108- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-33C30B2	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	1
74310-33C30A0	AVV50 SHELL,TRIM0#	09/2013 - 09/2014	1
74320 - VISOR ASSY, LH
74320-33C20B2	AVV50 GRAY,TRIM2#	08/2011 - 09/2012	1
74320-33C21B2	AVV50 GRAY,TRIM2#	09/2012 - 09/2014	1
74320-33C21A0	AVV50 SHELL,TRIM0#	09/2013 - 09/2014	1
74325 - COVER, VISOR BRACKET
74317-60020B2	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	2
74317-60020A3	AVV50 SHELL,TRIM0#	09/2013 - 09/2014	2
74348 - HOLDER, VISOR
74348-33040A3	AVV50 SHELL,TRIM0#	09/2013 - 09/2014	2
74348-33040B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	2
74610A - GRIP SUB-ASSY, ASSIST
74610-33160B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	2
74610-33160A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	2
74611C - COVER, ASSIST GRIP, LH
74612-33020A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74612-33020B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74611C - COVER, ASSIST GRIP, LH
74612-33020A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74612-33020B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74611C - COVER, ASSIST GRIP, LH
74612-33020A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74612-33020B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74612C - COVER, ASSIST GRIP, RH
74611-33010B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74611-33010A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74612C - COVER, ASSIST GRIP, RH
74611-33010B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74611-33010A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74612C - COVER, ASSIST GRIP, RH
74611-33010B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	4
74611-33010A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	4
74620C - GRIP ASSY, ASSIST, REAR RH
74610-33180A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	1
74610-33180B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	1
74630E - GRIP ASSY, ASSIST, REAR LH
74610-33170B0	AVV50 GRAY,TRIM2#	08/2011 - 09/2014	1
74610-33170A1	AVV50 SHELL,TRIM0#	08/2011 - 09/2014	1
Common parts
93229-15020

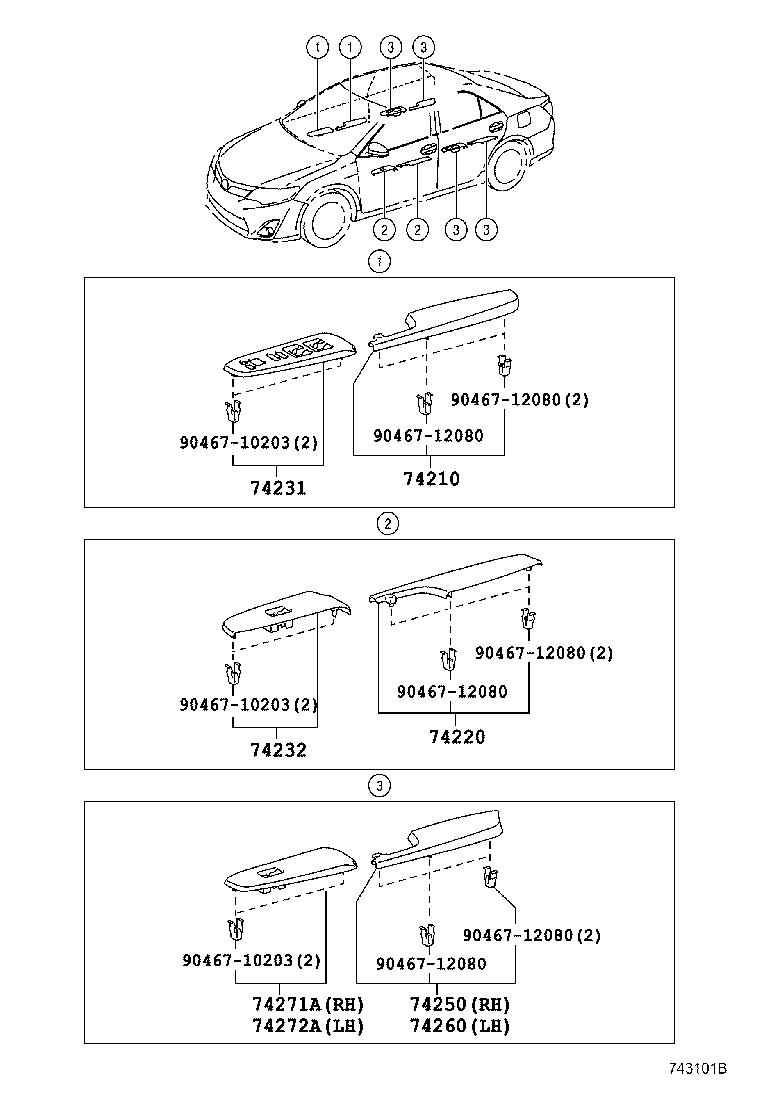

ILLUST NO. 1 OF 2(1108- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ

Part #	Description	Period	Qty
74210 - ARMREST ASSY, FRONT, RH
74210-33100C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
74210-33110C0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
74210-33110A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	08/2011 - 09/2014	1
74210-33110C0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
74210-33110A0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0#	09/2013 - 09/2014	1
74220 - ARMREST ASSY, FRONT, LH
74220-33110C0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
74220-33110A0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0#	09/2013 - 09/2014	1
74220-33090C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
74220-33110C0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
74220-33110A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	08/2011 - 09/2014	1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-33490E0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM2#	09/2013 - 09/2014	1
74231-33380E0	AVV50 SHELL,TRIM0#,2#	08/2011 - 09/2014	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-33380E0	AVV50 SHELL,TRIM0#,2#	08/2011 - 09/2014	1
74232-33400E0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM2#	09/2013 - 09/2014	1
74250 - ARMREST ASSY, REAR RH
74250-33100A0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0#	09/2013 - 09/2014	1
74250-33100C0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
74250-33100A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	08/2011 - 09/2014	1
74250-33100C0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
74250-33090C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
74260 - ARMREST ASSY, REAR LH
74260-33100C0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
74260-33100C0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
74260-33100A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	08/2011 - 09/2014	1
74260-33090C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
74260-33100A0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0#	09/2013 - 09/2014	1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-33290E0	AVV50 SHELL,TRIM0#,2#	08/2011 - 09/2014	1
74271-33320E0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM2#	09/2013 - 09/2014	1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-33290E0	AVV50 SHELL,TRIM0#,2#	08/2011 - 09/2014	1
74272-33320E0	AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM2#	09/2013 - 09/2014	1
Common parts
90467-10203
90467-12080
