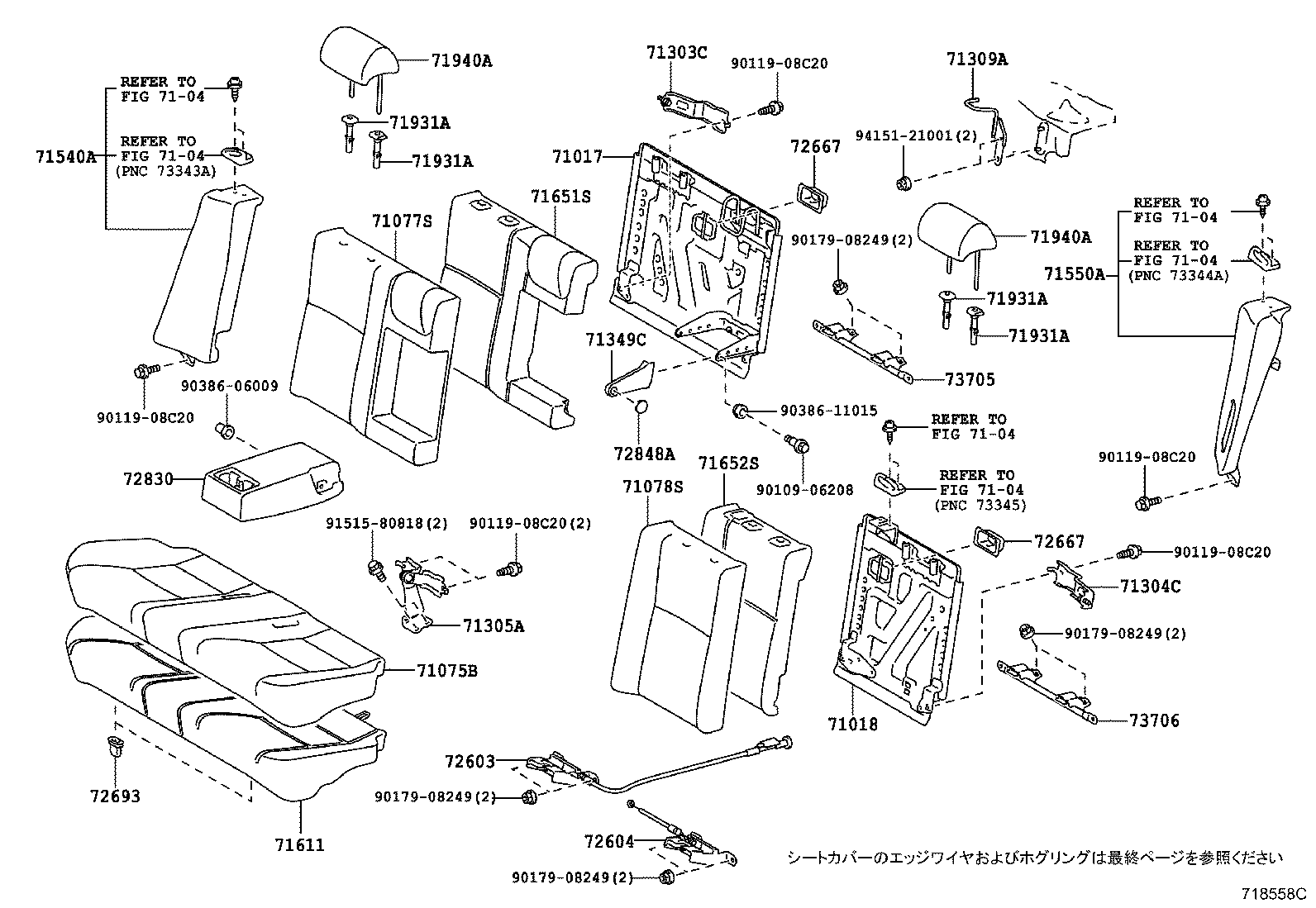

Toyota Camry hybrid AVV50 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-33200	AVV50	08/2011 - 09/2014	1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-33130	AVV50	08/2011 - 09/2014	1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-33B50C1	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71075-33B60C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
71075-33B30C6	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
71075-33B30A5	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-33D30C2	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71077-33D80C5	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
71077-33D80A3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71077-33C60C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-33760C2	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71078-33810C5	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
71078-33810A3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71078-33700C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-33051	AVV50	08/2011 - 09/2014	1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71303-33051	AVV50	08/2011 - 09/2014	1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-33060	AVV50	08/2011 - 09/2014	1
71309A - BRACKET SUB-ASSY, REAR SEAT BACK HOLDER
71309-33050	AVV50	08/2011 - 09/2014	1
71349C - COVER, REAR SEAT BACK HINGE
71349-33030C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71349-33030A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71540A - BACK ASSY, REAR SIDE SEAT, RH
71540-33440C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
71540-33450C1	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71540-33460A3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71540-33460C5	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
71550A - BACK ASSY, REAR SIDE SEAT, LH
71550-33430C1	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
71550-33440A2	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
71550-33470C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
71550-33440C4	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
71611 - PAD, REAR SEAT CUSHION
71503-33120	AVV50	08/2011 - 09/2014	1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-33190	AVV50	08/2011 - 09/2014	1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-33110	AVV50	08/2011 - 09/2014	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0	AVV50 ﾛｯｸ付,BLACK,TRIM2#	08/2011 - 09/2014	2
71931-47020A0	AVV50 ﾛｯｸ無,SHELL,TRIM0#	09/2013 - 09/2014	2
71930-47020A0	AVV50 ﾛｯｸ付,SHELL,TRIM0#	09/2013 - 09/2014	2
71931-47020C0	AVV50 ﾛｯｸ無,BLACK,TRIM2#	08/2011 - 09/2014	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0	AVV50 ﾛｯｸ付,BLACK,TRIM2#	08/2011 - 09/2014	2
71931-47020A0	AVV50 ﾛｯｸ無,SHELL,TRIM0#	09/2013 - 09/2014	2
71930-47020A0	AVV50 ﾛｯｸ付,SHELL,TRIM0#	09/2013 - 09/2014	2
71931-47020C0	AVV50 ﾛｯｸ無,BLACK,TRIM2#	08/2011 - 09/2014	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0	AVV50 ﾛｯｸ付,BLACK,TRIM2#	08/2011 - 09/2014	2
71931-47020A0	AVV50 ﾛｯｸ無,SHELL,TRIM0#	09/2013 - 09/2014	2
71930-47020A0	AVV50 ﾛｯｸ付,SHELL,TRIM0#	09/2013 - 09/2014	2
71931-47020C0	AVV50 ﾛｯｸ無,BLACK,TRIM2#	08/2011 - 09/2014	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-47020C0	AVV50 ﾛｯｸ付,BLACK,TRIM2#	08/2011 - 09/2014	2
71931-47020A0	AVV50 ﾛｯｸ無,SHELL,TRIM0#	09/2013 - 09/2014	2
71930-47020A0	AVV50 ﾛｯｸ付,SHELL,TRIM0#	09/2013 - 09/2014	2
71931-47020C0	AVV50 ﾛｯｸ無,BLACK,TRIM2#	08/2011 - 09/2014	2
71940A - HEADREST ASSY, REAR SEAT
71940-33B90A2	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	2
71940-33B90C3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	2
71940-33C10C1	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	2
71940-33D50C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	2
71940A - HEADREST ASSY, REAR SEAT
71940-33B90A2	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	2
71940-33B90C3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	2
71940-33C10C1	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	2
71940-33D50C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-33070	AVV50	08/2011 - 09/2014	1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-33080	AVV50	08/2011 - 09/2014	1
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-33010	AVV50	08/2011 - 09/2014	2
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-33010	AVV50	08/2011 - 09/2014	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080	AVV50	08/2011 - 09/2014	2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-33520C6	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#	08/2011 - 09/2014	1
72830-33520A3	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
72830-33C20C1	AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2#	09/2013 - 09/2014	1
72830-33660C2	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
72848A - CAP, SEAT ARMREST, NO.1
72848-33040C0	AVV50 BLACK,TRIM2#	08/2011 - 09/2014	1
72848-33040A0	AVV50 ﾊｲﾌﾞﾘｯﾄﾞﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0#	09/2013 - 09/2014	1
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-33090	AVV50	08/2011 - 09/2014	1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-33090	AVV50	08/2011 - 09/2014	1
Common parts
90109-06208
90119-08C20
90179-08249
90386-06009
90386-11015
91515-80818
94151-21001
Linked diagrams
7104

AVV50-AEXNB (2011)

(1108-1409)

(1108- )
