AVV50-AEXNB (2011)
Toyota Camry Hybrid

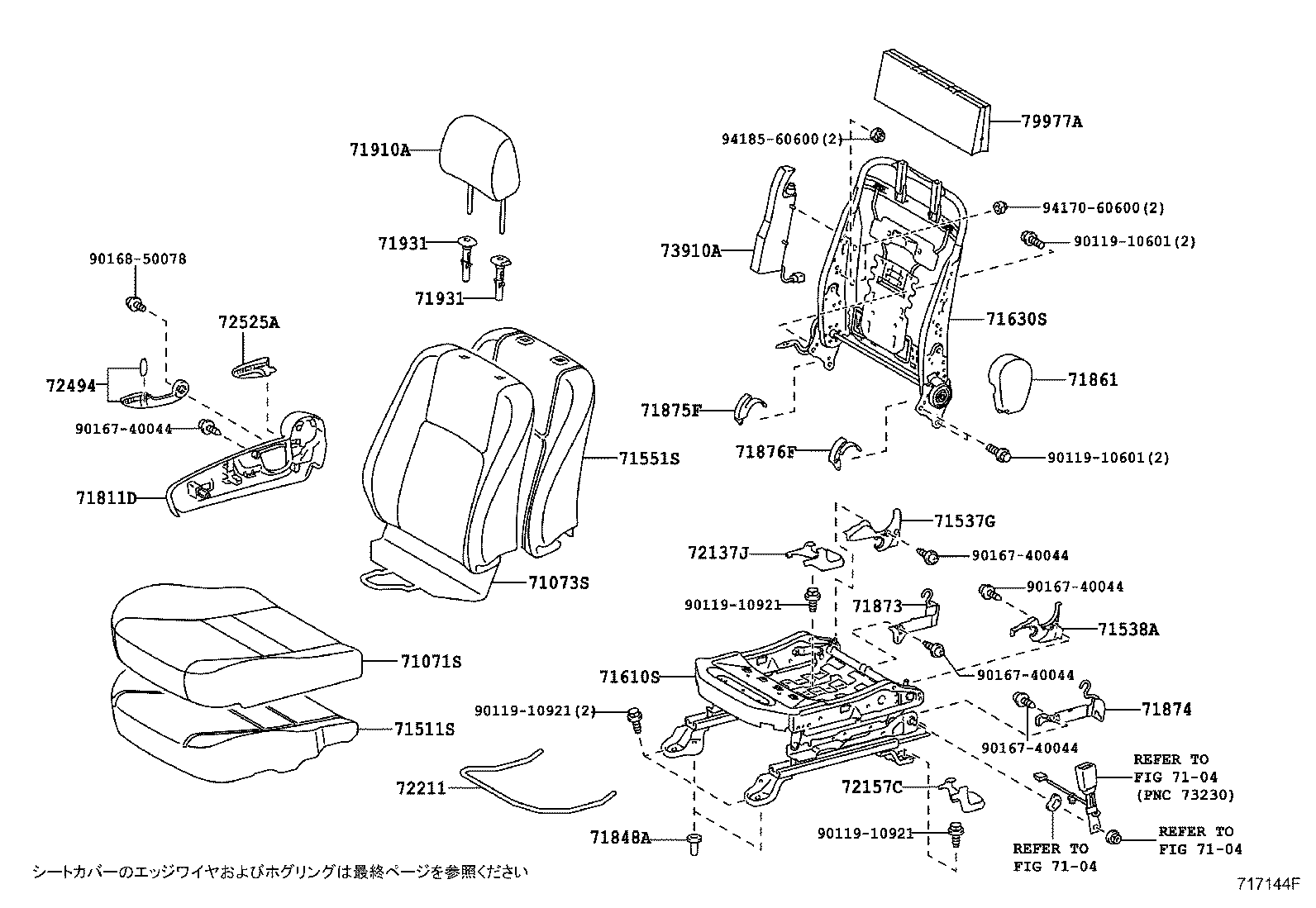

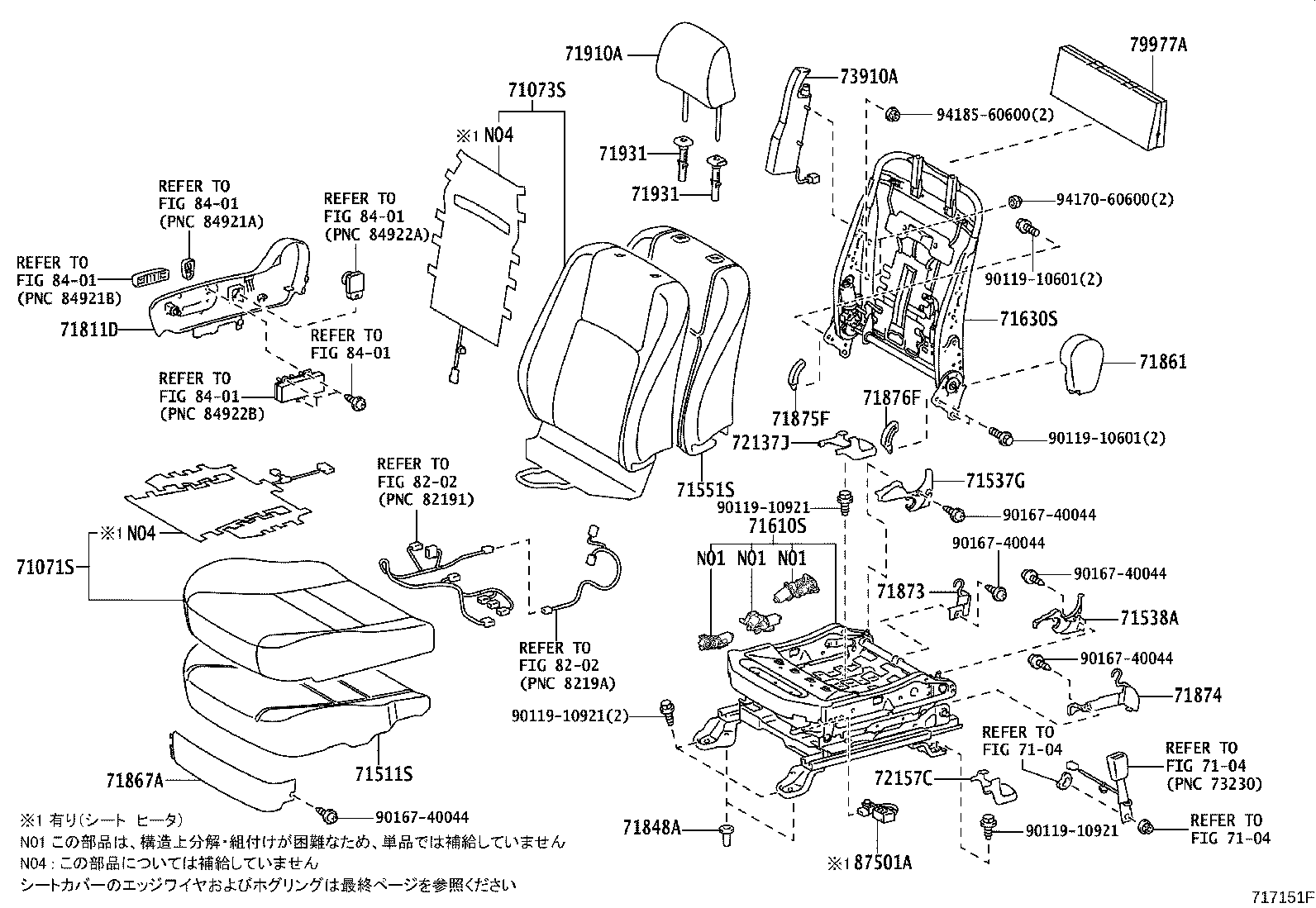

(1108- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33G90C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71071-33G82A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-33G82C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33G80C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33E81C2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33G81A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-33E80C2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33M50C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71071-33G91C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71071-33G81C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33L60C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71073-33P80C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71073-33L70A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71073-33L70C5 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33330 |
AVV50 |
1 | ||
| 71511-33430 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33431 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71511-33331 |
AVV50 |
1 | ||
| 71511-33431 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33430 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33431 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33430 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71537-47010A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71537-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71537-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538-47010A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71538-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71538-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33330 |
AVV50 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-33030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33090 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33080 |
AVV50 |
1 | ||
| 71610-33090 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71610-33091 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71610-33031 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33091 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33081 |
AVV50 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-33170 |
AVV50 |
1 | ||
| 71630-33180 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71630-33180 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71630-33180 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33280C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71811-33280A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-33270C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71811-33280A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-33280A0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71811-33280C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71811-33280C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
AVV50 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33170A0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71861-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71861-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71861-33170C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71861-33160C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-60030 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71873-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-47040 |
AVV50 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33110 |
AVV50 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-60210C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71875-60210A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71875-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71876-60210A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33740A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71910-33751C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71910-33740C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71910-33890C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
2 | ||
| 71910-33750C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-06180C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06140C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-33040 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 72211-33040 |
AVV50 |
2 | ||
| 72211-33040 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-33040C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33030 |
AVV50 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33010 |
AVV50 |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

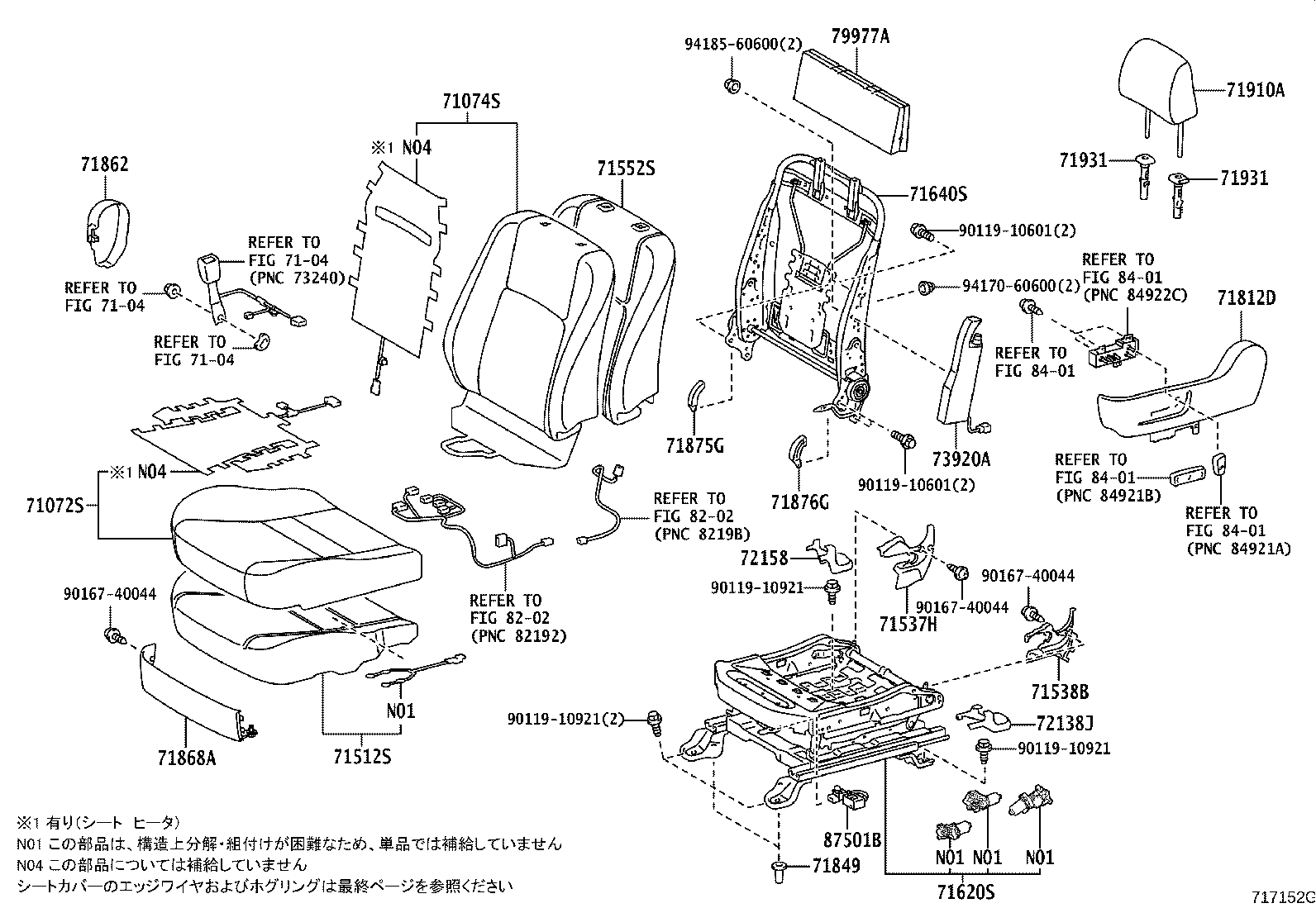

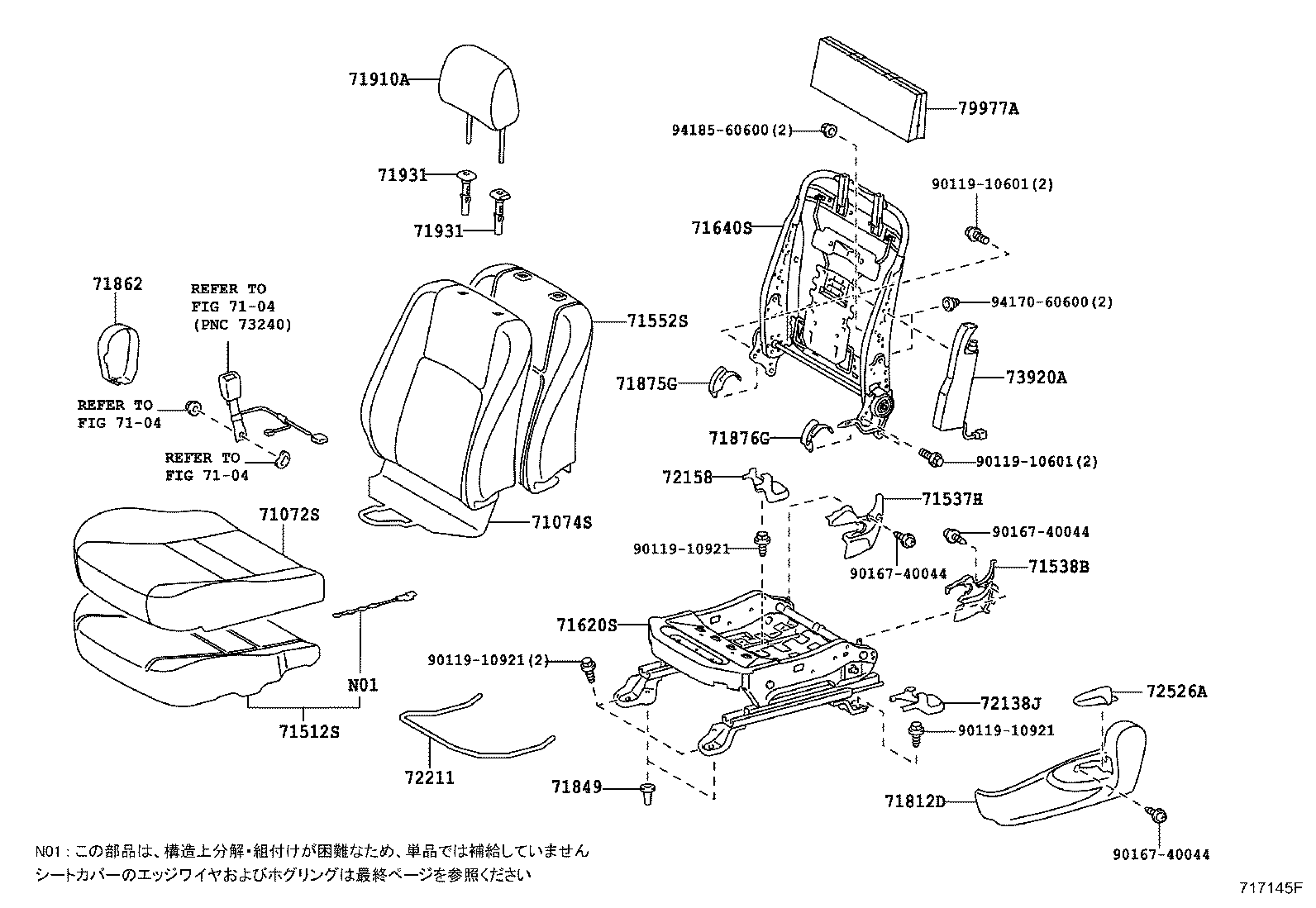

(1108- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33J21A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-33J70C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71072-33J20C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J22C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J21C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J31C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71072-33J22A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-33J30C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33L30C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71074-33L40A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71074-33L40C5 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71074-33N70C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-33181 |
AVV50 |
1 | ||
| 71502-33190 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-33191 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-33180 |
AVV50 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-60110C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71537-60110A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47020A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538-47020C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33220 |
AVV50 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-33041 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71620-33040 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71620-33101 |
AVV50 |
1 | ||
| 71620-33100 |
AVV50 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-33060 |
AVV50 |
1 | ||
| 71640-33070 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33330C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71812-33330A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71812-33320C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
AVV50 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33160C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71862-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71862-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33740A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71910-33751C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71910-33740C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71910-33890C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
2 | ||
| 71910-33750C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06150C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06140C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-33040 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 72211-33040 |
AVV50 |
2 | ||
| 72211-33040 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33030 |
AVV50 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33010 |
AVV50 |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1108- )
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33G90C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71071-33G82A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-33G82C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33G80C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33E81C2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33G81A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71071-33E80C2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71071-33M50C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71071-33G91C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71071-33G81C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33L60C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71073-33P80C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71073-33L70A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71073-33L70C5 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-33330 |
AVV50 |
1 | ||
| 71511-33430 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33431 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71511-33331 |
AVV50 |
1 | ||
| 71511-33431 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33430 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33431 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71511-33430 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71537-47010A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71537-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71537-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538-47010A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71538-47010C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71538-47010A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33330 |
AVV50 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-33030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33090 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33080 |
AVV50 |
1 | ||
| 71610-33090 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71610-33091 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71610-33031 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33091 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71610-33081 |
AVV50 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-33170 |
AVV50 |
1 | ||
| 71630-33180 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71630-33180 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71630-33180 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33280C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71811-33280A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-33270C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71811-33280A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71811-33280A0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71811-33280C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71811-33280C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
AVV50 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33170A0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71861-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71861-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71861-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71861-33170C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71861-33160C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60050A2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71867-60050C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71867-60050C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71867-60050C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71867-60050A2 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71867-60050A2 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-60030 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S) |
1 | ||
| 71873-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71873-47040 |
AVV50 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33110 |
AVV50 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-60210C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71875-60210A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71875-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71876-60210A1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),SHELL,TRIM0# |
1 | ||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ G ﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33740A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71910-33751C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71910-33740C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71910-33890C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
2 | ||
| 71910-33750C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-06180C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06140C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33030 |
AVV50 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33010 |
AVV50 |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60050 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1108- )
ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33J21A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-33J70C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71072-33J20C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J22C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J21C7 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71072-33J31C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71072-33J22A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71072-33J30C2 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33L30C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71074-33L40A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71074-33L40C5 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71074-33N70C0 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-33181 |
AVV50 |
1 | ||
| 71502-33190 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-33191 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71502-33180 |
AVV50 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-60110C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71537-60110A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-47020A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71538-47020C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33220 |
AVV50 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-33041 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71620-33040 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71620-33101 |
AVV50 |
1 | ||
| 71620-33100 |
AVV50 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-33060 |
AVV50 |
1 | ||
| 71640-33070 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33330C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71812-33330A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71812-33320C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
AVV50 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33160C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71862-33170C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71862-33170A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60050A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71868-60050C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71875-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71875-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60210A1 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
1 | ||
| 71876-47030C0 |
AVV50 BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33740A0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,SHELL,TRIM0# |
2 | ||
| 71910-33751C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71910-33740C0 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71910-33890C1 |
AVV50 “G PACKAGE PREMIUM BLACK”*(S),BLACK,TRIM2# |
2 | ||
| 71910-33750C0 |
AVV50 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
AVV50 ﾛｯｸ付,SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
AVV50 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-47020C0 |
AVV50 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47020A0 |
AVV50 ﾛｯｸ無,SHELL,TRIM0# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-06150C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06140C0 |
AVV50 BLACK,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33030 |
AVV50 |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33010 |
AVV50 |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60050 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 87501-60030 |
AVV50 ﾊｲﾌﾞﾘｯﾄﾞ ﾚｻﾞｰﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1108- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
