SXV20W-FWPGK (1996)
Toyota Camry Gracia
ILLUST NO. 5 OF 6(9612- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
MCV2#,SXV2# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33030 |
SXV2# |
1 | ||
| 84140-20540 |
SXV2# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) & ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84140-20440 |
SXV2# ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84140-33060 |
MCV2#,SXV2# |
1 | ||
| 84140-20540 |
SXV2# ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84140-33060 |
MCV2#,SXV2# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33060 |
SXV2# ﾅｼ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84306-33060 |
MCV2#,SXV2# |
1 | ||
| 84306-30120 |
MCV2#,SXV2# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-33560 |
SXV2#..WG |
1 | ||
| 84310-33700 |
SXV2#..WG ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84310-33580 |
SXV2#..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84310-33710 |
SXV2#..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) & ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84310-3T020 |
SXV2#..WG ﾅｼ(ｺﾝﾗｲﾄ) |
1 | ||
| 84310-33830 |
MCV2#,SXV2#..WG |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
MCV2#,SXV2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D860 |
MCV2#,SXV2#..WG |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-33020 |
MCV2#,SXV2# |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

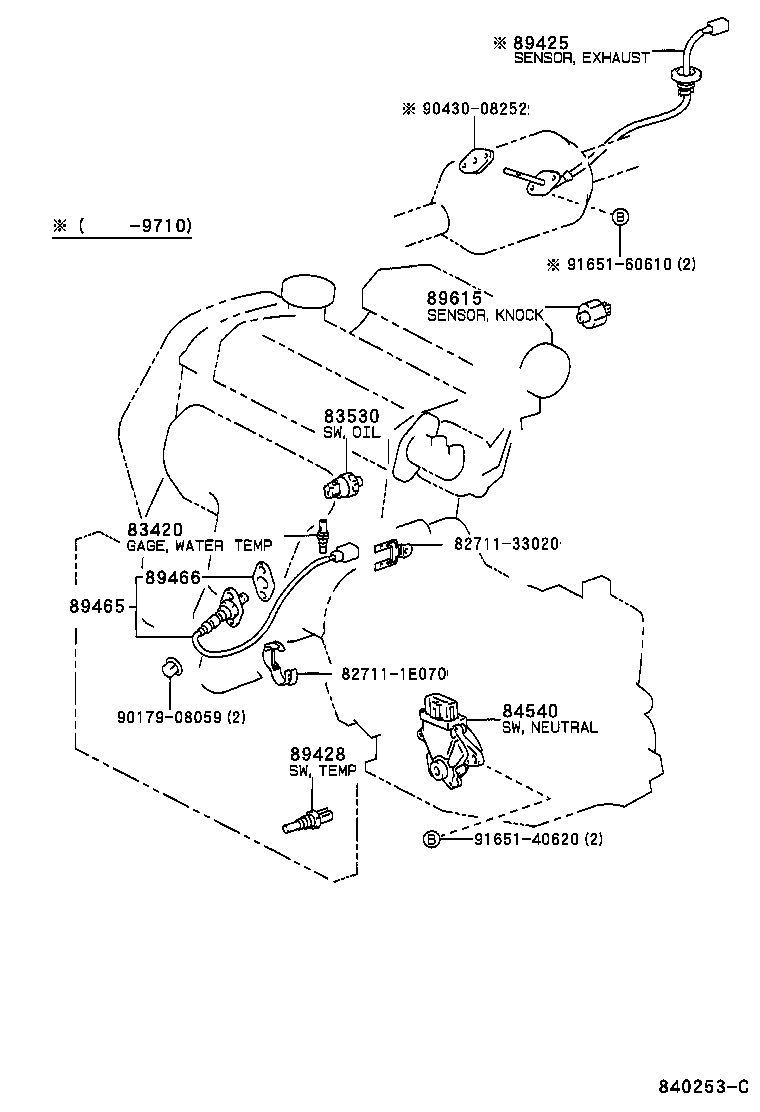

ILLUST NO. 1 OF 6(9612- )SXV2#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-AA010 |
SXV2# (L) |
1 | ||
| 83420-20040 |
SXV2# (J) |
1 | ||
| 83420-20040 |
MCV2#,SXV2# (J) |
1 | ||
| 83420-AA010 |
MCV2#,SXV2# (L) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-AA011 |
MCV2#,SXV2# 東海理化 |
1 | ||
| 83530-60020 |
MCV2#,SXV2# YAZAKI |
1 | ||
| 83530-30090 |
MCV2#,SXV2# |
1 | ||
| 83530-28020 |
MCV2#,SXV2# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-20220 |
SXV20 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39585 |
MCV21,SXV20 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
SXV2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-80005 |
SXV2# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
SXV2# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
SXV2# TOYOTA |
1 | ||
| 89615-32030 |
SXV2# DENSO |
1 | ||
| 89615-33020 |
SXV2# DENSO |
1 | ||
| 89615-32040 |
SXV2# TOYOTA |
1 | ||
| Common parts | ||||
| 82711-1E070 | ||||
| 82711-33020 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 91651-40620 | ||||
| 91651-60610 | ||||
ILLUST NO. 3 OF 6(9612- )
ｲﾝﾊﾟﾈ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
MCV2#,SXV2# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-33110 |
MCV2#,SXV2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33040C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
1 | ||
| 84332-33040B0 |
MCV2#,SXV2# BLUISH GRAY,TRIM1# |
1 | ||
| 84332-33040G0 |
MCV2#,SXV2# DK.SAGE,TRIM6# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
MCV2#,SXV2# 14V 0.84W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-33030 |
MCV2#,SXV2#..WG |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10450 |
MCV2#,SXV2#..WG 14V 1.4W |
1 | ||
| 84999-10410 |
MCV2#,SXV2#..WG 14V 0.84W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10450 |
MCV2#,SXV2#..WG 14V 1.4W |
1 | ||
| 84999-10410 |
MCV2#,SXV2#..WG 14V 0.84W |
1 | ||
| 84790D - SWITCH ASSY, WINDSHIELD DEFOGGER | ||||
| 84790-12360 |
MCV2#,SXV2# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
MCV2#,SXV2#..WG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84998-10730 |
MCV2#,SXV2#..WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
MCV2#,SXV2#..WG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84998-10730 |
MCV2#,SXV2#..WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 84790F - CAP, BULB(FOR WINDSHIELD DEFOGGER SWITCH) | ||||
| 84998-10640 |
MCV2#,SXV2# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 84790G - BULB(FOR WINDSHIELD DEFOGGER SWITCH) | ||||
| 84999-10780 |
MCV2#,SXV2# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
MCV2#,SXV2# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33040 |
MCV2#,SXV2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16040 |
MCV2#,SXV2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
MCV2#,SXV2# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
MCV2#,SXV2# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-33010 |
MCV2#,SXV2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
MCV2#,SXV2# |
1 | ||
| 85520-28010 |
MCV2#,SXV2#..WG |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
MCV2#,SXV2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33010 |
MCV2#,SXV2# |
1 | ||
| 85535-33010 |
MCV2#,SXV2#..WG |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
MCV2#,SXV2# |
1 | ||
| Common parts | ||||
| 90164-40100 | ||||
| 90170-09004 | ||||
ILLUST NO. 2 OF 6(9612- )
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
2MZFE,5SFE..MCV2#,SXV2# |
1 | ||
| 82069 - COVER SET, JUNCTION BLOCK | ||||
| 82069-06010 |
MCV2#,SXV2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
MCV2#,SXV2# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90080-82022 |
MCV2#,SXV2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82020 |
MCV2#,SXV2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82024 |
MCV2#,SXV2# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90080-82021 |
MCV2#,SXV2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82023 |
MCV2#,SXV2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82020 |
MCV2#,SXV2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82022 |
MCV2#,SXV2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82021 |
MCV2#,SXV2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82031 |
MCV2#,SXV2# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90080-82023 |
MCV2#,SXV2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82024 |
MCV2#,SXV2# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82031 |
MCV2#,SXV2# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90080-82022 |
MCV2#,SXV2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82020 |
MCV2#,SXV2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82024 |
MCV2#,SXV2# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90080-82021 |
MCV2#,SXV2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82023 |
MCV2#,SXV2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82020 |
MCV2#,SXV2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90080-82022 |
MCV2#,SXV2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90080-82021 |
MCV2#,SXV2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90080-82031 |
MCV2#,SXV2# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90080-82023 |
MCV2#,SXV2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90080-82024 |
MCV2#,SXV2# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
MCV21,SXV2# |
1 | ||
| 82616-20010 |
MCV2#,SXV2# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-45010 |
MCV2#,SXV2# |
1 | ||
| 82620-45010 |
MCV2#,SXV2#..WG |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-33050 |
MCV2#,SXV2# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33020 |
MCV2#,SXV2# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-06010 |
MCV2#,SXV2# |
1 | ||
| 82720-06020 |
MCV2#,SXV2# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-0W030 |
MCV2#,SXV2#..WG |
1 | ||
| 82672-0W020 |
SXV2#..WG |
1 | ||
| 82672-0W031 |
MCV2#,SXV2#..WG |
1 | ||
| 82674A - COVER, JUNCTION BLOCK, LOWER | ||||
| 82674-06010 |
MCV2#,SXV2# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
MCV2#,SXV2# |
1 | ||
| 82824-20140 |
MCV2#,SXV2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
MCV2#,SXV2# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
MCV2#,SXV2# |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-17010 |
MCV2#,SXV2# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
MCV2#,SXV2# |
1 | ||
| 90084-98011 |
MCV2#,SXV2# TOYOTA |
1 | ||
| 90987-03003 |
MCV2#,SXV2# DENSO |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
MCV2#,SXV2# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02012 |
MCV2#,SXV2# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
MCV2#,SXV2# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-33150 |
MCV2#,SXV2# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-33050 |
MCV2#,SXV2# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
MCV2#,SXV2# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
MCV2#,SXV2# |
1 | ||
| 89438-33010 |
SXV20..WG;MCV2#,SXV25 |
1 | ||
| Common parts | ||||
| 82711-06040 | ||||
| 90119-06005 | ||||
| 90119-06338 | ||||
| 90119-06539 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

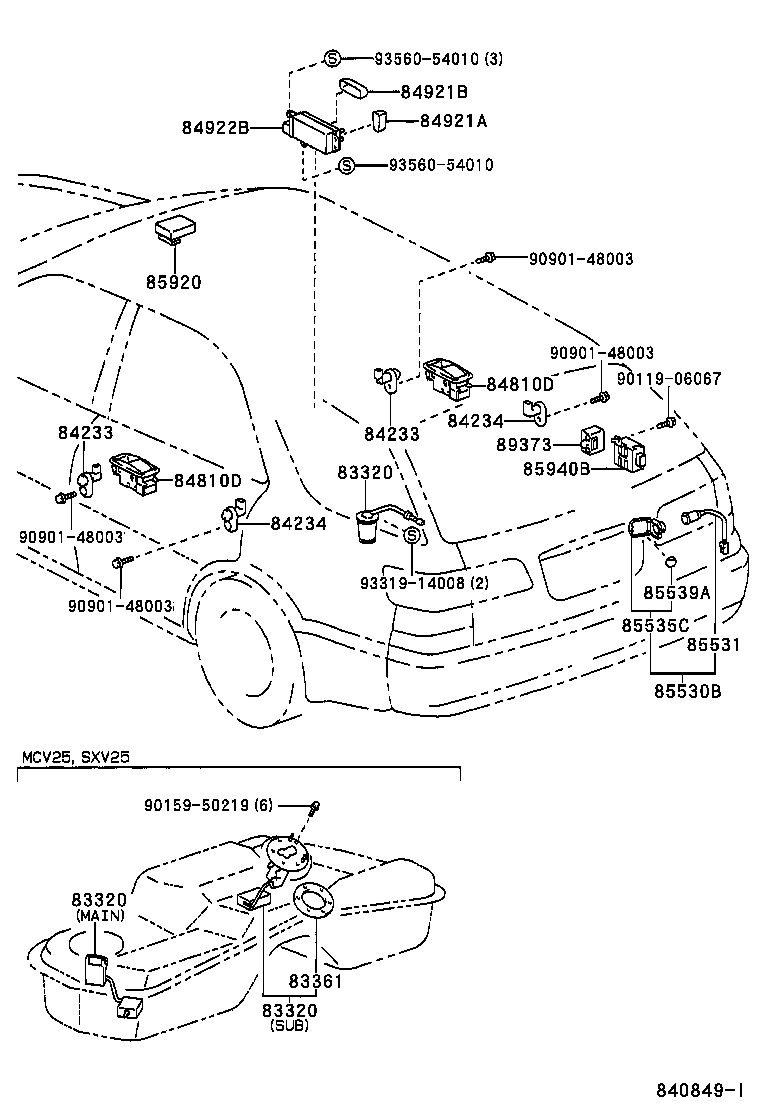

ILLUST NO. 6 OF 6(9612- )WG
ﾌﾛｱ, ﾄﾞｱ, ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33040 |
MCV21,SXV20 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33040 |
MCV21,SXV20 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33040 |
MCV21,SXV20 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
MCV2#,SXV2# |
2 | ||
| 84231-33071 |
MCV2#,SXV2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
MCV2#,SXV2# |
2 | ||
| 84231-33071 |
MCV2#,SXV2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MCV2#,SXV2# |
2 | ||
| 84231-33071 |
MCV2#,SXV2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
MCV2#,SXV2# |
2 | ||
| 84231-33071 |
MCV2#,SXV2# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33040 |
MCV2#,SXV2# |
2 | ||
| 84810-33080 |
MCV2#,SXV2#..WG ｶ-ﾎﾞﾝ |
2 | ||
| 84810-33060 |
MCV2#,SXV2# ﾓｸﾒ |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33040 |
MCV2#,SXV2# |
2 | ||
| 84810-33080 |
MCV2#,SXV2#..WG ｶ-ﾎﾞﾝ |
2 | ||
| 84810-33060 |
MCV2#,SXV2# ﾓｸﾒ |
2 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33040B0 |
MCV2#,SXV2# BLUE GRAY,TRIM1# |
1 | ||
| 84921-33040C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
1 | ||
| 84921-33040G0 |
MCV2#,SXV2# SAGE,TRIM6# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33070C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
1 | ||
| 84921-33070G0 |
MCV2#,SXV2# SAGE,TRIM6# |
1 | ||
| 84921-33070B0 |
MCV2#,SXV2# BLUE GRAY,TRIM1# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33070 |
MCV2#,SXV2# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33030B0 |
MCV21,SXV20..WG BLUE GRAY,TRIM1# |
1 | ||
| 85530-33030B0 |
SXV2#..WG BLUE GRAY,TRIM1# |
1 | ||
| 85530-33030G0 |
SXV2#..WG SAGE,TRIM6# |
1 | ||
| 85530-33030C0 |
SXV2#..WG BLACK,TRIM2# |
1 | ||
| 85530-33030G0 |
MCV21,SXV20..WG SAGE,TRIM6# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-33010 |
MCV21,SXV20..WG |
1 | ||
| 85531-33010 |
SXV2#..WG |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-33040G0 |
SXV2#..WG SAGE,TRIM6# |
1 | ||
| 85535-33040B0 |
SXV2#..WG BLUE GRAY,TRIM1# |
1 | ||
| 85535-33040B0 |
MCV21,SXV20..WG BLUE GRAY,TRIM1# |
1 | ||
| 85535-33040G0 |
MCV21,SXV20..WG SAGE,TRIM6# |
1 | ||
| 85535-33040C0 |
SXV2#..WG BLACK,TRIM2# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60010 |
MCV21,SXV20..WG |
1 | ||
| 85539-60010 |
SXV2#..WG |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-0W010B0 |
MCV2#,SXV2# LT.GRAY,TRIM1# |
1 | ||
| 85920-0W010G0 |
MCV2#,SXV2# SAGE,TRIM6# |
1 | ||
| 85920-0W010B0 |
MCV2#,SXV2#..WG LT.GRAY,TRIM2# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-33060 |
MCV2#,SXV2#..WG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-12140 |
MCV2#,SXV2#..WG |
1 | ||
| 89373-12140 |
MCV2#,SXV2# |
1 | ||
| 89373-12130 |
MCV2#,SXV2#..WG ｱﾘ(ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-50219 | ||||
| 90901-48003 | ||||
| 93319-14008 | ||||
| 93560-54010 | ||||
ILLUST NO. 4 OF 6(9612- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
MCV2#,SXV2# |
1 | ||
| 81980-12110 |
MCV2#,SXV2# |
1 | ||
| 81980-12070 |
MCV2#,SXV2#..WG |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-33130 |
MCV2#,SXV2# |
1 | ||
| 82683-33150 |
MCV2#,SXV2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33061 |
MCV2#,SXV2# |
1 | ||
| 82641-33060 |
MCV2#,SXV2# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-20340 |
MCV2#,SXV2# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33150 |
MCV2#,SXV2# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0W010 |
MCV2#,SXV2# |
1 | ||
| 82730-0W020 |
MCV2#,SXV2# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
MCV2#,SXV2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
MCV2#,SXV2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
MCV2#,SXV2# |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02012 |
MCV2#,SXV2# DENSO |
1 | ||
| 90080-87010 |
MCV2#,SXV2# SIEMENS |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02012 |
MCV2#,SXV2#..WG DENSO |
1 | ||
| 90080-87010 |
MCV2#,SXV2#..WG SIEMENS |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
MCV2#,SXV2# DENSO |
1 | ||
| 90080-87010 |
MCV2#,SXV2# SIEMENS |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
MCV2#,SXV2# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87010 |
MCV2#,SXV2# SIEMENS |
1 | ||
| 90987-02012 |
MCV2#,SXV2# DENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
MCV2#,SXV2# DENSO |
1 | ||
| 90080-87010 |
MCV2#,SXV2# SIEMENS |
1 | ||
| Common parts | ||||
| 93316-14010 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
