SXV20W-FWPGK (1996)
Toyota Camry Gracia

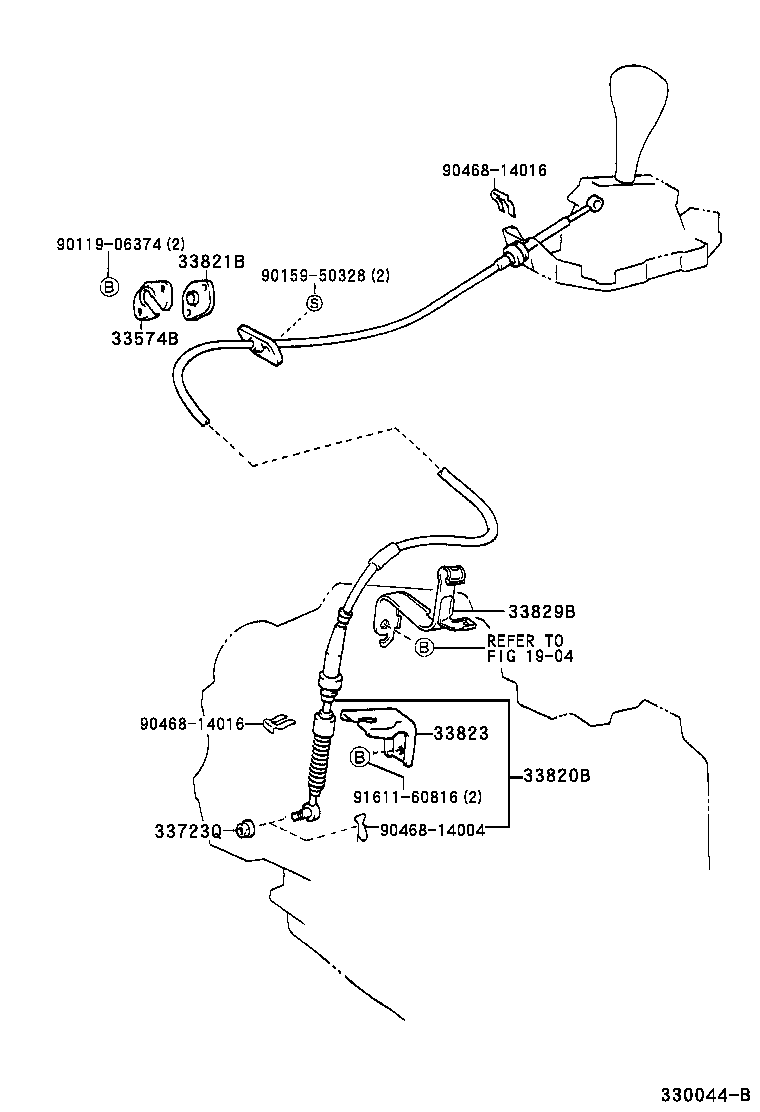

ILLUST NO. 2 OF 2(9612- )SXV20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-33030 |
MCV21,SXV20 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
MCV2#,SXV2# |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33130 |
SXV20 |
1 | ||
| 33820-33131 |
SXV20 |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33577-33010 |
MCV21,SXV20 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33010 |
SXV20 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-33010 |
SXV2# |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90159-50328 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1904 | ||||
ILLUST NO. 1 OF 2(9612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33560-33020 |
MCV2#,SXV2# |
1 | ||
| 33183C - DAMPER, DYNAMIC | ||||
| 33183-33020 |
MCV2#,SXV2# NO.1 |
1 | ||
| 33183-33030 |
MCV2#,SXV2# NO.2 |
1 | ||
| 33183C - DAMPER, DYNAMIC | ||||
| 33183-33020 |
MCV2#,SXV2# NO.1 |
1 | ||
| 33183-33030 |
MCV2#,SXV2# NO.2 |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-33040 |
MCV2#,SXV2# |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-33100 |
MCV2#,SXV2# |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
MCV2#,SXV2# |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-33050G0 |
SXV20;SXV25..WG ｳﾚﾀﾝ,DK.SAGE,TRIM6# |
1 | ||
| 33542-33060B1 |
MCV2#,SXV2# ﾎﾝｶﾞﾜ,BLUISH GRAY,TRIM1# |
1 | ||
| 33542-33060G0 |
MCV2#,SXV2# ﾎﾝｶﾞﾜ,DK.SAGE,TRIM6# |
1 | ||
| 33542-33120G0 |
SXV2# DK.SAGE,TRIM6# |
1 | ||
| 33542-33130C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
1 | ||
| 33542-33050B1 |
SXV20;SXV25..WG ｳﾚﾀﾝ,BLUISH GRAY,TRIM1# |
1 | ||
| 33542-33130G0 |
MCV2#,SXV2# ﾎﾝｶﾞﾜ,DK.SAGE,TRIM6# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-33020 |
MCV2#,SXV2# |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33010 |
MCV2#,SXV2# NO.1 |
1 | ||
| 33539-33030 |
MCV2#,SXV2# NO.2 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33010 |
MCV2#,SXV2# NO.1 |
1 | ||
| 33539-33030 |
MCV2#,SXV2# NO.2 |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
MCV2#,SXV2# |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
MCV2#,SXV2# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
MCV2#,SXV2# |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-33080 |
MCV2#,SXV2# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05042 |
MCV2#,SXV2# |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 90256-04008 |
MCV2#,SXV2# |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-33060C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
1 | ||
| 33622-33060G0 |
MCV2#,SXV2# DK.SAGE,TRIM6# |
1 | ||
| 33622-33060B1 |
MCV2#,SXV2# BLUISH GRAY,TRIM1# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-20050B1 |
MCV2#,SXV2# BLUISH GRAY,TRIM1# |
2 | ||
| 33622-20050G0 |
MCV2#,SXV2# DK.SAGE,TRIM6# |
2 | ||
| 33622-20050C0 |
MCV2#,SXV2#..WG BLACK,TRIM2# |
2 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-33090 |
MCV2#,SXV2# |
1 | ||
| 33623-33060B0 |
MCV2#,SXV2# BLUISH GRAY,TRIM1# |
1 | ||
| 33623-33060G0 |
MCV2#,SXV2# DK.SAGE,TRIM6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07116 |
MCV2#,SXV2# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-33040 |
MCV2#,SXV2# |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
MCV2#,SXV2# |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-33060 |
MCV2#,SXV2# |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-06091 |
MCV2#,SXV2# |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33030 |
MCV2#,SXV2# |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
MCV2#,SXV2# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33040 |
MCV2#,SXV2# |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-33010 |
MCV2#,SXV2# |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-33050 |
MCV2#,SXV2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33070 |
MCV2#,SXV2# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-33030 |
MCV2#,SXV2# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-33020G0 |
MCV2#,SXV2# DK.SAGE,TRIM6# |
1 | ||
| 35976-33050 |
MCV2#,SXV2# |
1 | ||
| 35976-33020B1 |
MCV2#,SXV2# BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| 90161-40024 | ||||
| 91631-60828 | ||||
| Linked diagrams | ||||
| 8410 | ||||
