SXV20W-FWPGK (1996)
Toyota Camry Gracia
Production
Dec 1996
-
Sep 2001
Engine
5SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )5SFE..SXV20

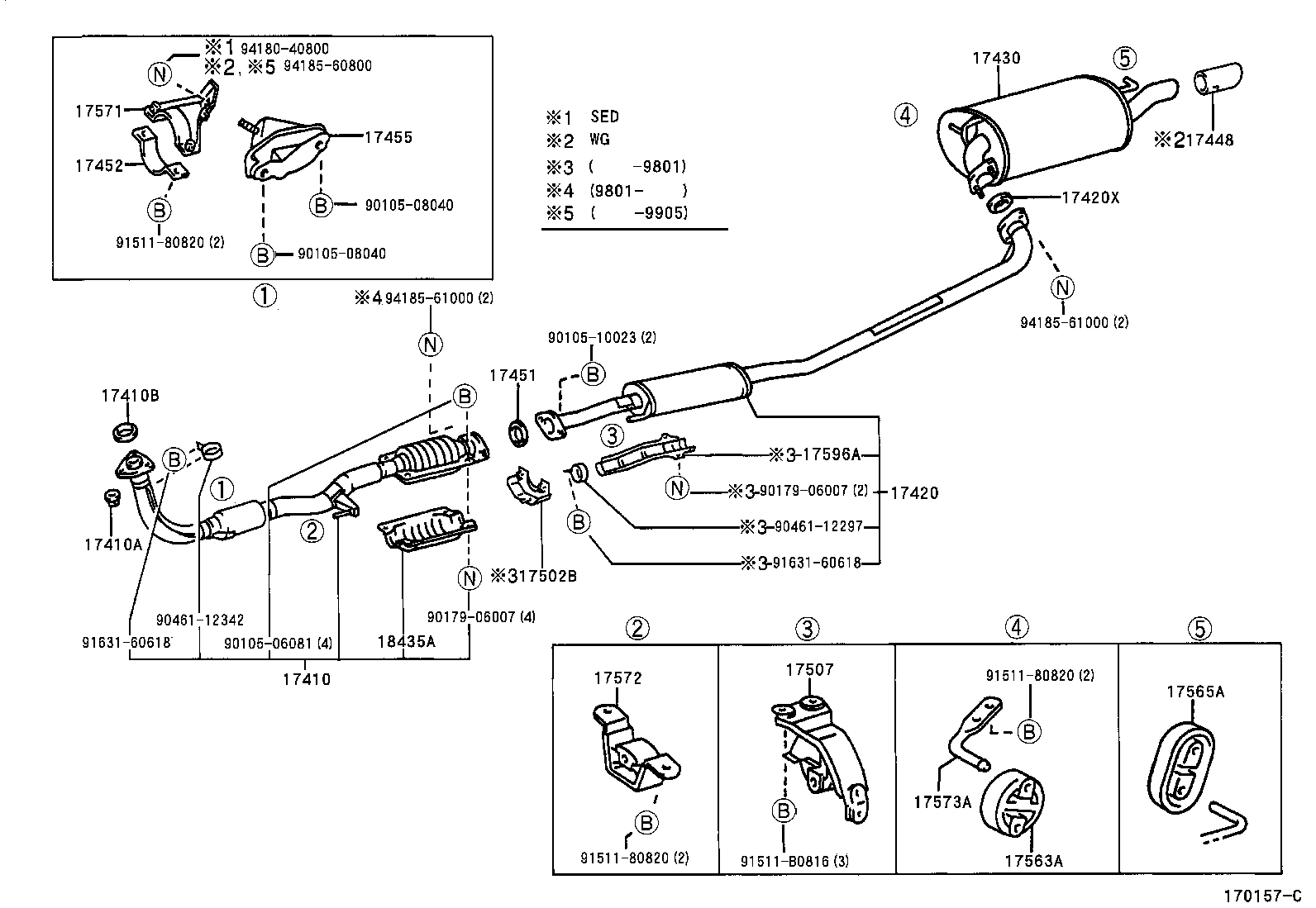

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-7A451 |
5SFE..SXV20 |
1 | ||
| 17410-7A450 |
5SFE..SXV20 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
5SFE..SXV2# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06066 |
5SFE..SXV2# |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-7A030 |
5SFE..SXV20 |
1 | ||
| 17420-7A031 |
5SFE..SXV20 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
5SFE..SXV20 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-7A861 |
5SFE..SXV20..WG |
1 | ||
| 17430-7A862 |
5SFE..SXV20..WG |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74130 |
2MZFE,5SFE..MCV2#,SXV2#..WG |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06073 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-74080 |
5SFE..SXV2# |
1 | ||
| 17455 - BRACKET, EXHAUST PIPE | ||||
| 17455-74080 |
5SFE..SXV2# |
1 | ||
| 17502B - BRACKET SUB-ASSY, CATALYTIC CONVERTER, FRONT | ||||
| 17503-20010 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-20040 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-20060 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74290 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17565-11160 |
2MZFE,5SFE..MCV21,SXV20..WG |
1 | ||
| 17565-11160 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-74370 |
5SFE..SXV20 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-74090 |
5SFE..SXV20 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-74211 |
2MZFE,5SFE..MCV21,SXV20 |
1 | ||
| 17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4 | ||||
| 17596-74130 |
5SFE..SXV20 |
1 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-16190 |
2MZFE,5SFE..MCV2#,SXV2# |
1 | ||
| 18435-16170 |
2MZFE,5SFE..MCV2#,SXV2# |
1 | ||
| 18435-16190 |
5SFE..SXV2#;2MZFE..MCV2#..WG |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-08040 | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90461-12297 | ||||
| 90461-12342 | ||||
| 91511-80820 | ||||
| 91511-B0816 | ||||
| 91631-60618 | ||||
| 94180-40800 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
