MCV21W-FWPGK (1996)

Toyota Camry Gracia

Production Dec 1996 - Sep 2001
Engine 2MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )WG

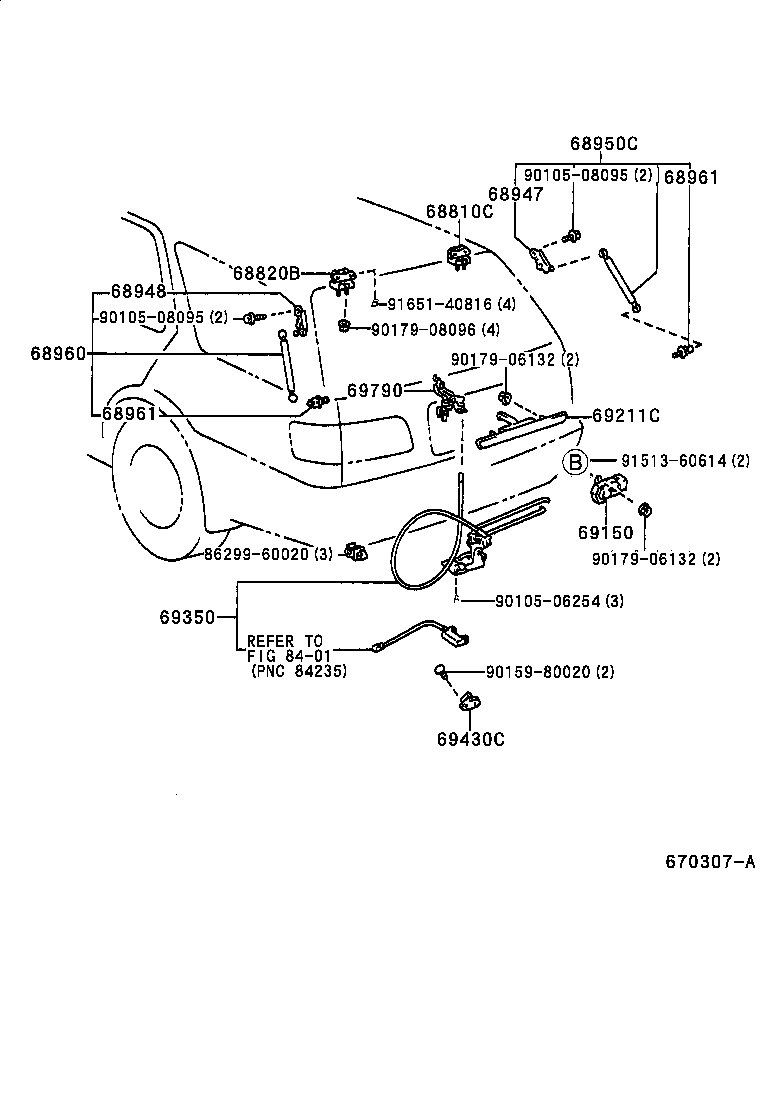

Click highlighted areas on diagram

diagram 68810C 68820B 68947 68948 68950C 68960 68961 68961 69150 69211C 69350 69430C 69790 8401 8629960020 9010506254 9010508095 9010508095 9015980020 9017906132 9017906132 9017908096 9151360614 9165140816
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21050

MCV2#,SXV2#..WG

 1
68810-44010

MCV2#,SXV2#..WG

 1
68820B - HINGE ASSY, BACK DOOR, LH
68810-44010

MCV2#,SXV2#..WG

 1
68810-21050

MCV2#,SXV2#..WG

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68945-33010

MCV2#,SXV2#..WG

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68946-33010

MCV2#,SXV2#..WG

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-39296

MCV2#,SXV2#..WG

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-39136

MCV2#,SXV2#..WG

 1
68961 - BOLT, BACK DOOR STAY
68961-33010

MCV2#,SXV2#..WG

 2
68961 - BOLT, BACK DOOR STAY
68961-33010

MCV2#,SXV2#..WG

 2
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-33020

MCV2#,SXV2#..WG

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-33010

MCV2#,SXV2#..WG

 1
69350 - LOCK ASSY, BACK DOOR
69350-33010

MCV2#,SXV2#..WG

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-33010

MCV2#,SXV2#..WG

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-33010

MCV2#,SXV2#..WG

 1
Common parts
86299-60020
90105-06254
90105-08095
90159-80020
90179-06132
90179-08096
91513-60614
91651-40816
Linked diagrams
8401
