MCV21W-FWPGK (1996)
Toyota Camry Gracia
Production
Dec 1996
-
Sep 2001
Engine
2MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )MCV21

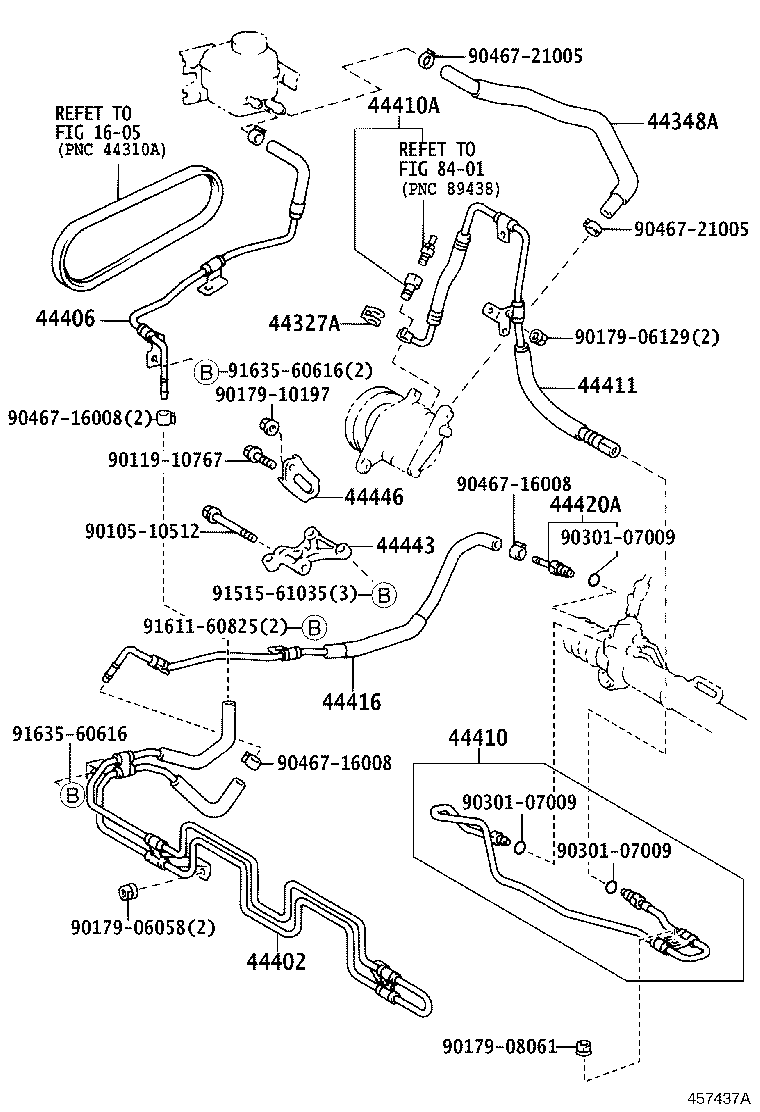

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
MCV2#,SXV2# |
1 | ||
| 44327-30030 |
MCV2#,SXV2# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-33130 |
MCV2# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-33040 |
MCV2# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-33050 |
MCV2#,SXV2# |
1 | ||
| 44406-33051 |
MCV2#,SXV2# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-33130 |
MCV21 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 44338-33090 |
MCV2#,SXV2# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-33060 |
MCV21 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-33070 |
MCV21,SXV20 |
1 | ||
| 44420A - TUBE ASSY, RETURN | ||||
| 44420-17010 |
MCV2#,SXV2# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-33041 |
MCV2# |
1 | ||
| 44443-33040 |
MCV2# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-33010 |
MCV2# |
1 | ||
| Common parts | ||||
| 90105-10512 | ||||
| 90119-10767 | ||||
| 90179-06058 | ||||
| 90179-06129 | ||||
| 90179-08061 | ||||
| 90179-10197 | ||||
| 90301-07009 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91515-61035 | ||||
| 91611-60825 | ||||
| 91635-60616 | ||||
