MCV21-FEPNK (1996)

Toyota Camry Gracia

Production Dec 1996 - Sep 2001
Engine 2MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

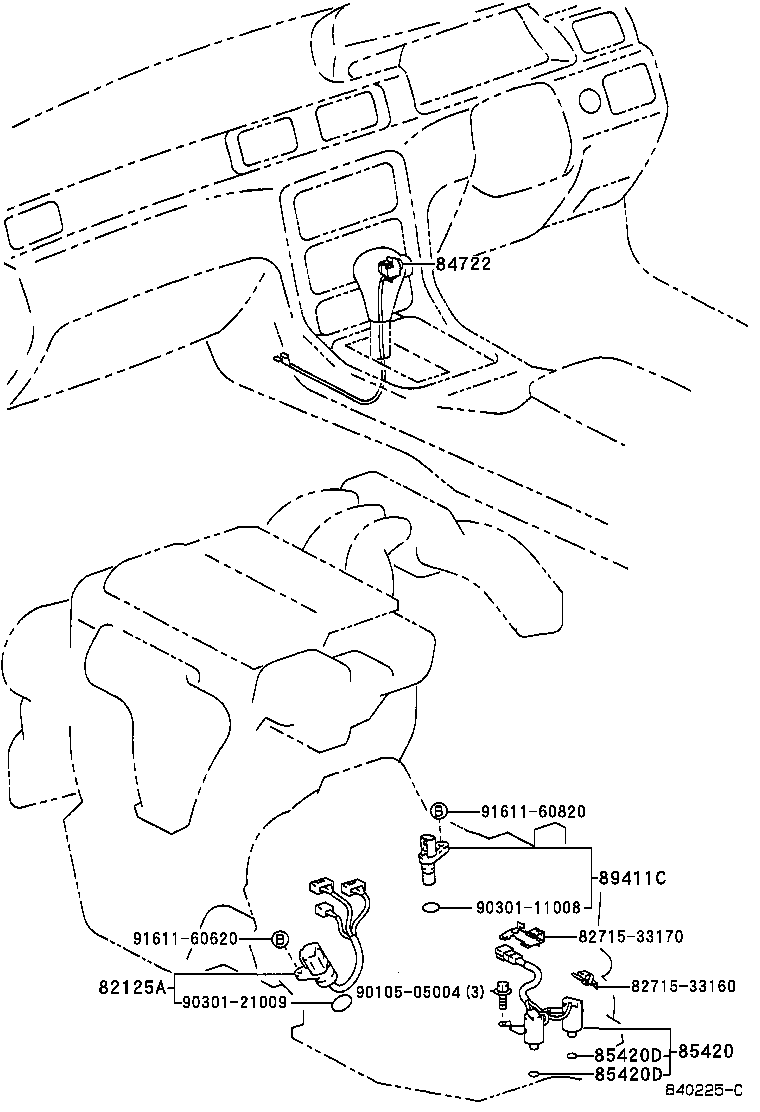

(9612-9808)MCV2#

Click highlighted areas on diagram

diagram 82125A 8271533160 8271533170 84722 85420 85420D 85420D 89411C 9010505004 9030111008 9030121009 9161160620 9161160820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-33020

MCV2#

 1
82125-33010

MCV2#,SXV25

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-33070B0

MCV2#,SXV2#

BLISH GRAY,TRIM1#

 1
84722-33070G0

MCV2#,SXV2#

DK.SAGE,TRIM6#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-33010

MCV2#

DENSO

 1
85420-33010

MCV2#,SXV25

 1
85420-33030

MCV2#

TOYOTA

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV2#,SXV25

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV2#,SXV25

 2
89411C - SENSOR, SPEED
89411-33010

MCV2#,SXV25

TOYOTA

 1
89413-24010

MCV2#,SXV25

AISIN

 1
Common parts
82715-33160
82715-33170
90105-05004
90301-11008
90301-21009
91611-60620
91611-60820

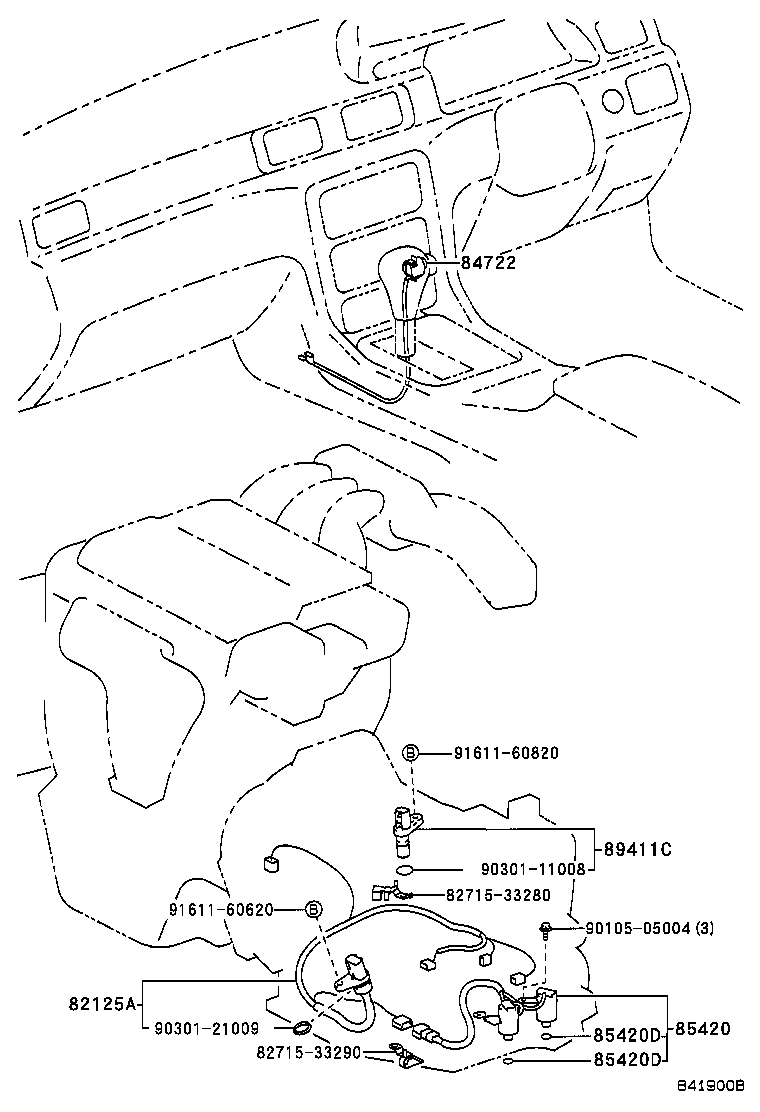

(9808- )MCV2#

Click highlighted areas on diagram

diagram 82125A 8271533280 8271533290 84722 85420 85420D 85420D 89411C 9010505004 9030111008 9030121009 9161160620 9161160820
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-33020

MCV2#

 1
82125-33010

MCV2#,SXV25

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-33070B0

MCV2#,SXV2#

BLISH GRAY,TRIM1#

 1
84722-33070G0

MCV2#,SXV2#

DK.SAGE,TRIM6#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-33010

MCV2#

DENSO

 1
85420-33010

MCV2#,SXV25

 1
85420-33030

MCV2#

TOYOTA

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV2#,SXV25

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MCV2#,SXV25

 2
89411C - SENSOR, SPEED
89411-33010

MCV2#,SXV25

TOYOTA

 1
89413-24010

MCV2#,SXV25

AISIN

 1
Common parts
82715-33280
82715-33290
90105-05004
90301-11008
90301-21009
91611-60620
91611-60820
