MCV21-FEPNK (1996)

Toyota Camry Gracia

Production Dec 1996 - Sep 2001
Engine 2MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9612- )

Click highlighted areas on diagram

diagram 67603 67603A 67603E 67604 68173B 68174A 7401 9015960370 9015960370 9018906121 9018906127 9090467026
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-33100G0

MCV21,SXV2#..SED

SAGE,TRIM6#

 1
67630-33100B1

MCV21,SXV2#..SED

BLUE GRAY,TRIM1#

 1
67630-33300

MCV21..SED

ﾎﾝｶﾞﾜ

 1
67630-33300B1

MCV21,SXV20..SED

ﾘﾐﾂｸｽ *(R),BLUE GRAY,TRIM1#

 1
67630-33300G3

MCV21,SXV2#..SED

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DK.SAGE,TRIM6#

 1
67630-33100G2

MCV21,SXV2#..SED

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.SAGE,TRIM6#

 1
67630-33300G1

MCV21,SXV2#..SED

ﾎﾝｶﾞﾜ,DK.SAGE,TRIM6#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050

MCV2#,SXV2#

 10
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07066B5

MCV2#,SXV2#

BLUISH GRAY,TRIM1#

 2
90467-07066G2

MCV2#,SXV2#

DK.SAGE,TRIM6#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-33100B1

MCV21,SXV2#..SED

BLUE GRAY,TRIM1#

 1
67640-33300B1

MCV21,SXV20..SED

ﾘﾐﾂｸｽ *(R),BLUE GRAY,TRIM1#

 1
67640-33300G1

MCV21,SXV2#..SED

ﾎﾝｶﾞﾜ,DK.SAGE,TRIM6#

 1
67640-33300G3

MCV21,SXV2#..SED

ﾄﾞｱﾄﾘﾑ=TYPE C-*104,DK.SAGE,TRIM6#

 1
67640-33100G0

MCV21,SXV2#..SED

SAGE,TRIM6#

 1
67640-33100G2

MCV21,SXV2#..SED

ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.SAGE,TRIM6#

 1
67640-33300

MCV21..SED

ﾎﾝｶﾞﾜ

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-33010

MCV2#,SXV2#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68173-33010

MCV21,SXV20..SED

 1
68174-33020

MCV2#,SXV2#

 1
68173-33010

MCV21,SXV20

 1
Common parts
90159-60370
90189-06121
90189-06127
90904-67026
Linked diagrams
7401

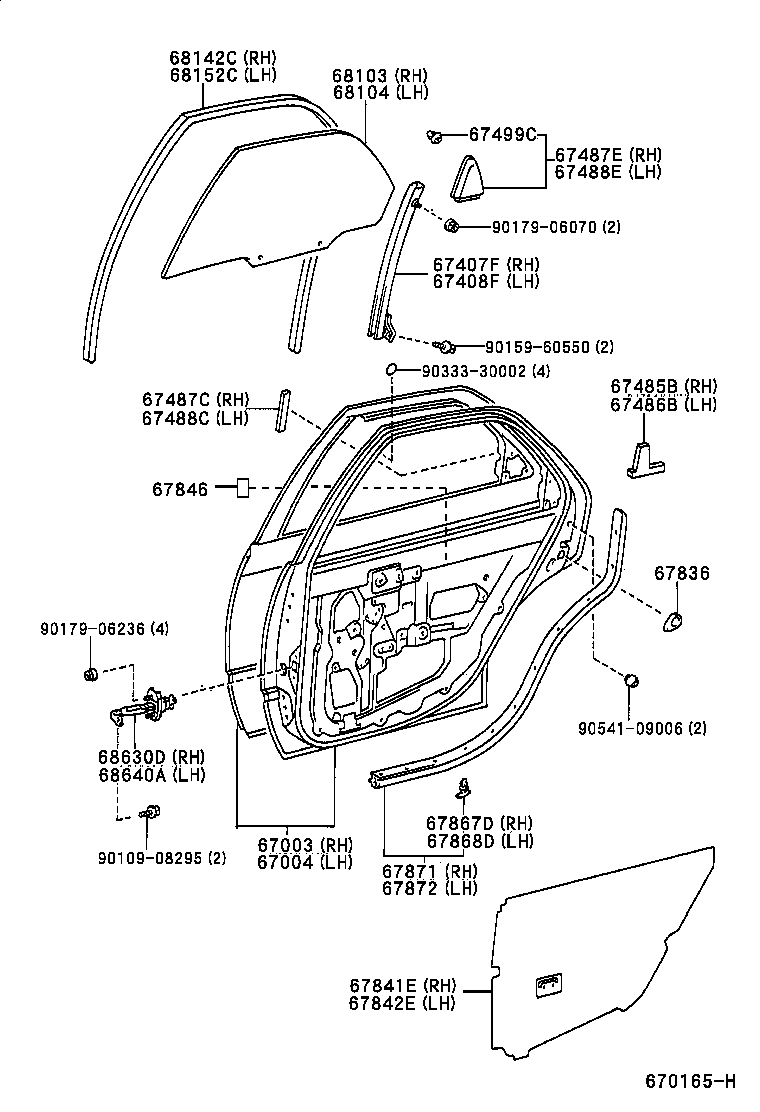

ILLUST NO. 2 OF 2(9612- )

Click highlighted areas on diagram

diagram 67003 67004 67407F 67408F 67485B 67486B 67487C 67487E 67488C 67488E 67499C 67836 67841E 67842E 67846 67867D 67868D 67871 67872 68103 68104 68142C 68152C 68630D 68640A 9010908295 9015960550 9017906070 9017906236 9033330002 9054109006
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-33060

MCV21,SXV2#..SED

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-33060

MCV21,SXV2#..SED

 1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-33020

MCV2#,SXV2#

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-33020

MCV2#,SXV2#

 1
67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67485-33010

MCV2#,SXV2#

 1
67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67486-33010

MCV2#,SXV2#

 1
67487C - SEAL, REAR DOOR REAR GUIDE, RH
67487-33030

MCV2#,SXV2#

 1
67487E - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67487-33010

MCV2#,SXV2#

 1
67488C - SEAL, REAR DOOR REAR GUIDE, LH
67487-33030

MCV2#,SXV2#

 1
67488E - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67488-33010

MCV2#,SXV2#

 1
67499C - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-33010

MCV2#,SXV2#

ﾌﾞﾗｯｸ

 2
67499-12030

MCV2#,SXV2#

ﾅﾁｭﾗﾙ

 2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-32010

MCV2#,SXV2#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-33030

MCV21,SXV2#..SED

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-33030

MCV21,SXV2#..SED

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

MCV2#,SXV2#

 12
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

MCV2#,SXV2#

 12
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-33030

MCV2#,SXV2#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-33030

MCV2#,SXV2#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-33050

MCV21,SXV2#..SED

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-33050

MCV21,SXV2#..SED

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-33030

MCV21,SXV2#..SED

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-33030

MCV21,SXV2#..SED

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-33030

MCV2#,SXV2#

 1
68630-33031

MCV2#,SXV2#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-33031

MCV2#,SXV2#

 1
68640-33030

MCV2#,SXV2#

 1
Common parts
90109-08295
90159-60550
90179-06070
90179-06236
90333-30002
90541-09006
