MCV21-FEPNK (1996)

Toyota Camry Gracia

Production Dec 1996 - Sep 2001
Engine 2MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )MCV2#

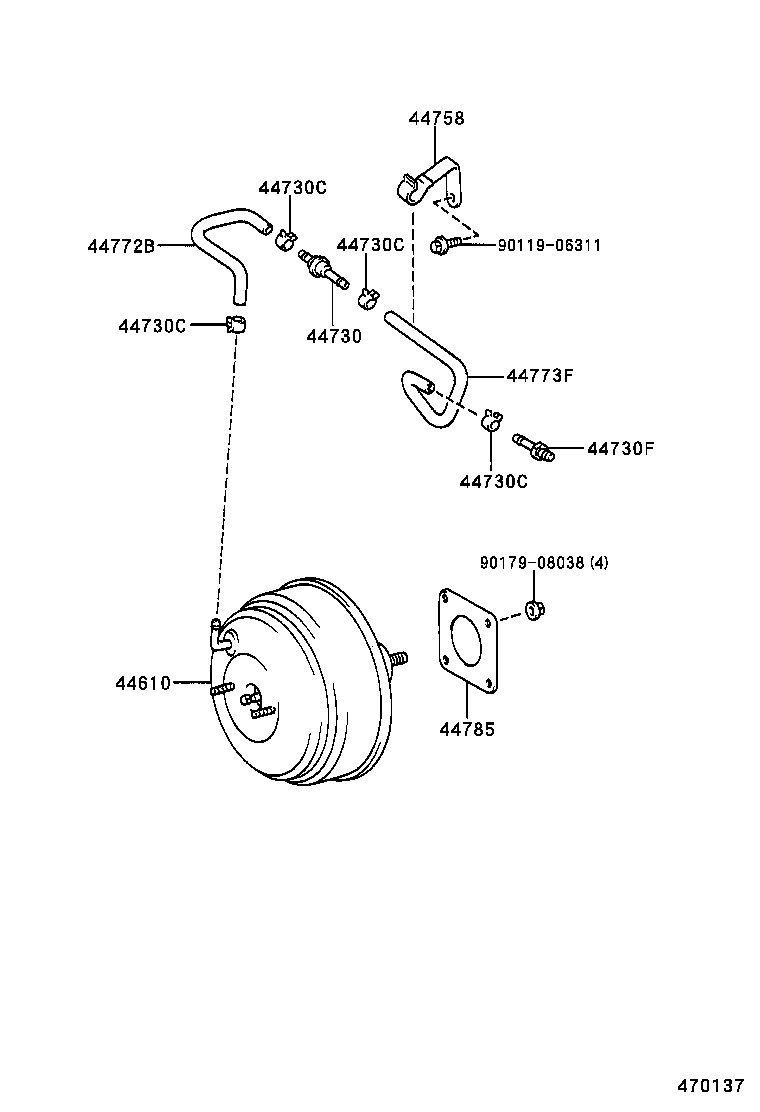

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730C 44730F 44758 44772B 44773F 44785 9011906311 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-33450

MCV21..SED

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
44610-33480

MCV2#,SXV2#

 1
44610-33560

MCV2#,SXV2#

 1
44610-33490

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
44610-33470

MCV21..SED

 1
44610-33570

MCV21

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

MCV2#,SXV2#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

MCV2#,SXV2#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

MCV2#,SXV2#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

MCV2#,SXV2#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

MCV2#,SXV2#

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

MCV2#,SXV2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-33030

MCV2#,SXV2#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-33060

MCV2#,SXV2#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-33060

MCV2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

MCV2#,SXV2#

 1
Common parts
90119-06311
90179-08038
