AXVH75-AEXSB (2021)
Toyota Camry
Production
Feb 2021
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2102- )

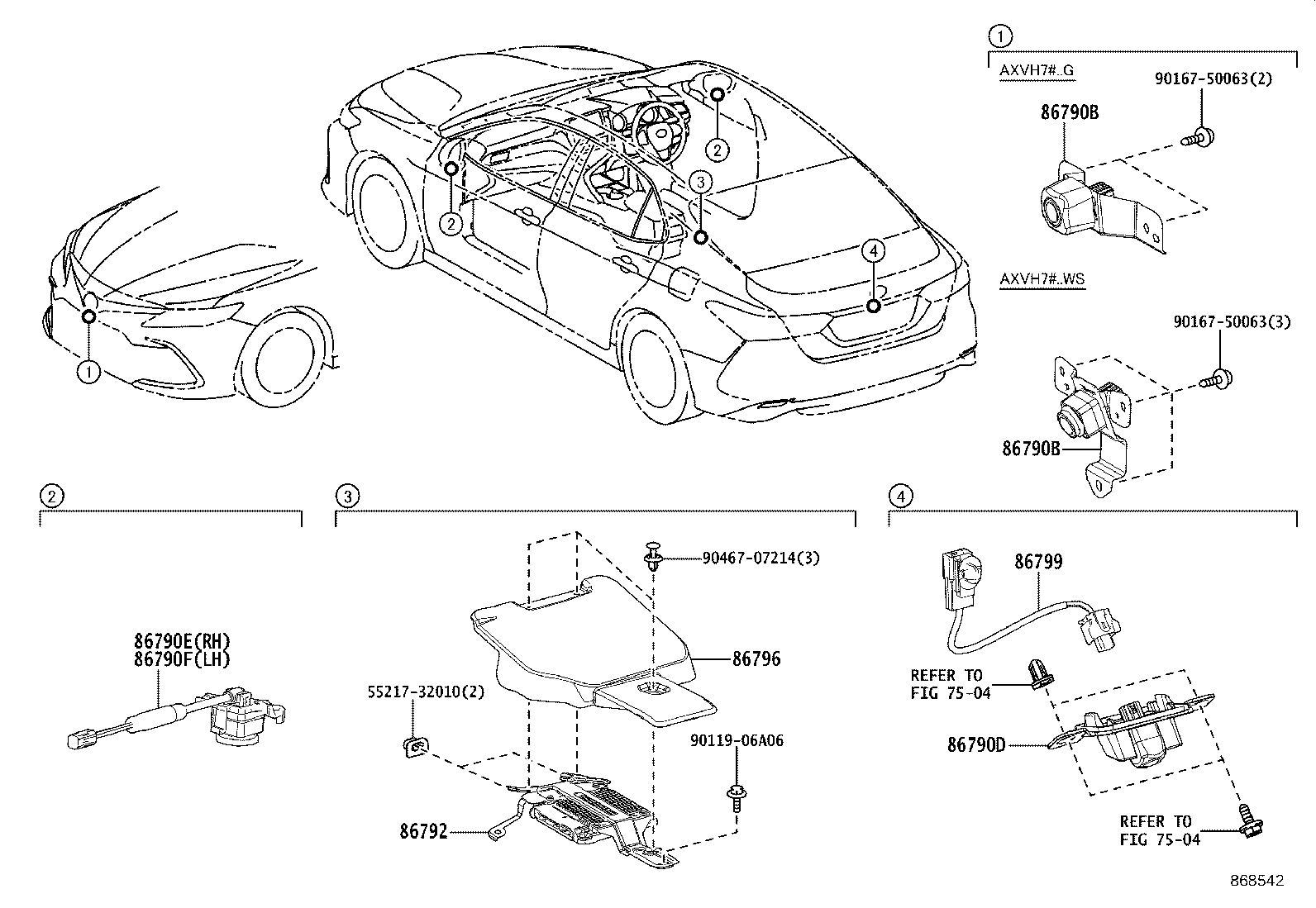

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-33230 |
AXVH7#..WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-33230 |
AXVH7#..WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 867B0-33230 |
AXVH7# |
1 | ||
| 867B0-33240 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 867B0-33230 |
AXVH7#..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ |
1 | ||
| 86790E - CAMERA ASSY, TELEVISION, SIDE RH | ||||
| 86790-33250 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86790F - CAMERA ASSY, TELEVISION, SIDE LH | ||||
| 86790-33240 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86792 - CONTROLLER, TELEVISION CAMERA | ||||
| 86792-33250 |
AXVH7#..WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86796 - COVER, COMPUTER PARKING ASSIST | ||||
| 86796-33010C0 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM),BLACK |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-33030 |
AXVH7#..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ |
1 | ||
| 86799-33040 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 86799-33030 |
AXVH7# |
1 | ||
| Common parts | ||||
| 55217-32010 | ||||
| 90119-06A06 | ||||
| 90167-50063 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 7504 | ||||
