AXVH75-AEXNB (2021)

Toyota Camry

Production Feb 2021 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2102- )G,WS

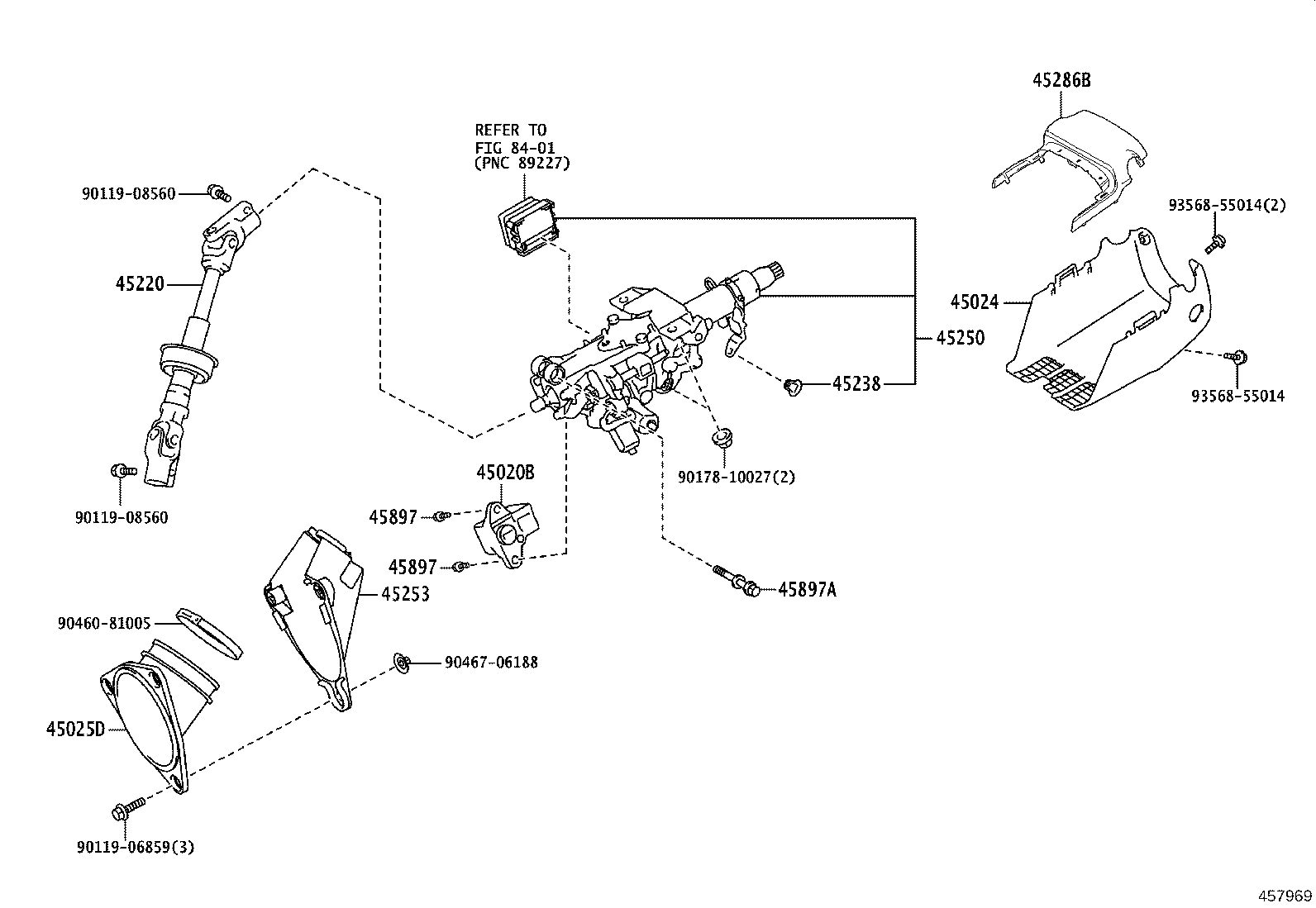

Click highlighted areas on diagram

ELECTRIC TILT & TELESCOPIC

diagram 45020B 45024 45025D 45220 45238 45250 45253 45286B 45897 45897 45897A 8401 9011906859 9011908560 9011908560 9017810027 9046081005 9046706188 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33240

AXVH7#

 1
45020-33260

AXVH7#..G,WS

ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−*DRP:4ｳｪｲ−ﾊﾟﾜｰ

 1
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-33230C0

AXVH7#..G

BLACK,TRIM2#,4#

 1
45024-33240C0

AXVH7#..G

ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−*DRP:4ｳｪｲ−ﾊﾟﾜｰ,BLACK,TRIM2#,4#

 1
45024-33230C0

AXVH7#..WS,X

BLACK,TRIM2#

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33150

AXVH7#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-33362

AXVH7#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010

AXVH7#..G,WS

ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−*DRP:4ｳｪｲ−ﾊﾟﾜｰ

 1
45238-52010

AXVH7#

 1
45250 - COLUMN ASSY, STEERING
45250-33D40

AXVH7#

 1
45250-48430

AXVH7#..G,WS

ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−*DRP:4ｳｪｲ−ﾊﾟﾜｰ

 1
45253 - COVER, STEERING COLUMN HOLE
45253-33100

AXVH7#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0

AXVH7#..WS,X

BLACK,TRIM2#

 1
45286-33290C0

AXVH7#..G

BLACK,TRIM2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AXVH7#

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AXVH7#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

AXVH7#

 1
Common parts
90119-06859
90119-08560
90178-10027
90460-81005
90467-06188
93568-55014
Linked diagrams
8401
