AXVH75-AEXDB (2019)

Toyota Camry

Production Dec 2019 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

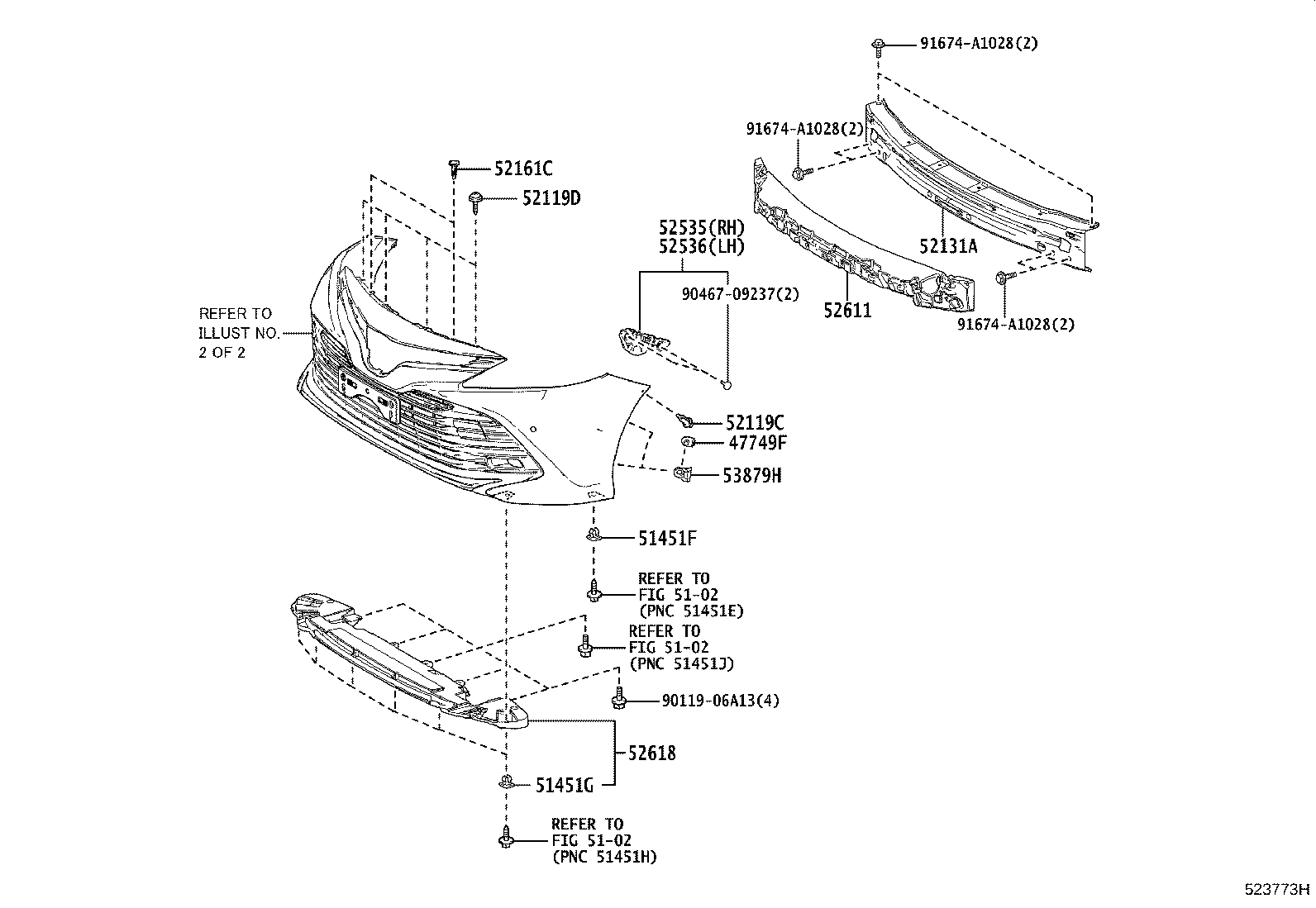

ILLUST NO. 1 OF 2(1706-2102)G,X

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 51451F 51451G 52119C 52119D 52131A 52161C 52535 52536 52611 52618 53879H 9011906A13 9046709237 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

AXVH7#

 4
51451F - GROMMET, NO.1
90189-06237

AXVH7#

 2
51451G - GROMMET, NO.2
90189-06237

AXVH7#

 6
52119C - CLIP, FRONT BUMPER COVER
90467-05170

AXVH7#

 2
52119D - SCREW, NO.1
90167-50063

AXVH7#..G,X

 4
52131A - REINFORCEMENT, FRONT BUMPER
52131-33180

AXVH7#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

AXVH7#

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33060

AXVH7#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33060

AXVH7#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33300

AXVH7#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-33060

AXVH75;AXVH70..WS

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

AXVH7#

 4
Common parts
90119-06A13
90467-09237
91674-A1028
Linked diagrams
5102

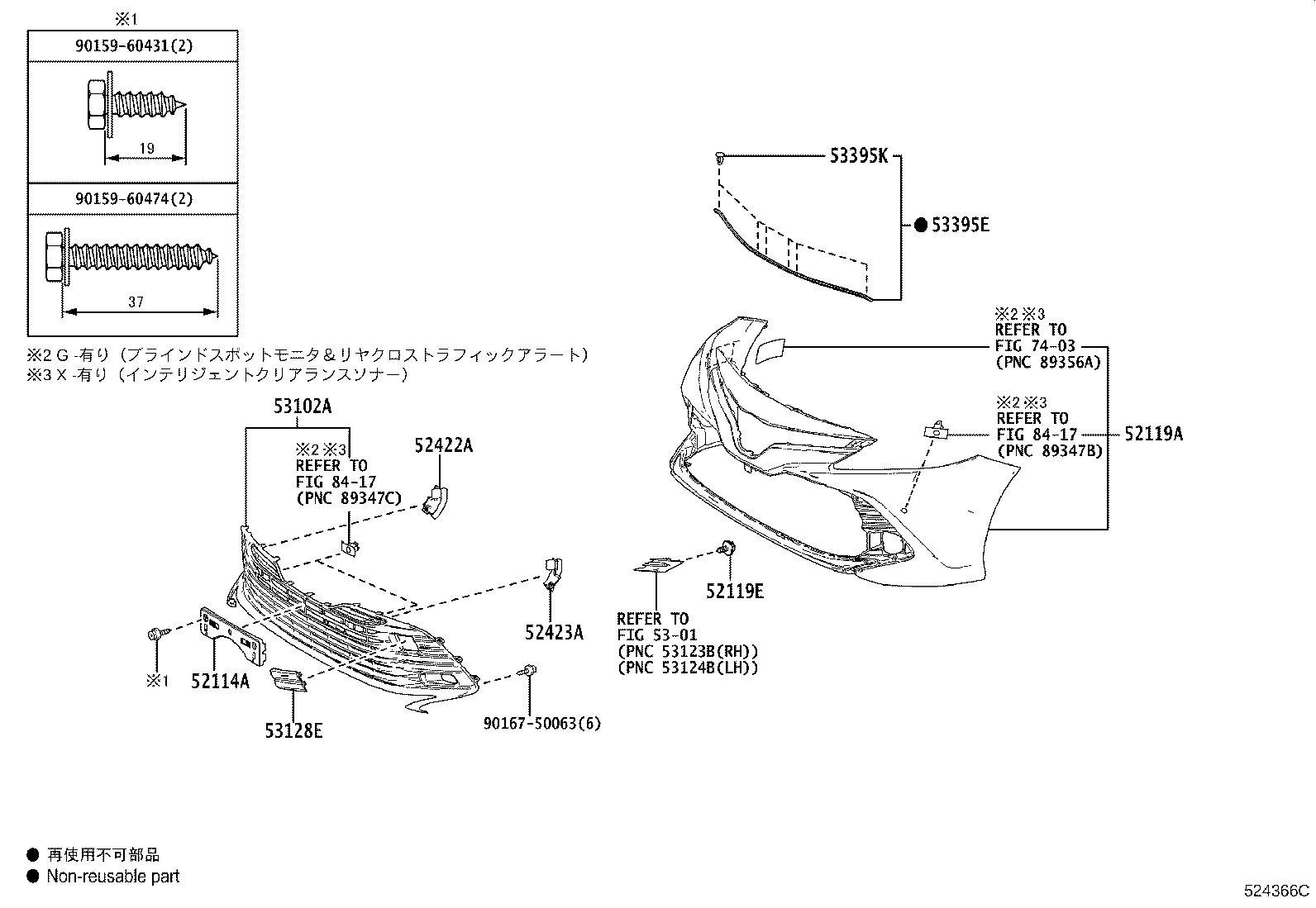

ILLUST NO. 2 OF 2(1706-2102)G,X

Click highlighted areas on diagram

diagram 52114A 52119A 52119E 52422A 52423A 5301 53102A 53128E 53395E 53395K 7403 8417 8417 9015960431 9015960474 9016750063
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-33420

AXVH7#..G,X

 1
52119A - COVER, FRONT BUMPER
52119-33A50A1

AXVH7#..X

PLATINUM WHITE PEARL MC.,089

 1
52119-33A50C0

AXVH7#..X

ATTITUDE BLACK MC.,218

 1
52119-33A50E1

AXVH7#..X

GRAPHITE ME.,4X7

 1
52119-33A50B0

AXVH7#..X

SILVER ME.,1F7

 1
52119-33A50J1

AXVH7#..X

DK.BLUE M.M.,8W7

 1
52119-33A50E0

AXVH7#..X

STEEL BLONDE ME.,4X1

 1
52119E - SCREW, NO.2
90167-50063

AXVH7#..G,X

 2
52422A - PAD, FRONT BUMPER, RH
52422-33010

AXVH7#..G,X

 1
52423A - PAD, FRONT BUMPER, LH
52423-33010

AXVH7#..G,X

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33170

AXVH7#..X

 1
53128E - GRILLE, RADIATOR, LOWER SIDE LH
53128-33030

AXVH7#..X

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-33030

AXVH7#..G,X

 1
53395K - CLIP(FOR HOOD TO FRONT END PANEL SEAL)
90467-04032

AXVH7#

 6
Common parts
90159-60431
90159-60474
90167-50063
Linked diagrams
5301
7403
8417
