AXVH75-AEXDB (2021)

Toyota Camry

Production Feb 2021 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2102- )

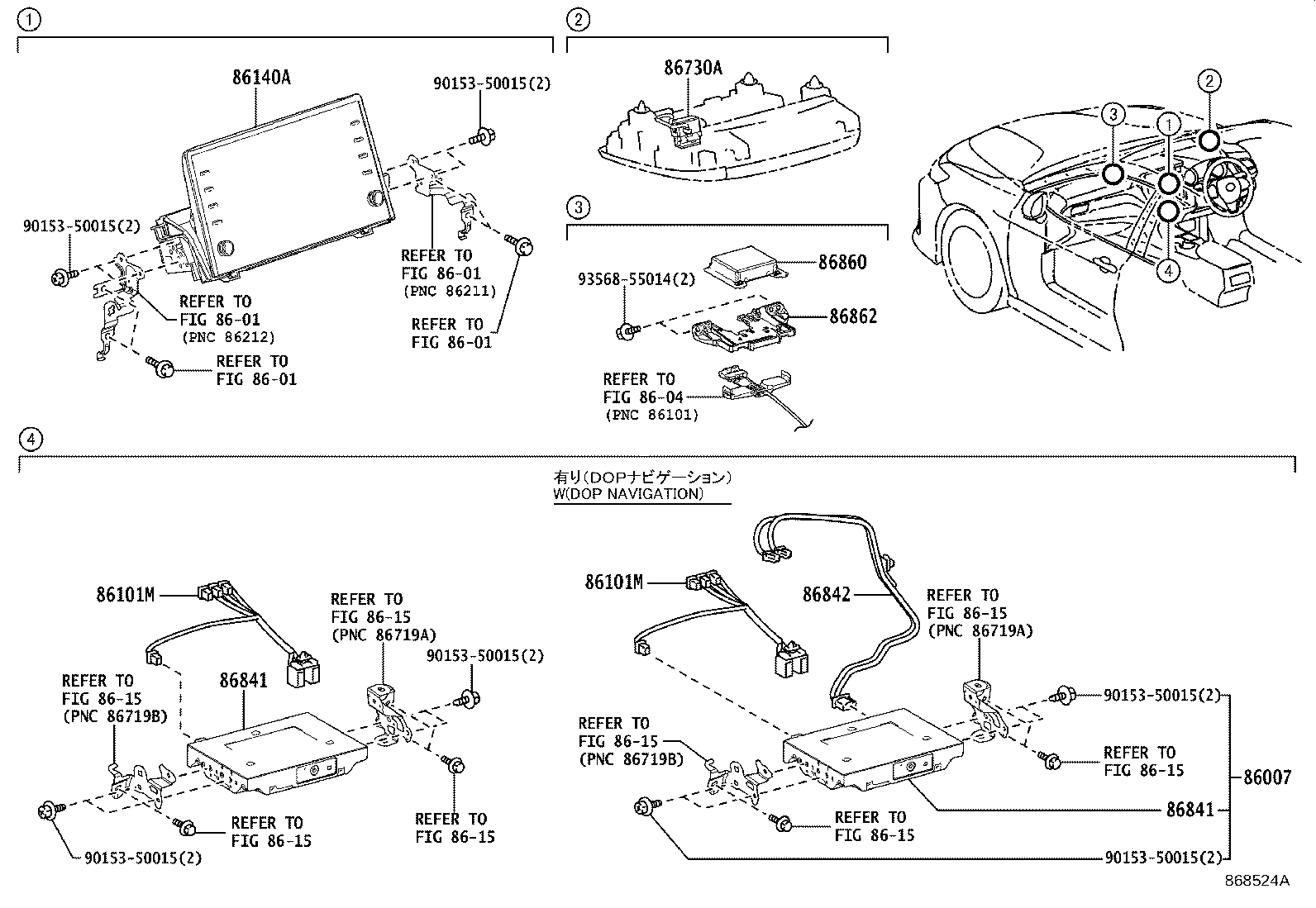

Click highlighted areas on diagram

diagram 86007 8601 8601 8601 8601 8604 86101M 86101M 86140A 8615 8615 8615 8615 8615 8615 8615 8615 86730A 86841 86841 86842 86860 86862 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9356855014
Part # Description Qty Price
86007 - COMPUTER SET, NAVIGATION
86007-52010

AXVH7#

***,地図ﾃﾞｨｽｸ(DOP)−有り

 1
86007-52020

AXVH7#

***,地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86101M - CORD SUB-ASSY, ANTENNA
86101-33W70

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86101-33X20

AXVH7#

 1
86101-33W70

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86101M - CORD SUB-ASSY, ANTENNA
86101-33W70

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86101-33X20

AXVH7#

 1
86101-33W70

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33K60

AXVH7#

DENSO TEN

 1
86140-33K60

AXVH7#..X

DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86140-33K80

AXVH7#..X

DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53030

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86730-53030

AXVH7#

 1
86841 - COMPUTER, NAVIGATION
86840-K0034

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86840-K0043

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86840-K0044

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86840-K0033

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86841 - COMPUTER, NAVIGATION
86840-K0034

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86840-K0043

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86840-K0044

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86840-K0033

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86842 - WIRE, NAVIGATION, NO.1
86842-33210

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り

 1
86842-33210

AXVH7#

地図ﾃﾞｨｽｸ(DOP)−有り(T−Connectﾅﾋﾞｷｯﾄ)

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-78010

AXVH7#

 1
86880-78010

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-42010

AXVH7#

 1
86862-42010

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
Common parts
90153-50015
93568-55014
Linked diagrams
8601
8604
8615
