AXVH70-AEXSB (2018)
Toyota Camry
Production
Aug 2018
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1706-2102)G,X

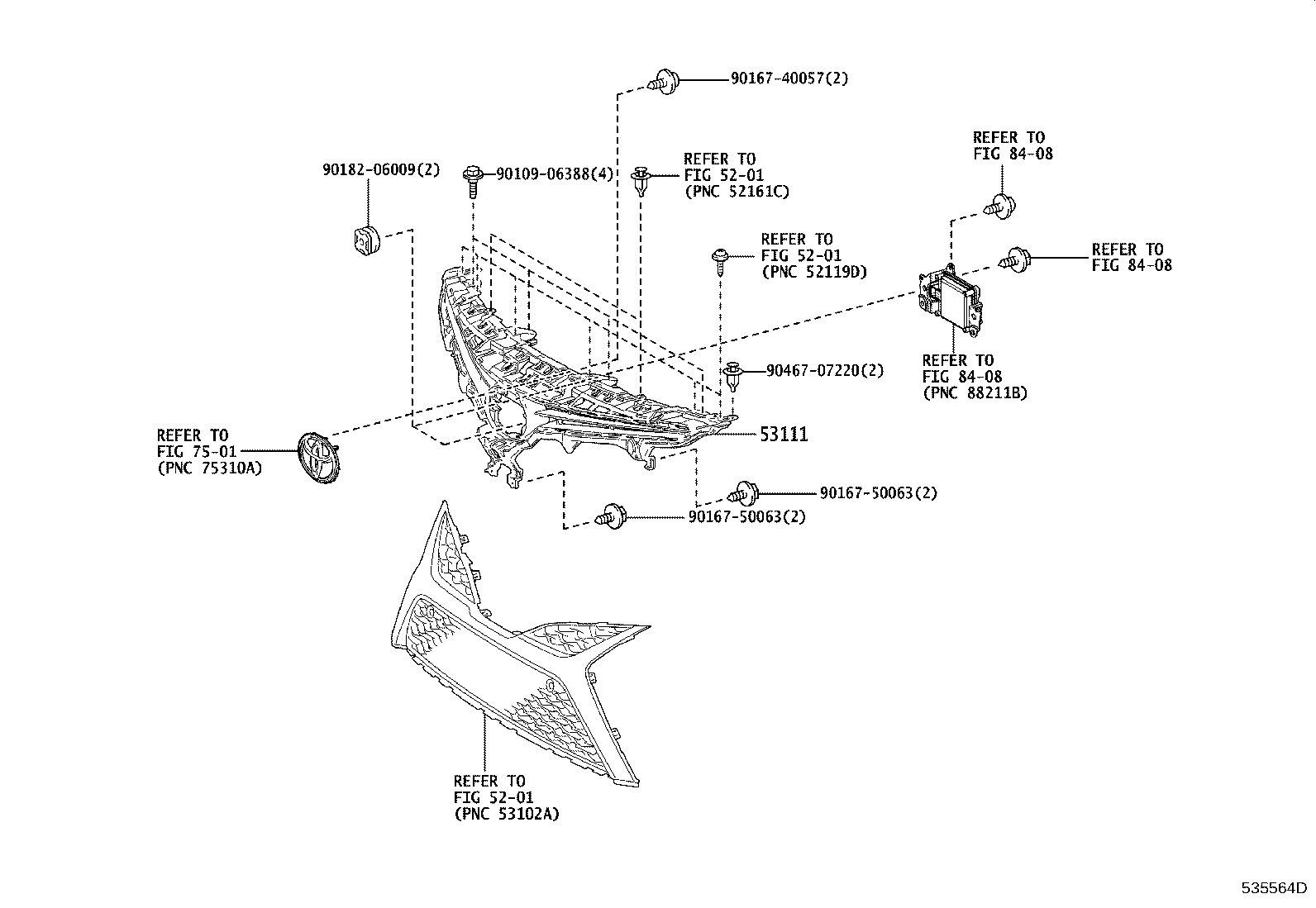

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-33410 |
AXVH7#..X 塗装不要 |
1 | ||
| 53101-33570 |
AXVH7#..WS 塗装不要 |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-33100 |
AXVH7#..X |
1 | ||
| 53124B - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-33120 |
AXVH7#..X |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90182-06009 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
| 8408 | ||||
(1808-2102)WS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-33410 |
AXVH7#..X 塗装不要 |
1 | ||
| 53101-33570 |
AXVH7#..WS 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90182-06009 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
| 8408 | ||||
