AXVH70-AEXNB (2021)
Toyota Camry
Production
Feb 2021
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

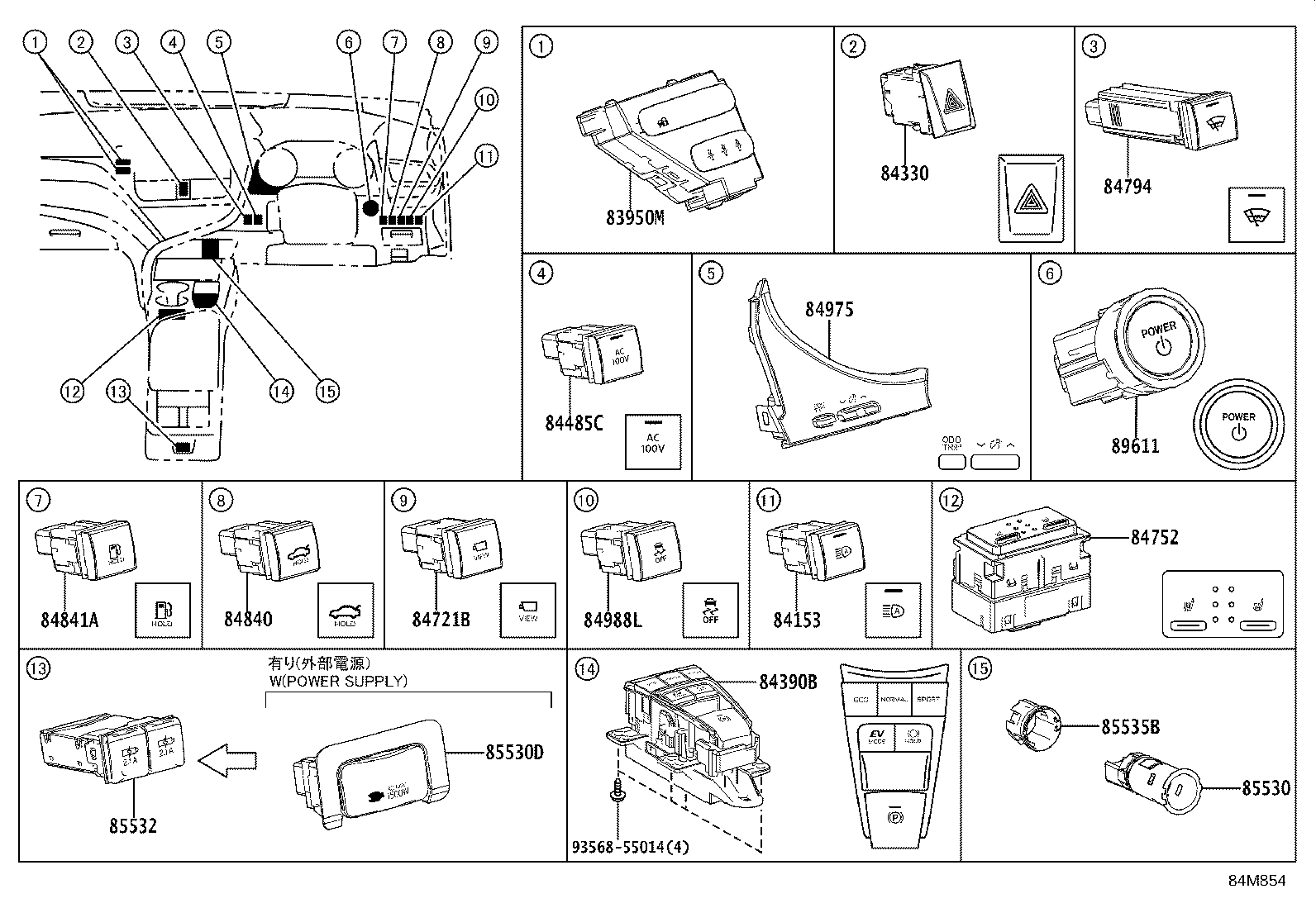

ILLUST NO. 4 OF 7(2102- )
Click highlighted areas on diagram
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33170 |
AXVH7# |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
AXVH7# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33140 |
AXVH7# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-33080 |
AXVH7# |
1 | ||
| 84485C - SWITCH, POWER OUTLET | ||||
| 84485-33010 |
AXVH7#..G,WS 寒冷地仕様&ACｲﾝﾊﾞｰﾀ出力−100V/1500W |
1 | ||
| 84485-33010 |
AXVH7#..G,WS ACｲﾝﾊﾞｰﾀ出力−100V/1500W |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-33010 |
AXVH7#..G,WS ﾊﾞｯｸﾓﾆﾀ−有り(*PVM) |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33420 |
AXVH7#..G,WS ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−*DRP:4ｳｪｲ−ﾊﾟﾜｰ |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-33050 |
AXVH7#..G,WS 寒冷地仕様&ACｲﾝﾊﾞｰﾀ出力−100V/1500W |
1 | ||
| 84794-33050 |
AXVH7# 寒冷地仕様 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33121 |
AXVH7# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33041 |
AXVH7# |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-33050 |
AXVH7# |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
AXVH7# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
AXVH7# |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-33090 |
AXVH7#..G,WS ACｲﾝﾊﾞｰﾀ出力−100V/1500W |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
AXVH7#..G,WS |
1 | ||
| 85532-33020 |
AXVH7#..G,WS ACｲﾝﾊﾞｰﾀ出力−100V/1500W |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33100 |
AXVH7# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
AXVH7# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
