AXVH70-AEXDB (2017)

Toyota Camry

Production Jun 2017 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

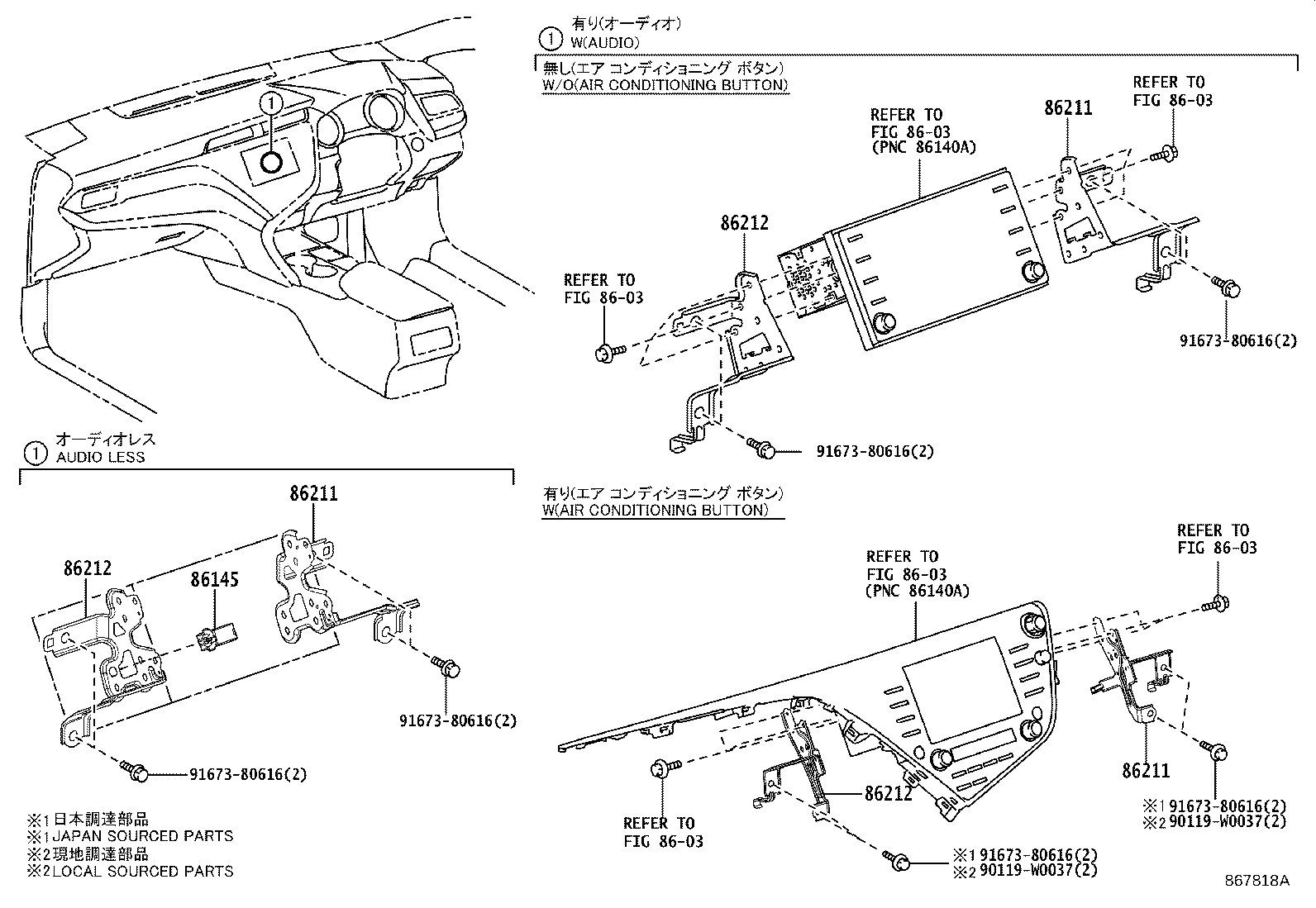

ILLUST NO. 1 OF 4(1706-1910)

Click highlighted areas on diagram

diagram 8603 8603 8603 86145 86211 86211 86212 86212 90119W0037 90119W0037 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

AXVH70

 1
86145-52010

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211 - BRACKET, RADIO, NO.1
86211-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211-33340

AXVH70

 1
86211-33400

AXVH7#..X

 1
86211 - BRACKET, RADIO, NO.1
86211-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211-33340

AXVH70

 1
86211-33400

AXVH7#..X

 1
86212 - BRACKET, RADIO, NO.2
86212-33400

AXVH7#..X

 1
86212-33340

AXVH70

 1
86212-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86212 - BRACKET, RADIO, NO.2
86212-33400

AXVH7#..X

 1
86212-33340

AXVH70

 1
86212-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
Common parts
90119-W0037
91673-80616
Linked diagrams
8603

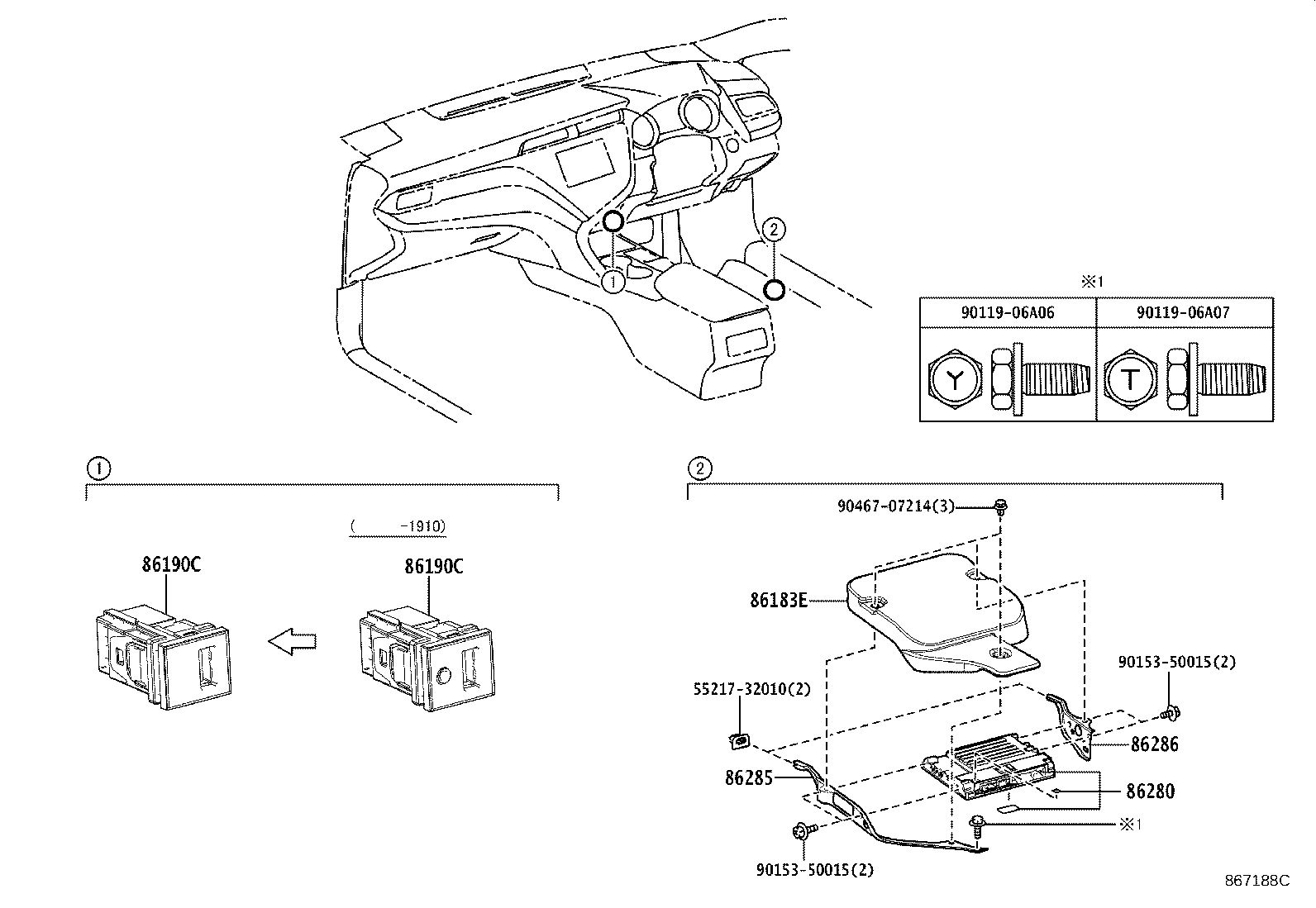

ILLUST NO. 2 OF 4(1706- )

Click highlighted areas on diagram

diagram 5521732010 86183E 86190C 86190C 86280 86285 86286 9011906A06 9011906A07 9015350015 9015350015 9046707214
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12070

AXVH7#

 1
86190-12070

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-12070

AXVH7#

 1
86190-12070

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
Common parts
55217-32010
90119-06A06
90119-06A07
90153-50015
90467-07214

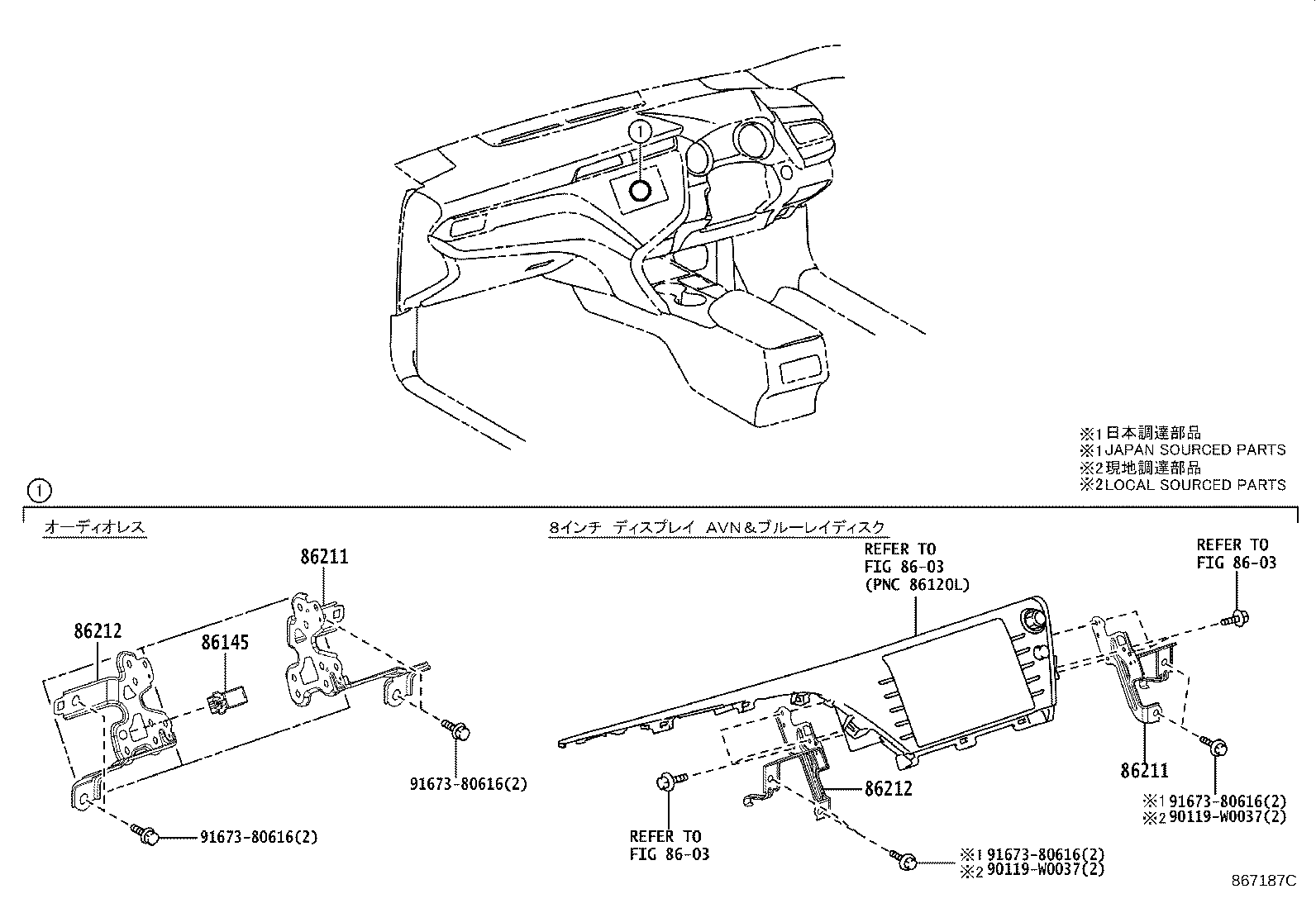

ILLUST NO. 1 OF 4(1910-2102)

Click highlighted areas on diagram

diagram 8603 8603 8603 8603 8603 8603 86145 86211 86211 86211 86212 86212 86212 90119W0037 90119W0037 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

AXVH70

 1
86145-52010

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211 - BRACKET, RADIO, NO.1
86211-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211-33340

AXVH70

 1
86211-33400

AXVH7#..X

 1
86211 - BRACKET, RADIO, NO.1
86211-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211-33340

AXVH70

 1
86211-33400

AXVH7#..X

 1
86211 - BRACKET, RADIO, NO.1
86211-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86211-33340

AXVH70

 1
86211-33400

AXVH7#..X

 1
86212 - BRACKET, RADIO, NO.2
86212-33400

AXVH7#..X

 1
86212-33340

AXVH70

 1
86212-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86212 - BRACKET, RADIO, NO.2
86212-33400

AXVH7#..X

 1
86212-33340

AXVH70

 1
86212-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
86212 - BRACKET, RADIO, NO.2
86212-33400

AXVH7#..X

 1
86212-33340

AXVH70

 1
86212-33340

AXVH7#..X

ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ

 1
Common parts
90119-W0037
91673-80616
Linked diagrams
8603

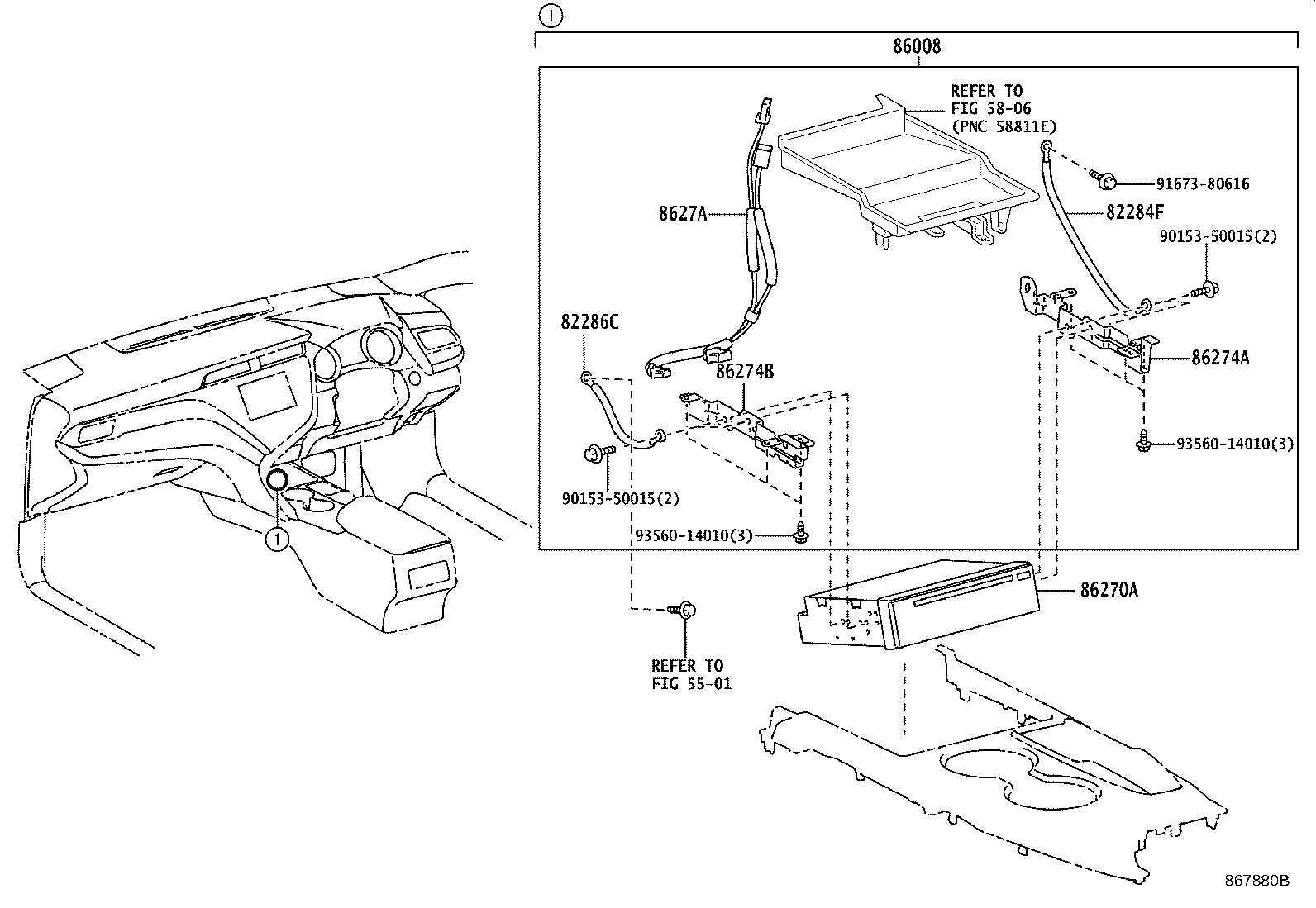

ILLUST NO. 3 OF 4(1910-2102)

Click highlighted areas on diagram

CD&DVDﾃﾞｯｷ(DOP)

diagram 5501 5806 82284F 82286C 86008 86270A 86274A 86274B 8627A 9015350015 9015350015 9167380616 9356014010 9356014010
Part # Description Qty Price
82284F - WIRE, EARTH
82284-33150

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
82286C - WIRE, EARTH, NO.2
82286-33050

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
86008 - DECK SET, DISC PLAYER
86008-33010

AXVH7#

***,CD&DVDﾃﾞｯｷ(DOP)−有り

 1
86270A - DISC PLAYER ASSY
86270-K0010

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
86274A - BRACKET, DISC PLAYER
86274-33180

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
86274B - BRACKET, DISC PLAYER
86277-33010

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
8627A - WIRE, DISC PLAYER
8627A-33010

AXVH7#

CD&DVDﾃﾞｯｷ(DOP)−有り

 1
Common parts
90153-50015
91673-80616
93560-14010
Linked diagrams
5501
5806

ILLUST NO. 4 OF 4(1706- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011R 86011V
Part # Description Qty Price

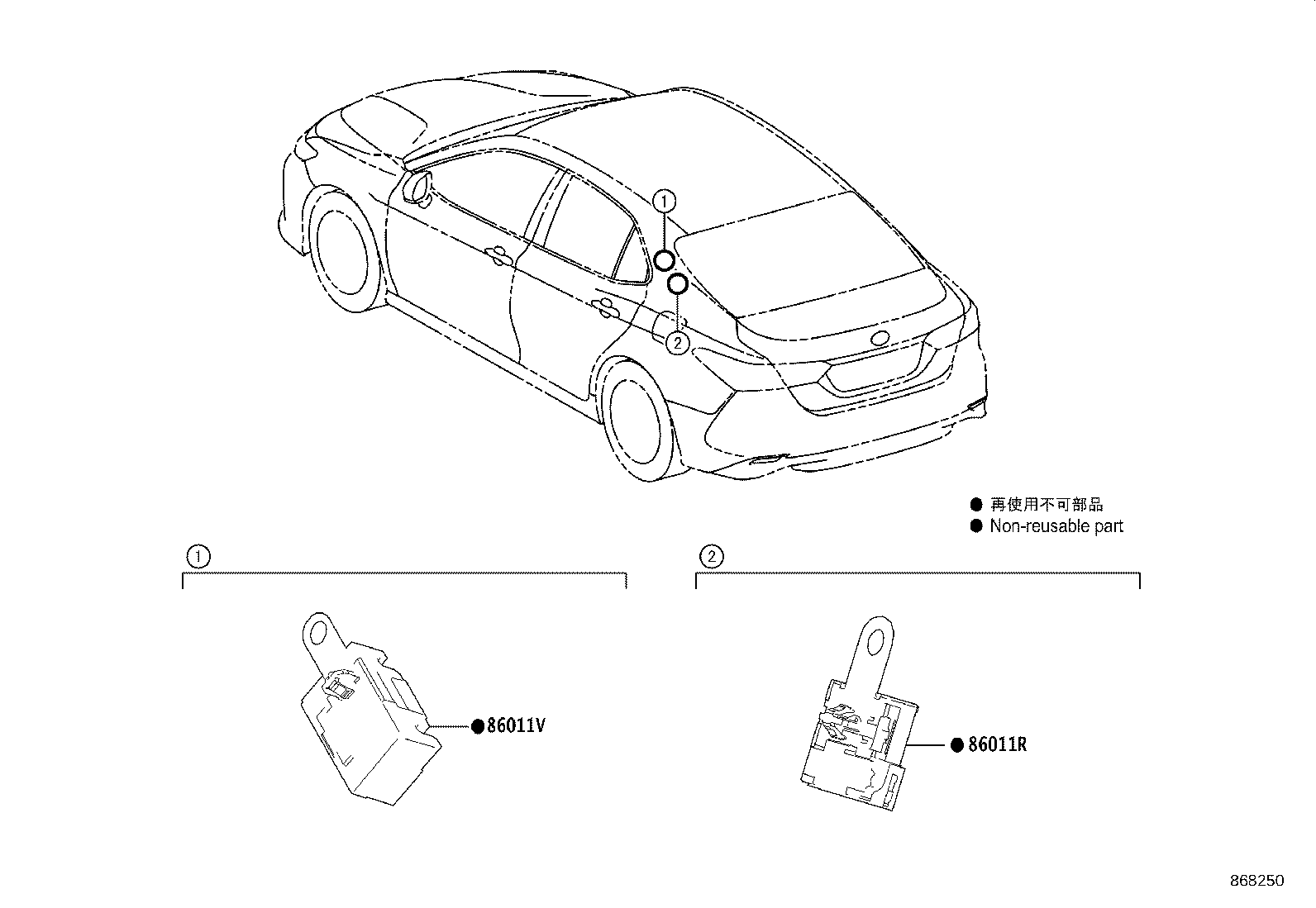

86011R - CONDENSER, RADIO SETTING
90980-04189

AXVH7#

 1
86011V - CONDENSER, RADIO SETTING
90980-04204

AXVH7#

 1
