AXVH70-AEXDB (2017)

Toyota Camry

Production Jun 2017 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )

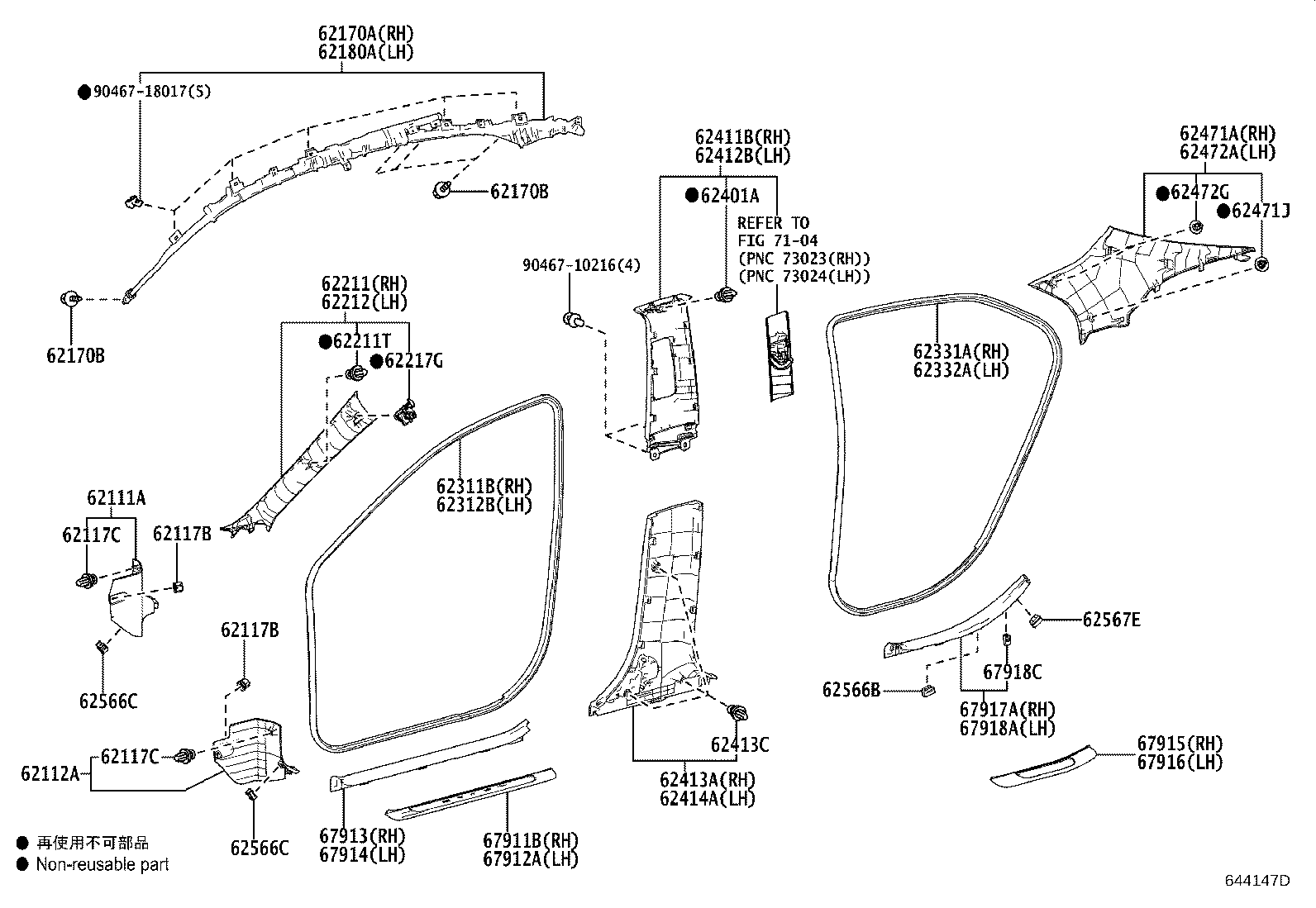

Click highlighted areas on diagram

diagram 62111A 62112A 62117B 62117B 62117C 62117C 62170A 62170B 62170B 62180A 62211 62211T 62212 62217G 62311B 62312B 62331A 62332A 62401A 62411B 62412B 62413A 62413C 62414A 62471A 62471J 62472A 62472G 62566B 62566C 62566C 62567E 67911B 67912A 67913 67914 67915 67916 67917A 67918A 67918C 7104 9046710216 9046718017
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62101-33150C0

AXVH7#..G,X

BLACK,TRIM2#

 1
62112A - TRIM SUB-ASSY, COWL SIDE, LH
62102-33240C0

AXVH7#..G,X

BLACK,TRIM2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

AXVH7#

 2
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

AXVH7#

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-10161

AXVH7#

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-10161

AXVH7#

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-33101

AXVH70

 1
62170-33102

AXVH7#

 1
62170B - BOLT, W/WASHER
91673-80616

AXVH7#

 8
62170B - BOLT, W/WASHER
91673-80616

AXVH7#

 8
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-33101

AXVH70

 1
62180-33102

AXVH7#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-33220B1

AXVH7#..G,X

GRAY,TRIM2#

 1
62210-33260B0

AXVH70

LT.GRAY/GRAY,TRIM2#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10161

AXVH7#

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-33260B0

AXVH70

LT.GRAY/GRAY,TRIM2#

 1
62220-33210B1

AXVH7#..G,X

GRAY,TRIM2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
62217-24020

AXVH7#

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-33120

AXVH7#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-33120

AXVH7#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-33140

AXVH7#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-33140

AXVH7#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-10167

AXVH7#

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62410-33200B2

AXVH7#..G,X

GRAY,TRIM2#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62420-33190B2

AXVH7#..G,X

GRAY,TRIM2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-33140C0

AXVH7#..G,X

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

AXVH7#

 6
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-33130C0

AXVH7#..G,X

BLACK,TRIM2#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62470-33210B1

AXVH7#..G,X

GRAY,TRIM2#

 1
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-09240

AXVH7#

 2
62472A - GARNISH, ROOF SIDE, INNER LH
62480-33210B1

AXVH7#..G,X

GRAY,TRIM2#

 1
62472G - CLIP(FOR ROOF SIDE GARNISH)
90467-10188

AXVH7#

 4
62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566-32010

AXVH7#

 2
62566C - CLAMP, COWL SIDE TRIM
62567-33040

AXVH7#

 2
62566C - CLAMP, COWL SIDE TRIM
62567-33040

AXVH7#

 2
62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62567-33040

AXVH7#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-33090

AXVH7#

 1
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67912-33120

AXVH7#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-33170C0

AXVH7#..G,X

BLACK,TRIM2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-33170C0

AXVH7#..G,X

BLACK,TRIM2#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-33130

AXVH7#

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-33130

AXVH7#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-33140C0

AXVH7#..G,X

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-33140C0

AXVH7#..G,X

BLACK,TRIM2#

 1
67918C - CLIP(FOR REAR SCUFF PLATE)
90467-05171

AXVH7#

 2
Common parts
90467-10216
90467-18017
Linked diagrams
7104
