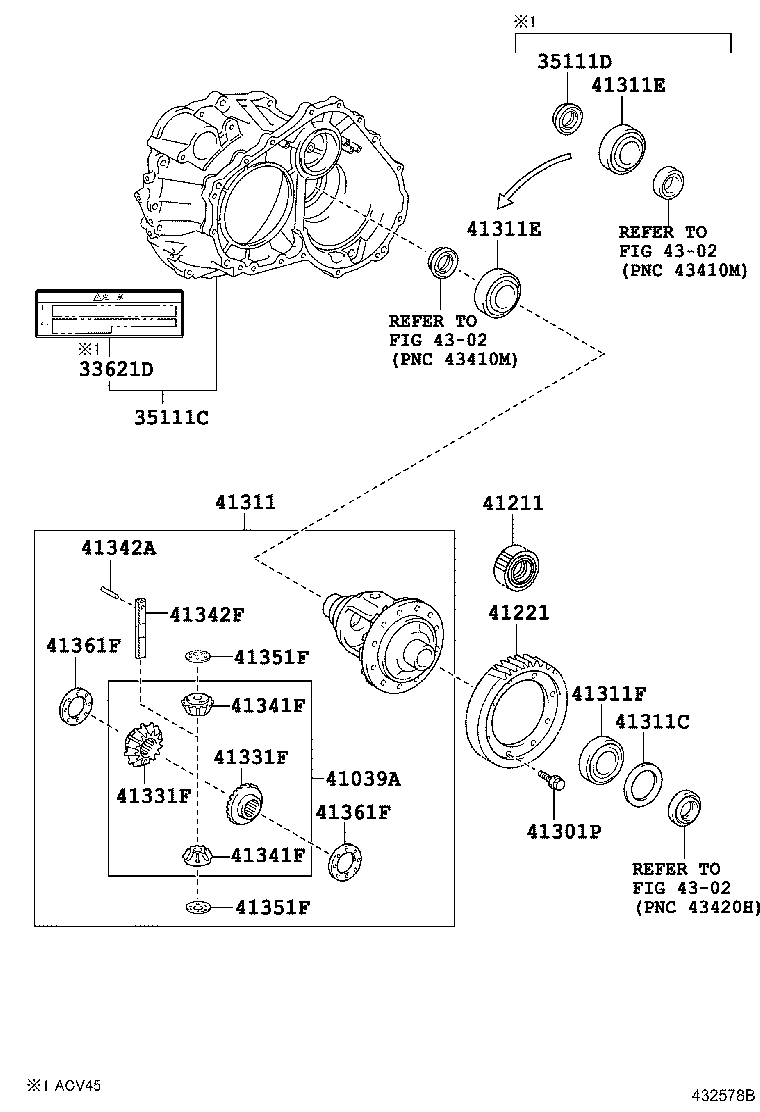

Toyota Camry ACV45 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
33621D - LABEL, TRANSAXLE OIL INFORMATION
33621-42010	ACV45	01/2006 - 01/2009	1
35111C - HOUSING, TRANSAXLE
35105-28043	ACV45	01/2006 - 04/2007	1
35105-28044	ACV45	04/2007 - 01/2009	1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-55005	ACV45	01/2006 - 01/2009	1
41211 - PINION, DIFFERENTIAL DRIVE
41211-28100	ACV45	01/2006 - 01/2009	1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-28120	ACV45	01/2006 - 01/2009	1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12303	ACV45	01/2006 - 01/2009	14
41311 - CASE, FRONT DIFFERENTIAL
41301-28100	ACV45	01/2006 - 01/2009	1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-79001	ACV45 厚さ=2.00,ﾏｰｸ 0	01/2006 - 01/2009	1
90564-79003	ACV45 厚さ=2.10,ﾏｰｸ 2	01/2006 - 01/2009	1
90564-79010	ACV45 厚さ=2.45,ﾏｰｸ 9	01/2006 - 01/2009	1
90564-79002	ACV45 厚さ=2.05,ﾏｰｸ 1	01/2006 - 01/2009	1
90564-79005	ACV45 厚さ=2.20,ﾏｰｸ 4	01/2006 - 01/2009	1
90564-79007	ACV45 厚さ=2.30,ﾏｰｸ 6	01/2006 - 01/2009	1
90564-79016	ACV45 厚さ=2.75,ﾏｰｸ F	01/2006 - 01/2009	1
90564-79012	ACV45 厚さ=2.55,ﾏｰｸ B	01/2006 - 01/2009	1
90564-79009	ACV45 厚さ=2.40,ﾏｰｸ 8	01/2006 - 01/2009	1
90564-79092	ACV45 厚さ=2.125,ﾏｰｸ L	01/2006 - 01/2009	1
90564-79008	ACV45 厚さ=2.35,ﾏｰｸ 7	01/2006 - 01/2009	1
90564-79014	ACV45 厚さ=2.65,ﾏｰｸ D	01/2006 - 01/2009	1
90564-79018	ACV45 厚さ=2.85,ﾏｰｸ H	01/2006 - 01/2009	1
90564-79015	ACV45 厚さ=2.70,ﾏｰｸ E	01/2006 - 01/2009	1
90564-79094	ACV45 厚さ=2.225,ﾏｰｸ N	01/2006 - 01/2009	1
90564-79091	ACV45 厚さ=2.075,ﾏｰｸ K	01/2006 - 01/2009	1
90564-79093	ACV45 厚さ=2.175,ﾏｰｸ M	01/2006 - 01/2009	1
90564-79006	ACV45 厚さ=2.25,ﾏｰｸ 5	01/2006 - 01/2009	1
90564-79095	ACV45 厚さ=2.275,ﾏｰｸ P	01/2006 - 01/2009	1
90564-79011	ACV45 厚さ=2.50,ﾏｰｸ A	01/2006 - 01/2009	1
90564-79004	ACV45 厚さ=2.15,ﾏｰｸ 3	01/2006 - 01/2009	1
90564-79099	ACV45 厚さ=2.475,ﾏｰｸ T	01/2006 - 01/2009	1
90564-79017	ACV45 厚さ=2.80,ﾏｰｸ G	01/2006 - 01/2009	1
90564-79013	ACV45 厚さ=2.60,ﾏｰｸ C	01/2006 - 01/2009	1
90564-79096	ACV45 厚さ=2.325,ﾏｰｸ Q	01/2006 - 01/2009	1
90564-79097	ACV45 厚さ=2.375,ﾏｰｸ R	01/2006 - 01/2009	1
90564-79098	ACV45 厚さ=2.425,ﾏｰｸ S	01/2006 - 01/2009	1
90564-79100	ACV45 厚さ=2.525,ﾏｰｸ U	01/2006 - 01/2009	1
90564-79106	ACV45 厚さ=2.825,ﾏｰｸ AB	01/2006 - 01/2009	1
90564-79090	ACV45 厚さ=2.025,ﾏｰｸ J	01/2006 - 01/2009	1
90564-79103	ACV45 厚さ=2.675,ﾏｰｸ X	01/2006 - 01/2009	1
90564-79102	ACV45 厚さ=2.625,ﾏｰｸ W	01/2006 - 01/2009	1
90564-79105	ACV45 厚さ=2.775,ﾏｰｸ AA	01/2006 - 01/2009	1
90564-79101	ACV45 厚さ=2.575,ﾏｰｸ V	01/2006 - 01/2009	1
90564-79104	ACV45 厚さ=2.725,ﾏｰｸ Y	01/2006 - 01/2009	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-62004	ACV45	01/2006 - 01/2009	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-62004	ACV45	01/2006 - 01/2009	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50106	ACV45	01/2006 - 01/2009	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-48050	ACV45	01/2006 - 01/2009	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-48050	ACV45	01/2006 - 01/2009	2
41341F - PINION, FRONT DIFFERENTIAL
41341-48040	ACV45	01/2006 - 01/2009	2
41341F - PINION, FRONT DIFFERENTIAL
41341-48040	ACV45	01/2006 - 01/2009	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	ACV45	01/2006 - 01/2009	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28020	ACV45	01/2006 - 01/2009	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011	ACV45	01/2006 - 01/2009	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-33011	ACV45	01/2006 - 01/2009	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-33010	ACV45 厚さ=1.625	01/2006 - 01/2009	2
41363-33010	ACV45 厚さ=1.825	01/2006 - 01/2009	2
41362-33080	ACV45 厚さ=1.725	01/2006 - 01/2009	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-33010	ACV45 厚さ=1.625	01/2006 - 01/2009	2
41363-33010	ACV45 厚さ=1.825	01/2006 - 01/2009	2
41362-33080	ACV45 厚さ=1.725	01/2006 - 01/2009	2
Linked diagrams
4302

ACV45-AEPNK (2006)

(0601- )
