ACV45-AEPNK (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1101)

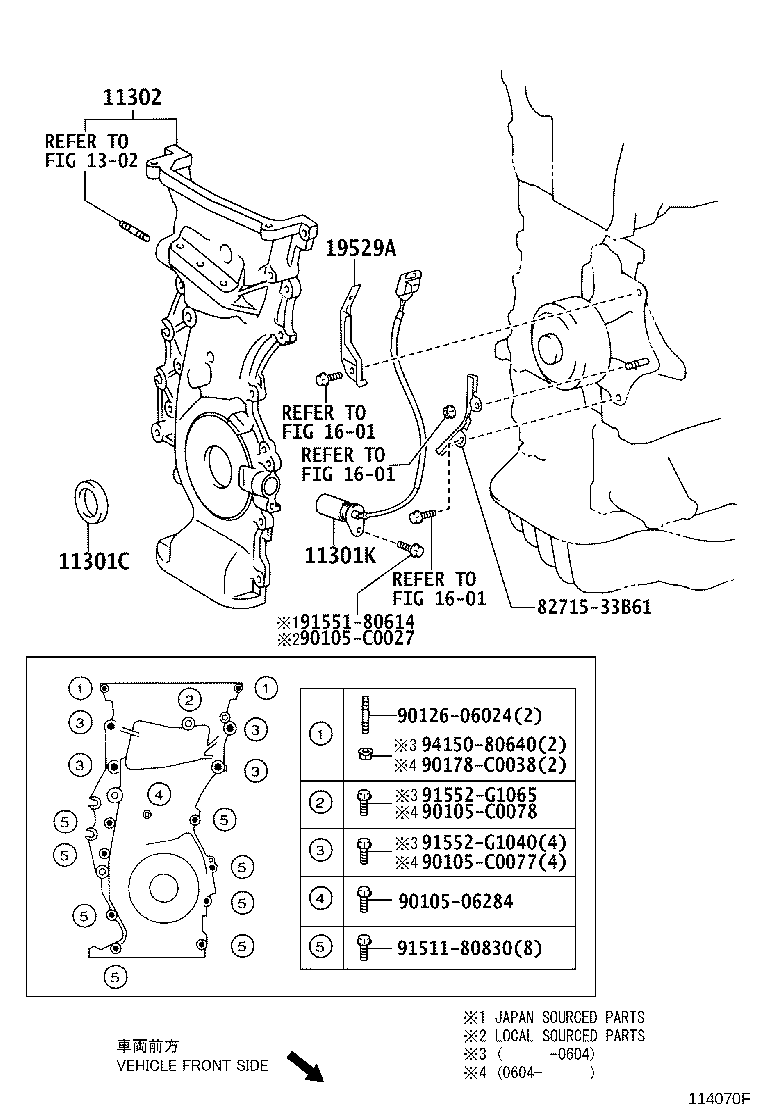

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 1601 1601 1601 19529A 8271533B61 9010506284 90105C0027 90105C0077 90105C0078 9012606024 90178C0038 9151180830 9155180614 91552G1040 91552G1065 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38089

2AZFE..ACV4#

(J)

 1
90311-T0024

2AZFE..ACV4#

(L)

 1
11301K - SENSOR, CRANK POSITION
90919-05067

2AZFE..ACV4#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0H060

2AZFE..ACV4#

(L)

 1
11310-28071

2AZFE..ACV4#

(J)

 1
11310-28071

2AZFE..ACV4#

 1
19529A - CLAMP
19529-28050

2AZFE..ACV4#

 1
Common parts
82715-33B61
90105-06284
90105-C0027
90105-C0077
90105-C0078
90126-06024
90178-C0038
91511-80830
91551-80614
91552-G1040
91552-G1065
94150-80640
Linked diagrams
1302
1601
