ACV40-AEANK (2009)

Toyota Camry

Production Jan 2009 - Aug 2011
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

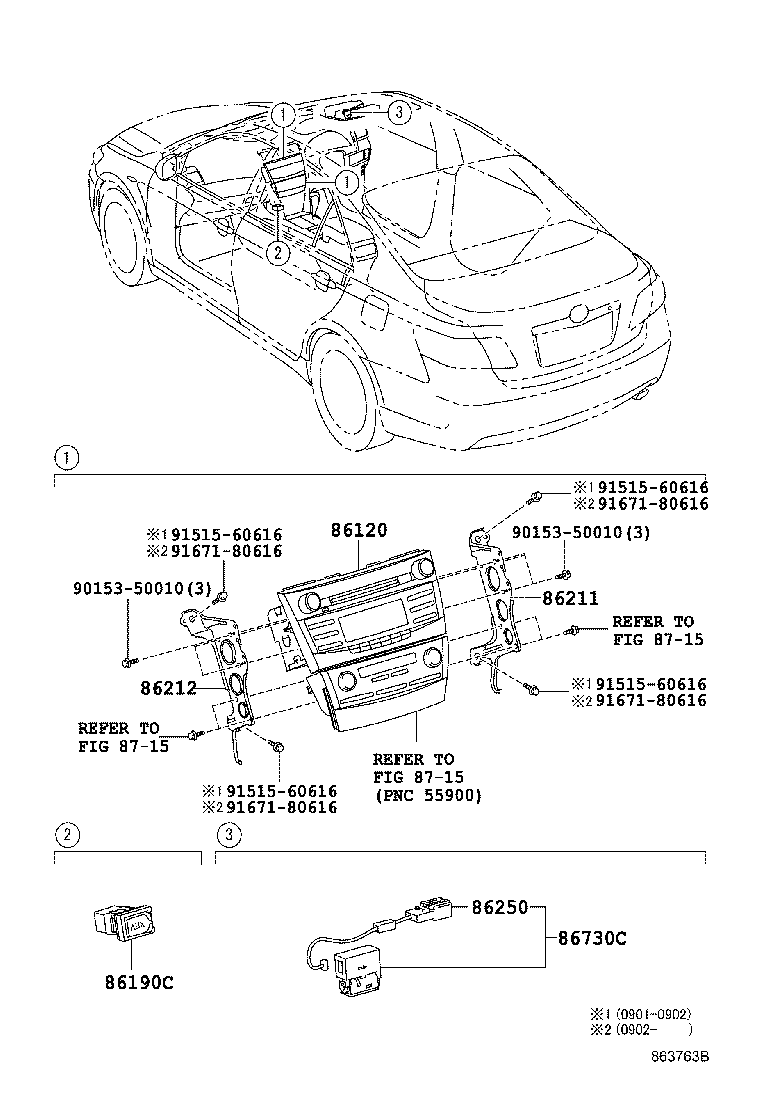

ILLUST NO. 1 OF 2(0901- )

Click highlighted areas on diagram

diagram 86120 86190C 86211 86212 86250 86730C 8715 8715 8715 9015350010 9015350010 9151560616 9151560616 9151560616 9151560616 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33830

ACV4#

FUJITSU TEN,ID=10814

 1
86120-33830

ACV4#

FUJITSU TEN,ID=10814

 1
86120-33D30

ACV4#

FUJITSU TEN,ID=10829

 1
86120-33D30

ACV4#

FUJITSU TEN,ID=10829

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48010

ACV4#

 1
86211 - BRACKET, RADIO, NO.1
86211-33210

ACV4#

 1
86211-33210

ACV4#

 1
86212 - BRACKET, RADIO, NO.2
86212-33210

ACV4#

 1
86212-33210

ACV4#

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-52020

ACV4#

ｵｰﾃﾞｨｵ−AVN,6ｽﾋﾟｰｶ,BLUETOOTH

 1
86730C - MICROPHONE ASSY, TELEPHONE
86730-33070

ACV4#

ｵｰﾃﾞｨｵ−AVN,6ｽﾋﾟｰｶ,BLUETOOTH

 1
Common parts
90153-50010
91515-60616
91671-80616
Linked diagrams
8715
