ACV40-AEANK (2006)

Toyota Camry

Production Jan 2006 - Jan 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

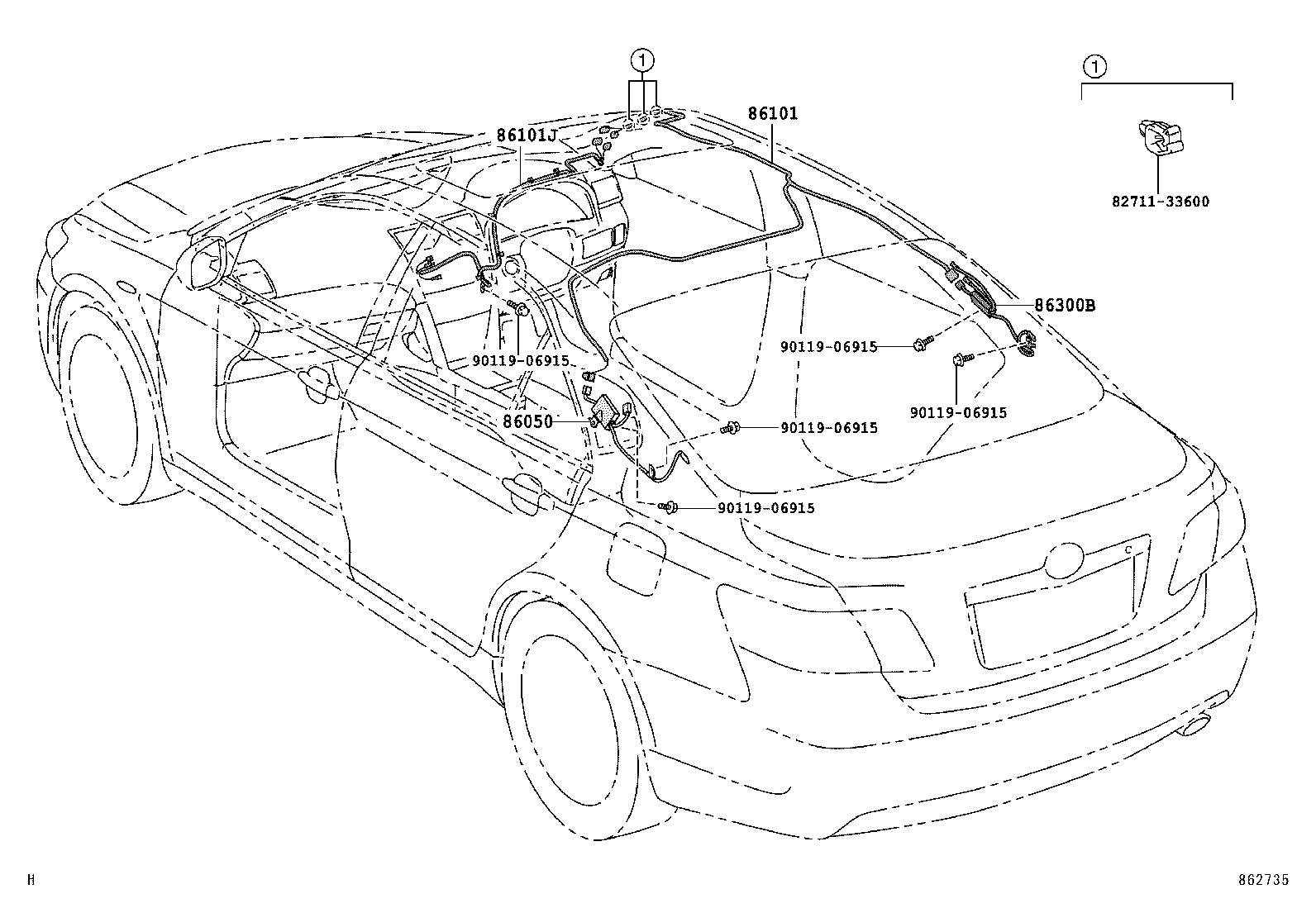

Click highlighted areas on diagram

TVｱﾝﾃﾅ ｱﾘ

diagram 8271133600 86050 86101 86101J 86300B 9011906915 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-33130

ACV4#

ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-33550

ACV4#

ﾑｰﾝﾙｰﾌ−有り

 1
86101-33600

ACV4#

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86101-33570

ACV4#

 1
86101-33610

ACV4#

ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-33630

ACV4#

 1
86101-33640

ACV4#

ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-33310

ACV4#

 1
86300-33311

ACV4#

 1
Common parts
82711-33600
90119-06915

(0601- )

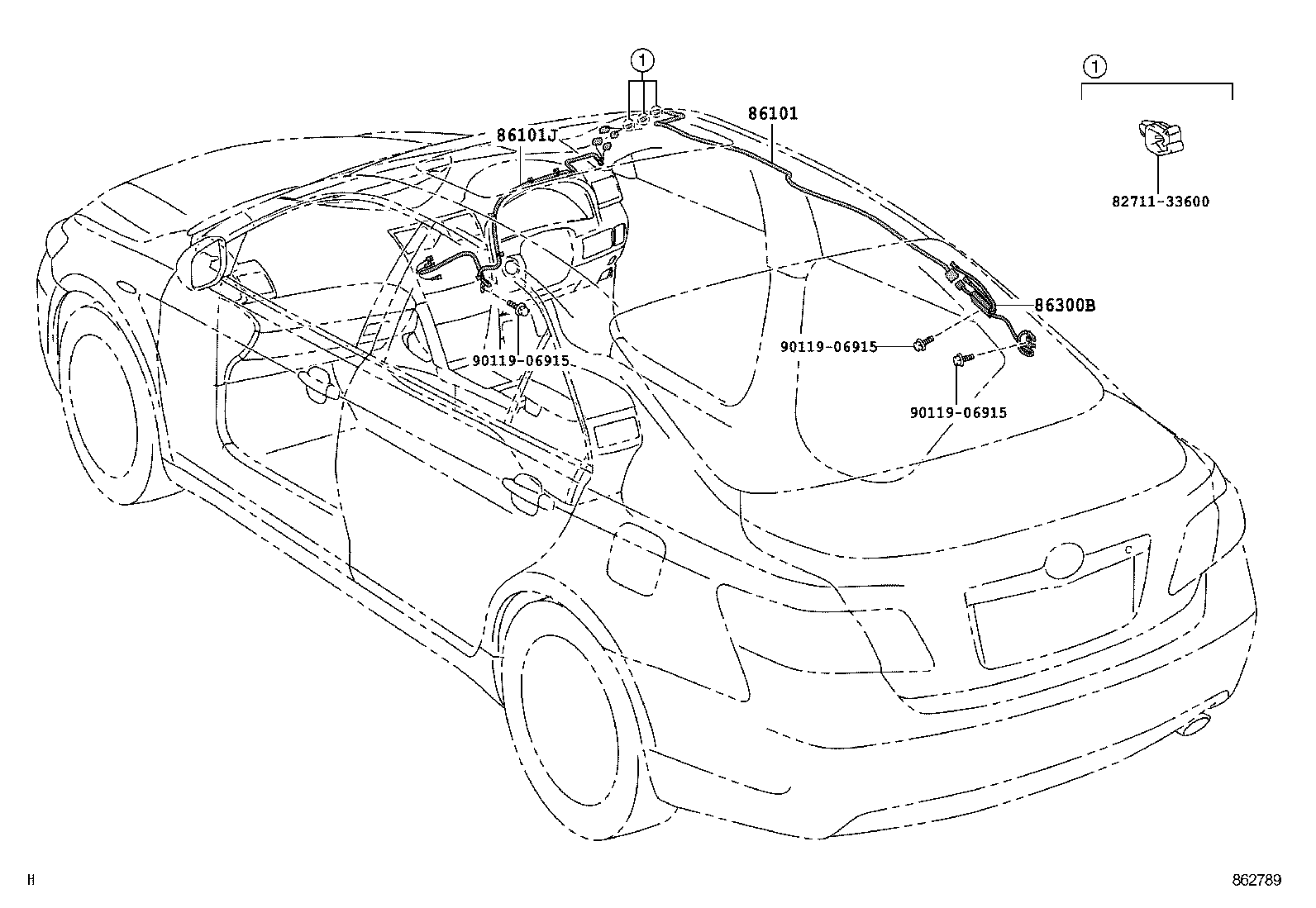

Click highlighted areas on diagram

diagram 8271133600 86101 86101J 86300B 9011906915 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-33550

ACV4#

ﾑｰﾝﾙｰﾌ−有り

 1
86101-33600

ACV4#

ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86101-33570

ACV4#

 1
86101-33610

ACV4#

ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-33630

ACV4#

 1
86101-33640

ACV4#

ｵｰﾃﾞｨｵ−AVN(MD)2W 6ｽﾋﾟｰｶ

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-33310

ACV4#

 1
86300-33311

ACV4#

 1
Common parts
82711-33600
90119-06915
