Toyota Camry ACV35 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
CAMRY
ACV35-AEPNK (2001)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0312- )

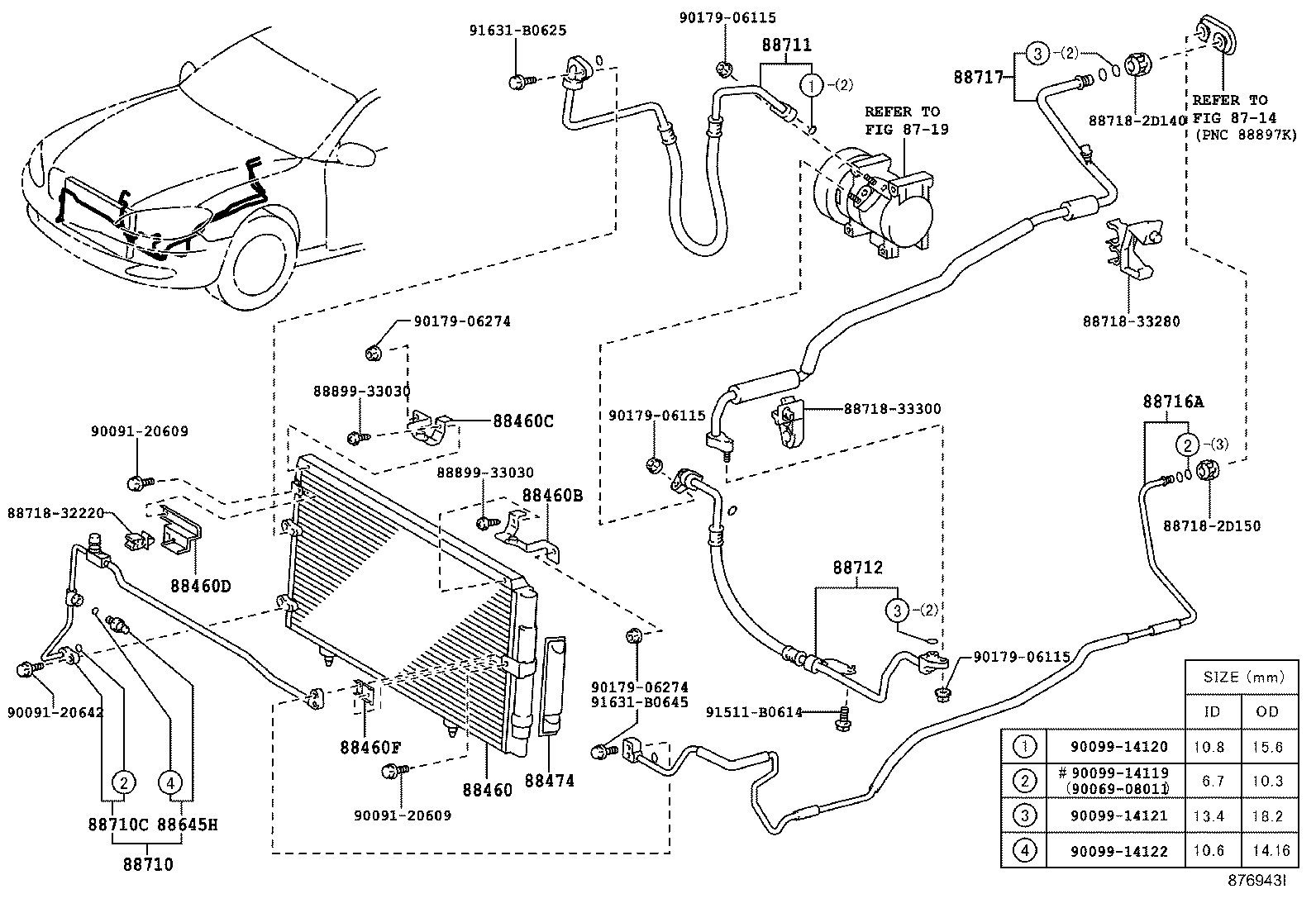

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-0W020	ACV3#	09/2001 - 12/2003	1
88460-0W040	ACV3#	06/2004 - 12/2999	1
88460-0W040	ACV3#	12/2003 - 06/2004	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-06120	ACV3#	09/2001 - 06/2004	1
88688-06120	ACV3#	06/2004 - 01/2006	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-06140	ACV3#	06/2004 - 01/2006	1
88688-06140	ACV3#	09/2001 - 06/2004	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-33390	ACV3#	09/2001 - 06/2004	1
88688-33390	ACV3#	06/2004 - 01/2006	1
88460F - BRACKET, COOLER CONDENSER, NO.4
88688-33490	ACV3#	06/2004 - 01/2006	1
88688-33490	ACV3#	12/2003 - 06/2004	1
88474 - DRYER, COOLER
88474-47010	ACV3#	06/2004 - 12/2999	1
88474-47010	ACV3#	09/2001 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-08010	ACV3#	09/2001 - 06/2004	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33300	ACV3#	09/2001 - 06/2004	1
88710-33300	ACV3#	06/2004 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88716-33390	ACV3#	09/2001 - 06/2004	1
88716-33390	ACV3#	06/2004 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33170	ACV3#	06/2004 - 12/2999	1
88711-33170	ACV3#	09/2001 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-33300	ACV35	09/2001 - 06/2004	1
88704-33300	ACV35	06/2004 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33370	ACV3#	09/2001 - 06/2004	1
88716-33370	ACV3#	06/2004 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88710-33251	ACV3#	06/2004 - 12/2999	1
88710-33251	ACV3#	09/2001 - 06/2004	1
Common parts
88718-2D140
88718-2D150
88718-32220
88718-33280
88718-33300
88899-33030
90069-08011
90091-20609
90091-20642
90099-14119
90099-14120
90099-14121
90099-14122
90179-06115
90179-06274
91511-B0614
91631-B0625
91631-B0645
Linked diagrams
8714
8719

(0109-0312)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-0W020	ACV3#	09/2001 - 12/2003	1
88460-0W040	ACV3#	06/2004 - 12/2999	1
88460-0W040	ACV3#	12/2003 - 06/2004	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-06120	ACV3#	09/2001 - 06/2004	1
88688-06120	ACV3#	06/2004 - 01/2006	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-06140	ACV3#	06/2004 - 01/2006	1
88688-06140	ACV3#	09/2001 - 06/2004	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-33390	ACV3#	09/2001 - 06/2004	1
88688-33390	ACV3#	06/2004 - 01/2006	1
88461A - CORE, COOLER CONDENSER
88461-06070	ACV3#	09/2001 - 12/2003	1
88474 - DRYER, COOLER
88474-47010	ACV3#	06/2004 - 12/2999	1
88474-47010	ACV3#	09/2001 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-08010	ACV3#	09/2001 - 06/2004	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33300	ACV3#	09/2001 - 06/2004	1
88710-33300	ACV3#	06/2004 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88716-33390	ACV3#	09/2001 - 06/2004	1
88716-33390	ACV3#	06/2004 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33170	ACV3#	06/2004 - 12/2999	1
88711-33170	ACV3#	09/2001 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-33300	ACV35	09/2001 - 06/2004	1
88704-33300	ACV35	06/2004 - 12/2999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33370	ACV3#	09/2001 - 06/2004	1
88716-33370	ACV3#	06/2004 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88710-33251	ACV3#	06/2004 - 12/2999	1
88710-33251	ACV3#	09/2001 - 06/2004	1
Common parts
88718-2D140
88718-2D150
88718-32220
88718-33280
88718-33300
88899-33030
90069-08011
90091-20609
90091-20642
90099-14119
90099-14120
90099-14121
90099-14122
90179-06115
90179-06274
91511-B0614
91631-B0625
91631-B0645
Linked diagrams
8714
8719

ACV35-AEPNK (2001)

(0312- )

(0109-0312)

Part Price Details
