ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0109- )

Click highlighted areas on diagram

ｴｱ ﾀﾞｸﾄ

diagram 55843A 55844 55845A 55950G 55971C 55972C 55990B 58861B 58862B 58863A 87201 87201B 87212 87213 9015950322 9015950322 9017906206 9017906206 9018305094 9018305094 9046707040 9165160614 9165160614 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-33100

ACV3#

 1
55843-33100

ACV3#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-33110

ACV3#

 1
55844-33110

ACV3#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-33100

ACV3#

 1
55845-33100

ACV3#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33050

ACV3#

 1
55950-33050

ACV3#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33070

ACV3#

 1
55971-33070

ACV3#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33070

ACV3#

 1
55972-33070

ACV3#

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-33020

ACV3#

 1
55990-33020

ACV3#

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33010

ACV3#

 1
58861-33010

ACV3#

 1
58862B - DUCT, CONSOLE BOX, NO.2
58862-33020

ACV3#

 1
58862-33020

ACV3#

 1
58863A - DUCT, CONSOLE BOX, NO.3
58863-33020

ACV3#

 1
58863-33020

ACV3#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33250

ACV3#

 1
87201-33250

ACV3#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33260

ACV3#

 1
87201-33260

ACV3#

 1
87212 - DUCT, AIR, REAR NO.1
87212-33030

ACV3#

 1
87212-33030

ACV3#

 1
87213 - DUCT, AIR, REAR NO.2
87213-33040

ACV3#

 1
87213-33040

ACV3#

 1
Common parts
90159-50322
90179-06206
90183-05094
90467-07040
91651-60614
93568-55016

ILLUST NO. 1 OF 3(0109- )

Click highlighted areas on diagram

ｺﾝﾄﾛ-ﾙ ﾊﾟﾈﾙ

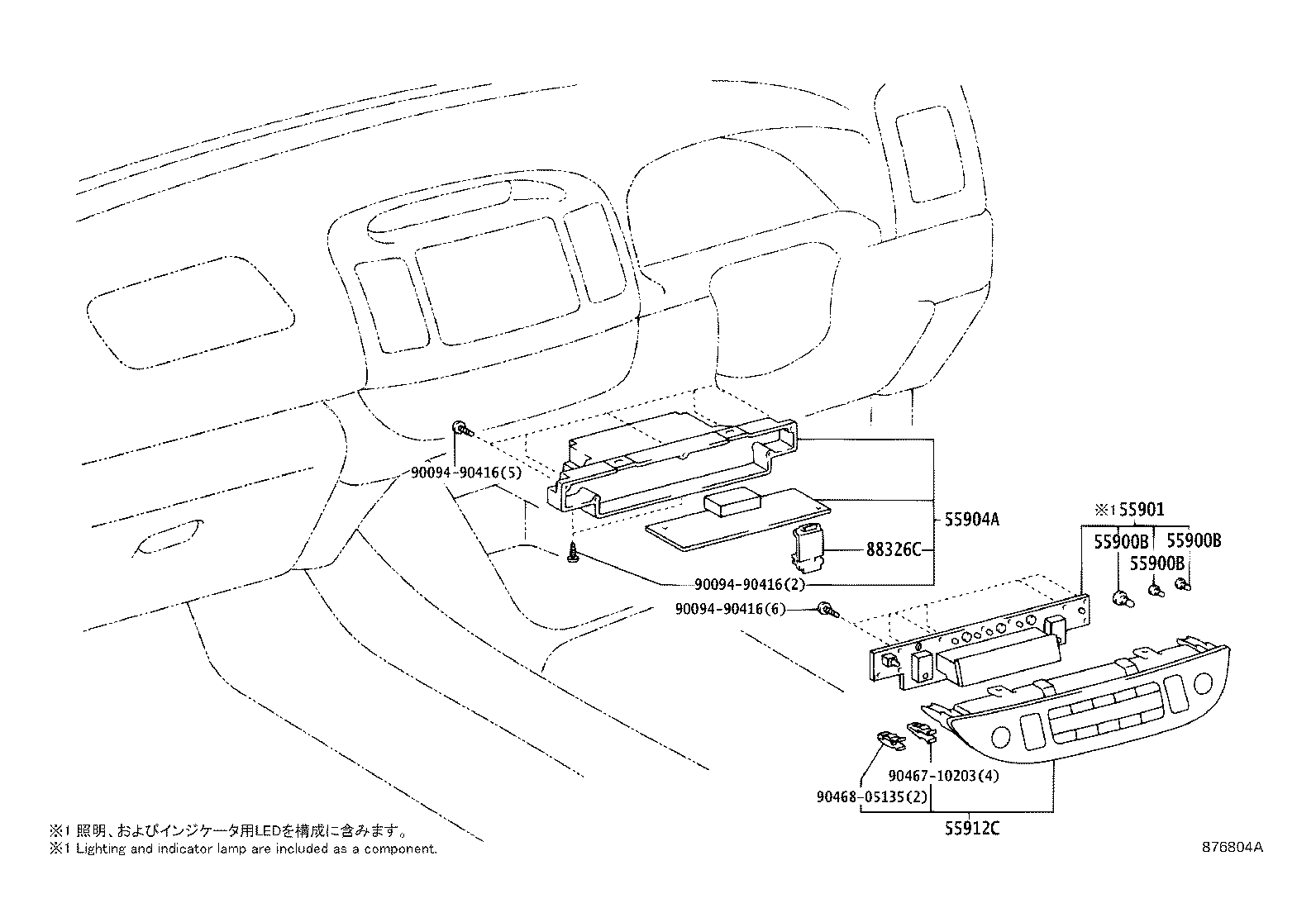

diagram 55900B 55900B 55900B 55901 55904A 55912C 88326C 9009490416 9009490416 9009490416 9046710203 9046805135
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
55900B - BULB, AIR CONDITIONER CONTROL
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
55900B - BULB, AIR CONDITIONER CONTROL
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03054

ACV3#

14V 0.84W,ﾊｻﾞｰﾄﾞ(照明)

 1
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
90010-03056

ACV3#

14V 1.4W,ｷｬｯﾌﾟ付き,液晶照明用

 3
90010-03055

ACV3#

14V 0.84W,ｷｬｯﾌﾟ付き,ｽｲｯﾁ照明用

 8
55901 - BASE SUB-ASSY, HEATER CONTROL
55901-33030

ACV3#

 1
55901-33030

ACV3#

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-33110

ACV3#

 1
55904-33110

ACV3#

 1
55912C - HOUSING, HEATER CONTROL
55912-33190

ACV3#..24G

 1
55912-33190

ACV3#..24G

 1
88326C - PLATE, COVER
88326-63010

ACV3#

 1
88326-63010

ACV3#

 1
Common parts
90094-90416
90467-10203
90468-05135

ILLUST NO. 3 OF 3(0109- )

Click highlighted areas on diagram

ｾﾝｻ

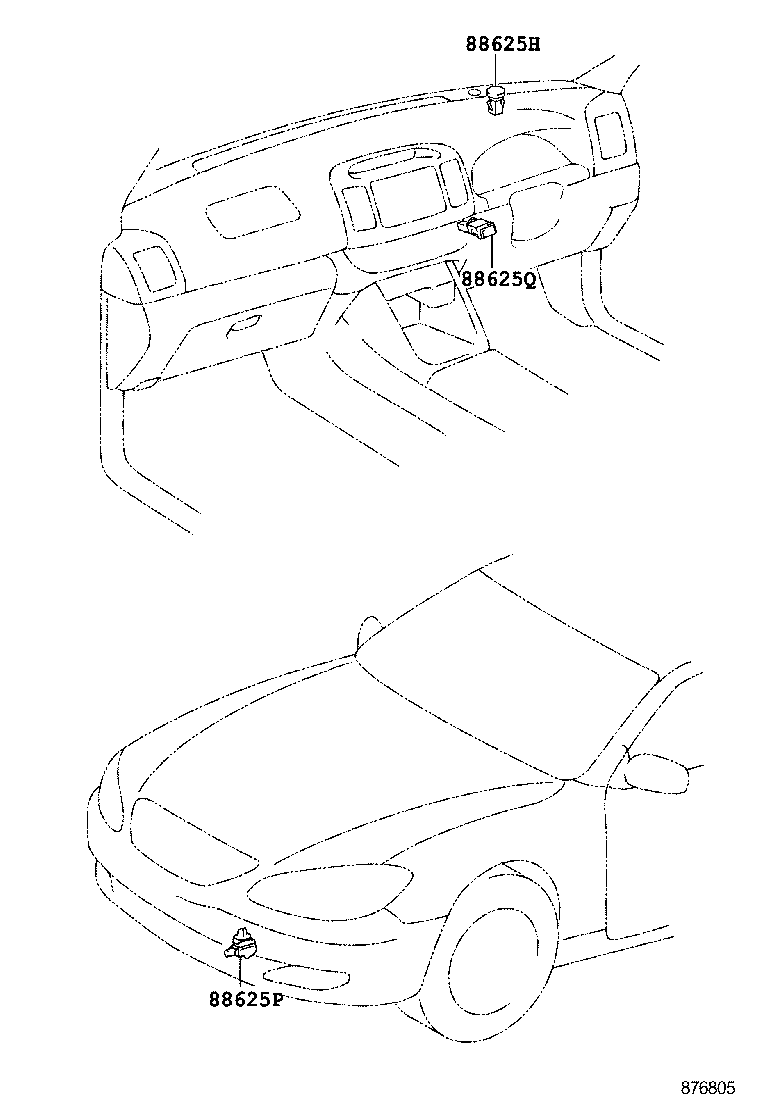

diagram 88625H 88625P 88625Q
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-33150

ACV3#

 1
88625-33150

ACV3#

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

ACV3#

 1
88790-22131

ACV3#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ACV3#

 1
88625-47021

ACV3#

 1
