ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

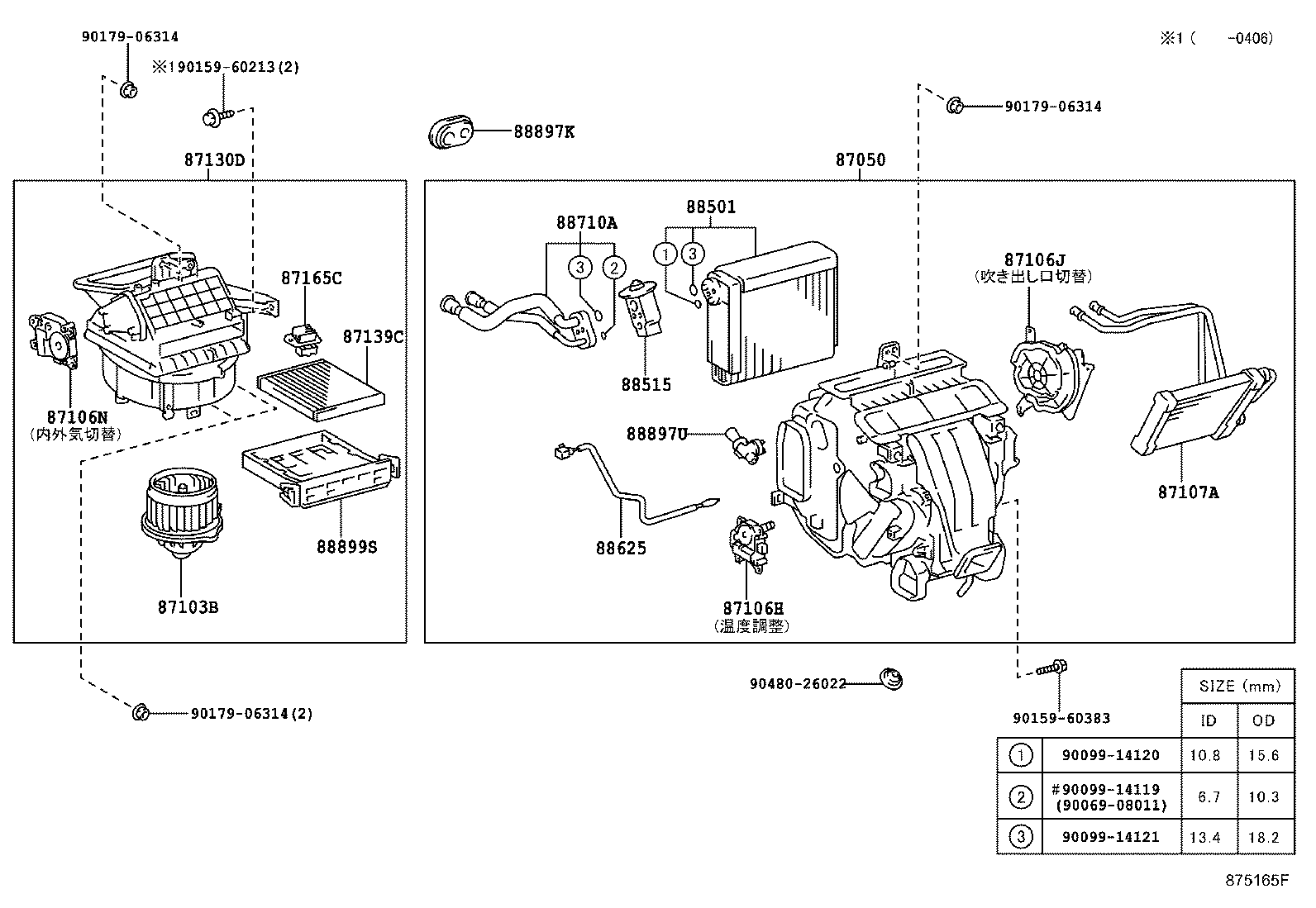

Click highlighted areas on diagram

diagram 87050 87103B 87106H 87106J 87106N 87107A 87130D 87139C 87165C 88501 88515 88625 88710A 88897K 88897U 88899S 9009914119 9009914120 9009914121 9015960213 9015960383 9017906314 9017906314 9017906314 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-33500

ACV3#

 1
87050-33502

ACV3#

 1
87050-33501

ACV3#

 1
87050-33502

ACV3#

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-33071

ACV3#

 1
87103-33071

ACV3#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-41051

ACV3#

 1
87106-41051

ACV3#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-33230

ACV3#

 1
87106-33230

ACV3#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-33200

ACV3#

 1
87106-33200

ACV3#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-33091

ACV3#

 1
87107-33091

ACV3#

 1
87130D - BLOWER ASSY
87130-33180

ACV3#

 1
87130-33180

ACV3#

 1
87139C - FILTER, CLEAN AIR
87139-33010

ACV3#

脱臭ﾌｨﾙﾀ

 1
87139-33010

ACV3#

 1
87139-47020

ACV3#

脱臭 & 花粉ﾌｨﾙﾀ

 1
87165C - CONTROL, BLOWER MOTOR
87165-13010

ACV3#

 1
87165-13010

ACV3#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-41020

ACV3#

 1
88501-41020

ACV3#

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

ACV3#

 1
88515-28160

ACV3#

 1
88515-28160

ACV3#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-33170

ACV3#

 1
88625-33170

ACV3#

 1
88625-17130

ACV3#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-33270

ACV3#

 1
88710-33270

ACV3#

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-33020

ACV3#

 1
88897-33020

ACV3#

 1
88897U - PIPE, ASPIRATOR
88897-12210

ACV3#

 1
88897-12210

ACV3#

 1
88899S - FRAME, FRONT COOLER
88899-41010

ACV3#

 1
88899-41010

ACV3#

 1
Common parts
90099-14119
90099-14120
90099-14121
90159-60213
90159-60383
90179-06314
90480-26022
