ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

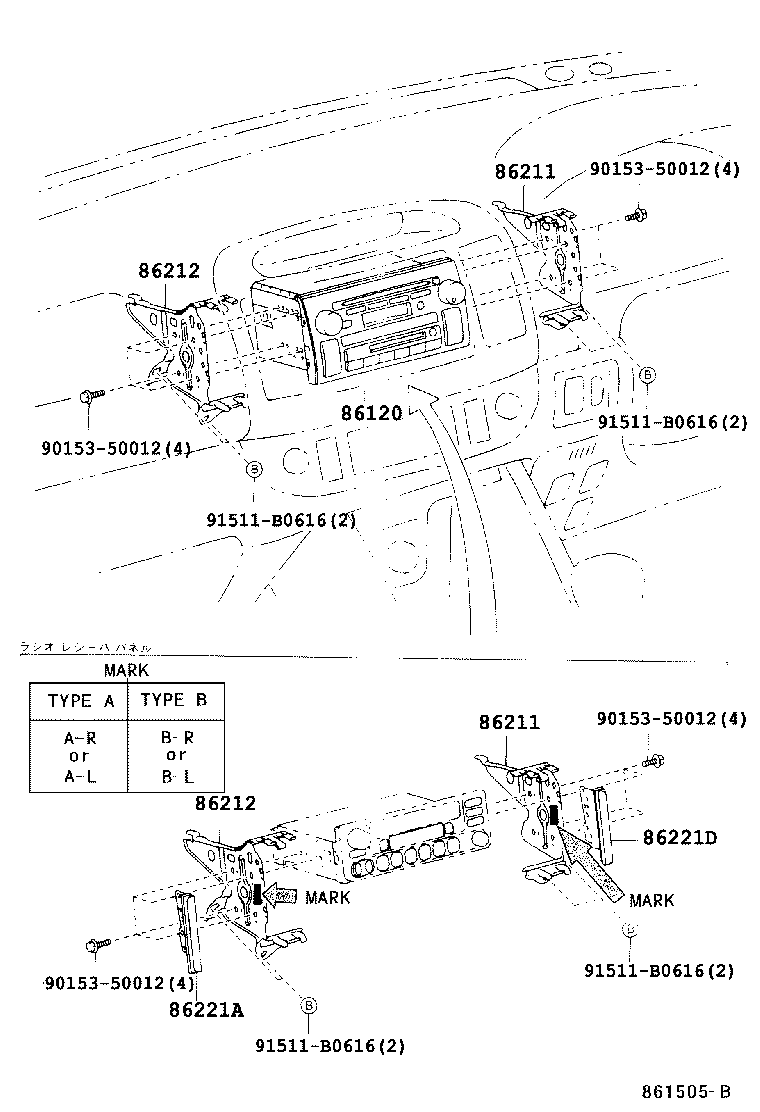

ILLUST NO. 1 OF 2(0109- )

Click highlighted areas on diagram

diagram 86120 86211 86211 86212 86212 86221A 86221D 9015350012 9015350012 9015350012 9015350012 91511B0616 91511B0616 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33430

ACV3#

PIONEER,ID=P0625

 1
86120-33431

ACV3#

PIONEER,ID=P0627

 1
86211 - BRACKET, RADIO, NO.1
86211-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212 - BRACKET, RADIO, NO.2
86212-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212 - BRACKET, RADIO, NO.2
86212-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33160

ACV3#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86212-33150

ACV3#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86221A - PANEL, RADIO RECEIVER
86221-52050

ACV3#

 1
86221-52050

ACV3#

 1
86221D - PANEL, RADIO RECEIVER
86221-52060

ACV3#

 1
86221-52060

ACV3#

 1
Common parts
90153-50012
91511-B0616

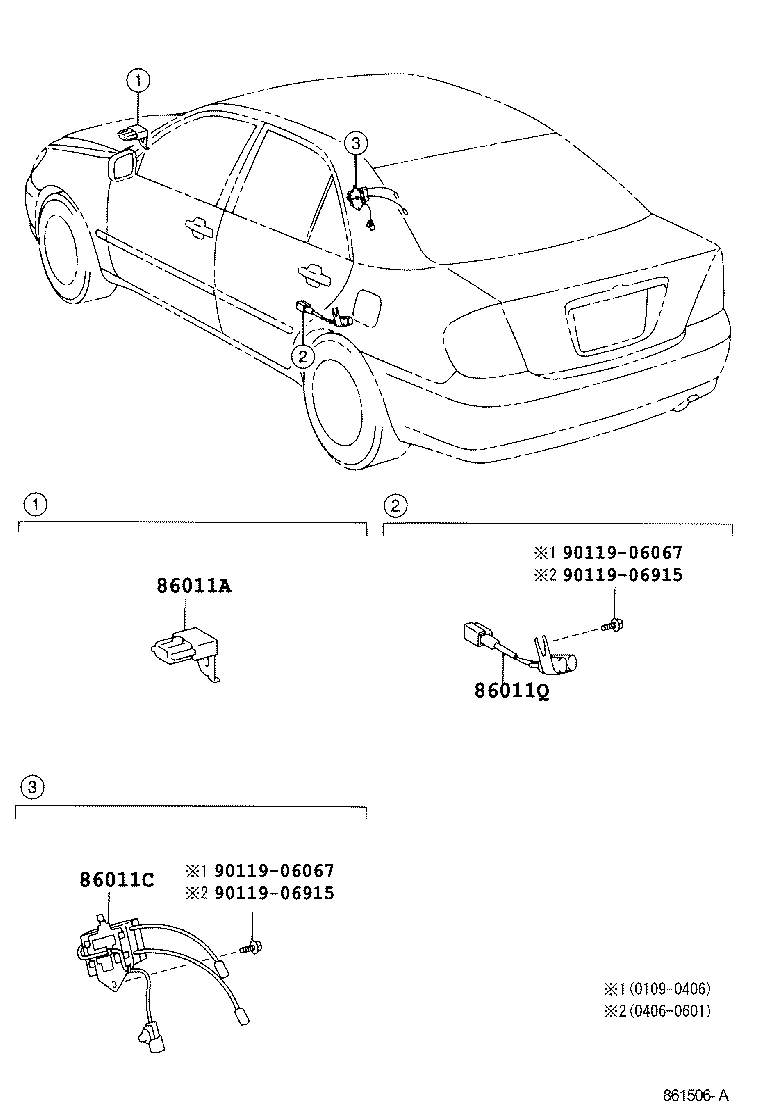

ILLUST NO. 2 OF 2(0109- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011C 86011Q 9011906067 9011906067 9011906915 9011906915
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04157

ACV3#

 1
90980-04157

ACV3#

 1
86011C - FILTER, NOISE
90980-05361

ACV3#

 1
90980-05361

ACV3#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04129

ACV3#

 1
90980-04129

ACV3#

 1
Common parts
90119-06067
90119-06915
