ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )

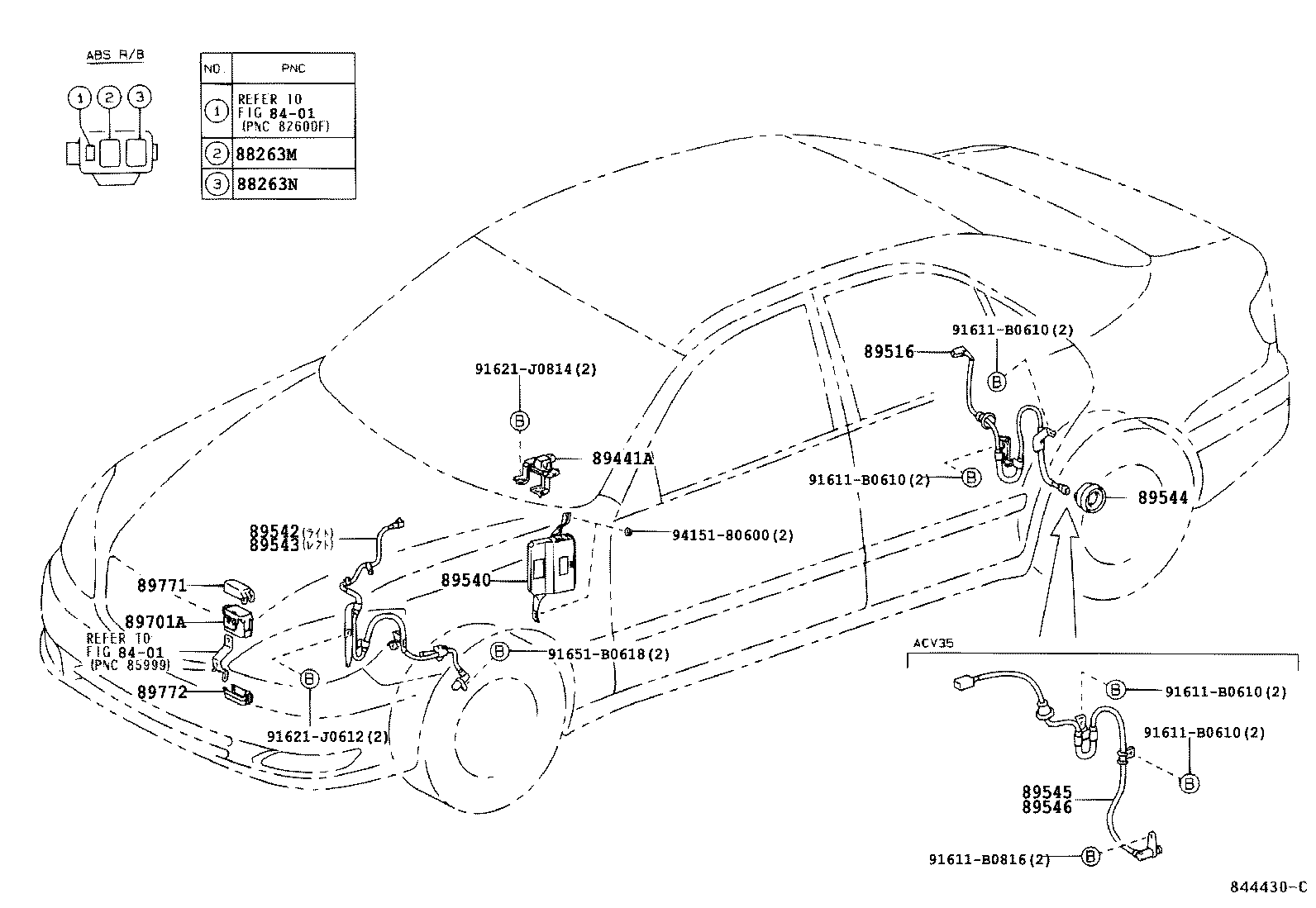

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
ACV3# |
1 | ||
| 88263-32070 |
ACV3# |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-32070 |
ACV3# |
1 | ||
| 88263-32070 |
ACV3# |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89440-33020 |
ACV35 |
1 | ||
| 89440-33020 |
ACV35 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-33350 |
ACV35 |
1 | ||
| 89540-33350 |
ACV35 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-33070 |
ACV3# |
1 | ||
| 89542-33070 |
ACV3# |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-33070 |
ACV3# |
1 | ||
| 89543-33070 |
ACV3# |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-33030 |
ACV35 |
1 | ||
| 89545-33030 |
ACV35 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-33030 |
ACV35 |
1 | ||
| 89546-33030 |
ACV35 |
1 | ||
| 89701A - BLOCK SUB-ASSY, ABS RELAY | ||||
| 89701-12020 |
ACV3# |
1 | ||
| 89701-12020 |
ACV3# |
1 | ||
| 89771 - COVER, ABS RELAY BLOCK, UPPER | ||||
| 89771-33010 |
ACV3# |
1 | ||
| 89771-33010 |
ACV3# |
1 | ||
| 89772 - COVER, ABS RELAY BLOCK, LOWER | ||||
| 89772-12020 |
ACV3# |
1 | ||
| 89772-12020 |
ACV3# |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 91611-B0816 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91651-B0618 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
