Toyota Camry ACV35 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
CAMRY
ACV35-AEPNK (2001)
8401 - SWITCH & RELAY & COMPUTER

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(0109- )

Click highlighted areas on diagram

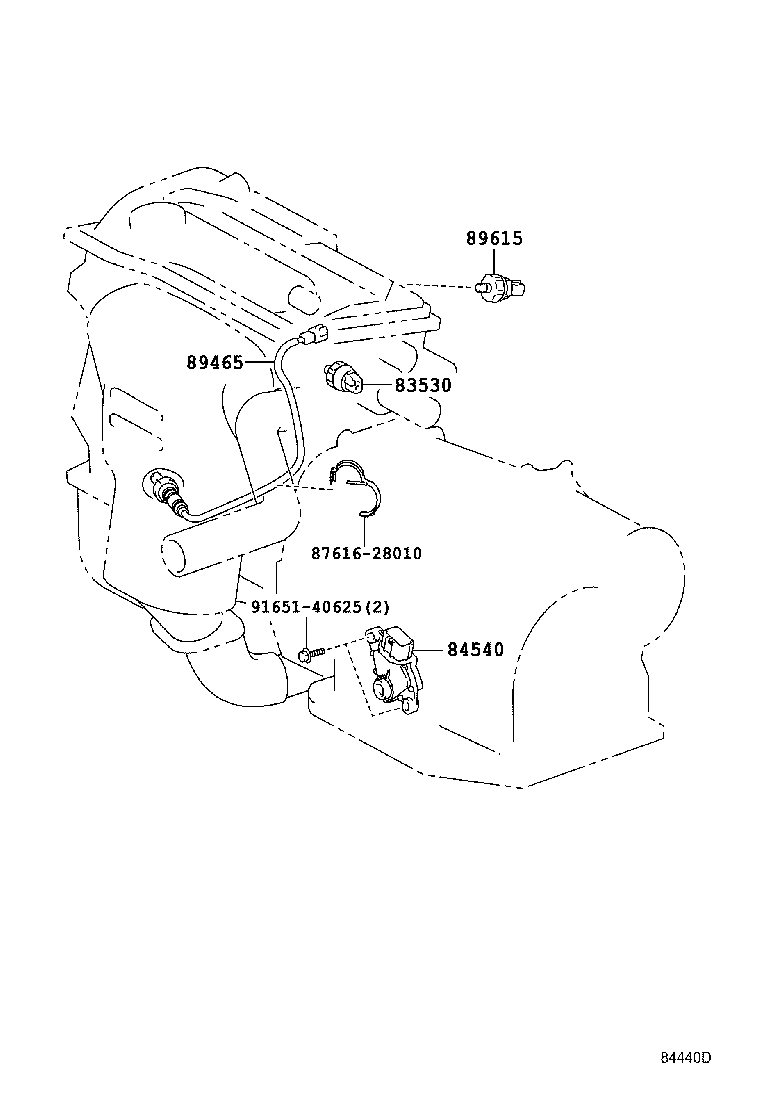

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	ACV3# DENSO	09/2001 - 06/2004	1
83530-60020	ACV3# YAZAKI	06/2004 - 12/2999	1
83530-60020	ACV3# YAZAKI	09/2001 - 06/2004	1
83530-28020	ACV3# DENSO	06/2004 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-48010	ACV3#	07/2003 - 06/2004	1
84540-48010	ACV3#	06/2004 - 12/2999	1
84540-12230	ACV35	09/2001 - 07/2003	1
89465 - SENSOR, OXYGEN
89465-33240	ACV3#	06/2004 - 12/2999	1
89465-33240	ACV3#	09/2001 - 06/2004	1
89615 - SENSOR, KNOCK CONTROL
89615-44010	ACV3# 有(識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ)	06/2004 - 12/2999	1
89615-32030	ACV3# 無(識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ)	09/2001 - 06/2004	1
89615-32030	ACV3# 無(識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ)	06/2004 - 12/2999	1
89615-44010	ACV3# 有(識別ﾍﾟｲﾝﾄ=ｵﾚﾝｼﾞ)	09/2001 - 06/2004	1
Common parts
87616-28010
91651-40625

ILLUST NO. 2 OF 6(0109-0406)

Click highlighted areas on diagram

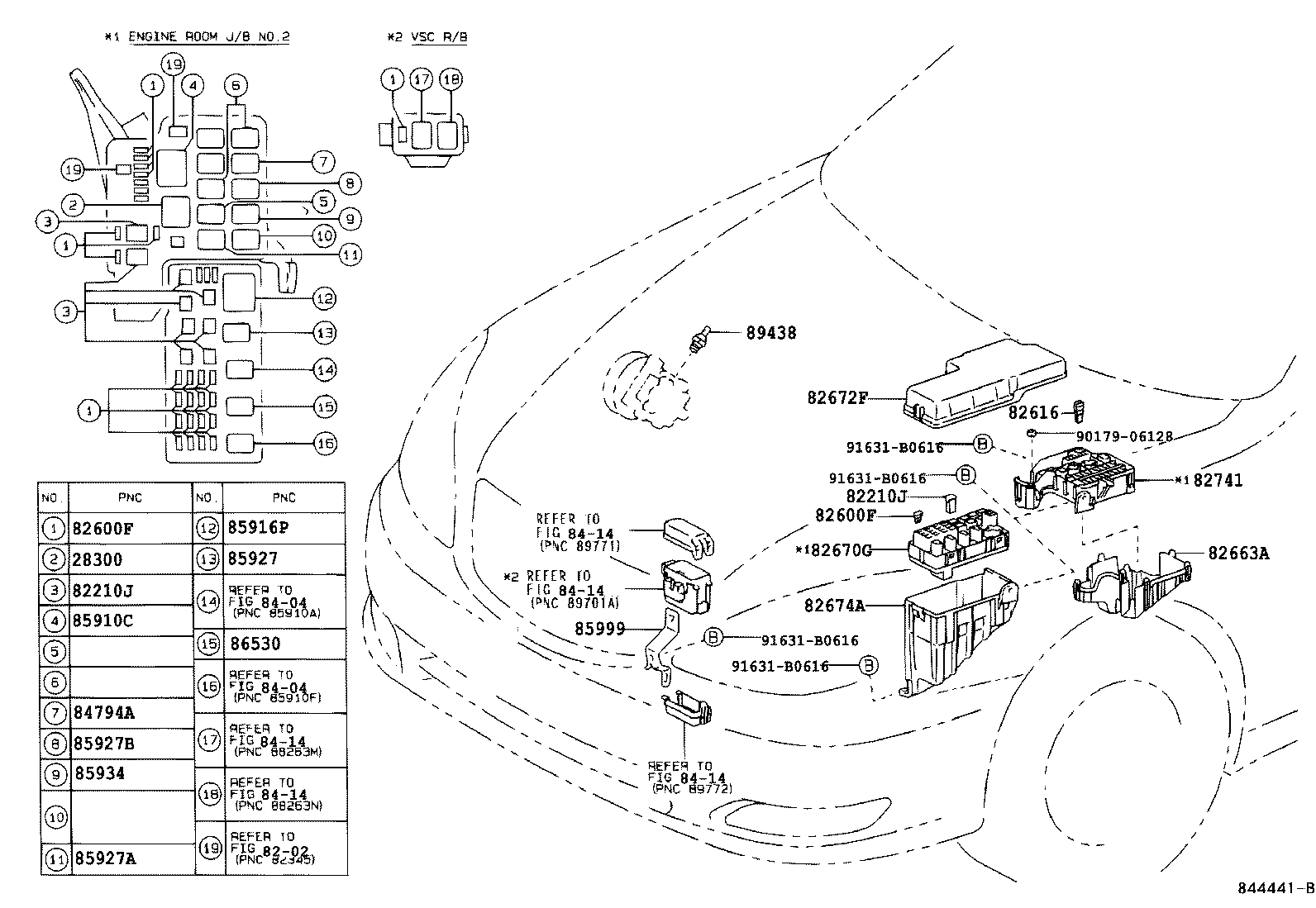

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	2AZFE..ACV3#	09/2001 - 06/2004	1
28300-10020	2AZFE..ACV3#	06/2004 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82616 - PULLER, FUSE
82616-20010	ACV3#	06/2004 - 12/2999	1
82616-20010	ACV3#	09/2001 - 06/2004	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-33060	ACV3#	09/2001 - 06/2004	1
82663-33060	ACV3#	06/2004 - 12/2999	1
82670G - BLOCK ASSY, ENGINE ROOM JUNCTION
82720-06041	ACV3#	07/2003 - 06/2004	1
82720-06041	ACV3#	06/2004 - 12/2999	1
82720-06040	ACV3#	09/2001 - 07/2003	1
82672F - COVER, JUNCTION BLOCK
82672-33281	ACV3#	07/2003 - 06/2004	1
82672-33281	ACV3#	06/2004 - 12/2999	1
82672-33230	ACV3#	09/2001 - 07/2003	1
82674A - COVER, JUNCTION BLOCK, LOWER
82674-33060	ACV3#	06/2004 - 12/2999	1
82674-33060	ACV3#	09/2001 - 06/2004	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-33010	ACV3#	06/2004 - 12/2999	1
82741-33010	ACV3#	09/2001 - 06/2004	1
84794A - RELAY, FR WIPER DEICER
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02022	ACV3#	04/2003 - 05/2003	1
90987-02012	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	05/2003 - 06/2004	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04006	ACV3#	09/2001 - 07/2003	1
90987-04010	ACV3#	07/2003 - 06/2004	1
90987-04010	ACV3#	06/2004 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-02025	ACV3#	06/2004 - 12/2999	1
90987-02016	ACV3#	09/2001 - 04/2003	1
90987-02025	ACV3#	04/2003 - 06/2004	1
85927 - RELAY, COOLING FAN
90987-02027	ACV3# (J)	03/2003 - 06/2004	1
90987-02012	ACV3# (J)	09/2001 - 03/2003	1
90080-87008	ACV3# (L)	09/2001 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
85927A - RELAY, COOLING FAN, NO.2
90987-04004	ACV3# (J)	09/2001 - 06/2004	1
90987-04004	ACV3#	06/2004 - 12/2999	1
90080-87009	ACV3# (L)	09/2001 - 06/2004	1
85927B - RELAY, COOLING FAN, NO.3
90987-02027	ACV3# (J)	03/2003 - 06/2004	1
90987-02012	ACV3# (J)	09/2001 - 03/2003	1
90080-87008	ACV3# (L)	09/2001 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	ACV3#	09/2001 - 06/2004	1
90987-02028	ACV3#	06/2004 - 12/2999	1
85999 - BRACKET, COMBINATION RELAY
85999-33160	ACV3#	06/2004 - 12/2999	1
85999-33160	ACV3#	09/2001 - 06/2004	1
86530 - RELAY ASSY, HORN
90987-02012	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	04/2003 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	ACV3#	09/2001 - 06/2004	1
89438-33010	ACV3#	06/2004 - 12/2999	1
Common parts
90179-06128
91631-B0616
Linked diagrams
8202
8404
8414

ILLUST NO. 3 OF 6(0109- )

Click highlighted areas on diagram

ｶｳﾙ

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90987-02025	2AZFE..ACV3#	09/2001 - 06/2004	1
90987-02025	2AZFE..ACV3#	06/2004 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-50030	ACV3#	09/2001 - 06/2004	1
81980-53020	ACV3#	10/2004 - 12/2999	1
81980-50030	ACV3#	06/2004 - 09/2004	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82672B - COVER, JUNCTION BLOCK
82672-33200	ACV3#	06/2004 - 12/2999	1
82672-33200	ACV3#	09/2001 - 06/2004	1
82672E - COVER, JUNCTION BLOCK
82672-33210	ACV3#	06/2004 - 12/2999	1
82672-33210	ACV3#	09/2001 - 06/2004	1

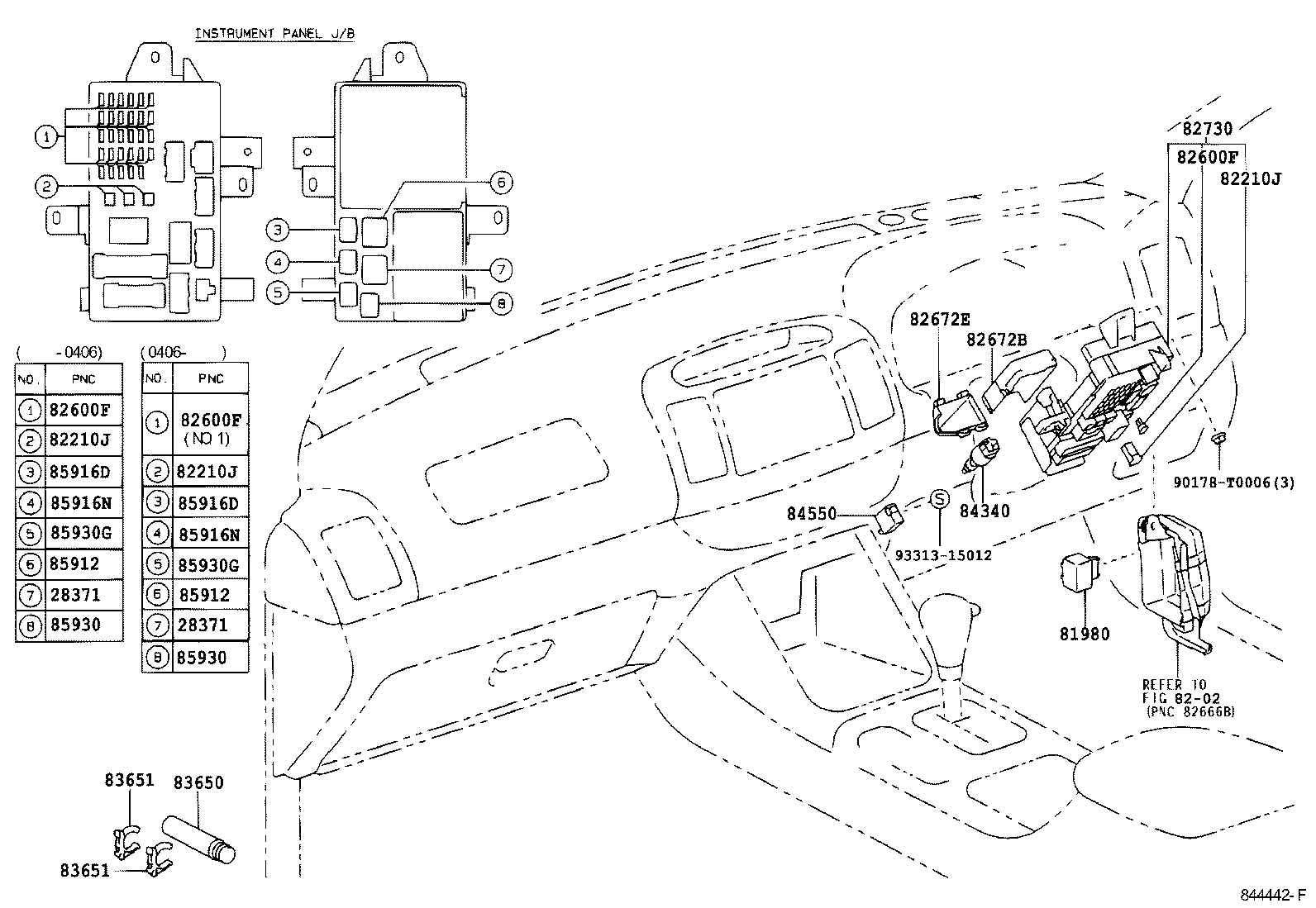

82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-33180	ACV3#	06/2004 - 12/2999	1
82730-33180	ACV3#	07/2003 - 06/2004	1
82730-33070	ACV3#	09/2001 - 07/2003	1
83650 - FUSEE
90986-01005	ACV3#	06/2004 - 12/2999	1
90986-01005	ACV3#	09/2001 - 06/2004	1
83651 - CLAMP, FUSEE
90468-25003	ACV3#	06/2004 - 12/2999	2
90468-25003	ACV3#	09/2001 - 06/2004	2
83651 - CLAMP, FUSEE
90468-25003	ACV3#	06/2004 - 12/2999	2
90468-25003	ACV3#	09/2001 - 06/2004	2
84340 - SWITCH ASSY, STOP LAMP
84340-42020	ACV3#	06/2004 - 12/2999	1
84340-42020	ACV3#	09/2001 - 06/2004	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-30080	ACV3#	09/2001 - 06/2004	1
84550-30080	ACV3#	06/2004 - 12/2999	1
85912 - RELAY, DEFOGGER
90987-02025	ACV3#	09/2001 - 06/2004	1
90987-02025	ACV3#	06/2004 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02027	ACV3#	04/2003 - 06/2004	1
90987-02020	ACV3#	09/2001 - 04/2003	1
85916N - RELAY, TAIL LAMP
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02020	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	04/2003 - 06/2004	1
85930 - RELAY ASSY, POWER WINDOW
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02012	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	04/2003 - 06/2004	1
85930G - RELAY, ACC
90987-02027	ACV3#	04/2003 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02012	ACV3#	09/2001 - 04/2003	1
Common parts
90178-T0006
93313-15012
Linked diagrams
8202

ILLUST NO. 4 OF 6(0109-0406)

Click highlighted areas on diagram

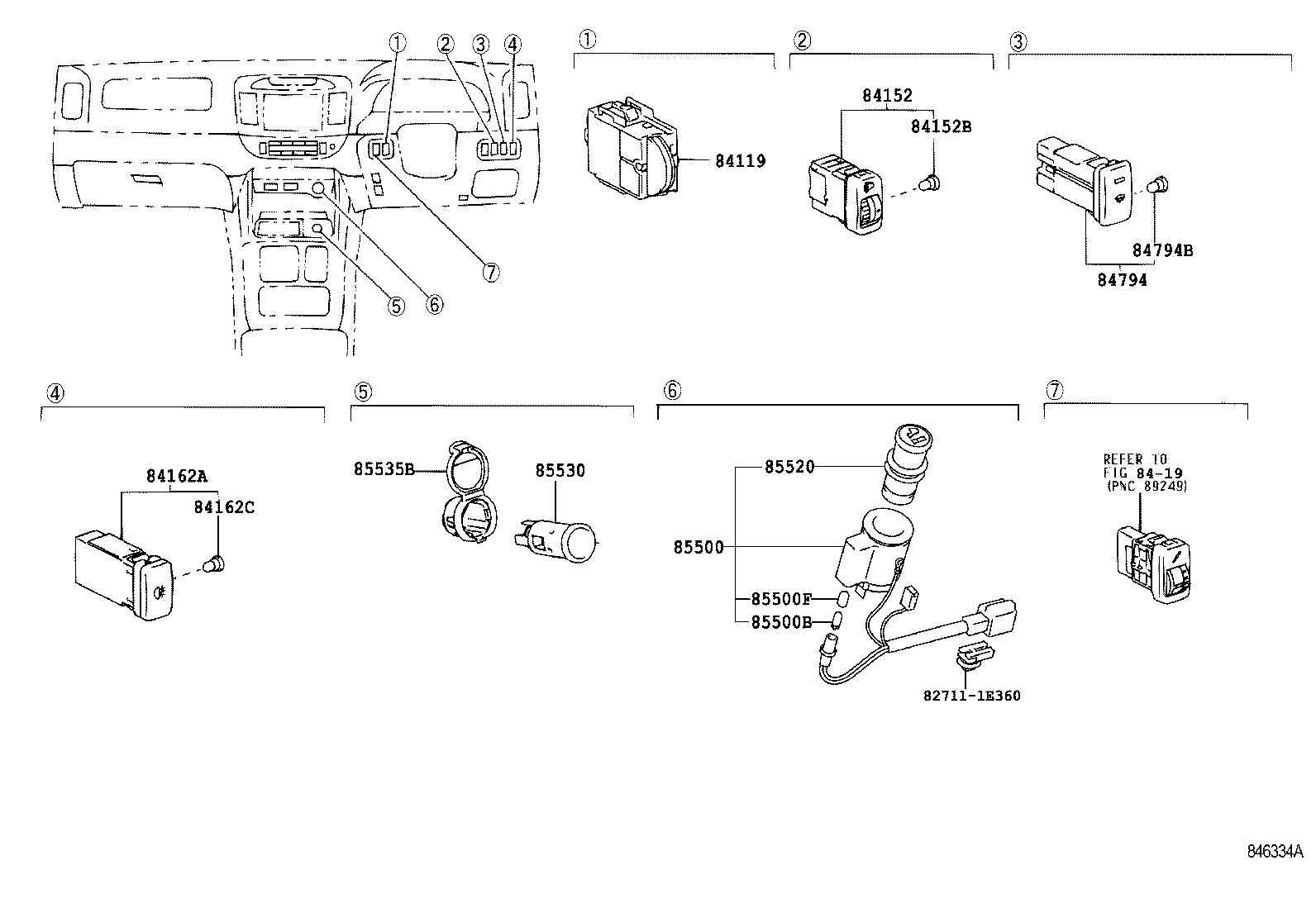

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84119 - RHEOSTAT, LIGHT CONTROL
84119-33130	ACV3#	09/2001 - 06/2004	1
84119-33160	ACV3#	06/2004 - 12/2999	1
84162A - SWITCH, REAR FOG LAMP
84165-33040	ACV3#	06/2004 - 12/2999	1
84165-33040	ACV3#	09/2001 - 06/2004	1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2001 - 06/2004	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	06/2004 - 12/2999	1
84794 - SWITCH, FR WIPER DEICER
84794-33020	ACV3#	06/2004 - 12/2999	1
84794-33020	ACV3#	09/2001 - 06/2004	1
84794B - BULB, FR WIPER DEICER SWITCH
84999-10310	ACV3# 14V 0.91W	09/2001 - 06/2004	1
84999-10310	ACV3# 14V 0.91W	06/2004 - 12/2999	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2001 - 06/2004	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	06/2004 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-33040	ACV3#	06/2004 - 12/2999	1
85500-41030	ACV3#	09/2001 - 06/2004	1
85500B - BULB, CIGARETTE LIGHTER
90981-11018	ACV3# 12V 1.2W ｿｹｯﾄ無し	06/2004 - 12/2999	1
90981-11018	ACV3# 12V 1.2W ｿｹｯﾄ無し	09/2001 - 06/2004	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510	ACV3#	09/2001 - 06/2004	1
84998-10510	ACV3#	06/2004 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	ACV3#	06/2004 - 12/2999	1
85520-28010	ACV3#	09/2001 - 06/2004	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-33020	ACV3#	06/2004 - 12/2999	1
85530-33020	ACV3#	09/2001 - 06/2004	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-48050	ACV3#	06/2004 - 12/2999	1
85535-26020C0	ACV3#..24G BLACK,TRIM4#	09/2001 - 06/2004	1
Linked diagrams
8419

ILLUST NO. 5 OF 6(0109-0406)

Click highlighted areas on diagram

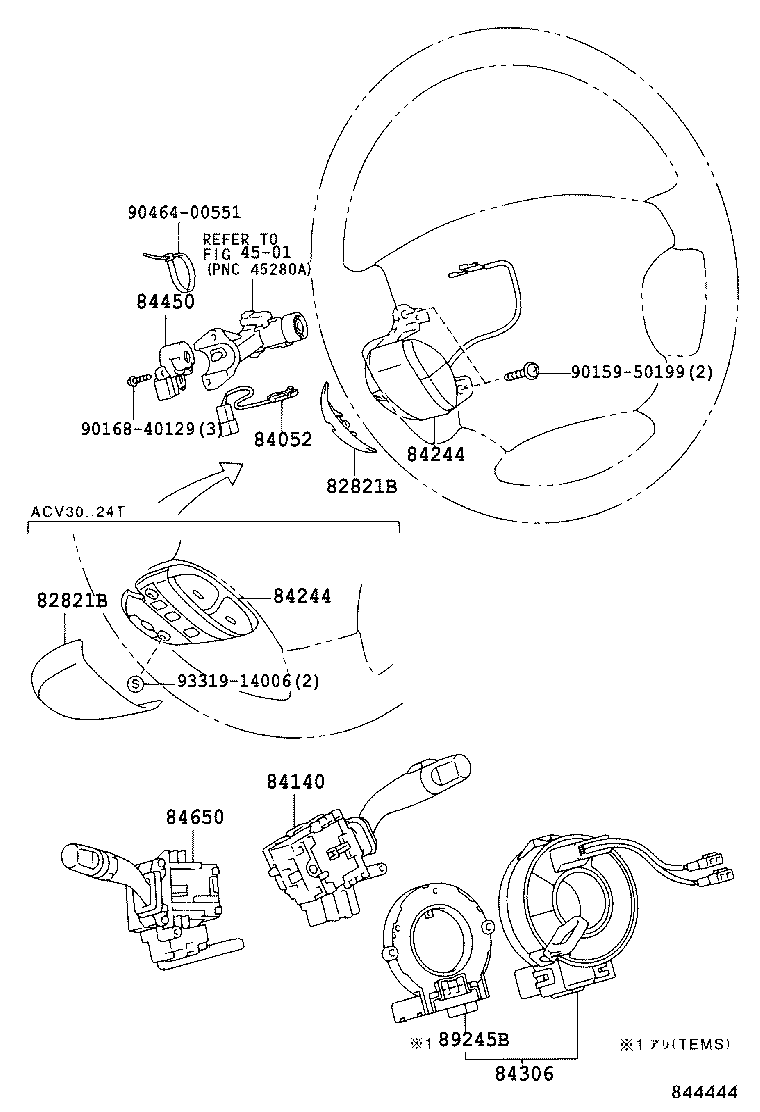

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ

Part #	Description	Period	Qty
82821B - COVER, CONNECTOR
82821-33200	ACV3#..24G	09/2001 - 06/2004	1
82821B - COVER, CONNECTOR
82821-33200	ACV3#..24G	09/2001 - 06/2004	1
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-32030	ACV3#	09/2001 - 06/2004	1
84052-32030	ACV3#	06/2004 - 12/2999	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-32240	ACV3#	06/2004 - 12/2999	1
84140-32240	ACV3#	09/2001 - 06/2004	1
84244 - SWITCH, STEERING PAD
84244-06010	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-06010	09/2001 - 06/2004	1
84244-33030	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-33030	09/2001 - 06/2004	1
84244 - SWITCH, STEERING PAD
84244-06010	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-06010	09/2001 - 06/2004	1
84244-33030	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-33030	09/2001 - 06/2004	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-33080	ACV3#..24G	09/2001 - 06/2004	1
84306-33080	ACV3#	06/2004 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	ACV3#	09/2001 - 06/2004	1
84450-12200	ACV3#	06/2004 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G450	ACV3#	09/2001 - 06/2004	1
84652-2G450	ACV3#	06/2004 - 12/2999	1
Common parts
90159-50199
90168-40129
90464-00551
93319-14006
Linked diagrams
4501

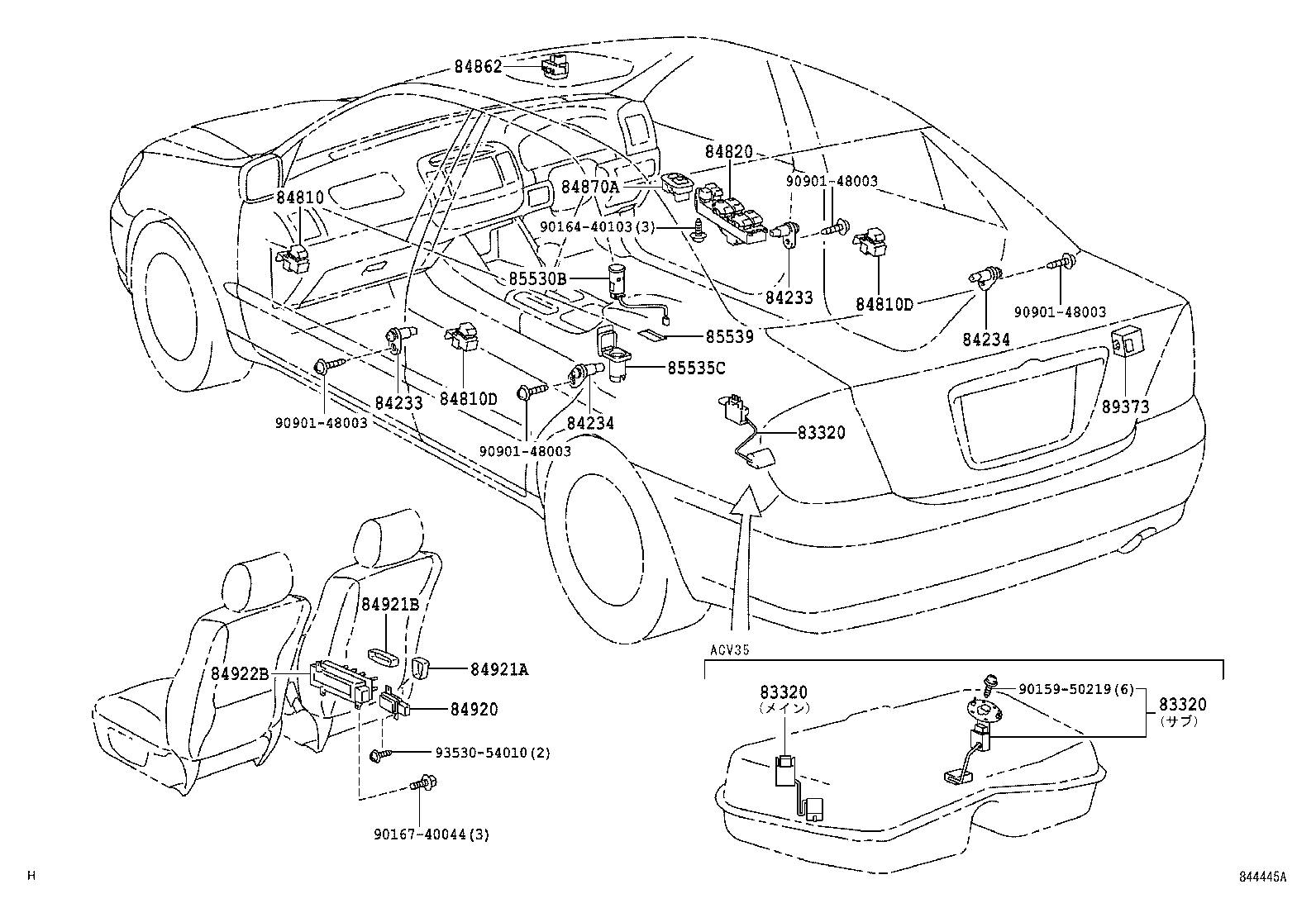

ILLUST NO. 6 OF 6(0109- )

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ,ｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-33080	ACV35 ﾒｲﾝ	06/2004 - 12/2999	1
83320-33080	ACV35 ﾒｲﾝ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	06/2004 - 12/2999	1
83320 - GAGE ASSY, FUEL SENDER
83320-33080	ACV35 ﾒｲﾝ	06/2004 - 12/2999	1
83320-33080	ACV35 ﾒｲﾝ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	06/2004 - 12/2999	1
83320 - GAGE ASSY, FUEL SENDER
83320-33080	ACV35 ﾒｲﾝ	06/2004 - 12/2999	1
83320-33080	ACV35 ﾒｲﾝ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	09/2001 - 06/2004	1
83320-80394	ACV35 ｻﾌﾞ	06/2004 - 12/2999	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	ACV3#	09/2001 - 06/2004	2
84231-60070	ACV3#	06/2004 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	ACV3#	09/2001 - 06/2004	2
84231-60070	ACV3#	06/2004 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070	ACV3#	09/2001 - 06/2004	2
84231-60070	ACV3#	06/2004 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070	ACV3#	09/2001 - 06/2004	2
84231-60070	ACV3#	06/2004 - 12/2999	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	ACV3#	06/2004 - 12/2999	1
84810-12080	ACV3#	09/2001 - 06/2004	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12080	ACV3#	09/2001 - 06/2004	2
84810-12080	ACV3#	06/2004 - 12/2999	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12080	ACV3#	09/2001 - 06/2004	2
84810-12080	ACV3#	06/2004 - 12/2999	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-33150	ACV3#	06/2004 - 12/2999	1
84820-33150	ACV3#..24G	09/2001 - 06/2004	1
84862 - SWITCH, SLIDE ROOF MOTOR
84862-AA030A0	ACV3#..24G IVORY,TRIM4#	09/2001 - 06/2004	1
84862-AA030A0	ACV3#..24G IVORY,TRIM4#	06/2004 - 12/2999	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-33150	ACV3#	06/2004 - 12/2999	1
84870-33150	ACV3#	09/2001 - 06/2004	1
84920 - SWITCH ASSY, POWER SEAT
84920-60040E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-60110E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
84921-33120E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33110E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
84921-60100E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
84922B - SWITCH, FRONT POWER SEAT, RH
84922-58010	ACV3#	06/2004 - 12/2999	1
84922-30210	ACV3#	09/2001 - 06/2004	1
85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1
85530-33050	ACV3#	06/2004 - 12/2999	1
85530-33050	ACV3#	09/2001 - 06/2004	1
85535C - COVER, POWER OUTLET SOCKET, REAR
85535-33020	ACV3#	06/2004 - 12/2999	1
85535-33020	ACV3#	09/2001 - 06/2004	1
85539 - LABEL, POWER OUTLET NOTICE
85539-33010	ACV3#	06/2004 - 12/2999	1
85539-33010	ACV3#	09/2001 - 06/2004	1
89373 - SENSOR, LAMP FAILURE INDICATOR
89373-33270	ACV3#..24G ｶﾝﾚｲﾁｼﾖｳ	09/2001 - 06/2004	1
89373-33250	ACV3#..24G	09/2001 - 06/2004	1
89373-33310	ACV3#..24G	06/2004 - 12/2999	1
Common parts
90159-50219
90164-40103
90167-40044
90901-48003
93530-54010

ILLUST NO. 5 OF 6(0406- )

Click highlighted areas on diagram

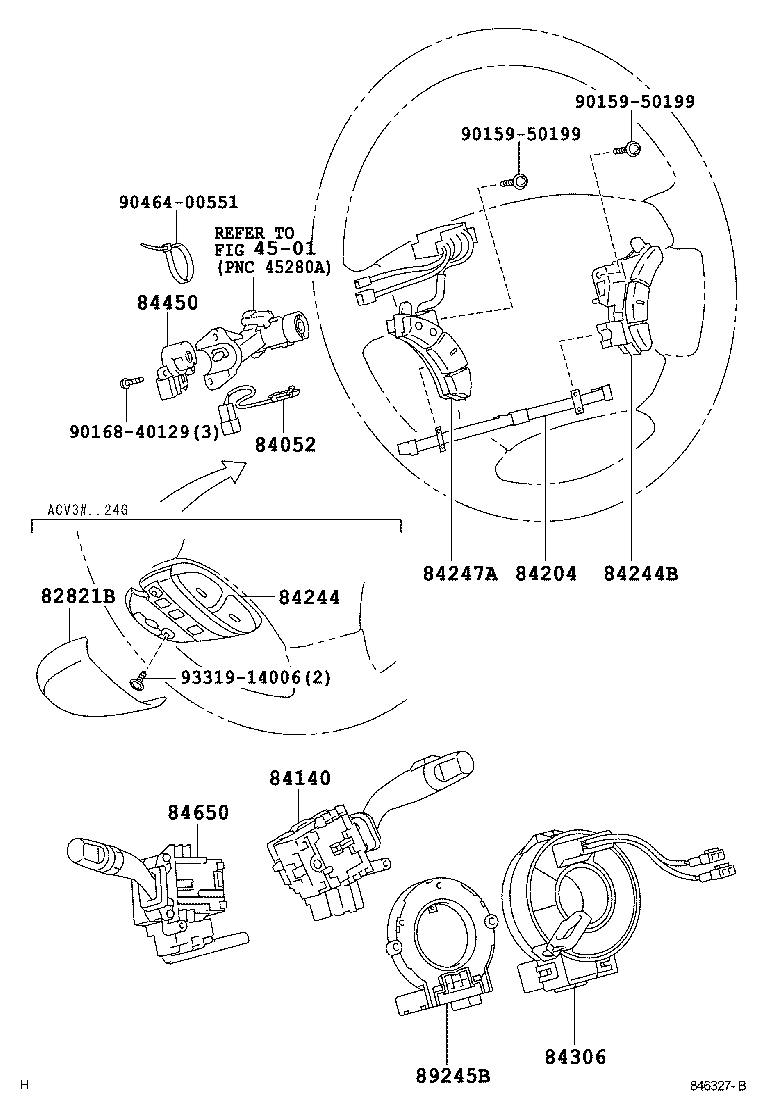

ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝｽｲﾂﾁ

Part #	Description	Period	Qty
82821B - COVER, CONNECTOR
82821-33200	ACV3#..24G	09/2001 - 06/2004	1
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-32030	ACV3#	09/2001 - 06/2004	1
84052-32030	ACV3#	06/2004 - 12/2999	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-32240	ACV3#	06/2004 - 12/2999	1
84140-32240	ACV3#	09/2001 - 06/2004	1
84204 - CABLE SUB-ASSY, STEERING PAD SWITCH
84204-58010	ACV3#..24G	06/2004 - 12/2999	1
84244 - SWITCH, STEERING PAD
84244-06010	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-06010	09/2001 - 06/2004	1
84244-33030	ACV3#..24G ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84244-33030	09/2001 - 06/2004	1
84244B - SWITCH, STEERING PAD, RH
84244-33090E0	ACV3#..24G SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84247A - SWITCH, STEERING PAD, LH
84247-33010E1	ACV3#..24G ｱﾘ(ｵ-ﾃﾞｲｵｽｲﾂﾁ),SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84247-33060E0	ACV3#..24G ｱﾘ(ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ),SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84247-33020E0	ACV3#..24G ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) & ｱﾘ(ｵ-ﾃﾞｲｵｽｲﾂﾁ),SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84247-33050E0	ACV3#..24G SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-33080	ACV3#..24G	09/2001 - 06/2004	1
84306-33080	ACV3#	06/2004 - 12/2999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	ACV3#	09/2001 - 06/2004	1
84450-12200	ACV3#	06/2004 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-2G450	ACV3#	09/2001 - 06/2004	1
84652-2G450	ACV3#	06/2004 - 12/2999	1
Common parts
90159-50199
90168-40129
90464-00551
93319-14006
Linked diagrams
4501

ILLUST NO. 2 OF 6(0406- )

Click highlighted areas on diagram

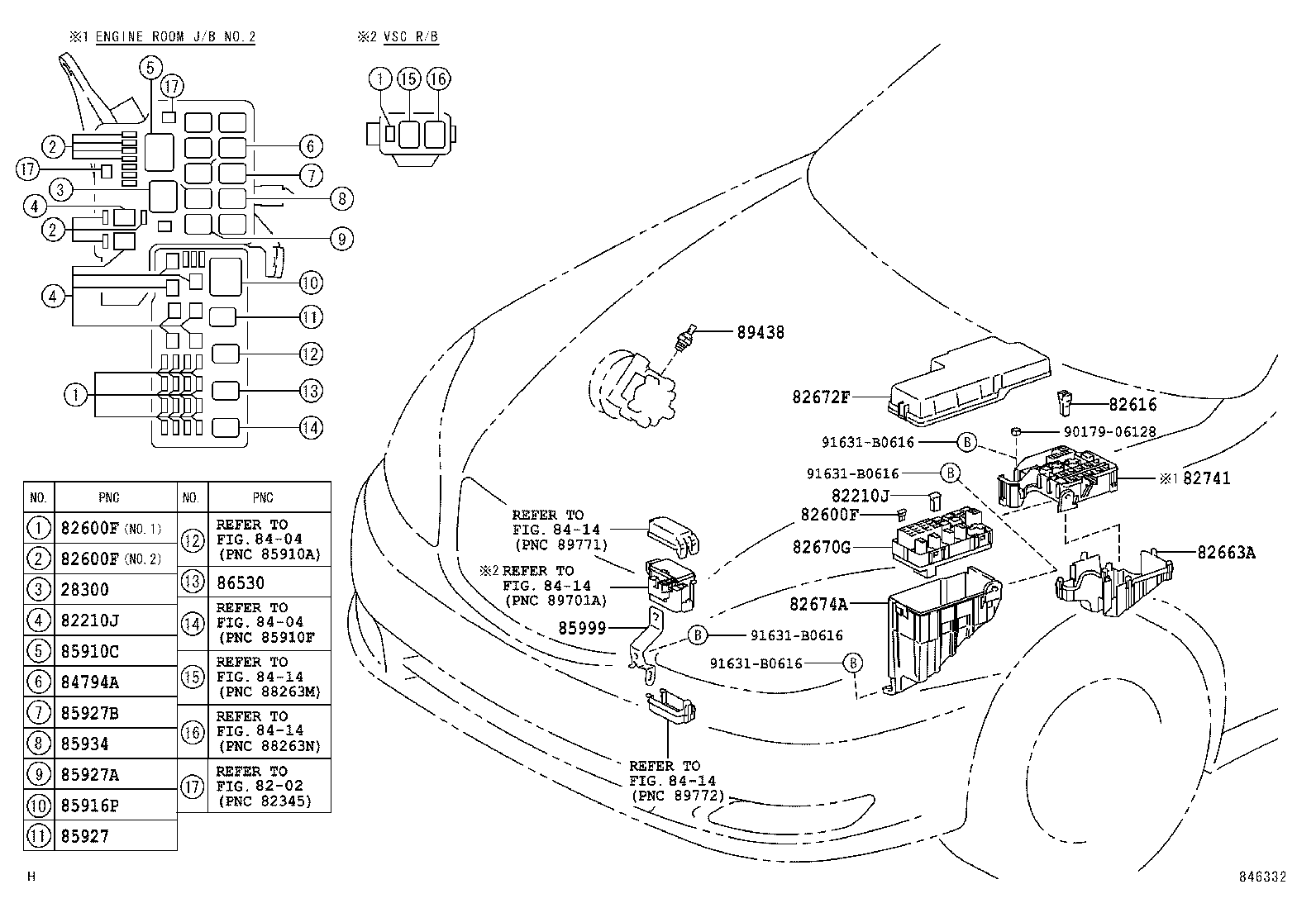

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	2AZFE..ACV3#	09/2001 - 06/2004	1
28300-10020	2AZFE..ACV3#	06/2004 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	ACV3# 30A,ﾒｽ端子,桃	09/2001 - 06/2004	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	06/2004 - 12/2999	1
90982-08280	ACV3# 30A,ﾒｽ端子,桃	06/2004 - 12/2999	1
90982-08202	ACV3# 60A,ｵｽ端子,黄	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	09/2001 - 06/2004	1
90982-08274	ACV3# 120A,ｵｽ端子,白	06/2004 - 12/2999	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	09/2001 - 06/2004	1
90982-08281	ACV3# 40A,ﾒｽ端子,緑	06/2004 - 12/2999	1
90982-08274	ACV3# 120A,ｵｽ端子,白	09/2001 - 06/2004	1
90982-08282	ACV3# 50A,ﾒｽ端子,赤	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,SUMITOMO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,SUMITOMO	09/2001 - 06/2004	1
90080-82020	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,SUMITOMO	09/2001 - 06/2004	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,SUMITOMO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑	09/2001 - 06/2004	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,TAIHEIYO	09/2001 - 06/2004	1
90080-82022	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ	09/2001 - 06/2004	1
90080-82031	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.1	06/2004 - 12/2999	1
90080-82023	ACV3# 20A,ﾐﾆﾋｭｰｽﾞ,黄,NO.1	06/2004 - 12/2999	1
90982-09010	ACV3# 15A,ﾐﾆﾋｭｰｽﾞ,青,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,NO.2	06/2004 - 12/2999	1
90982-09007	ACV3# 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色,TAIHEIYO	09/2001 - 06/2004	1
90080-82021	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,NO.1	06/2004 - 12/2999	1
90982-09009	ACV3# 10A,ﾐﾆﾋｭｰｽﾞ,赤,TAIHEIYO	09/2001 - 06/2004	1
90080-82024	ACV3# 30A,ﾐﾆﾋｭｰｽﾞ,緑,NO.1	06/2004 - 12/2999	1
90982-09008	ACV3# 7.5A,ﾐﾆﾋｭｰｽﾞ,茶,NO.2	06/2004 - 12/2999	1
90080-82033	ACV3# 25A,ﾐﾆﾋｭｰｽﾞ,NO.1	06/2004 - 12/2999	1
82616 - PULLER, FUSE
82616-20010	ACV3#	06/2004 - 12/2999	1
82616-20010	ACV3#	09/2001 - 06/2004	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-33060	ACV3#	09/2001 - 06/2004	1
82663-33060	ACV3#	06/2004 - 12/2999	1
82670G - BLOCK ASSY, ENGINE ROOM JUNCTION
82720-06041	ACV3#	07/2003 - 06/2004	1
82720-06041	ACV3#	06/2004 - 12/2999	1
82720-06040	ACV3#	09/2001 - 07/2003	1
82672F - COVER, JUNCTION BLOCK
82672-33281	ACV3#	07/2003 - 06/2004	1
82672-33281	ACV3#	06/2004 - 12/2999	1
82672-33230	ACV3#	09/2001 - 07/2003	1
82674A - COVER, JUNCTION BLOCK, LOWER
82674-33060	ACV3#	06/2004 - 12/2999	1
82674-33060	ACV3#	09/2001 - 06/2004	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-33010	ACV3#	06/2004 - 12/2999	1
82741-33010	ACV3#	09/2001 - 06/2004	1
84794A - RELAY, FR WIPER DEICER
90987-02027	ACV3#	06/2004 - 12/2999	1
90987-02022	ACV3#	04/2003 - 05/2003	1
90987-02012	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	05/2003 - 06/2004	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04006	ACV3#	09/2001 - 07/2003	1
90987-04010	ACV3#	07/2003 - 06/2004	1
90987-04010	ACV3#	06/2004 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-02025	ACV3#	06/2004 - 12/2999	1
90987-02016	ACV3#	09/2001 - 04/2003	1
90987-02025	ACV3#	04/2003 - 06/2004	1
85927 - RELAY, COOLING FAN
90987-02027	ACV3# (J)	03/2003 - 06/2004	1
90987-02012	ACV3# (J)	09/2001 - 03/2003	1
90080-87008	ACV3# (L)	09/2001 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
85927A - RELAY, COOLING FAN, NO.2
90987-04004	ACV3# (J)	09/2001 - 06/2004	1
90987-04004	ACV3#	06/2004 - 12/2999	1
90080-87009	ACV3# (L)	09/2001 - 06/2004	1
85927B - RELAY, COOLING FAN, NO.3
90987-02027	ACV3# (J)	03/2003 - 06/2004	1
90987-02012	ACV3# (J)	09/2001 - 03/2003	1
90080-87008	ACV3# (L)	09/2001 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	ACV3#	09/2001 - 06/2004	1
90987-02028	ACV3#	06/2004 - 12/2999	1
85999 - BRACKET, COMBINATION RELAY
85999-33160	ACV3#	06/2004 - 12/2999	1
85999-33160	ACV3#	09/2001 - 06/2004	1
86530 - RELAY ASSY, HORN
90987-02012	ACV3#	09/2001 - 04/2003	1
90987-02027	ACV3#	04/2003 - 06/2004	1
90987-02027	ACV3#	06/2004 - 12/2999	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	ACV3#	09/2001 - 06/2004	1
89438-33010	ACV3#	06/2004 - 12/2999	1
Common parts
90179-06128
91631-B0616
Linked diagrams
8202
8404
8414

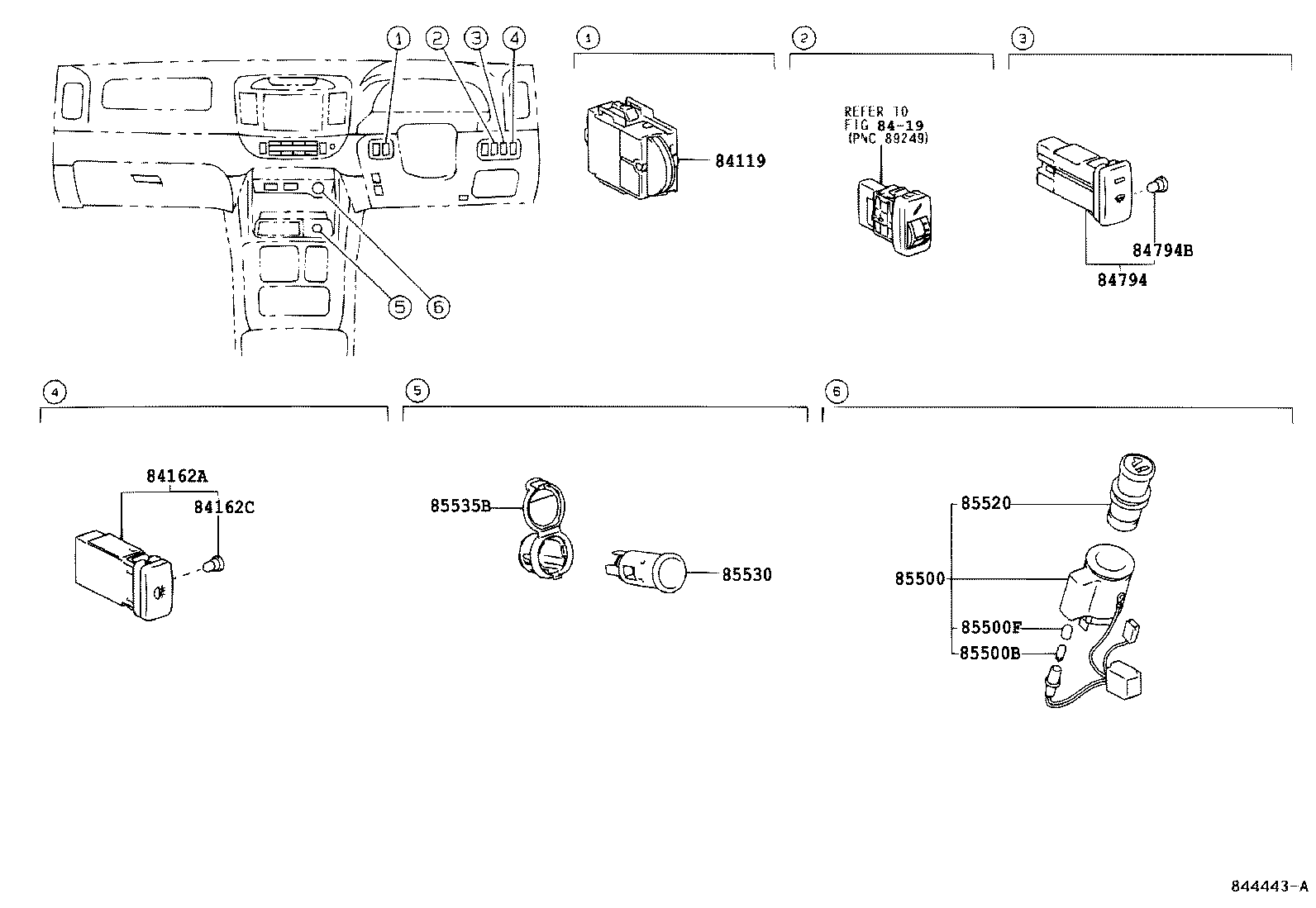

ILLUST NO. 4 OF 6(0406- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
84119 - RHEOSTAT, LIGHT CONTROL
84119-33130	ACV3#	09/2001 - 06/2004	1
84119-33160	ACV3#	06/2004 - 12/2999	1
84152 - SWITCH, HEADLAMP LEVELING
84152-33030	ACV3#	06/2004 - 12/2999	1
84152B - BULB (FOR HEADLAMP LEVELING SWITCH)
90010-08107	ACV3# 14V 40MA,ｸﾞﾘｰﾝ	06/2004 - 12/2999	1
84162A - SWITCH, REAR FOG LAMP
84165-33040	ACV3#	06/2004 - 12/2999	1
84165-33040	ACV3#	09/2001 - 06/2004	1
84162C - BULB (FOR REAR FOG LAMP SWITCH)
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2001 - 06/2004	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	06/2004 - 12/2999	1
84794 - SWITCH, FR WIPER DEICER
84794-33020	ACV3#	06/2004 - 12/2999	1
84794-33020	ACV3#	09/2001 - 06/2004	1
84794B - BULB, FR WIPER DEICER SWITCH
84999-10310	ACV3# 14V 0.91W	09/2001 - 06/2004	1
84999-10310	ACV3# 14V 0.91W	06/2004 - 12/2999	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	09/2001 - 06/2004	1
90010-01061	ACV3# 14V0.84W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き	06/2004 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-33040	ACV3#	06/2004 - 12/2999	1
85500-41030	ACV3#	09/2001 - 06/2004	1
85500B - BULB, CIGARETTE LIGHTER
90981-11018	ACV3# 12V 1.2W ｿｹｯﾄ無し	06/2004 - 12/2999	1
90981-11018	ACV3# 12V 1.2W ｿｹｯﾄ無し	09/2001 - 06/2004	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10510	ACV3#	09/2001 - 06/2004	1
84998-10510	ACV3#	06/2004 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	ACV3#	06/2004 - 12/2999	1
85520-28010	ACV3#	09/2001 - 06/2004	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-33020	ACV3#	06/2004 - 12/2999	1
85530-33020	ACV3#	09/2001 - 06/2004	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-48050	ACV3#	06/2004 - 12/2999	1
85535-26020C0	ACV3#..24G BLACK,TRIM4#	09/2001 - 06/2004	1
Common parts
82711-1E360
Linked diagrams
8419

ACV35-AEPNK (2001)

ILLUST NO. 1 OF 6(0109- )

ILLUST NO. 2 OF 6(0109-0406)

ILLUST NO. 3 OF 6(0109- )

ILLUST NO. 4 OF 6(0109-0406)

ILLUST NO. 5 OF 6(0109-0406)

ILLUST NO. 6 OF 6(0109- )

ILLUST NO. 5 OF 6(0406- )

ILLUST NO. 2 OF 6(0406- )

ILLUST NO. 4 OF 6(0406- )

Part Price Details
