Toyota Camry ACV35 WIRING & CLAMP

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

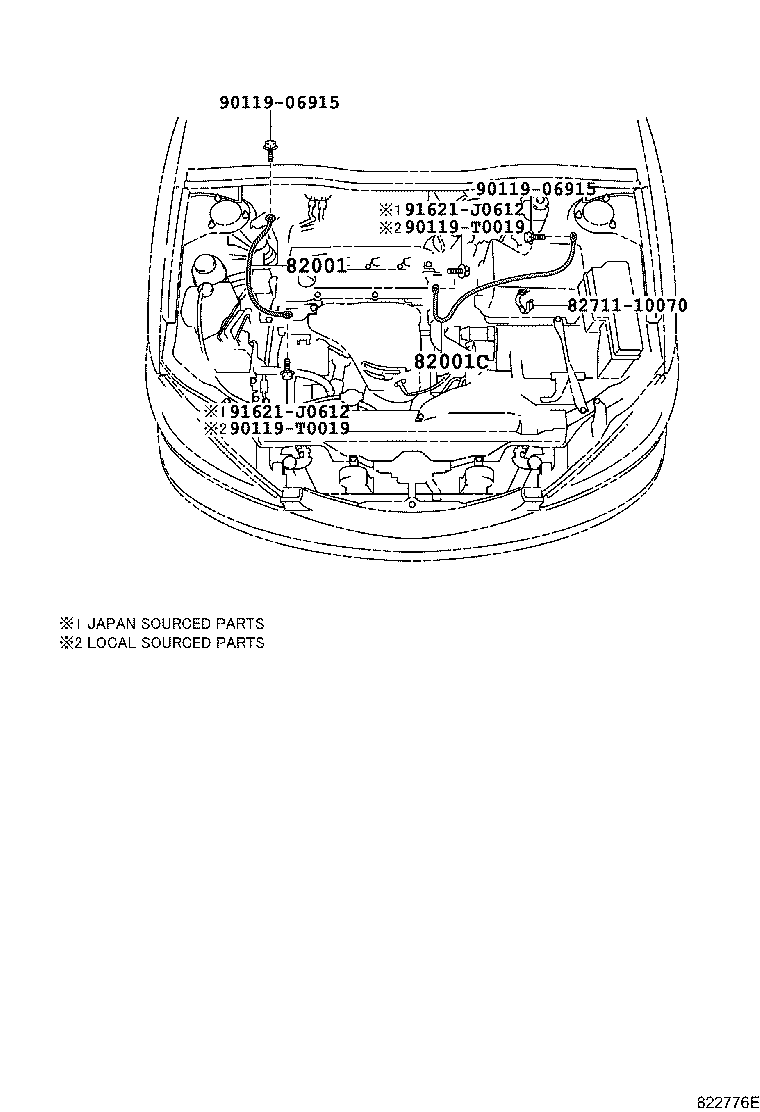

ILLUST NO. 7 OF 8(0109- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07410	ACV3#	09/2001 - 06/2004	1
90980-07427	ACV3#	10/2005 - 12/2999	1
90980-07410	ACV3#	06/2004 - 09/2005	1
82001C - CABLE, BOND, NO.2
90980-07400	ACV3#	09/2001 - 06/2004	1
90980-07400	ACV3#	06/2004 - 12/2999	1
Common parts
82711-10070
90119-06915
90119-T0019
91621-J0612

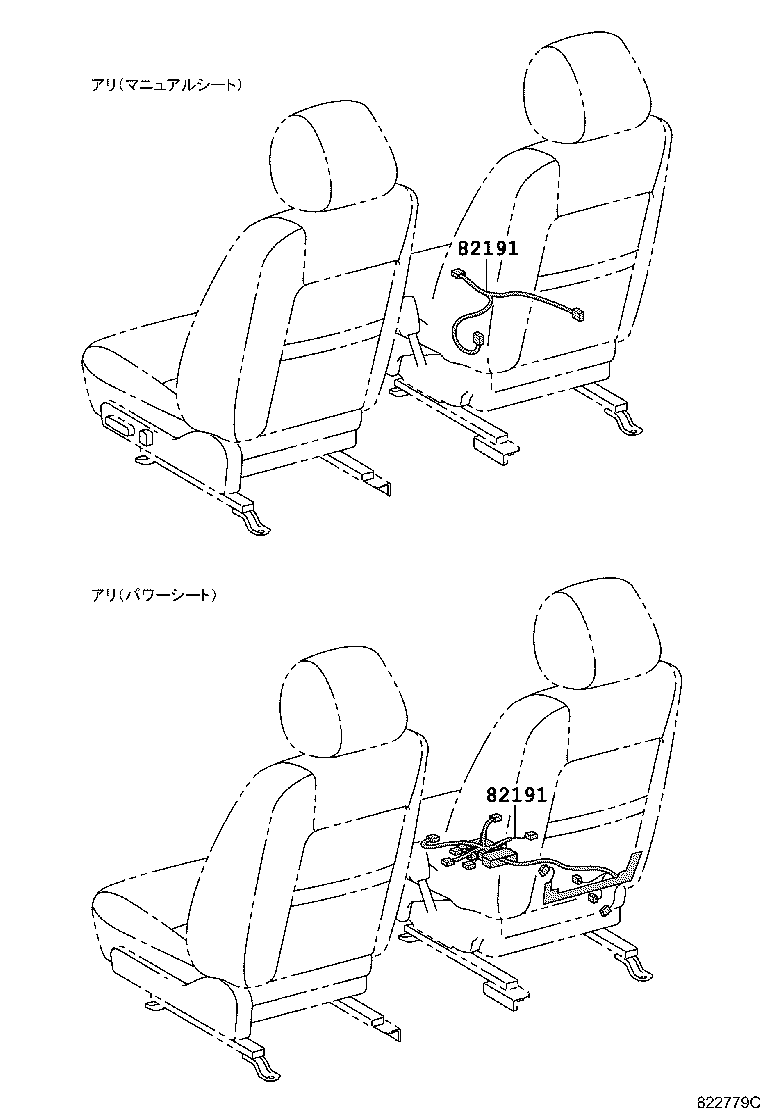

ILLUST NO. 5 OF 8(0109- )

Click highlighted areas on diagram

ｼ-ﾄ

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-33040	ACV3#	09/2001 - 06/2004	1
82191-33230	ACV35	06/2004 - 12/2999	1
82191-33210	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
82191 - WIRE, FRONT SEAT, RH
82191-33040	ACV3#	09/2001 - 06/2004	1
82191-33230	ACV35	06/2004 - 12/2999	1
82191-33210	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1

ILLUST NO. 2 OF 8(0109- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-3T840	ACV3#	09/2001 - 08/2002	1
82121-3T841	ACV3#	08/2002 - 07/2003	1
82121-3T842	ACV3#	07/2003 - 06/2004	1
82121-3T842	ACV3#	06/2004 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-33050	ACV3#	09/2001 - 06/2004	1
82122-33050	ACV3#	06/2004 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-33030	ACV3#	09/2001 - 06/2004	1
82123-33030	ACV3#	06/2004 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22080	ACV3#	06/2004 - 01/2006	1
82823-22080	ACV3#	09/2001 - 06/2004	1
82824G - CONNECTOR, WIRING HARNESS
82824-50110	ACV3#	06/2004 - 12/2999	1
82824-50110	ACV3#	09/2001 - 06/2004	1
Common parts
90105-08096
90119-06915
91621-J0612

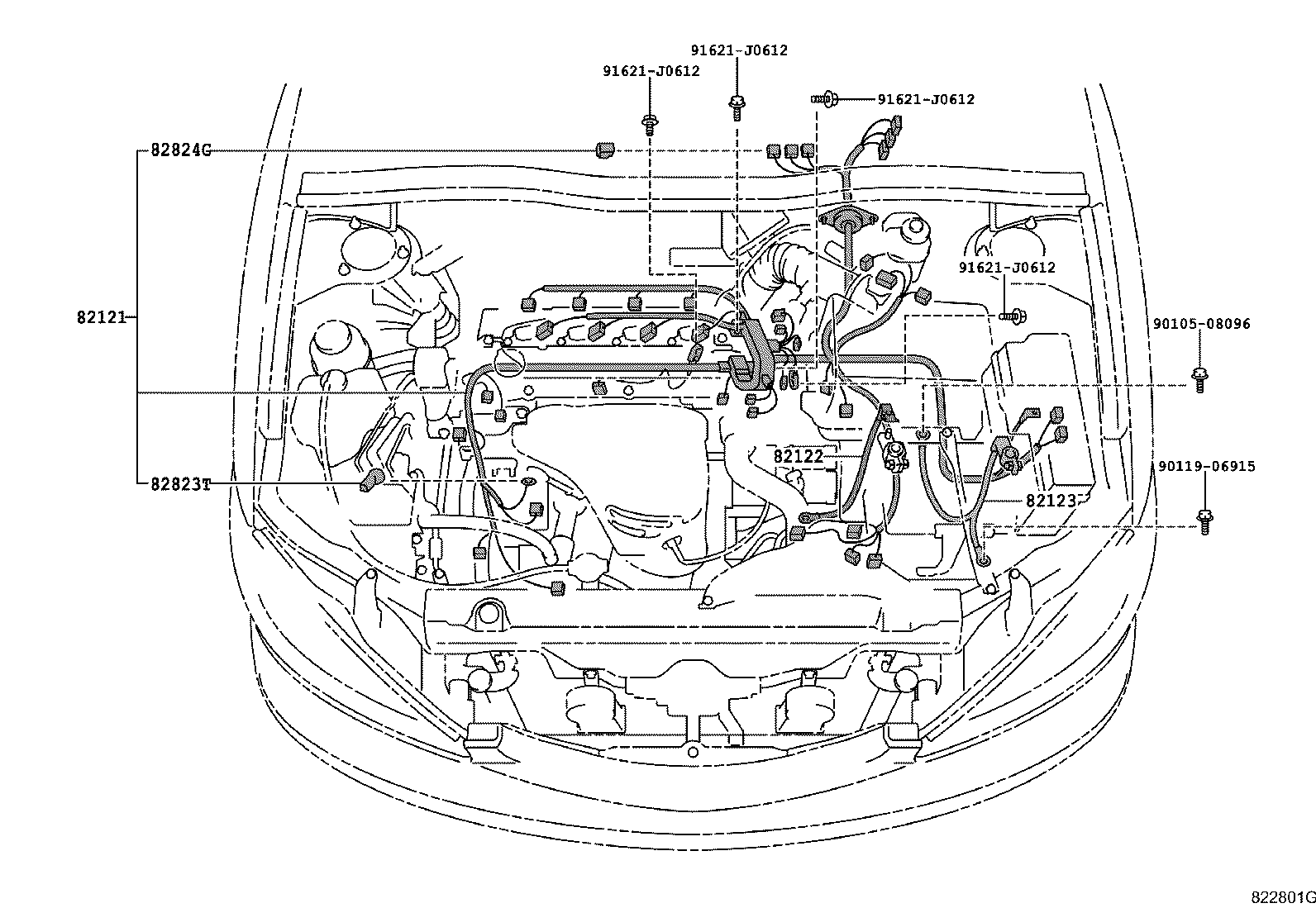

ILLUST NO. 1 OF 8(0109- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-3Y330	ACV35	06/2004 - 12/2999	1
82111-3Y121	ACV35	07/2003 - 06/2004	1
82111-3Y120	ACV35	09/2001 - 07/2003	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-33020	ACV3#	06/2004 - 12/2999	1
82112-33020	ACV3#	09/2001 - 06/2004	1
82345 - DIODE
82345-12050	ACV3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
82345-12050	ACV3# TYPE A:ｲﾗｽﾄ参照	06/2004 - 12/2999	1
82345-32020	ACV3# TYPE B:ｲﾗｽﾄ参照	06/2004 - 12/2999	1
82345-32020	ACV3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
Common parts
82817-2B730
90119-06915
Linked diagrams
5503
8401
8414

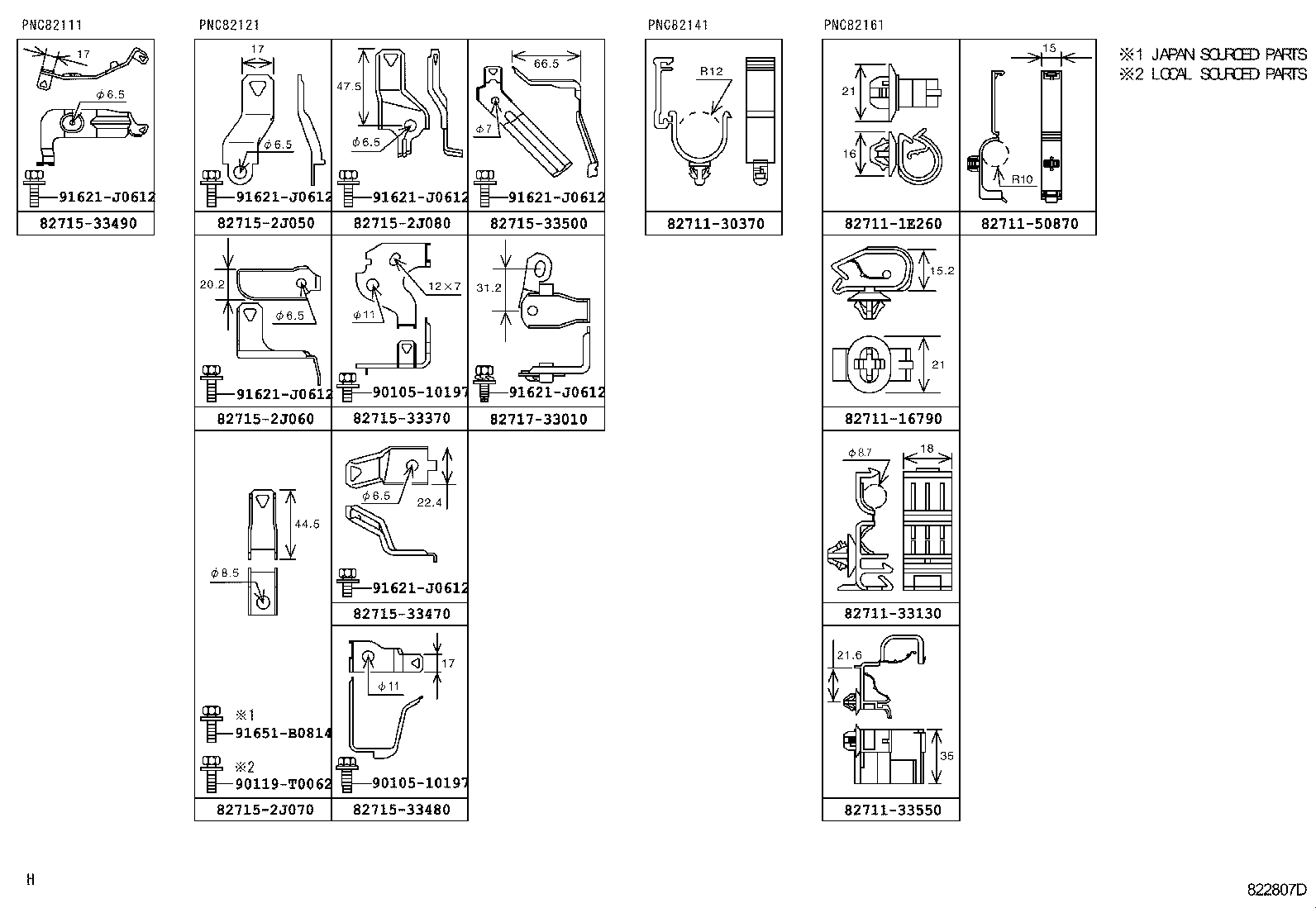

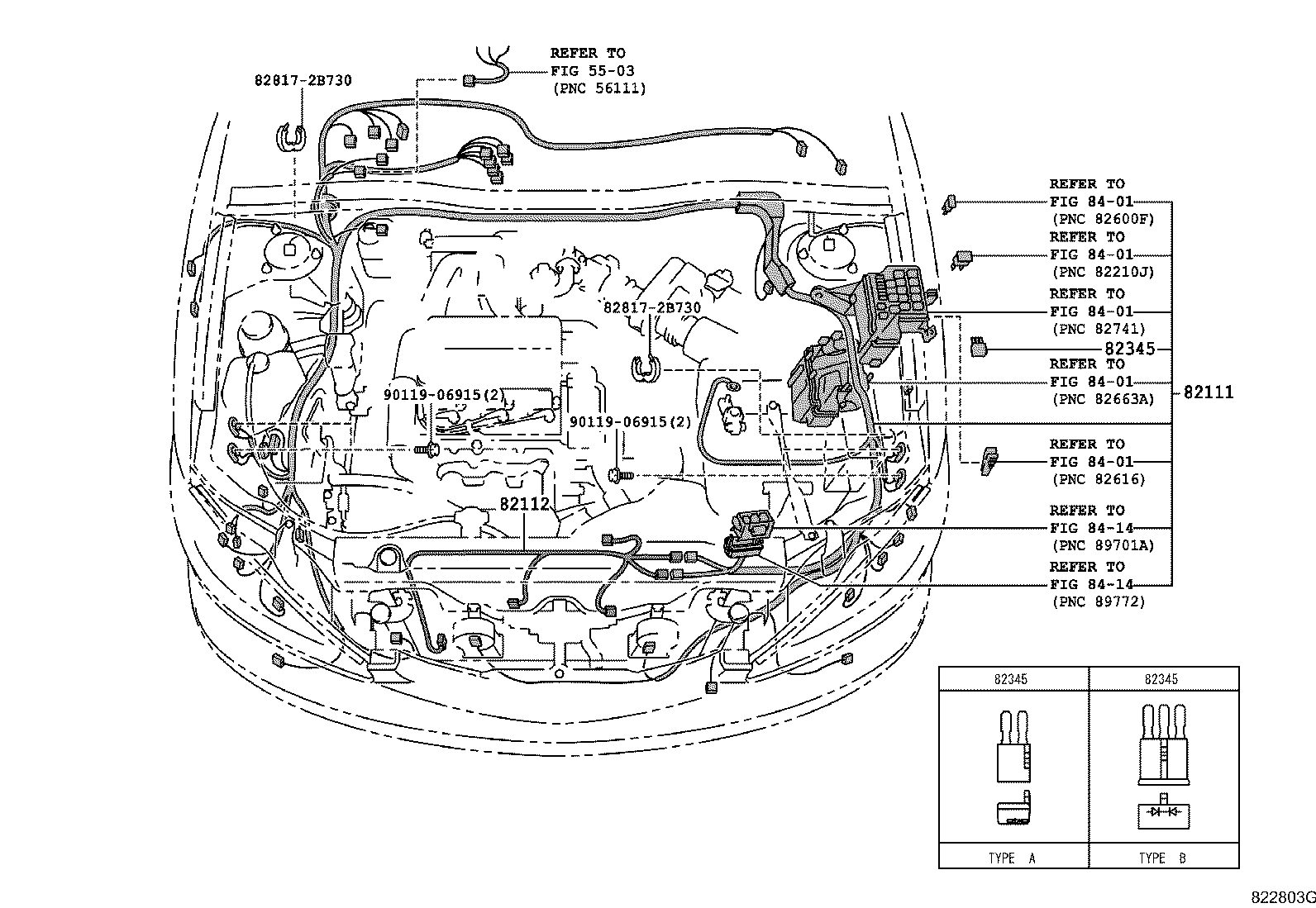

ILLUST NO. 6 OF 8(0109- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82711-16790
82711-1E260
82711-30370
82711-33130
82711-33550
82711-50870
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33370
82715-33470
82715-33480
82715-33490
82715-33500
82717-33010
90105-10197
90119-T0062
91621-J0612
91651-B0814

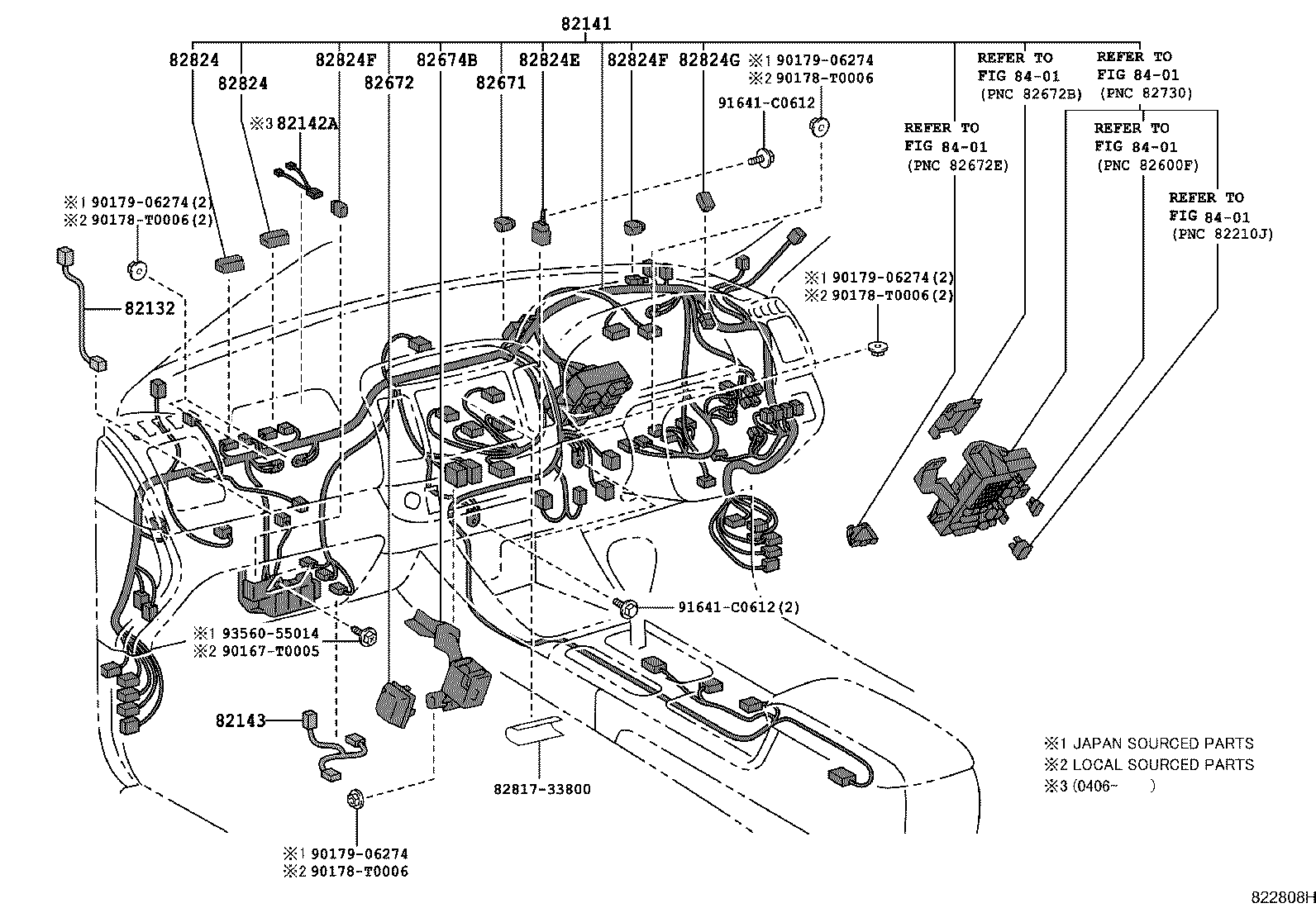

ILLUST NO. 3 OF 8(0109- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-33010	ACV3#	06/2004 - 12/2999	1
82132-33010	ACV3#	09/2001 - 06/2004	1
82141 - WIRE, INSTRUMENT PANEL
82141-3Y210	ACV35	09/2001 - 07/2003	1
82141-3Y211	ACV35	07/2003 - 06/2004	1
82141-33C10	ACV35	06/2004 - 12/2999	1
82141-3Y230	ACV35 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	09/2001 - 07/2003	1
82141-33C30	ACV35 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	06/2004 - 12/2999	1
82141-3Y231	ACV35 ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)	07/2003 - 06/2004	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-33120	ACV3#	06/2004 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-33060	ACV3#	06/2004 - 12/2999	1
82143-33060	ACV3#	09/2001 - 06/2004	1
82671 - BLOCK, JUNCTION
82671-30370	ACV3#	09/2001 - 06/2004	1
82671-30370	ACV3#	06/2004 - 12/2999	1
82672 - COVER, JUNKTION BLOCK
82672-33250	ACV3#	09/2001 - 06/2004	1
82672-33250	ACV3#	06/2004 - 12/2999	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-33040	ACV3#	06/2004 - 12/2999	1
82674-33040	ACV3#	09/2001 - 06/2004	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#	06/2004 - 12/2999	2
82824-12210	ACV3#	09/2001 - 06/2004	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	ACV3#	06/2004 - 12/2999	2
82824-12210	ACV3#	09/2001 - 06/2004	2
82824E - CONNECTOR, WIRING HARNESS
82824-20130	ACV3#	06/2004 - 12/2999	1
82824-20130	ACV3#	09/2001 - 06/2004	1
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#	09/2001 - 06/2004	2
82824-30220	ACV3#	06/2004 - 12/2999	2
82824F - CONNECTOR, WIRING HARNESS
82824-30220	ACV3#	09/2001 - 06/2004	2
82824-30220	ACV3#	06/2004 - 12/2999	2
82824G - CONNECTOR, WIRING HARNESS
82824-50110	ACV3#	06/2004 - 12/2999	1
82824-50110	ACV3#	09/2001 - 06/2004	1
Common parts
82817-33800
90167-T0005
90178-T0006
90179-06274
91641-C0612
93560-55014
Linked diagrams
8401

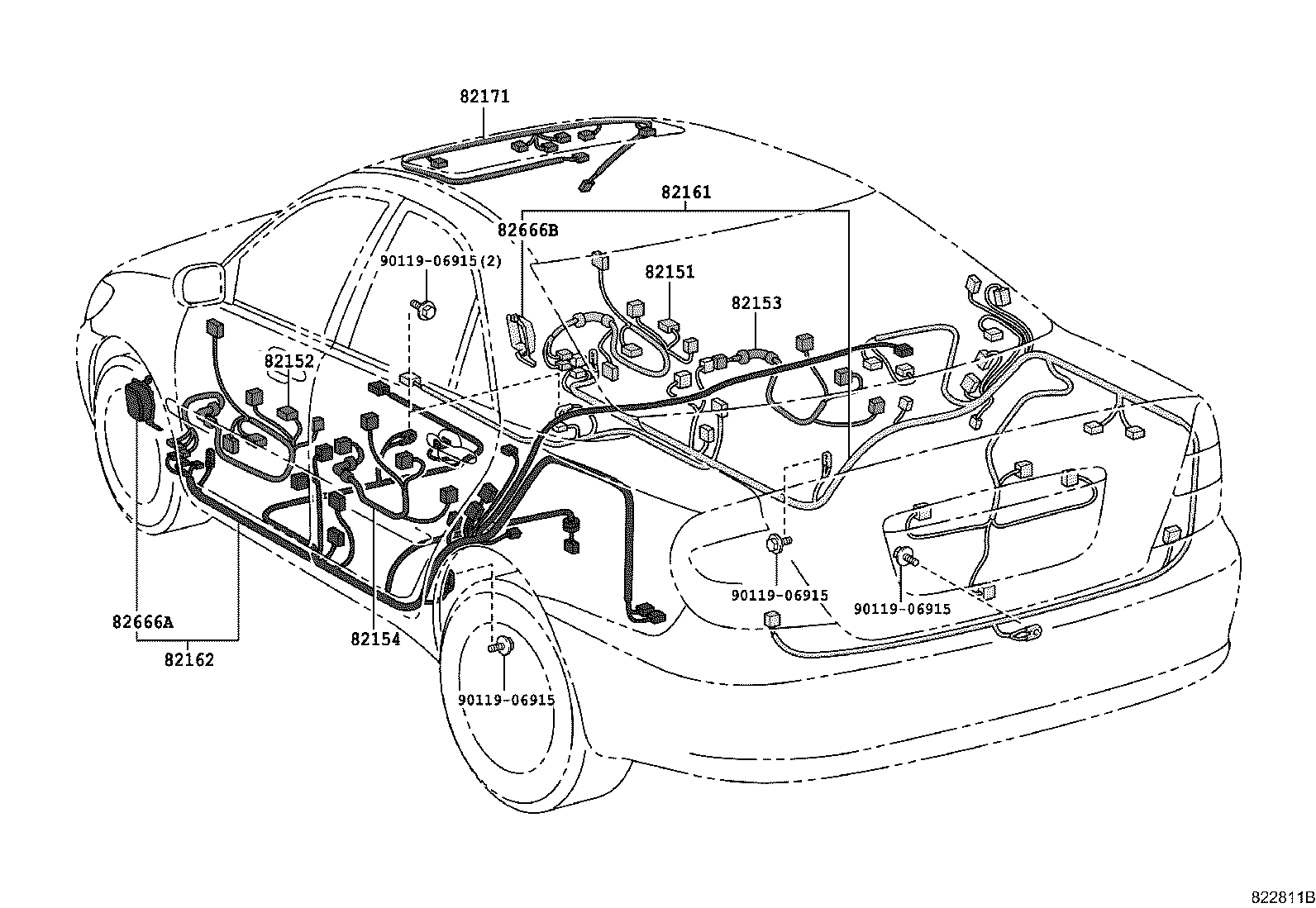

ILLUST NO. 4 OF 8(0109- )

Click highlighted areas on diagram

ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-3T120	ACV3#	06/2004 - 12/2999	1
82151-3T120	ACV3#	09/2001 - 06/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-3T230	ACV3#	06/2004 - 12/2999	1
82152-3T230	ACV3#	09/2001 - 06/2004	1
82153 - WIRE, REAR DOOR, NO.1
82153-33210	ACV3#	06/2004 - 12/2999	1
82153-33210	ACV3#	09/2001 - 06/2004	1
82154 - WIRE, REAR DOOR, NO.2
82154-33100	ACV3#	06/2004 - 12/2999	1
82154-33100	ACV3#	09/2001 - 06/2004	1
82161 - WIRE, FLOOR
82161-3Y780	ACV35 ｶﾝﾚｲﾁｼﾖｳ	09/2001 - 06/2004	1
82161-3Y790	ACV35 ｶﾝﾚｲﾁｼﾖｳ & ｱﾘ(SRS ｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	09/2001 - 06/2004	1
82199-33270	ACV35	06/2004 - 12/2999	1
82161-3Y870	ACV35 ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	09/2001 - 06/2004	1
82161-33C60	ACV35 ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82161-3Y860	ACV35	09/2001 - 06/2004	1
82161-33A10	ACV35 ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ & ｳﾝﾃﾝｾｷﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-3Y330	ACV35	09/2001 - 07/2003	1
82162-3Y331	ACV35	07/2003 - 06/2004	1
82162-3Y350	ACV35 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	09/2001 - 07/2003	1
82162-33A50	ACV35	06/2004 - 12/2999	1
82162-33A70	ACV35 ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞｴｱﾊﾞﾂｸﾞ)	06/2004 - 12/2999	1
82162-3Y351	ACV35 ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ)	07/2003 - 06/2004	1
82171 - WIRE, ROOF, NO.1
82171-33800	ACV3#	09/2001 - 06/2004	1
82171-33800	ACV3#	06/2004 - 12/2999	1
82171-33810	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2001 - 06/2004	1
82171-33810	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/2004 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-33250	ACV3#	06/2004 - 12/2999	1
82666-33250	ACV3#	09/2001 - 06/2004	1
82666B - HOLDER, CONNECTOR NO.3
82666-33260	ACV3#	06/2004 - 12/2999	1
82666-33260	ACV3#	09/2001 - 06/2004	1
Common parts
90119-06915

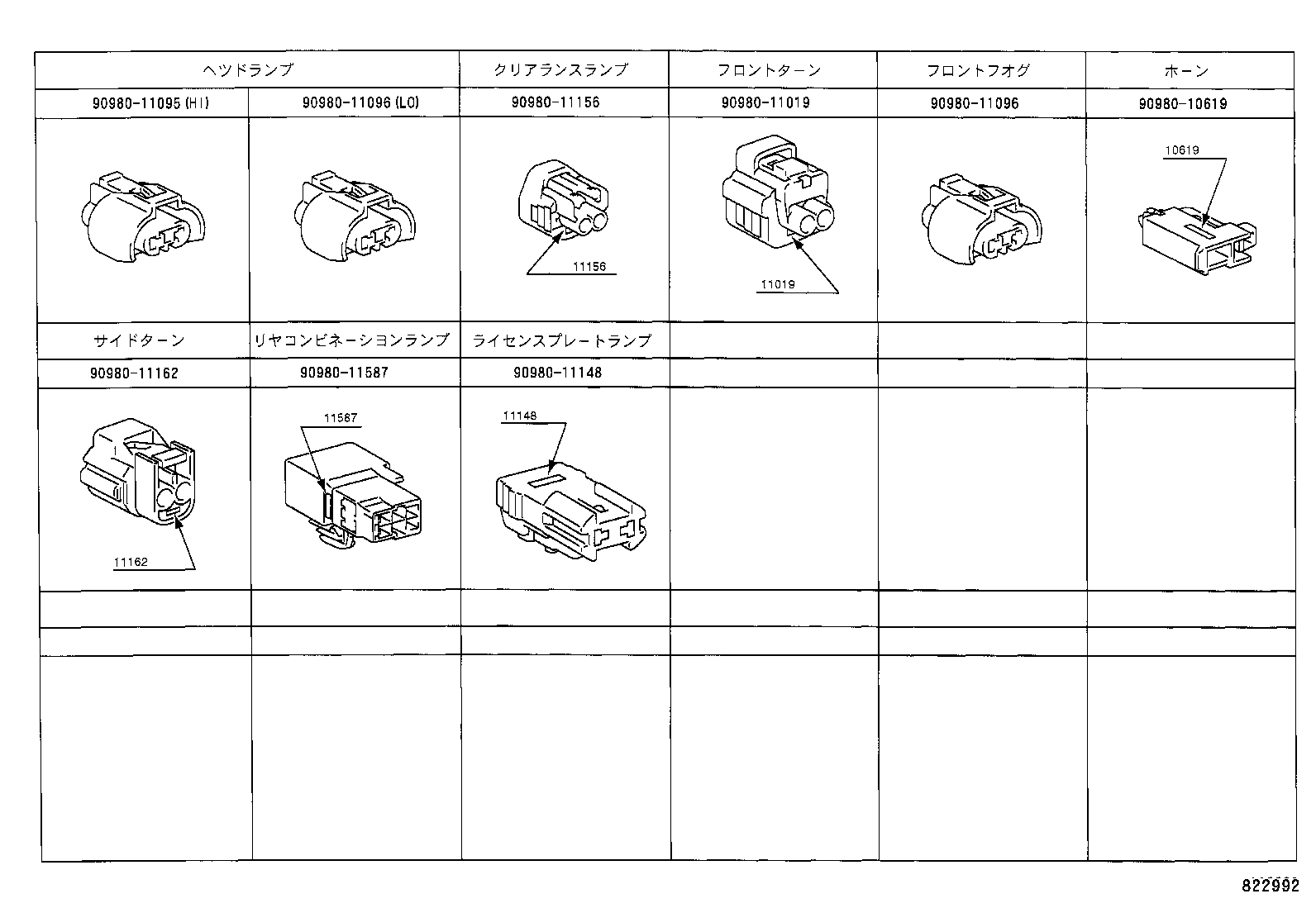

ILLUST NO. 8 OF 8(0109- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11019
90980-11095
90980-11096
90980-11148
90980-11156
90980-11162
90980-11587
