ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

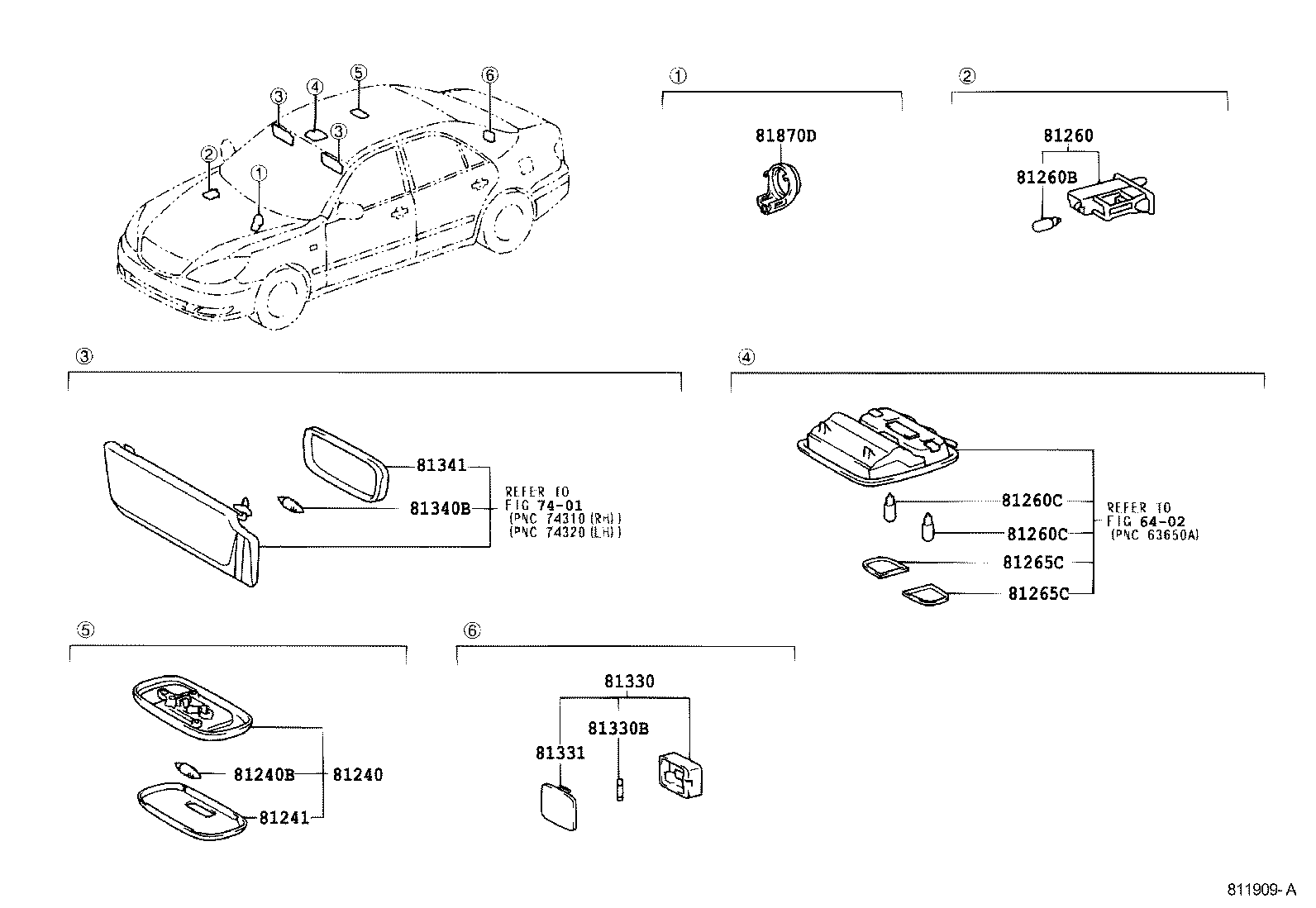

Click highlighted areas on diagram

diagram 6402 7401 81240 81240B 81241 81260 81260B 81260C 81260C 81265C 81265C 81330 81330B 81331 81340B 81341 81870D
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-33030A0

ACV3#..24G

IVORY,TRIM4#

 1
81240-33030A0

ACV3#..24G

IVORY,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14001

ACV3#

12V 3W

 1
90981-14011

ACV3#

12V 8W

 1
90981-14011

ACV3#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-33030

ACV3#

 1
81241-33030

ACV3#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ACV3#

 1
81260-33030

ACV3#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ACV3#

12V 1.2W ｿｹｯﾄ無し

 1
90981-11018

ACV3#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

ACV3#

12V 5W

 2
90084-81002

ACV3#

12V 5W

 2
90084-98049

ACV3#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

ACV3#

12V 5W

 2
90084-81002

ACV3#

12V 5W

 2
90084-98049

ACV3#

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-AA020

ACV3#

左側

 1
81265-AA020

ACV3#

左側

 1
81265-AA010

ACV3#

右側

 1
81265-AA010

ACV3#

右側

 1
81265C - LENS, MAP LAMP, NO.1
81265-AA020

ACV3#

左側

 1
81265-AA020

ACV3#

左側

 1
81265-AA010

ACV3#

右側

 1
81265-AA010

ACV3#

右側

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-33010

ACV3#

 1
81330-33010

ACV3#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-14009

ACV3#

12V 3W

 1
90981-14009

ACV3#

12V 3W

 1
81331 - LENS, LUGGAGE COMPARTMENT LAMP
81338-33010

ACV3#

 1
81338-33010

ACV3#

 1
81340B - BULB (FOR VANITY LAMP)
90084-98013

ACV3#

 4
90084-98013

ACV3#

 4
81341 - LENS, VANITY LAMP
81351-AA010

ACV3#

 2
81351-AA010

ACV3#

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-33070

ACV3#

 1
81870-33070

ACV3#

 1
Linked diagrams
6402
7401
