ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109-0406)

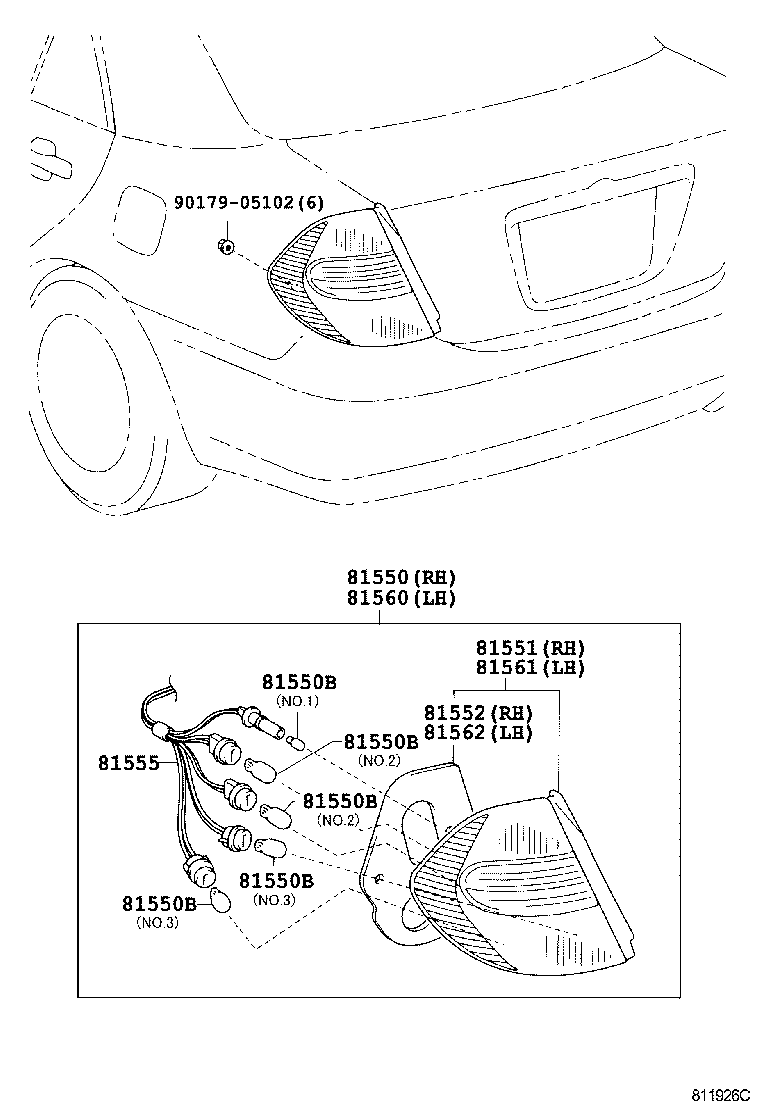

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81550B 81551 81552 81555 81560 81561 81562 9017905102
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-33390

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81550-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81550-33260

ACV3#

 1
81550-33370

ACV3#..24G

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-33370

ACV3#..24G

 1
81551-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81551-33390

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81551-33260

ACV3#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-33260

ACV3#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-33390

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81555-33370

ACV3#

 1
81555-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 2
81555-33260

ACV3#

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81560-33260

ACV3#

 1
81560-33360

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81560-33340

ACV3#..24G

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-33260

ACV3#

 1
81561-33360

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561-33340

ACV3#..24G

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-33260

ACV3#

 1
Common parts
90179-05102

(0406- )

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905102
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-33390

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81550-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81550-33260

ACV3#

 1
81550-33370

ACV3#..24G

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ACV3#

12V 21/5W,NO.3

 4
90981-11059

ACV3#

12V 16W,NO.2

 4
90981-13043

ACV3#

12V 21W,NO.5

 2
99132-12050

ACV3#

12V 5W,NO.1

 2
90981-15021

ACV3#

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11059

ACV3#

12V 16W,NO.4

 2
90981-13044

ACV3#

12V 21/5W,NO.2

 2
99132-12050

ACV3#

12V 5W,NO.3

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-33370

ACV3#..24G

 1
81551-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81551-33390

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81551-33260

ACV3#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-33370

ACV3#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-33390

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81555-33370

ACV3#

 1
81555-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 2
81555-33260

ACV3#

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81560-33260

ACV3#

 1
81560-33360

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81560-33340

ACV3#..24G

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-33260

ACV3#

 1
81561-33360

ACV3#..24G

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561-33270

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561-33340

ACV3#..24G

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-33340

ACV3#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-33370

ACV3#

 1
81555-33390

ACV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-05102
