ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109-0406)

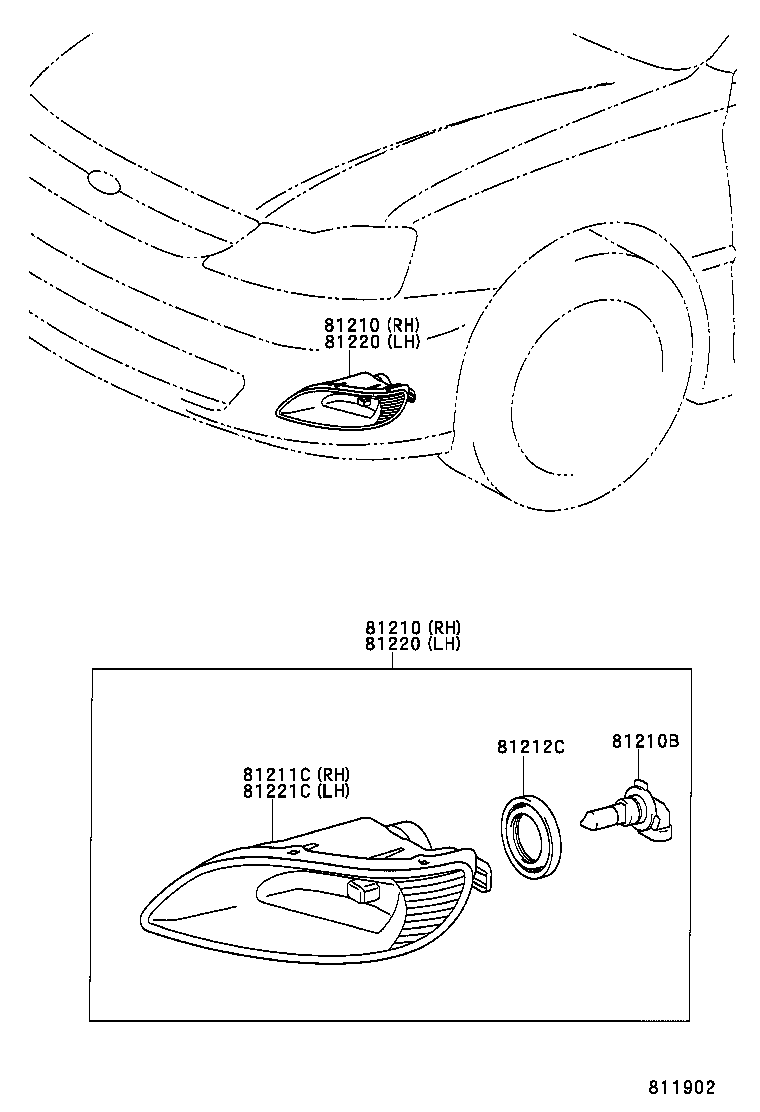

Click highlighted areas on diagram

diagram 81210 81210 81210B 81211C 81212C 81220 81220 81221C
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-AA010

ACV3#

 1
81210-06040

ACV3#

 1
81210 - LAMP ASSY, FOG
81210-AA010

ACV3#

 1
81210-06040

ACV3#

 1
81210B - BULB, FOG LAMP
90981-13047

ACV3#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13047

ACV3#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-06040

ACV3#

 1
81211-AA010

ACV3#

 1
81212C - COVER, FOG LAMP
90075-65010

ACV3#

 2
81212-06010

ACV3#

 2
81220 - LAMP ASSY, FOG, LH
81220-AA010

ACV3#

 1
81220-06040

ACV3#

 1
81220 - LAMP ASSY, FOG, LH
81220-AA010

ACV3#

 1
81220-06040

ACV3#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-AA010

ACV3#

 1
81221-06040

ACV3#

 1

(0406- )

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81212C 81220 81221C 9015960249 9015960249
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-AA010

ACV3#

 1
81210-06040

ACV3#

 1
81210B - BULB, FOG LAMP
90981-13047

ACV3#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13047

ACV3#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-06040

ACV3#

 1
81211-AA010

ACV3#

 1
81212C - COVER, FOG LAMP
90075-65010

ACV3#

 2
81212-06010

ACV3#

 2
81220 - LAMP ASSY, FOG, LH
81220-AA010

ACV3#

 1
81220-06040

ACV3#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-AA010

ACV3#

 1
81221-06040

ACV3#

 1
Common parts
90159-60249
