Toyota Camry ACV35 HEADLAMP - JDM Part Detective

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

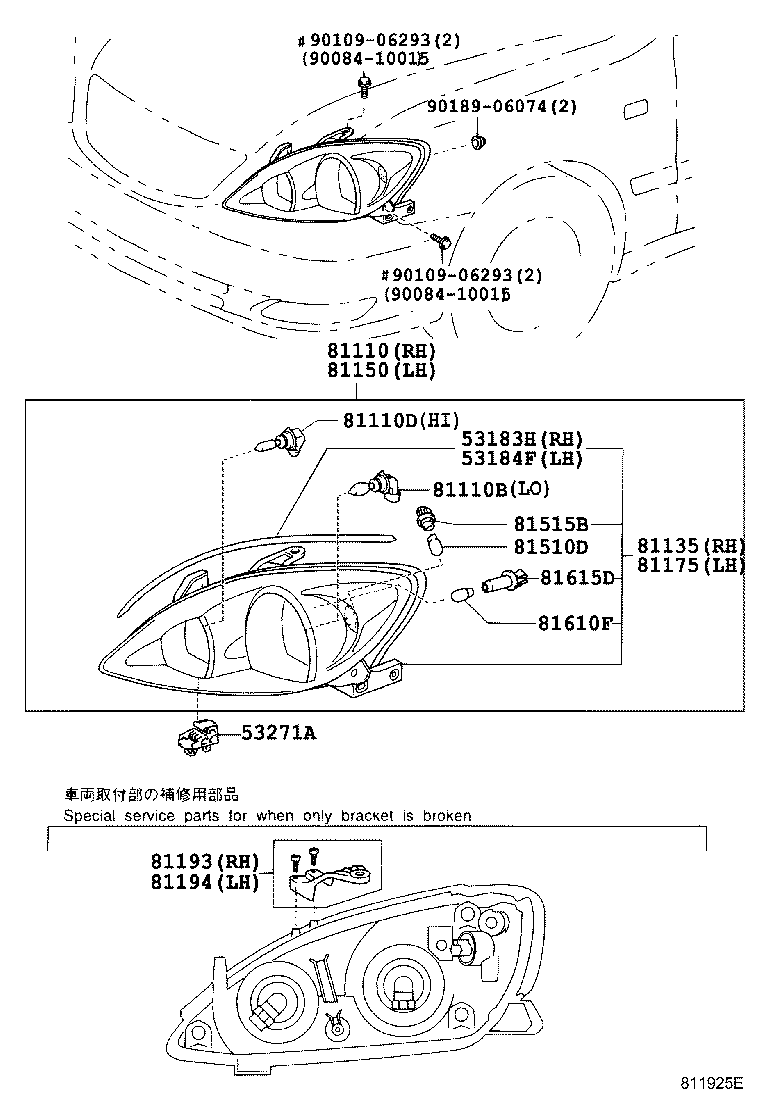

(0109-0406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53183H - SEAL, HEADLAMP COVER, RH
53183-33090	ACV3#	09/2001 - 06/2004	1
53184F - SEAL, HEADLAMP COVER, LH
53184-33090	ACV3#	09/2001 - 06/2004	1
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010	ACV3#	06/2004 - 12/2999	2
53271-44010	ACV3#	09/2001 - 06/2004	2
81110 - HEADLAMP ASSY, RH
81110-33411	ACV3#..24G	10/2002 - 06/2004	1
81110-33410	ACV3#..24G	09/2001 - 10/2002	1
81110-33500	ACV3#..24G	06/2004 - 01/2006	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063	ACV3# 12V 55W,ﾊﾛｹﾞﾝ	06/2004 - 01/2006	2
90981-13062	ACV3# 12V 55W,ﾊﾛｹﾞﾝ	09/2001 - 06/2004	2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041	ACV3# 12V 65W	06/2004 - 01/2006	2
90080-81041	ACV3# 12V 65W	09/2001 - 07/2003	2
90981-13046	ACV3# 12V65W(SAE),60W(ECE)	07/2003 - 06/2004	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-33500	ACV3#..24G	06/2004 - 12/2999	1
81130-33410	ACV3#..24G	09/2001 - 06/2004	1
81150 - HEADLAMP ASSY, LH
81150-33410	ACV3#..24G	09/2001 - 10/2002	1
81150-33400	ACV3#..24G	06/2004 - 01/2006	1
81150-33411	ACV3#..24G	10/2002 - 06/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-33410	ACV3#..24G	09/2001 - 06/2004	1
81170-33400	ACV3#..24G	06/2004 - 12/2999	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-33020	ACV3#	06/2004 - 12/2999	1
81193-33020	ACV3#	09/2001 - 06/2004	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-33020	ACV3#	09/2001 - 06/2004	1
81194-33020	ACV3#	06/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ACV3# 12V 21W,ｱﾝﾊﾞｰ	06/2004 - 01/2006	2
90981-13043	ACV3# 12V 21W	09/2001 - 06/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99080	ACV3#	09/2001 - 06/2004	2
90075-60028	ACV3#	06/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	ACV3# 12V 5W	09/2001 - 06/2004	2
99132-12050	ACV3# 12V 5W	06/2004 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	ACV3#	09/2001 - 06/2004	2
Common parts
90084-10015
90109-06293
90189-06074

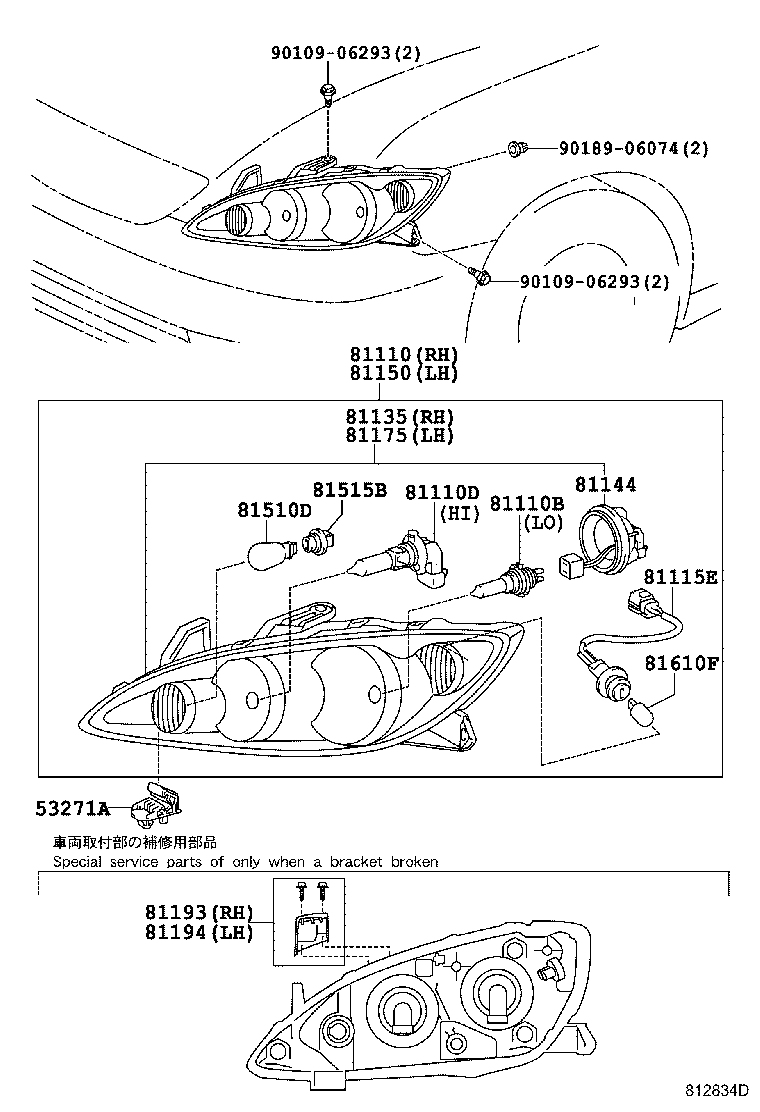

(0406- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010	ACV3#	06/2004 - 12/2999	2
53271-44010	ACV3#	09/2001 - 06/2004	2
81110 - HEADLAMP ASSY, RH
81110-33411	ACV3#..24G	10/2002 - 06/2004	1
81110-33410	ACV3#..24G	09/2001 - 10/2002	1
81110-33500	ACV3#..24G	06/2004 - 01/2006	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063	ACV3# 12V 55W,ﾊﾛｹﾞﾝ	06/2004 - 01/2006	2
90981-13062	ACV3# 12V 55W,ﾊﾛｹﾞﾝ	09/2001 - 06/2004	2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041	ACV3# 12V 65W	06/2004 - 01/2006	2
90080-81041	ACV3# 12V 65W	09/2001 - 07/2003	2
90981-13046	ACV3# 12V65W(SAE),60W(ECE)	07/2003 - 06/2004	2
81115E - CODE,HEADLAMP
81115-33500	ACV3#	06/2004 - 12/2999	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-33500	ACV3#..24G	06/2004 - 12/2999	1
81130-33410	ACV3#..24G	09/2001 - 06/2004	1
81144 - COVER, HEADLAMP, NO.1
81135-33430	ACV3#	06/2004 - 01/2006	2
81150 - HEADLAMP ASSY, LH
81150-33410	ACV3#..24G	09/2001 - 10/2002	1
81150-33400	ACV3#..24G	06/2004 - 01/2006	1
81150-33411	ACV3#..24G	10/2002 - 06/2004	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-33410	ACV3#..24G	09/2001 - 06/2004	1
81170-33400	ACV3#..24G	06/2004 - 12/2999	1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-33020	ACV3#	06/2004 - 12/2999	1
81193-33020	ACV3#	09/2001 - 06/2004	1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-33020	ACV3#	09/2001 - 06/2004	1
81194-33020	ACV3#	06/2004 - 12/2999	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	ACV3# 12V 21W,ｱﾝﾊﾞｰ	06/2004 - 01/2006	2
90981-13043	ACV3# 12V 21W	09/2001 - 06/2004	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99080	ACV3#	09/2001 - 06/2004	2
90075-60028	ACV3#	06/2004 - 12/2999	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	ACV3# 12V 5W	09/2001 - 06/2004	2
99132-12050	ACV3# 12V 5W	06/2004 - 12/2999	2
Common parts
90109-06293
90189-06074
