ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

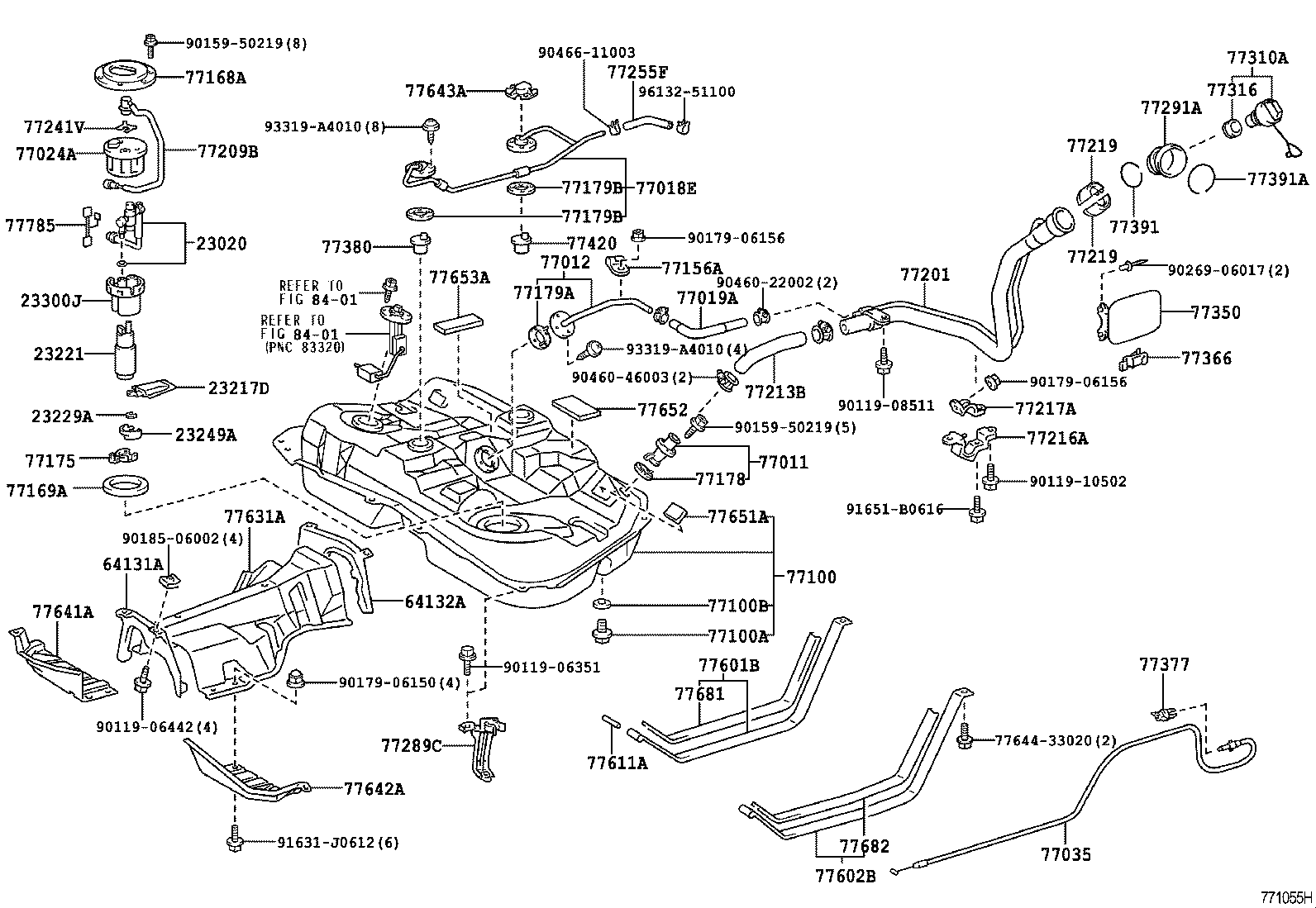

ILLUST NO. 1 OF 2(0109- )ACV35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23020 - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP | ||||
| 23020-70010 |
2AZFE..ACV35 |
1 | ||
| 23020-70010 |
2AZFE..ACV35 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-76040 |
2AZFE..ACV35 |
1 | ||
| 23217-76040 |
2AZFE..ACV35 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-28020 |
2AZFE..ACV35 |
1 | ||
| 23221-28020 |
2AZFE..ACV35 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2AZFE..ACV3# |
1 | ||
| 23229-16010 |
2AZFE..ACV3# |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
2AZFE..ACV3# |
1 | ||
| 23249-46180 |
2AZFE..ACV3# |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
2AZFE..ACV3# |
1 | ||
| 23300-21010 |
2AZFE..ACV3# |
1 | ||
| 64131A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.1 | ||||
| 64131-33010 |
ACV35 |
1 | ||
| 64131-33010 |
ACV35 |
1 | ||
| 64132A - BRACKET, FUEL TANK PROTECTOR, UPPER NO.2 | ||||
| 64132-33010 |
ACV35 |
1 | ||
| 64132-33010 |
ACV35 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-41010 |
ACV35 |
1 | ||
| 77011-41010 |
ACV35 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-33080 |
ACV35 |
1 | ||
| 77012-33080 |
ACV35 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-33030 |
ACV35 |
1 | ||
| 77018-33030 |
ACV35 |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77019-33050 |
ACV35 |
1 | ||
| 77019-33050 |
ACV35 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33020 |
ACV35 |
1 | ||
| 77024-33020 |
ACV35 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33110 |
ACV3# |
1 | ||
| 77035-33110 |
ACV3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33081 |
ACV35 |
1 | ||
| 77001-33080 |
ACV35 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
ACV35 |
1 | ||
| 90105-12116 |
ACV35 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
ACV35 |
1 | ||
| 90430-12245 |
ACV35 |
1 | ||
| 77156A - PLATE, BREATHER TUBE SUPPORT, NO.2 | ||||
| 77156-33010 |
ACV35 |
1 | ||
| 77156-33010 |
ACV35 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33040 |
ACV35 |
1 | ||
| 77168-33040 |
ACV35 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACV35 |
1 | ||
| 77169-33020 |
ACV3# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30050 |
ACV35 |
1 | ||
| 77175-30050 |
ACV35 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
ACV35 |
1 | ||
| 77178-20030 |
ACV35 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
ACV35 |
1 | ||
| 77179-20040 |
ACV35 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
ACV35 |
2 | ||
| 77179-26010 |
ACV35 |
2 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
ACV35 |
2 | ||
| 77179-26010 |
ACV35 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33230 |
ACV35 |
1 | ||
| 77201-33230 |
ACV35 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33050 |
ACV35 |
1 | ||
| 77209-33050 |
ACV35 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33080 |
ACV35 |
1 | ||
| 77213-33080 |
ACV35 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77104-33010 |
ACV35 |
1 | ||
| 77104-33010 |
ACV35 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32040 |
ACV35 |
1 | ||
| 77217-32040 |
ACV35 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
ACV3# |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
ACV3# |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ACV35 |
1 | ||
| 77241-33011 |
ACV3# |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95337-06012 |
ACV35 長さ=120 |
1 | ||
| 95337-06012 |
ACV35 長さ=120 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-33040 |
ACV35 |
1 | ||
| 77289-33040 |
ACV35 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33040 |
ACV3# |
1 | ||
| 77291-33040 |
ACV3# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-33060 |
ACV3# |
1 | ||
| 77300-33020 |
ACV3# |
1 | ||
| 77300-33061 |
ACV3# |
1 | ||
| 77300-33062 |
ACV3# |
1 | ||
| 77300-35040 |
ACV3# |
1 | ||
| 77300-35040 |
ACV3# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33010 |
ACV3# |
1 | ||
| 77316-33042 |
ACV3# |
1 | ||
| 77316-33041 |
ACV3# |
1 | ||
| 77316-33040 |
ACV3# |
1 | ||
| 77316-33042 |
ACV3# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33080 |
ACV3# |
1 | ||
| 77350-33080 |
ACV3# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33030 |
ACV3# |
1 | ||
| 77360-35010 |
ACV3# |
1 | ||
| 77360-33030 |
ACV3# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACV3# |
1 | ||
| 77377-12050 |
ACV3# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
ACV35 |
1 | ||
| 77380-26010 |
ACV35 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACV3# |
1 | ||
| 77391-12020 |
ACV3# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12040 |
ACV3# |
1 | ||
| 77391-12040 |
ACV3# |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
ACV35 |
1 | ||
| 77420-26010 |
ACV35 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33020 |
ACV35 |
1 | ||
| 77601-33020 |
ACV35 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33020 |
ACV35 |
1 | ||
| 77602-33020 |
ACV35 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
ACV3# |
2 | ||
| 90250-08019 |
ACV3# |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33030 |
ACV35 |
1 | ||
| 77631-33030 |
ACV35 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33020 |
ACV35 |
1 | ||
| 77641-33020 |
ACV35 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33030 |
ACV35 |
1 | ||
| 77642-33030 |
ACV35 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33020 |
ACV35 |
1 | ||
| 77643-33020 |
ACV35 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
ACV35 |
14 | ||
| 77651-20090 |
ACV35 |
14 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-33030 |
ACV35 |
3 | ||
| 77652-33030 |
ACV35 |
3 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-33010 |
ACV35 |
1 | ||
| 77653-33010 |
ACV35 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
ACV3# |
1 | ||
| 77681-32060 |
ACV3# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
ACV35 |
1 | ||
| 77682-16010 |
ACV35 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33010 |
ACV35 |
1 | ||
| 77785-33010 |
ACV35 |
1 | ||
| Common parts | ||||
| 77644-33020 | ||||
| 90119-06351 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90159-50219 | ||||
| 90179-06150 | ||||
| 90179-06156 | ||||
| 90185-06002 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90466-11003 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 93319-A4010 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

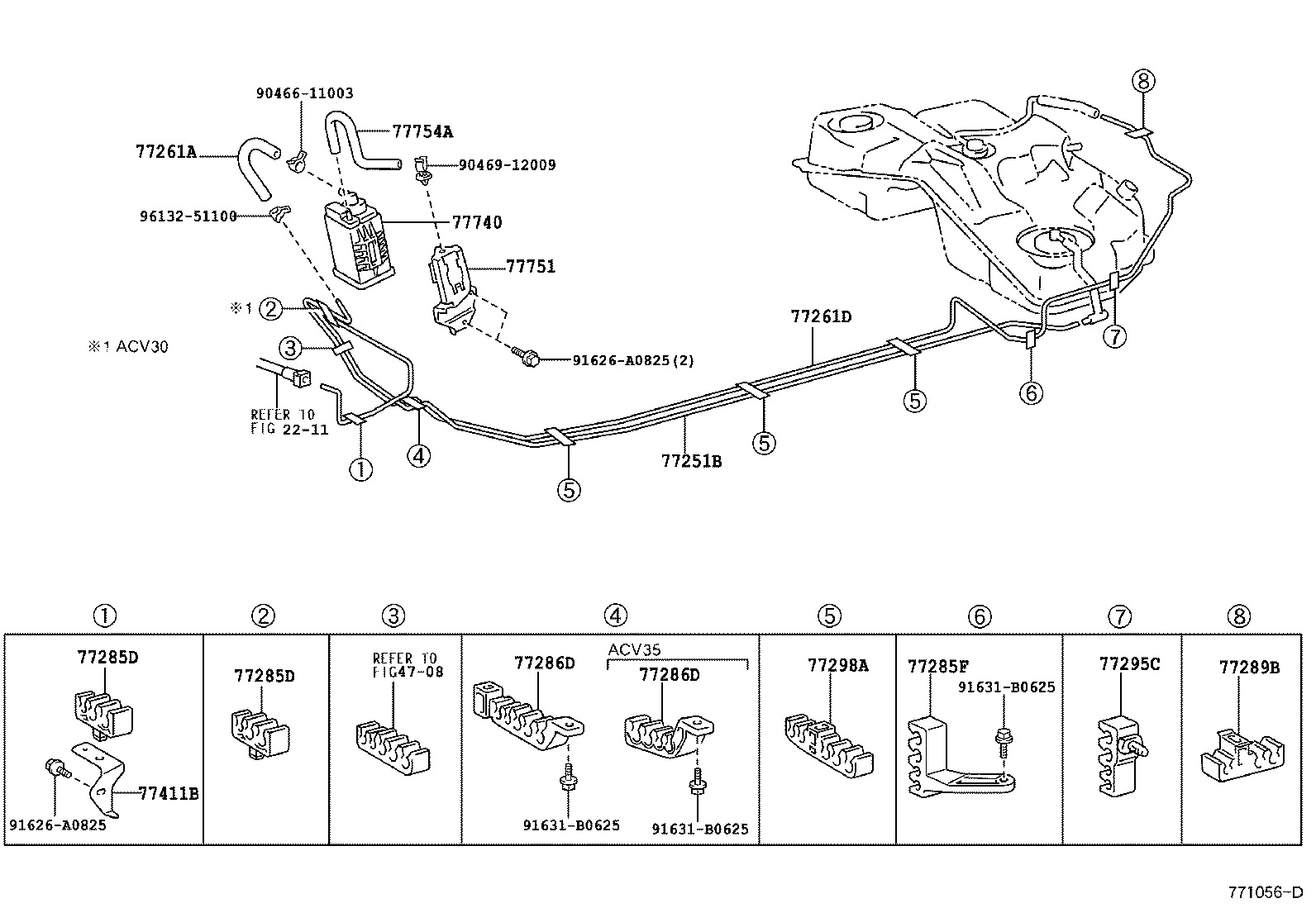

ILLUST NO. 2 OF 2(0109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33140 |
ACV35 |
1 | ||
| 77251-33140 |
ACV35 |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95337-06018 |
ACV3# 長さ=180 |
1 | ||
| 95337-06018 |
ACV3# 長さ=180 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-33130 |
ACV35 |
1 | ||
| 77261-33130 |
ACV35 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33060 |
ACV3# |
2 | ||
| 77285-33060 |
ACV3# |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33060 |
ACV3# |
2 | ||
| 77285-33060 |
ACV3# |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77299-33040 |
ACV3# |
1 | ||
| 77299-33040 |
ACV3# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-33050 |
ACV35 |
1 | ||
| 77286-33050 |
ACV35 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-33050 |
ACV35 |
1 | ||
| 77286-33050 |
ACV35 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77299-20050 |
ACV35 |
1 | ||
| 77299-20050 |
ACV35 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33030 |
ACV35 |
1 | ||
| 77295-33030 |
ACV35 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-20080 |
ACV3# |
3 | ||
| 77298-20080 |
ACV3# |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77412-33040 |
ACV3# |
1 | ||
| 77412-33040 |
ACV3# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48090 |
ACV3# |
1 | ||
| 77740-48090 |
ACV3# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-33070 |
ACV3# |
1 | ||
| 77751-33070 |
ACV3# |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-33020 |
ACV3# |
1 | ||
| 77754-33020 |
ACV3# |
1 | ||
| Common parts | ||||
| 90466-11003 | ||||
| 90469-12009 | ||||
| 91626-A0825 | ||||
| 91631-B0625 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 4708 | ||||
