ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

Click highlighted areas on diagram

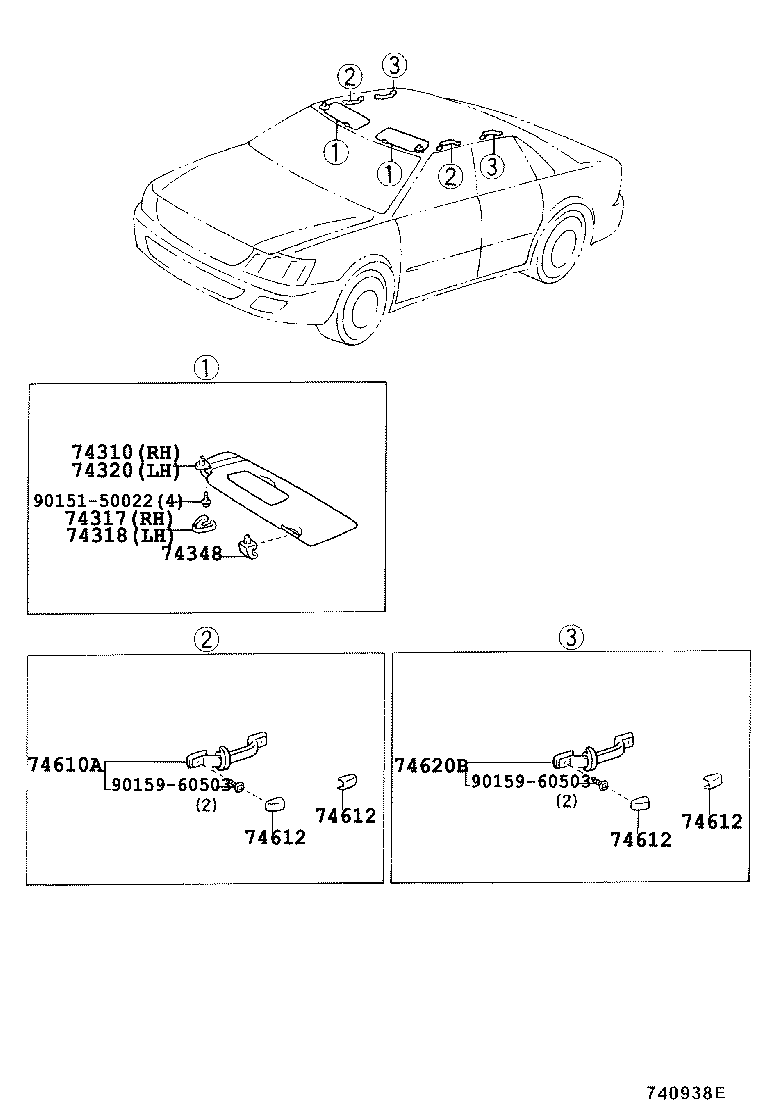

VISOR

diagram 74310 74317 74318 74320 74348 74610A 74612 74612 74612 74612 74620B 9015150022 9015960503 9015960503
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0W070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
74310-0W130A0

ACV3#..24G

IVORY,TRIM4#

 1
74310-0W070A0

ACV3#..24G

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),IVORY,TRIM4#

 1
74310-0W130A0

ACV3#..24G

IVORY,TRIM4#

 1
74317 - COVER, VISOR BRACKET, RH
74317-30010A1

ACV3#..24G

IVORY,TRIM4#

 1
74317-30010A1

ACV3#..24G

IVORY,TRIM4#

 1
74318 - COVER, VISOR BRACKET, LH
74317-30010A1

ACV3#..24G

IVORY,TRIM4#

 1
74317-30010A1

ACV3#..24G

IVORY,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-0W050A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
74320-0W130A0

ACV3#..24G

IVORY,TRIM4#

 1
74320-0W050A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
74320-0W130A0

ACV3#..24G

IVORY,TRIM4#

 1
74348 - HOLDER, VISOR
74348-12040A0

ACV3#..24G

IVORY,TRIM4#

 2
74348-12040A0

ACV3#..24G

IVORY,TRIM4#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-33100A0

ACV3#..24G

IVORY,TRIM4#

 2
74610-33100A0

ACV3#..24G

IVORY,TRIM4#

 2
74612 - COVER, ASSIST GRIP
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612 - COVER, ASSIST GRIP
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612 - COVER, ASSIST GRIP
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612 - COVER, ASSIST GRIP
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74612-30171A0

ACV3#..24G

IVORY,TRIM4#

 8
74620B - GRIP ASSY, ASSIST, REAR
74610-33110A0

ACV3#..24G

IVORY,TRIM4#

 2
74610-33110A0

ACV3#..24G

IVORY,TRIM4#

 2
Common parts
90151-50022
90159-60503

(0109- )

Click highlighted areas on diagram

ARMREST

diagram 74231 74232 74243 74244 74271A 74272A 74283 74284 9046805114 9046805114 9046805114 9046805114 9354014010 9354014010 9354014010 9354014010
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-33250

ACV3#..24G

 1
74231-33250

ACV3#..24G

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-33200

ACV3#..24G

 1
74232-33200

ACV3#..24G

 1
74243 - COVER, FRONT DOOR ARMREST BASE, LOWER RH
74243-33010

ACV3#

 1
74243-33010

ACV3#

 1
74244 - COVER, FRONT DOOR ARMREST BASE, LOWER LH
74244-33010

ACV3#

 1
74244-33010

ACV3#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-33140

ACV3#..24G

 1
74271-33140

ACV3#..24G

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-33140

ACV3#..24G

 1
74272-33140

ACV3#..24G

 1
74283 - COVER, REAR DOOR ARMREST BASE, LOWER RH
74283-33020

ACV3#

 1
74283-33020

ACV3#

 1
74284 - COVER, REAR DOOR ARMREST BASE, LOWER LH
74283-33020

ACV3#

 1
74283-33020

ACV3#

 1
Common parts
90468-05114
93540-14010
