Toyota Camry ACV35 FRONT SEAT & SEAT TRACK

Manufacturers Home
Toyota
JP
CAMRY
ACV35-AEPNK (2001)
7101 - FRONT SEAT & SEAT TRACK

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

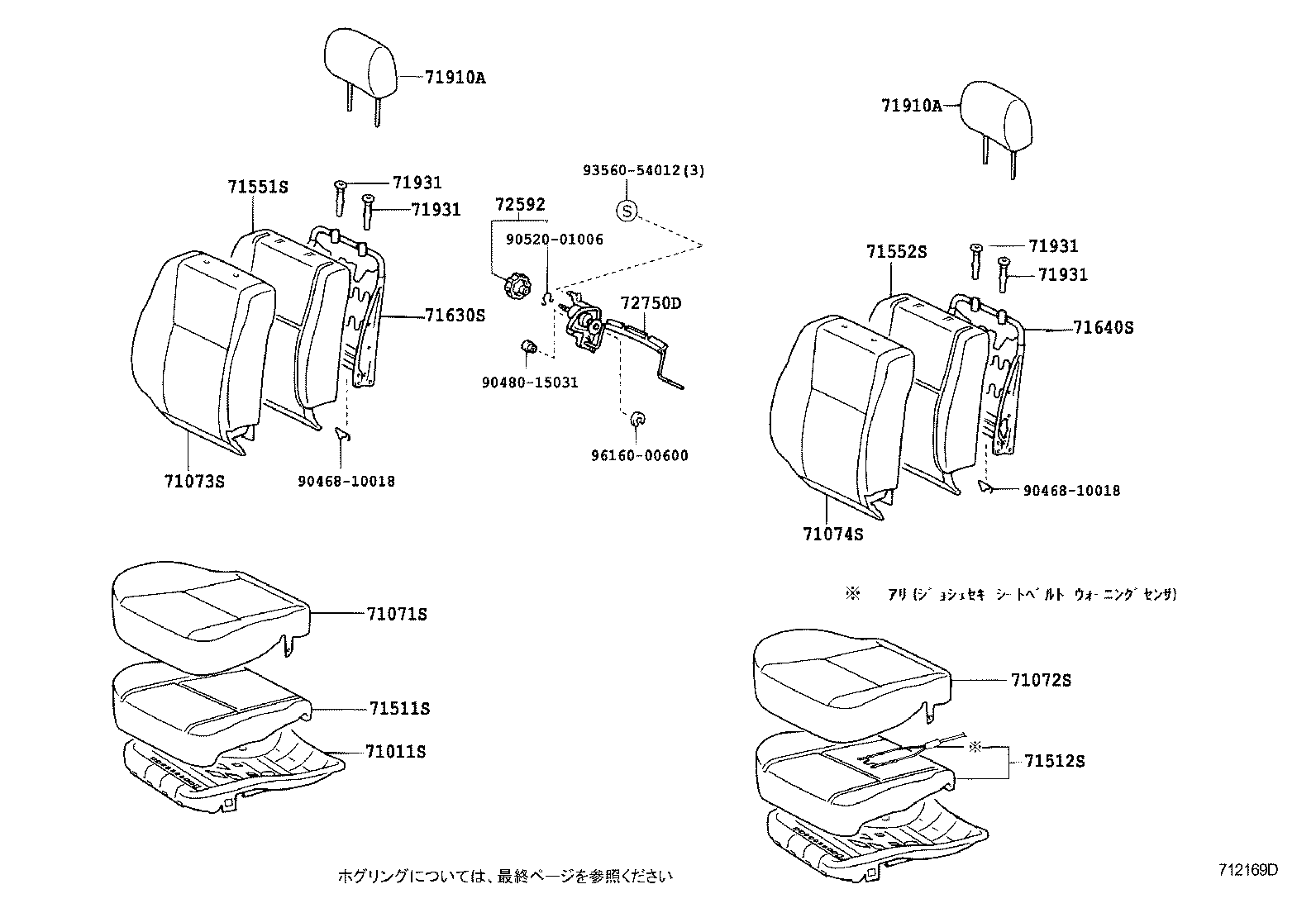

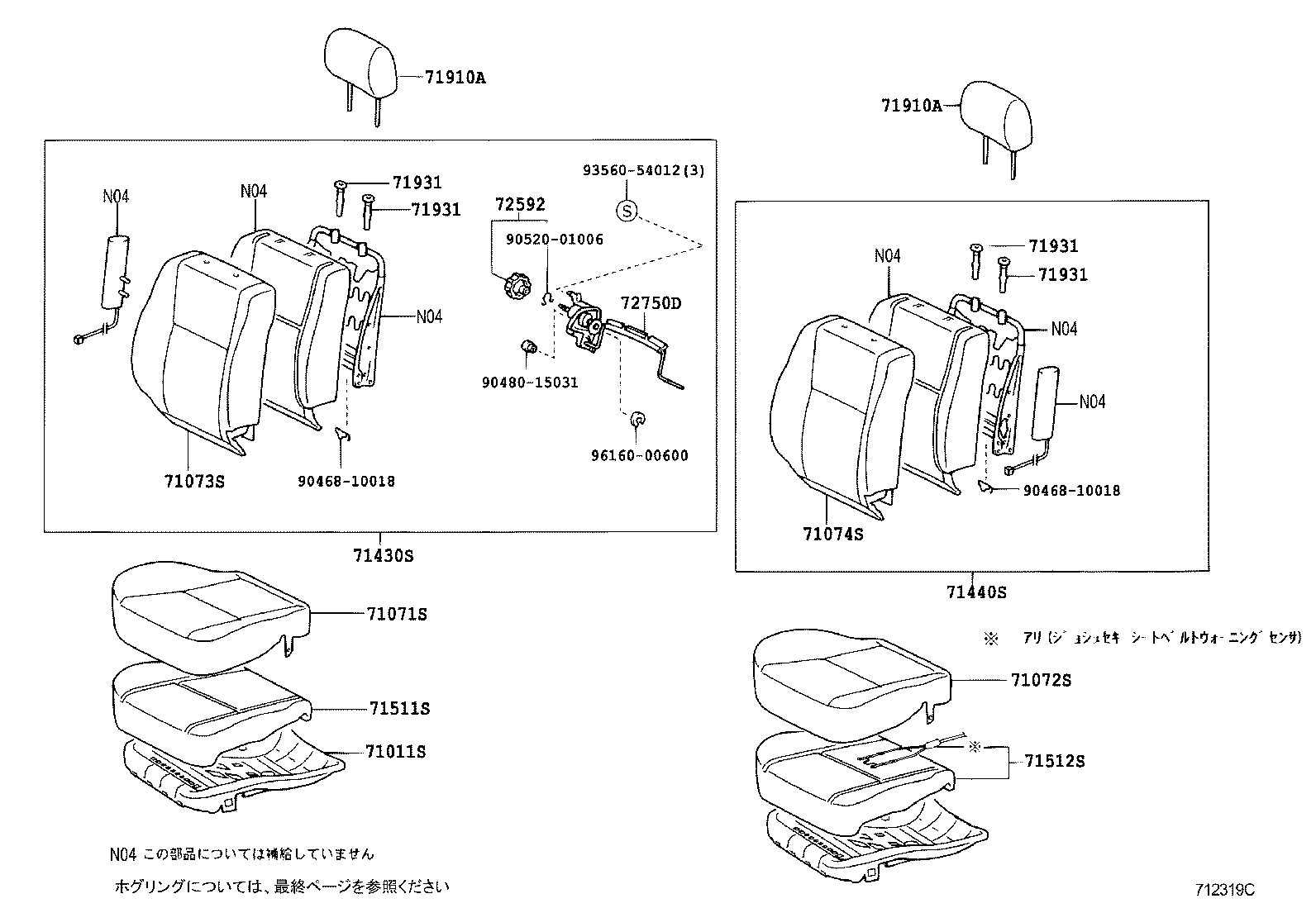

ILLUST NO. 1 OF 2(0109-0406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-33020	ACV3#	09/2001 - 06/2004	1
71110-33080	ACV35	06/2004 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33880E1	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33870E1	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33B90E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3T100E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074-33F60E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71074-3T090E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-33100	ACV3#	06/2004 - 12/2999	1
71502-33030	ACV3#	09/2001 - 06/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-33140	ACV3#..24G	06/2004 - 12/2999	1
71551-33090	ACV3#..24G	09/2001 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-33090	ACV3#..24G	09/2001 - 06/2004	1
71551-33140	ACV3#..24G	06/2004 - 01/2006	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-33070	ACV3#	09/2001 - 06/2004	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-47010	ACV3#	09/2001 - 06/2004	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72592 - KNOB, RECLINING ADJUSTER
72592-20040E3	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
Common parts
90468-10018
90480-15031
90520-01006
93560-54012
96160-00600

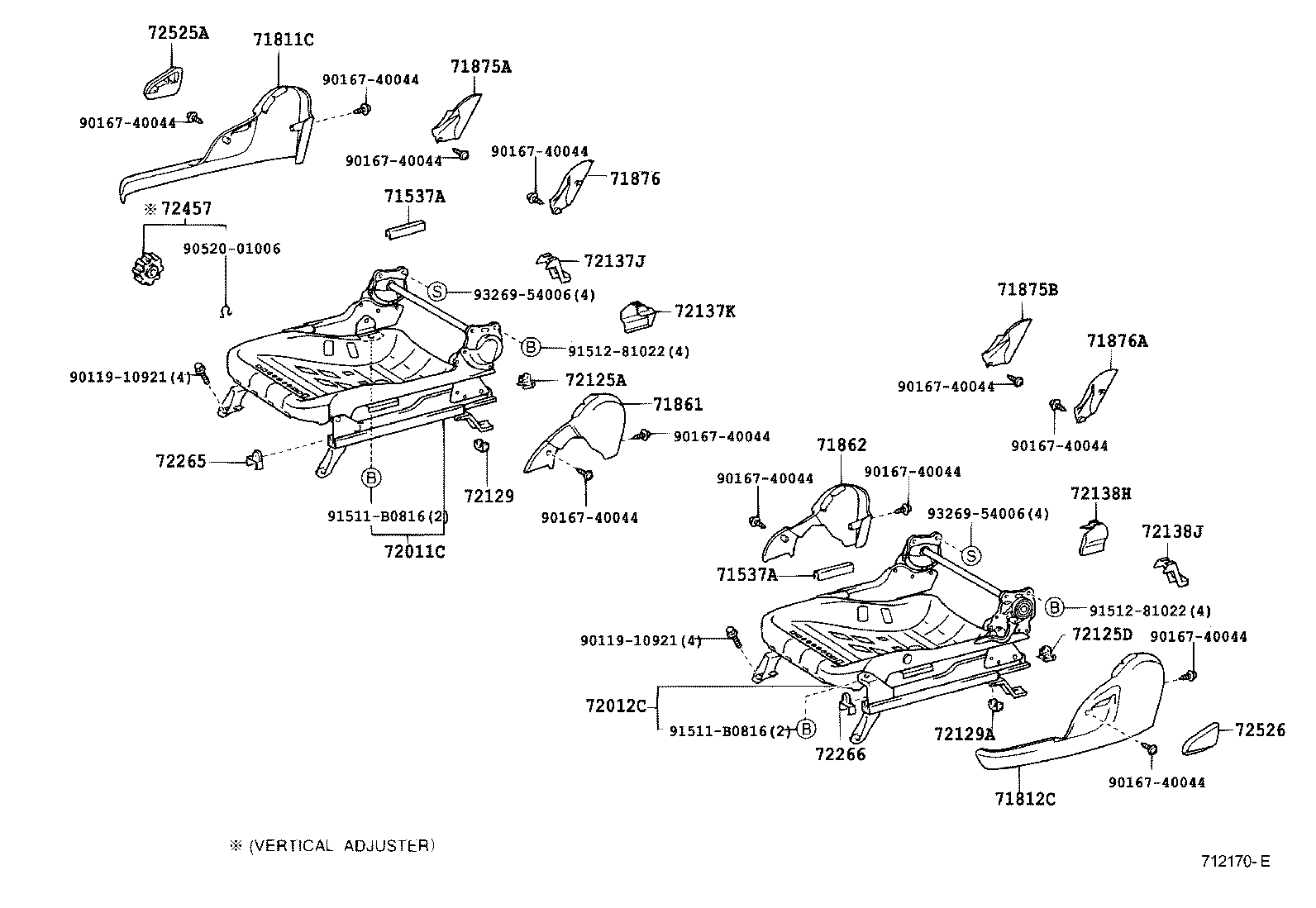

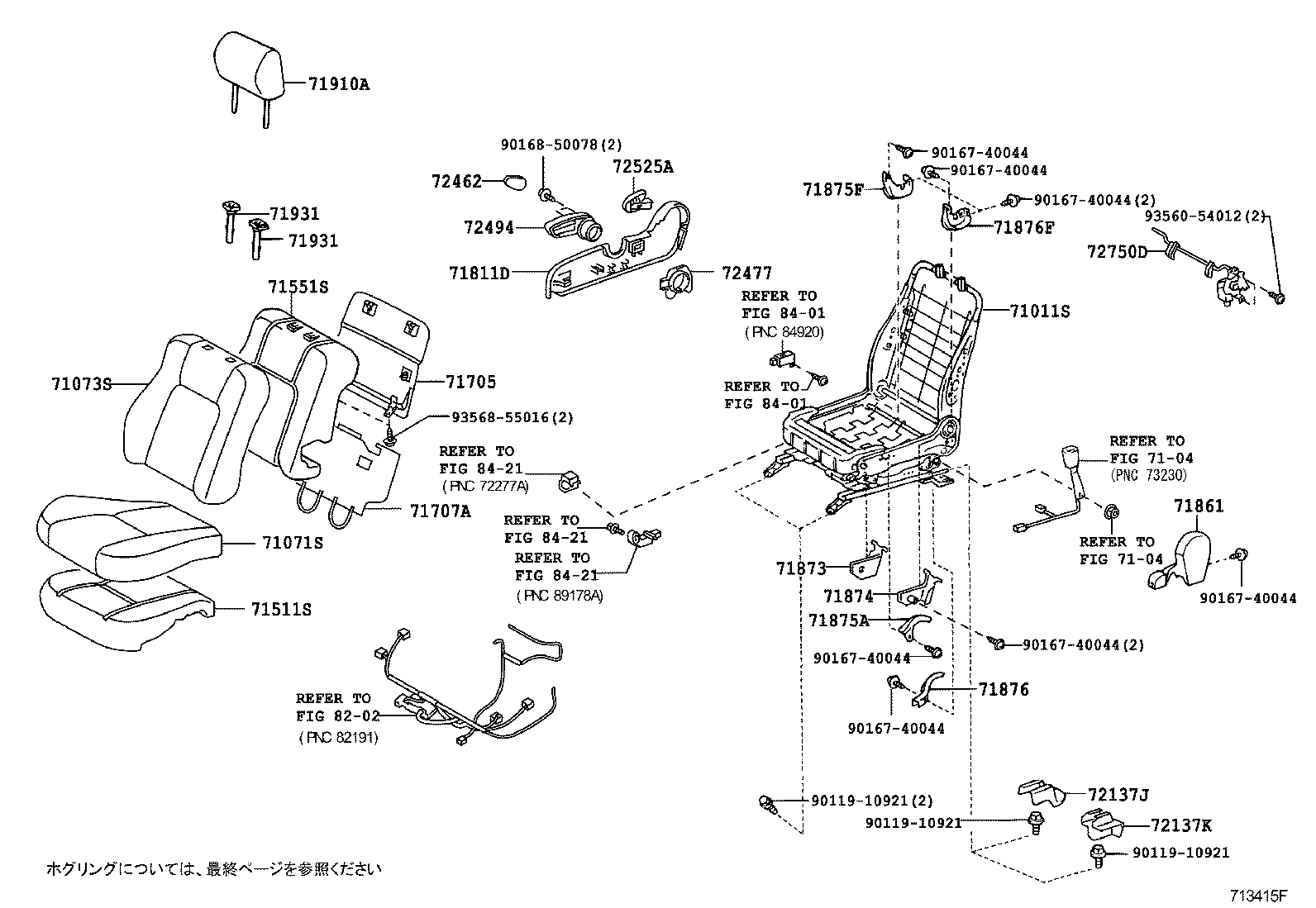

ILLUST NO. 2 OF 2(0109-0406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-33010	ACV3#	09/2001 - 06/2004	1
71537-33010	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	09/2001 - 06/2004	2
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-33010	ACV3#	09/2001 - 06/2004	1
71537-33010	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	09/2001 - 06/2004	2
71811C - COVER, RECLINING ADJUSTER, RH
71811-12380E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71811-33140E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71811-33120E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-33130E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71812-12360E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33090E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71862-12230E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71876-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH
72010-33240	ACV35	09/2001 - 06/2004	1
72010-33280	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	09/2001 - 06/2004	1
72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH
72020-33200	ACV35	09/2001 - 06/2004	1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-33020	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),内側	09/2001 - 06/2004	1
72125-33030	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),外側	09/2001 - 06/2004	1
72125-13040	ACV35	09/2001 - 06/2004	2
72125D - COVER, SEAT TRACK, UPPER REAR NO.2
72125-13040	ACV3#	09/2001 - 06/2004	2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-33050	ACV3#	09/2001 - 06/2004	1
72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2
72129-33040	ACV35	09/2001 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-33050E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72158-33050E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-33030E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-13040	ACV35	09/2001 - 06/2004	2
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-13040	ACV3#	09/2001 - 06/2004	2
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-18010E5	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72525-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
Common parts
90119-10921
90167-40044
90520-01006
91511-B0816
91512-81022
93269-54006

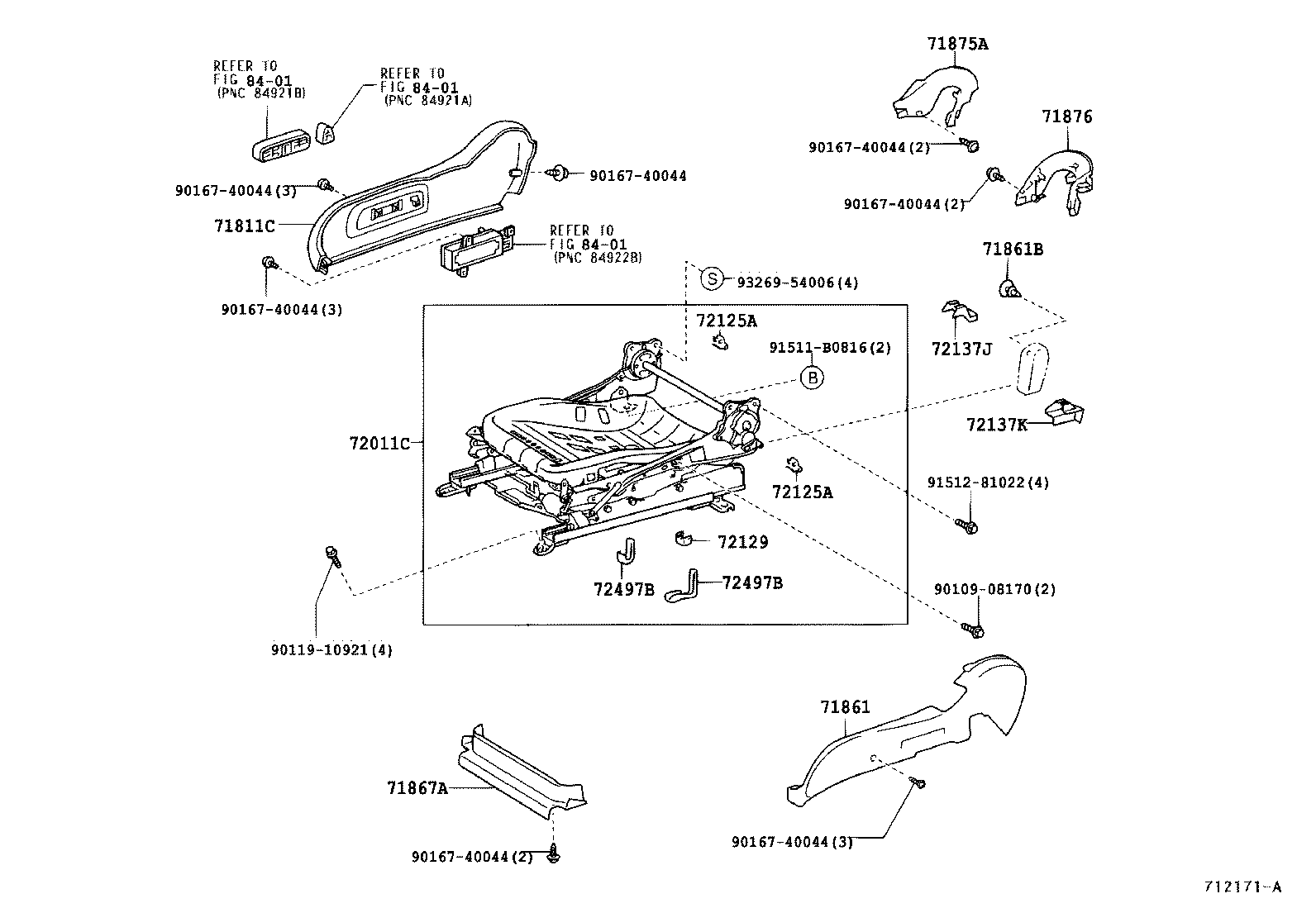

ILLUST NO. 2 OF 2(0109-0406)

Click highlighted areas on diagram

ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)

Part #	Description	Period	Qty
71811C - COVER, RECLINING ADJUSTER, RH
71811-12380E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71811-33140E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71811-33120E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-05098E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71867-33040E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH
72010-33240	ACV35	09/2001 - 06/2004	1
72010-33280	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	09/2001 - 06/2004	1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-33020	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),内側	09/2001 - 06/2004	1
72125-33030	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),外側	09/2001 - 06/2004	1
72125-13040	ACV35	09/2001 - 06/2004	2
72125A - COVER, SEAT TRACK, UPPER REAR
72125-33020	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),内側	09/2001 - 06/2004	1
72125-33030	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),外側	09/2001 - 06/2004	1
72125-13040	ACV35	09/2001 - 06/2004	2
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-33050	ACV3#	09/2001 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72497B - COVER, VERTICAL ADJUSTER BRACKET, RH
72498-33020	ACV3# 外側	09/2001 - 06/2004	1
72498-33010	ACV3# 内側	09/2001 - 06/2004	1
72497B - COVER, VERTICAL ADJUSTER BRACKET, RH
72498-33020	ACV3# 外側	09/2001 - 06/2004	1
72498-33010	ACV3# 内側	09/2001 - 06/2004	1
Common parts
90109-08170
90119-10921
90167-40044
91511-B0816
91512-81022
93269-54006
Linked diagrams
8401

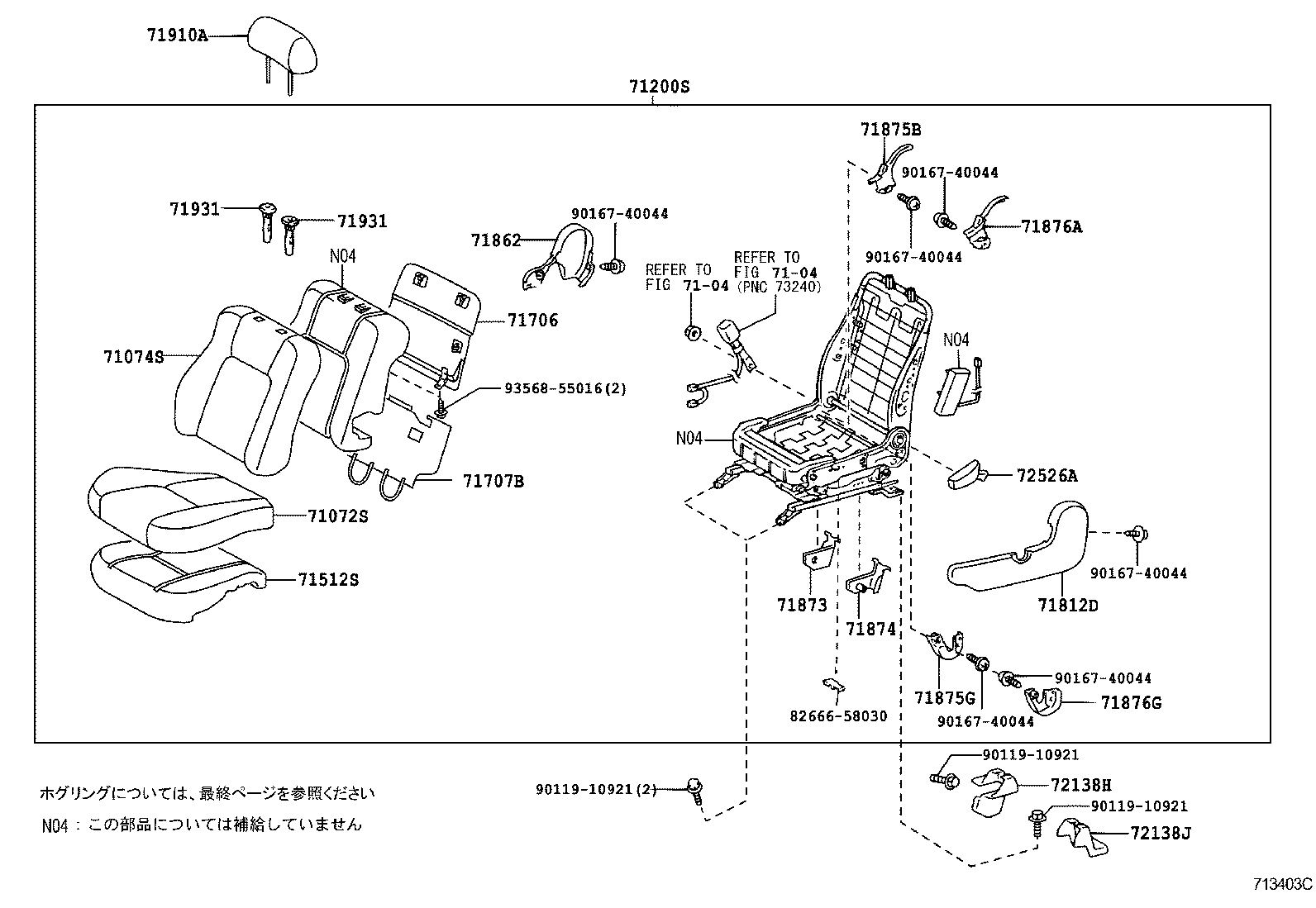

ILLUST NO. 1 OF 2(0109-0406)

Click highlighted areas on diagram

ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-33020	ACV3#	09/2001 - 06/2004	1
71110-33080	ACV35	06/2004 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33880E1	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33870E1	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33B90E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3T100E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074-33F60E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71074-3T090E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-3T450E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71430-3T410E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-3T310E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-33100	ACV3#	06/2004 - 12/2999	1
71502-33030	ACV3#	09/2001 - 06/2004	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72592 - KNOB, RECLINING ADJUSTER
72592-20040E3	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
Common parts
90468-10018
90480-15031
90520-01006
93560-54012
96160-00600

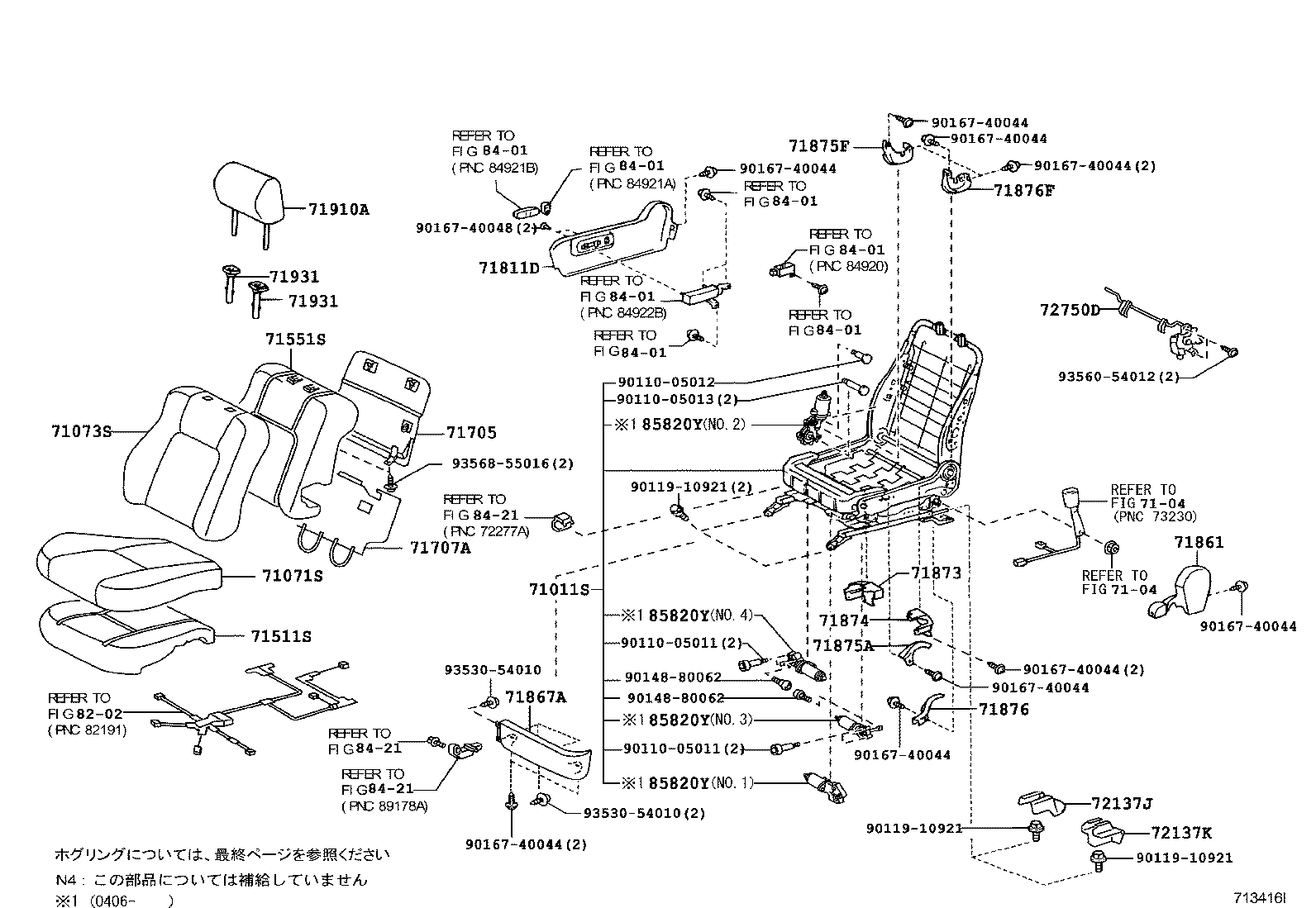

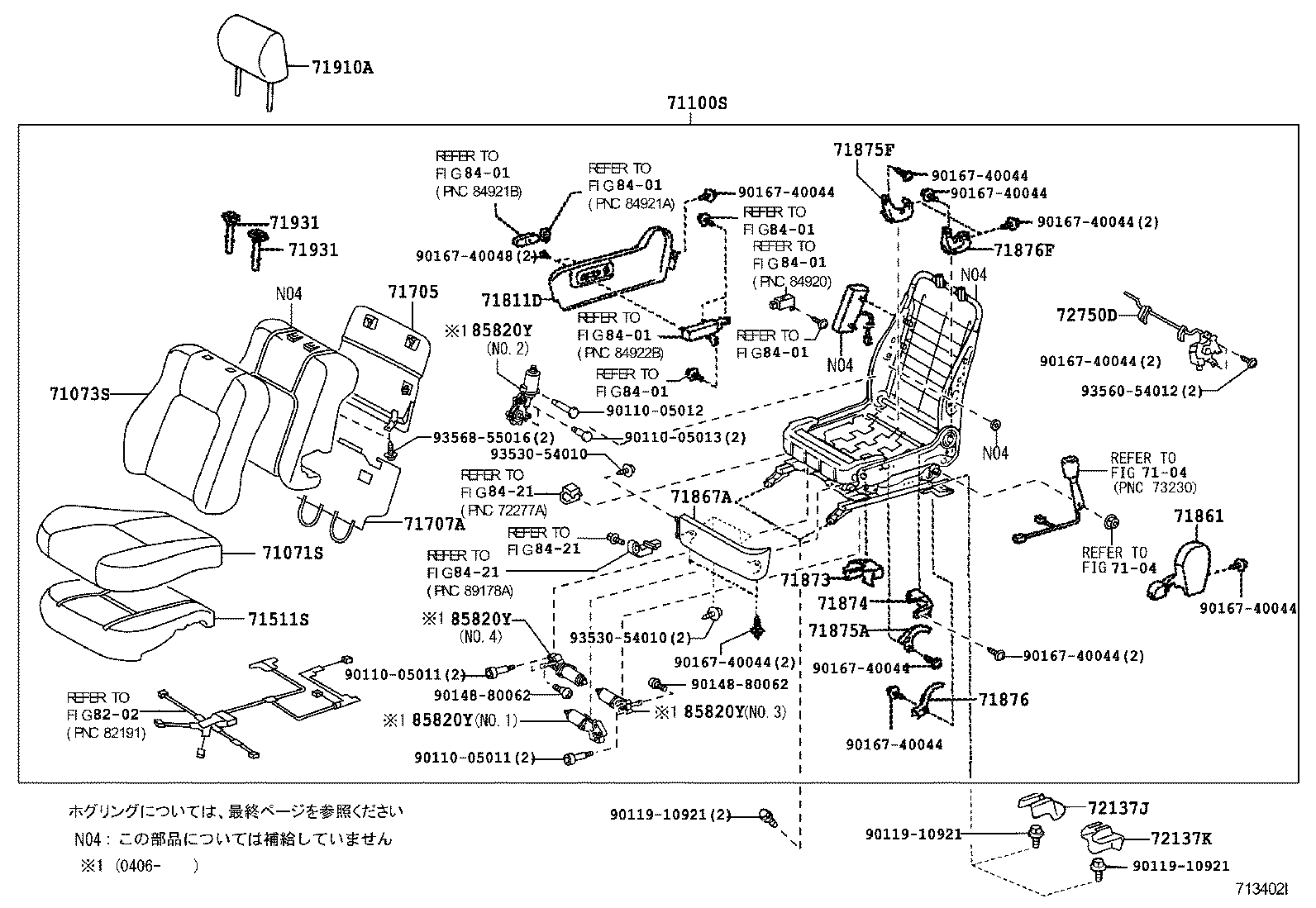

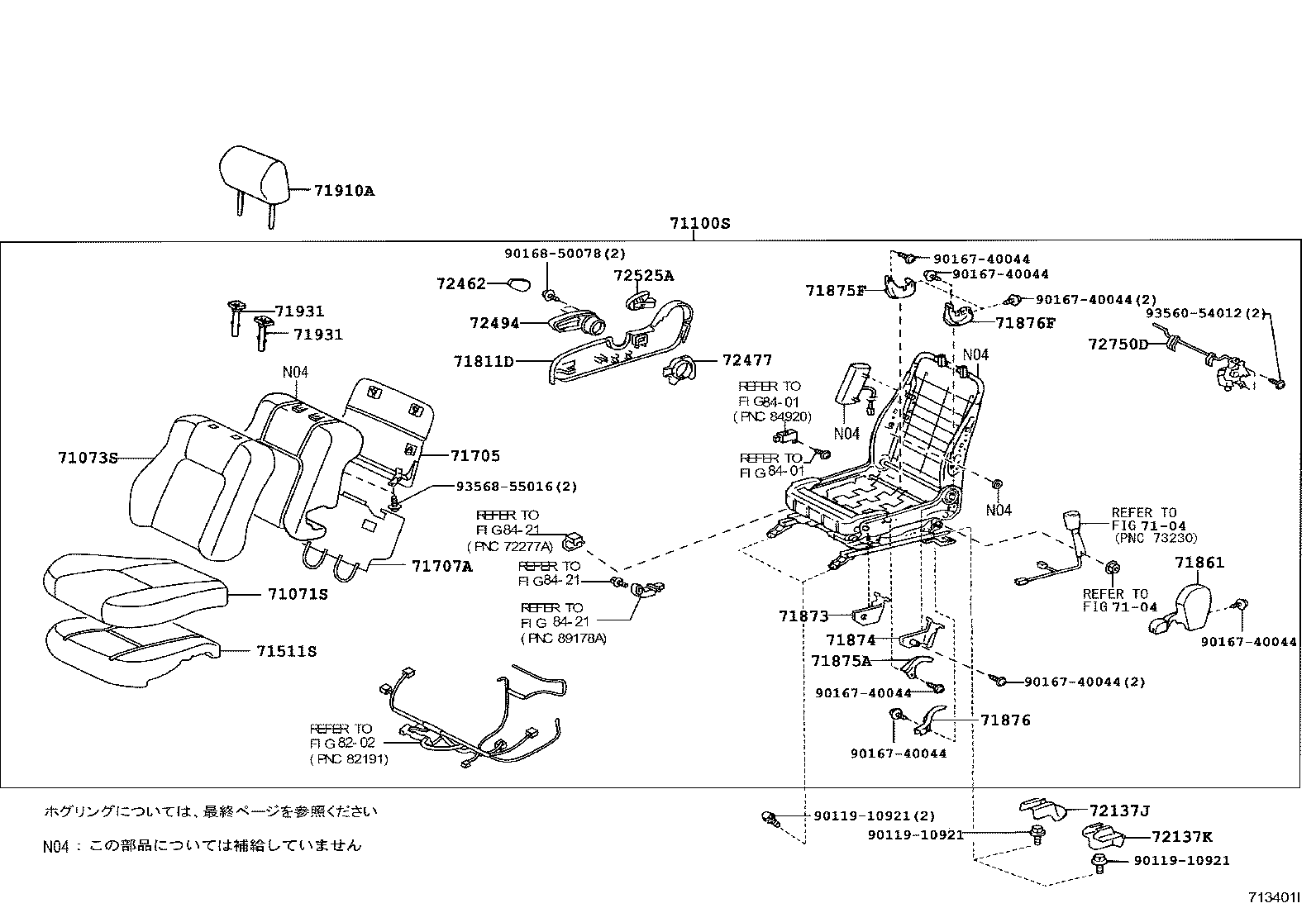

(0406- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71100S - SEAT ASSY, FRONT RH
71050-33310E3	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71050-33330E3	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-33200E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71811-33190E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71875-58060	ACV35	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71876-58060	ACV35	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72462 - COVER, VERTICAL ADJUSTER RH
72462-58010E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72477 - SPACER, VERTICAL ADJUSTER
72477-52010	ACV35	06/2004 - 12/2999	1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-52010E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72525-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
Common parts
90119-10921
90167-40044
93560-54012
93568-55016
Linked diagrams
7104
8202
8401
8421

(0406- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ & ﾊﾟﾜｰｼｰﾄ)

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71100S - SEAT ASSY, FRONT RH
71050-33310E3	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71050-33330E3	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-33200E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71811-33190E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71867-33040E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71875-58060	ACV35	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71876-58060	ACV35	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
Common parts
90110-05011
90110-05012
90110-05013
90119-10921
90148-80062
90167-40044
90167-40048
93530-54010
93560-54012
93568-55016
Linked diagrams
7104
8202
8401
8421

(0406- )

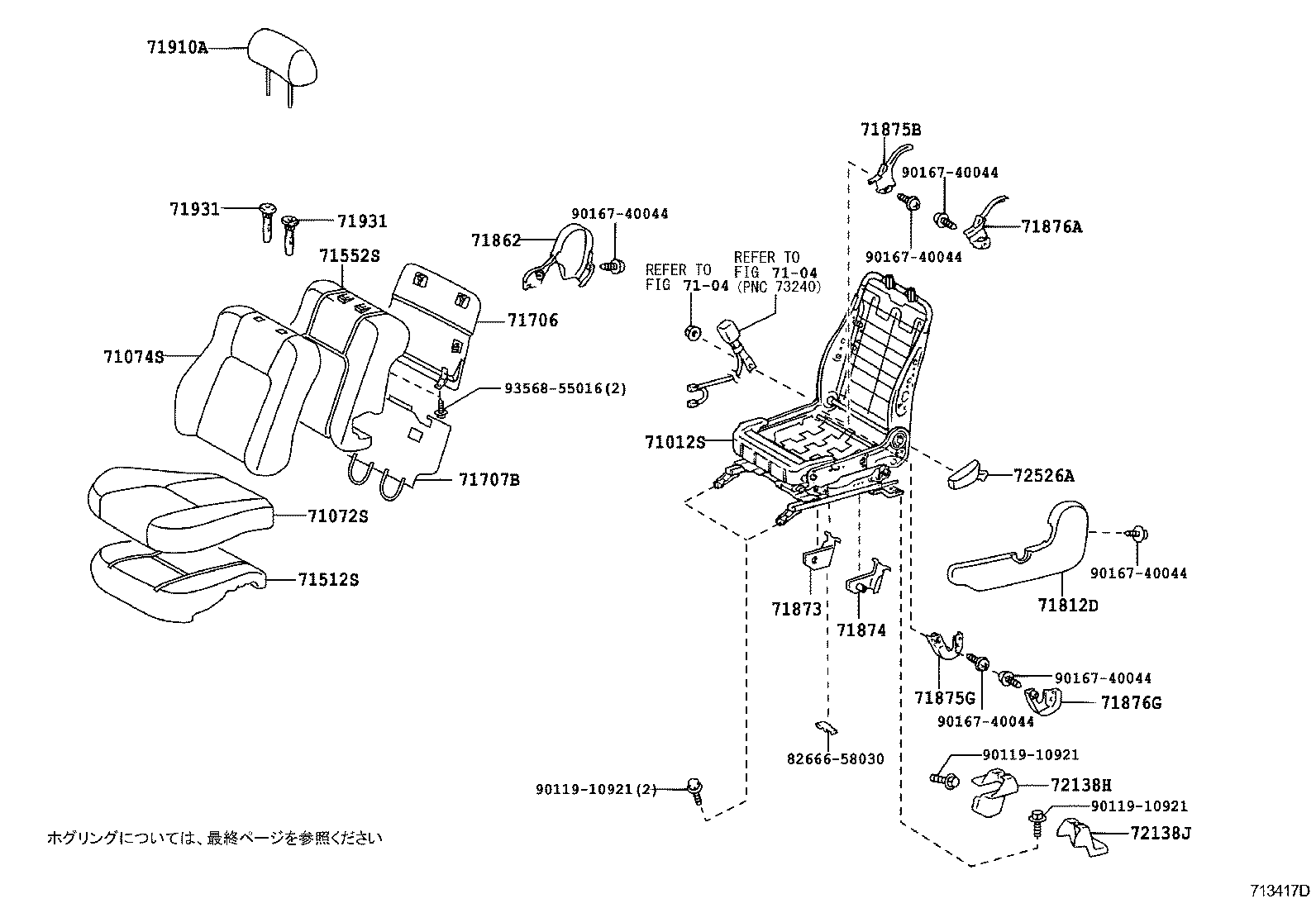

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33880E1	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33870E1	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33B90E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3T100E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074-33F60E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71074-3T090E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71200S - SEAT ASSY, FRONT LH
71200-33C10E2	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-33100	ACV3#	06/2004 - 12/2999	1
71502-33030	ACV3#	09/2001 - 06/2004	1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-33230E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33090E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71862-12230E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-58060	ACV3#	06/2004 - 12/2999	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71876-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-58060	ACV3#	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-33050E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72158-33050E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-33030E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
Common parts
82666-58030
90119-10921
90167-40044
93568-55016
Linked diagrams
7104

(0406- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-33020	ACV3#	09/2001 - 06/2004	1
71110-33080	ACV35	06/2004 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-33140	ACV3#..24G	06/2004 - 12/2999	1
71551-33090	ACV3#..24G	09/2001 - 06/2004	1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-33200E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71811-33190E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71875-58060	ACV35	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71876-58060	ACV35	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72462 - COVER, VERTICAL ADJUSTER RH
72462-58010E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72477 - SPACER, VERTICAL ADJUSTER
72477-52010	ACV35	06/2004 - 12/2999	1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-52010E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
72525-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
Common parts
90119-10921
90167-40044
90168-50078
93560-54012
93568-55016
Linked diagrams
7104
8202
8401
8421

(0406- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-33020	ACV3#	09/2001 - 06/2004	1
71110-33080	ACV35	06/2004 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-3T020E1	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33B30E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T040E1	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71071-33C40E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71071-3T010E1	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-3T380E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-3T520E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33B70E0	ACV35 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-33E00E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71073-3T370E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33110	ACV3#	09/2001 - 06/2004	1
71511-33210	ACV35	06/2004 - 12/2999	1
71511-33240	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-33140	ACV3#..24G	06/2004 - 12/2999	1
71551-33090	ACV3#..24G	09/2001 - 06/2004	1
71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-33200E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71811-33190E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12260E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33060E0	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71861-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71861-33070E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71867-33040E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-33030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71875-58030E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71875-58060	ACV35	06/2004 - 12/2999	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
71876-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
71875-60150E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 12/2999	1
71876-52030E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-58050	ACV3# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)	06/2004 - 12/2999	1
71876-58060	ACV35	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-33030E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33030E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33040E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72137-33080E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-33040E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72157-33040E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33050E0	ACV3#..24G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	09/2001 - 06/2004	1
72157-33090E0	ACV35 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),FAWN,TRIM4#	06/2004 - 01/2006	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-48020	ACV3#	12/2004 - 12/2999	1
72750-33070	ACV3#	06/2004 - 11/2004	1
72750-33040	ACV3#	09/2001 - 06/2004	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
85820Y - MOTOR ASSY, POWER SEAT
85801-58010	ACV3# NO.1	06/2004 - 01/2006	1
85801-58030	ACV3# NO.3	06/2004 - 01/2006	1
85801-58040	ACV3# NO.4	06/2004 - 01/2006	1
85801-58020	ACV3# NO.2	06/2004 - 01/2006	1
Common parts
90110-05011
90110-05012
90110-05013
90119-10921
90148-80062
90167-40044
90167-40048
93530-54010
93560-54012
93568-55016
Linked diagrams
7104
8202
8401
8421

(0406- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71120-33080	ACV35	06/2004 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33880E1	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33870E1	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71072-33B90E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-3T100E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	09/2001 - 06/2004	1
71073-33C30E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71074-33F60E0	ACV3#..24G ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),FAWN,TRIM4#	06/2004 - 12/2999	1
71074-3T090E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-33100	ACV3#	06/2004 - 12/2999	1
71502-33030	ACV3#	09/2001 - 06/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-33090	ACV3#..24G	09/2001 - 06/2004	1
71551-33140	ACV3#..24G	06/2004 - 01/2006	1
71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-33450E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD
71707-33010E2	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-33230E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33090E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71862-12230E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48020	ACV3#	06/2004 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-21010E1	ACV35 FAWN,TRIM4#	06/2004 - 12/2999	1
71874-48050	ACV3#	06/2004 - 12/2999	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71875-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-58060	ACV3#	06/2004 - 12/2999	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-47020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
71876-52030E1	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-58060	ACV3#	06/2004 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-33450E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	2
71910-33530E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	09/2001 - 06/2004	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	06/2004 - 12/2999	2
71931-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4#	09/2001 - 06/2004	2
71930-42020E0	ACV3#..24G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｱﾘ(ｳｴﾙｷﾔﾌﾞ),FAWN,TRIM4#	10/2002 - 06/2004	1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-33050E0	ACV35 FAWN,TRIM4#	09/2001 - 06/2004	1
72158-33050E0	ACV35 FAWN,TRIM4#	06/2004 - 01/2006	1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-33030E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 01/2006	1
72137-33030E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
Common parts
82666-58030
90119-10921
90167-40044
93568-55016
Linked diagrams
7104

(0109- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

ACV35-AEPNK (2001)

ILLUST NO. 1 OF 2(0109-0406)

ILLUST NO. 2 OF 2(0109-0406)

ILLUST NO. 2 OF 2(0109-0406)

ILLUST NO. 1 OF 2(0109-0406)

(0406- )

(0406- )

(0406- )

(0406- )

(0406- )

(0406- )

(0109- )

Part Price Details
