ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0109- )

Click highlighted areas on diagram

diagram 67603 67603A 67603A 67603B 67604 6777133070 68173B 68174A 9008418003 9015940141 9015960370 9018904200 9356855018
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-33660E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
67630-33660E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
90467-09206

ACV3#

NO.1

 8
90467-10161

ACV3#

NO.2

 10
90467-10161

ACV3#

NO.2

 10
90467-09206

ACV3#

NO.1

 8
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
90467-09206

ACV3#

NO.1

 8
90467-10161

ACV3#

NO.2

 10
90467-10161

ACV3#

NO.2

 10
90467-09206

ACV3#

NO.1

 8
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07066E9

ACV3#..24G

SANDAL WOOD,TRIM4#

 2
90467-07066E9

ACV3#..24G

SANDAL WOOD,TRIM4#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-33660E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
67640-33660E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-33040

ACV3#

 1
68173-33041

ACV3#

 1
68173-33041

ACV3#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-33050

ACV3#

 1
68174-33051

ACV3#

 1
68174-33051

ACV3#

 1
Common parts
67771-33070
90084-18003
90159-40141
90159-60370
90189-04200
93568-55018

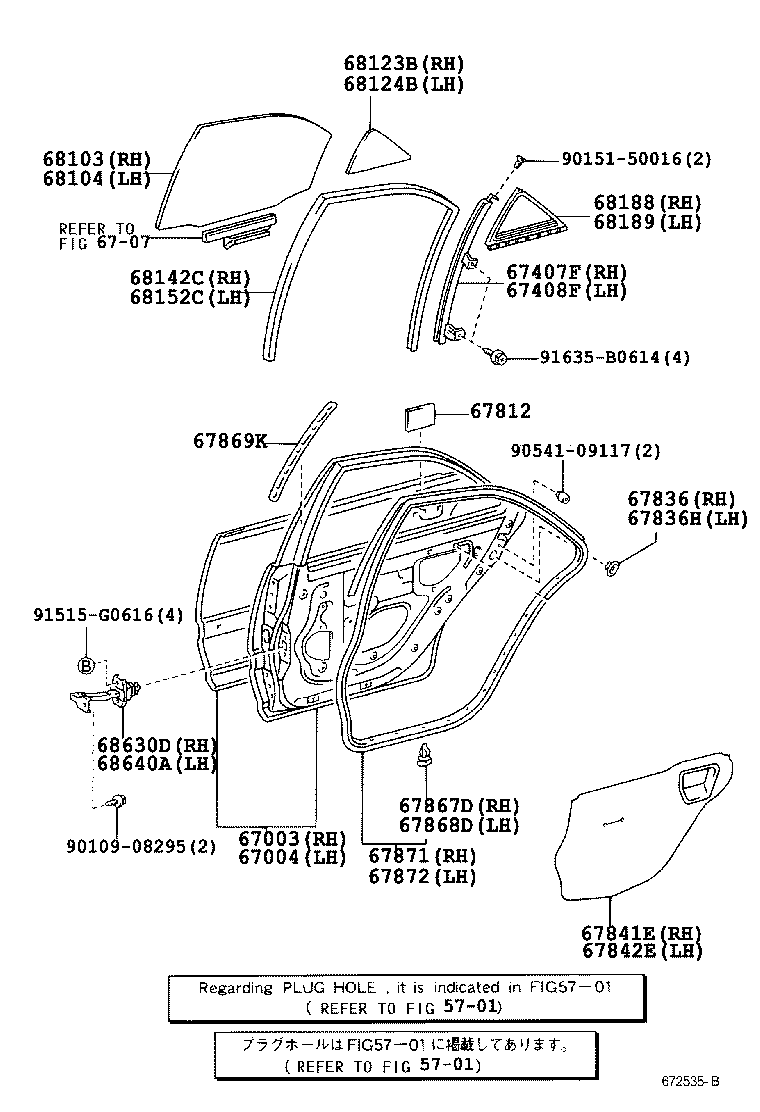

ILLUST NO. 2 OF 2(0109- )

Click highlighted areas on diagram

diagram 5701 5701 67003 67004 6707 67407F 67408F 67812 67836 67836H 67841E 67842E 67867D 67868D 67869K 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68630D 68640A 9010908295 9015150016 9054109117 91515G0616 91635B0614
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-33120

ACV3#

 1
67003-33120

ACV3#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-33120

ACV3#

 1
67004-33120

ACV3#

 1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-AA020

ACV3#

 1
67407-AA020

ACV3#

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-AA020

ACV3#

 1
67408-AA020

ACV3#

 1
67812 - PAD, REAR DOOR SILENCER
67811-33040

ACV3#

 4
67811-33040

ACV3#

 4
67812-33050

ACV3#

 4
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

ACV3#

 1
67836-12040

ACV3#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

ACV3#

 1
67836-12040

ACV3#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-33100

ACV3#

 1
67841-33100

ACV3#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-33100

ACV3#

 1
67842-33100

ACV3#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

ACV3#

 21
67867-12150

ACV3#

 21
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ACV3#

 21
67867-12150

ACV3#

 21
67869K - CLIP, DOOR WEATHERSTRIP, LH
67869-30080

ACV3#

 2
67869-30080

ACV3#

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-33060

ACV3#

 1
67871-33060

ACV3#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-33060

ACV3#

 1
67872-33060

ACV3#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-33140

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68113-33100

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68113-33140

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-33140

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68114-33100

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68114-33140

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-33050

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68123-33050

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68123-33010

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-33050

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68124-33010

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68124-33050

ACV3#

*UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-33070

ACV3#

 1
68142-33070

ACV3#

 1
68142-33071

ACV3#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-33070

ACV3#

 1
68152-33070

ACV3#

 1
68152-33071

ACV3#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-33020

ACV3#

 1
68188-33020

ACV3#

 1
68188-33021

ACV3#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-33020

ACV3#

 1
68189-33020

ACV3#

 1
68189-33021

ACV3#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-33050

ACV3#

 1
68630-33050

ACV3#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-33050

ACV3#

 1
68640-33050

ACV3#

 1
Common parts
90109-08295
90151-50016
90541-09117
91515-G0616
91635-B0614
Linked diagrams
5701
6707
