ACV35-AEPNK (2001)
Toyota Camry

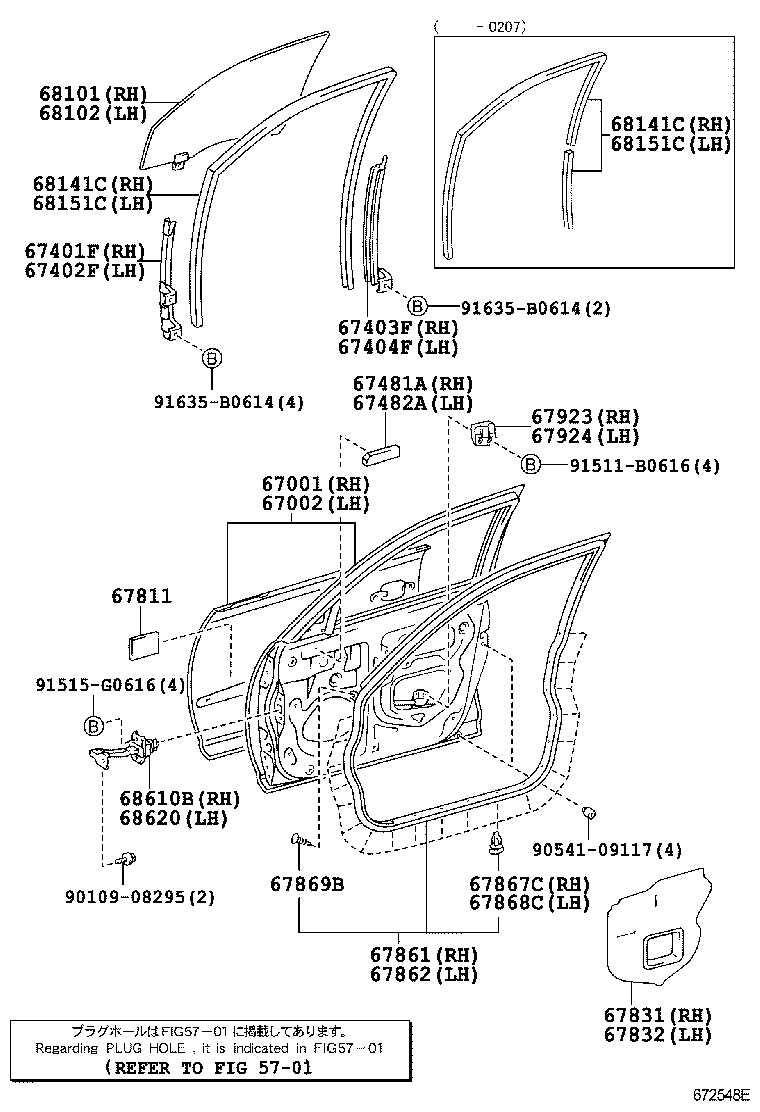

ILLUST NO. 1 OF 2(0109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-33090 |
ACV3# |
1 | ||
| 67491-33090 |
ACV3# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-33090 |
ACV3# |
1 | ||
| 67492-33090 |
ACV3# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3T041E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67610-3T040E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67610-3T042E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67610-3T042E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67610-3T043E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-10161 |
ACV3# |
14 | ||
| 90467-10161 |
ACV3# |
14 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01746E5 |
ACV3#..24G SANDAL WOOD,TRIM4# |
2 | ||
| 90950-01746E5 |
ACV3#..24G SANDAL WOOD,TRIM4# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3T042E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67620-3T042E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67620-3T040E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67620-3T043E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 67620-3T041E0 |
ACV3#..24G SANDAL WOOD,TRIM4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-33040 |
ACV3# |
1 | ||
| 68171-33041 |
ACV3# |
1 | ||
| 68171-33042 |
ACV3# |
1 | ||
| 68171-33042 |
ACV3# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-33040 |
ACV3# |
1 | ||
| 68172-33041 |
ACV3# |
1 | ||
| 68172-33042 |
ACV3# |
1 | ||
| 68172-33042 |
ACV3# |
1 | ||
| Common parts | ||||
| 90084-18003 | ||||
| 90159-40141 | ||||
| 90159-40248 | ||||
| 90159-60370 | ||||
| 90189-04200 | ||||
| 90468-04181 | ||||
| 93568-55018 | ||||
ILLUST NO. 2 OF 2(0109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-33110 |
ACV3# |
1 | ||
| 67001-33111 |
ACV3# |
1 | ||
| 67001-33111 |
ACV3# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-33110 |
ACV3# |
1 | ||
| 67002-33110 |
ACV3# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-33040 |
ACV3# |
1 | ||
| 67401-33040 |
ACV3# |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-33040 |
ACV3# |
1 | ||
| 67402-33040 |
ACV3# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-33020 |
ACV3# |
1 | ||
| 67403-33040 |
ACV3# |
1 | ||
| 67403-33040 |
ACV3# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-33040 |
ACV3# |
1 | ||
| 67404-33040 |
ACV3# |
1 | ||
| 67404-33020 |
ACV3# |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-33040 |
ACV3# |
1 | ||
| 67481-33040 |
ACV3# |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-33040 |
ACV3# |
1 | ||
| 67482-33040 |
ACV3# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-33040 |
ACV3# |
4 | ||
| 67811-33040 |
ACV3# |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-33050 |
ACV3# |
1 | ||
| 67831-33050 |
ACV3# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-33050 |
ACV3# |
1 | ||
| 67832-33050 |
ACV3# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-33041 |
ACV3# |
1 | ||
| 67861-33040 |
ACV3# |
1 | ||
| 67861-33040 |
ACV3# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-33040 |
ACV3# |
1 | ||
| 67862-33041 |
ACV3# |
1 | ||
| 67862-33040 |
ACV3# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACV3# |
19 | ||
| 67867-12150 |
ACV3# |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACV3# |
19 | ||
| 67867-12150 |
ACV3# |
19 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ACV3# |
2 | ||
| 67869-20030 |
ACV3# |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-33040 |
ACV3# |
1 | ||
| 67923-33040 |
ACV3# |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-33020 |
ACV3# |
1 | ||
| 67924-33020 |
ACV3# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-33140 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-33140 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-33080 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-33080 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-33140 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-33140 |
ACV3# *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-33072 |
ACV3# |
1 | ||
| 68141-33070 |
ACV3# |
1 | ||
| 68141-33071 |
ACV3# |
1 | ||
| 68141-33072 |
ACV3# |
1 | ||
| 68141-33073 |
ACV3# |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-33072 |
ACV3# |
1 | ||
| 68141-33070 |
ACV3# |
1 | ||
| 68141-33071 |
ACV3# |
1 | ||
| 68141-33072 |
ACV3# |
1 | ||
| 68141-33073 |
ACV3# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-33060 |
ACV3# |
1 | ||
| 68151-33063 |
ACV3# |
1 | ||
| 68151-33061 |
ACV3# |
1 | ||
| 68151-33062 |
ACV3# |
1 | ||
| 68151-33062 |
ACV3# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-33060 |
ACV3# |
1 | ||
| 68151-33063 |
ACV3# |
1 | ||
| 68151-33061 |
ACV3# |
1 | ||
| 68151-33062 |
ACV3# |
1 | ||
| 68151-33062 |
ACV3# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-33050 |
ACV3# |
1 | ||
| 68610-33050 |
ACV3# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-33050 |
ACV3# |
1 | ||
| 68620-33050 |
ACV3# |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90541-09117 | ||||
| 91511-B0616 | ||||
| 91515-G0616 | ||||
| 91635-B0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||
