ACV35-AEPNK (2001)
Toyota Camry

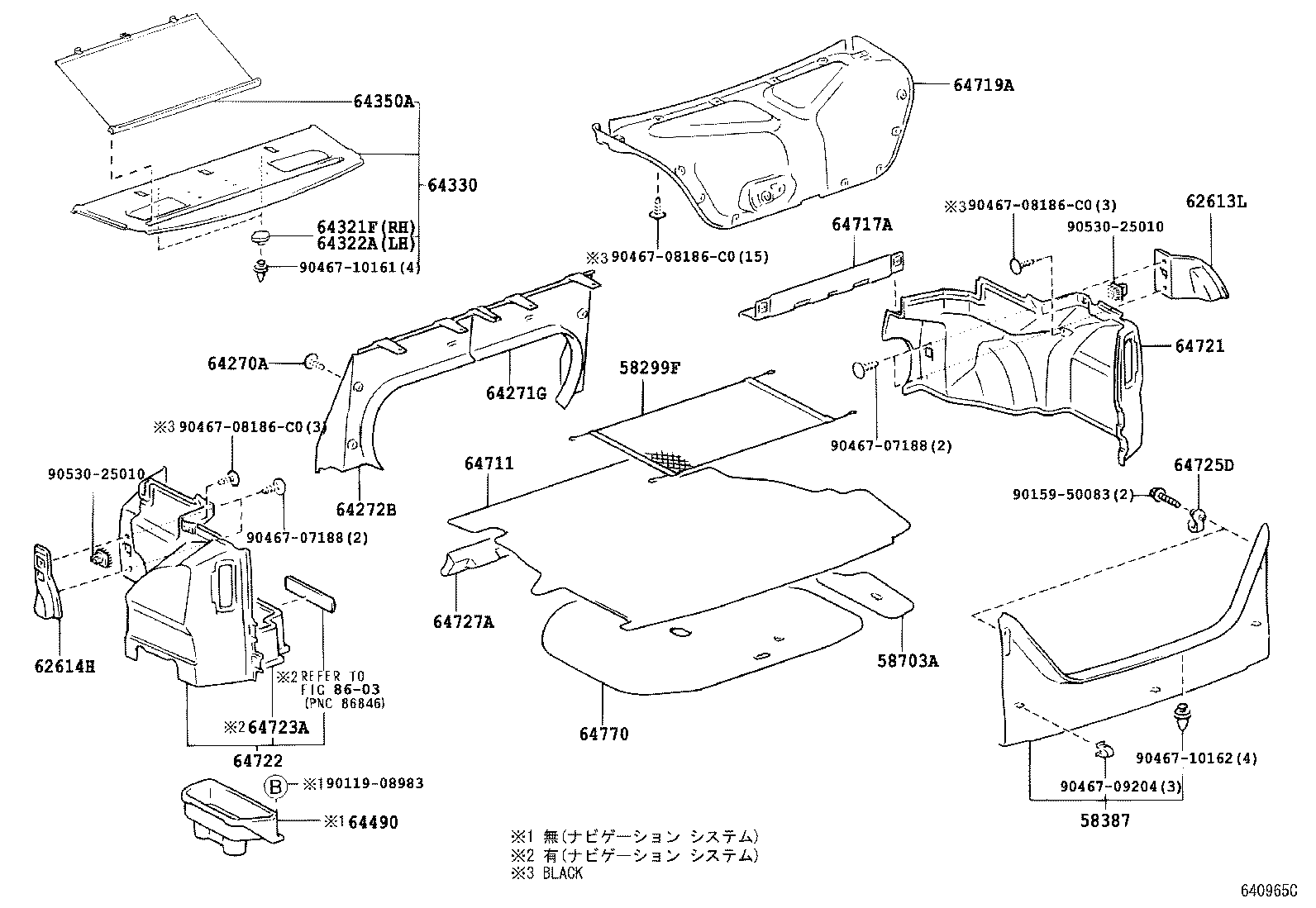

(0109-0405)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58299F - NET, BAGGAGE HOLDER | ||||
| 58299-AA010 |
ACV3# |
1 | ||
| 58299-AA010 |
ACV3# |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-33070 |
ACV3# |
1 | ||
| 58387-33070 |
ACV3# |
1 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-33040 |
ACV3# |
1 | ||
| 58703-33040 |
ACV3# |
1 | ||
| 62613L - INSULATOR, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 62613-33010 |
ACV3# |
1 | ||
| 62613-33010 |
ACV3# |
1 | ||
| 62614H - INSULATOR, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 62614-33010 |
ACV3# |
1 | ||
| 62614-33010 |
ACV3# |
1 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV3#..24G BLACK,TRIM4# |
8 | ||
| 90467-08186C0 |
ACV3# BLACK |
8 | ||
| 64271G - BOARD, ROOM PARTITION, RH | ||||
| 64271-33040 |
ACV3# |
1 | ||
| 64271-33040 |
ACV3# |
1 | ||
| 64272B - BOARD, ROOM PARTITION, LH | ||||
| 64272-33030 |
ACV3# |
1 | ||
| 64272-33030 |
ACV3# |
1 | ||
| 64321F - BRACKET, PACKAGE TRAY TRIM, RH | ||||
| 64323-33030 |
ACV3# |
1 | ||
| 64323-33030 |
ACV3# |
1 | ||
| 64322A - BRACKET, PACKAGE TRAY TRIM, LH | ||||
| 64323-33030 |
ACV3# |
1 | ||
| 64323-33030 |
ACV3# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33410E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33410E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33420E0 |
ACV3#..24G FAWN,TRIM4# |
1 | ||
| 64330-33520E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33420E0 |
ACV3#..24G FAWN,TRIM4# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-33010 |
ACV3# |
1 | ||
| 64350-33010 |
ACV3# |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-33010C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64490-33010C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-33150C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64711-33140C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711-33140C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711-33150C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-33050C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64717-33050C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-33060C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64719-33060C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33080C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721-33081C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721-33081C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33091C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33101C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722-33091C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33090C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33100C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722-33101C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER | ||||
| 64723-33030C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64723-33030C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33061 |
ACV3# |
2 | ||
| 64725-33061 |
ACV3# |
2 | ||
| 64725-33060 |
ACV3# |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-33020 |
ACV3# |
1 | ||
| 64727-33020 |
ACV3# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-33070 |
ACV3# ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾖｳﾀｲﾔ |
1 | ||
| 64770-33060 |
ACV3# ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ |
1 | ||
| 64770-33070 |
ACV3# |
1 | ||
| Common parts | ||||
| 90119-08983 | ||||
| 90159-50083 | ||||
| 90467-07188 | ||||
| 90467-08186C0 | ||||
| 90467-09204 | ||||
| 90467-10161 | ||||
| 90467-10162 | ||||
| 90530-25010 | ||||
| Linked diagrams | ||||
| 8603 | ||||

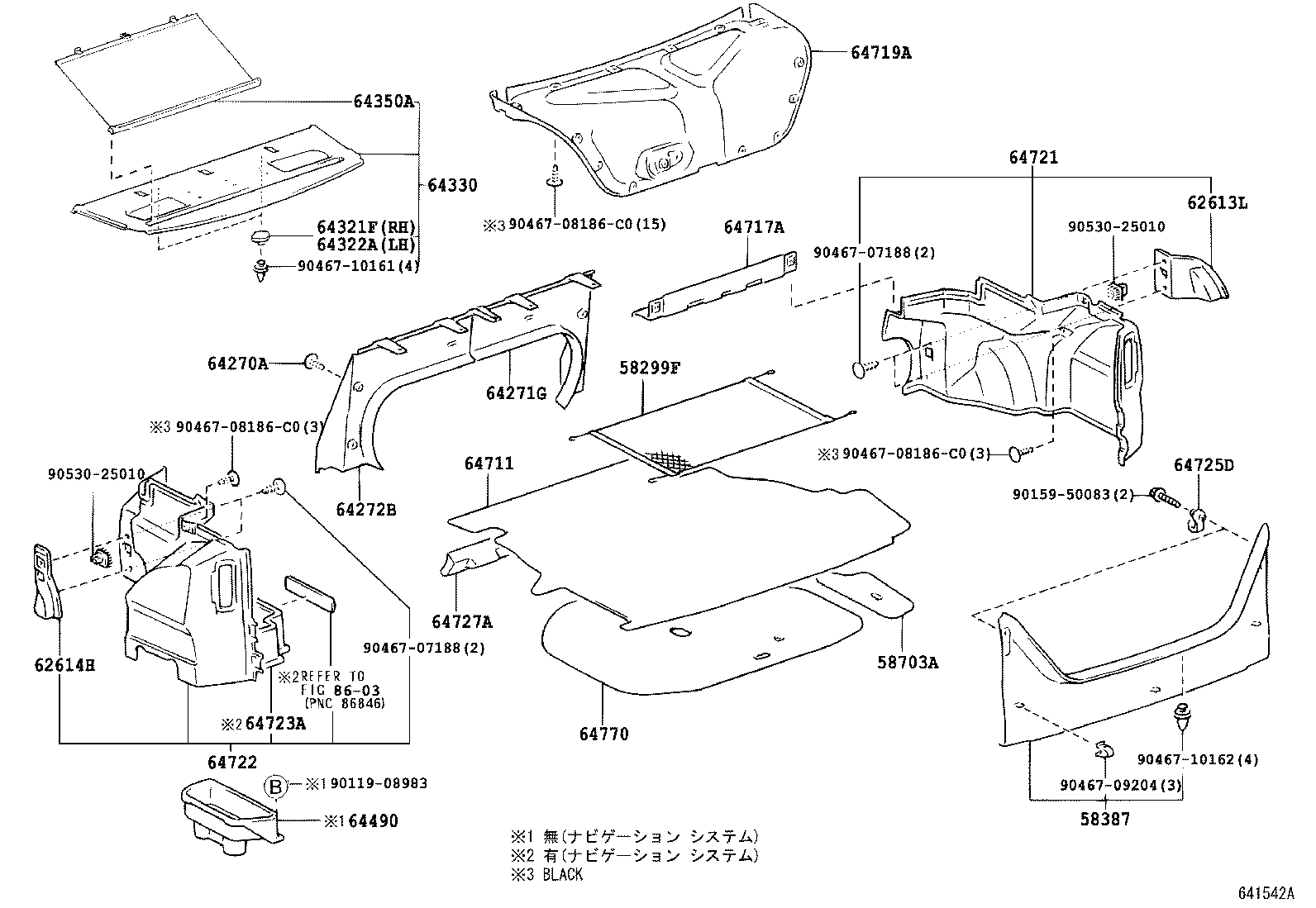

(0405- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58299F - NET, BAGGAGE HOLDER | ||||
| 58299-AA010 |
ACV3# |
1 | ||
| 58299-AA010 |
ACV3# |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-33070 |
ACV3# |
1 | ||
| 58387-33070 |
ACV3# |
1 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-33040 |
ACV3# |
1 | ||
| 58703-33040 |
ACV3# |
1 | ||
| 62613L - INSULATOR, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 62613-33010 |
ACV3# |
1 | ||
| 62613-33010 |
ACV3# |
1 | ||
| 62614H - INSULATOR, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 62614-33010 |
ACV3# |
1 | ||
| 62614-33010 |
ACV3# |
1 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-08186C0 |
ACV3#..24G BLACK,TRIM4# |
8 | ||
| 90467-08186C0 |
ACV3# BLACK |
8 | ||
| 64271G - BOARD, ROOM PARTITION, RH | ||||
| 64271-33040 |
ACV3# |
1 | ||
| 64271-33040 |
ACV3# |
1 | ||
| 64272B - BOARD, ROOM PARTITION, LH | ||||
| 64272-33030 |
ACV3# |
1 | ||
| 64272-33030 |
ACV3# |
1 | ||
| 64321F - BRACKET, PACKAGE TRAY TRIM, RH | ||||
| 64323-33030 |
ACV3# |
1 | ||
| 64323-33030 |
ACV3# |
1 | ||
| 64322A - BRACKET, PACKAGE TRAY TRIM, LH | ||||
| 64323-33030 |
ACV3# |
1 | ||
| 64323-33030 |
ACV3# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-33410E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33410E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33420E0 |
ACV3#..24G FAWN,TRIM4# |
1 | ||
| 64330-33520E0 |
ACV3#..24G ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),FAWN,TRIM4# |
1 | ||
| 64330-33420E0 |
ACV3#..24G FAWN,TRIM4# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-33010 |
ACV3# |
1 | ||
| 64350-33010 |
ACV3# |
1 | ||
| 64490 - TRAY ASSY, LUGGAGE COMPARTMENT SIDE | ||||
| 64490-33010C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64490-33010C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-33150C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64711-33140C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711-33140C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64711-33150C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-33050C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64717-33050C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-33060C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64719-33060C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-33080C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721-33081C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64721-33081C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-33091C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33101C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722-33091C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33090C0 |
ACV3#..24G ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ),BLACK,TRIM4# |
1 | ||
| 64722-33100C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64722-33101C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64723A - COVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER | ||||
| 64723-33030C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64723-33030C0 |
ACV3#..24G BLACK,TRIM4# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-33061 |
ACV3# |
2 | ||
| 64725-33061 |
ACV3# |
2 | ||
| 64725-33060 |
ACV3# |
2 | ||
| 64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER | ||||
| 64727-33020 |
ACV3# |
1 | ||
| 64727-33020 |
ACV3# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-33070 |
ACV3# ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾖｳﾀｲﾔ |
1 | ||
| 64770-33060 |
ACV3# ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ |
1 | ||
| 64770-33070 |
ACV3# |
1 | ||
| Common parts | ||||
| 90119-08983 | ||||
| 90159-50083 | ||||
| 90467-07188 | ||||
| 90467-08186C0 | ||||
| 90467-09204 | ||||
| 90467-10161 | ||||
| 90467-10162 | ||||
| 90530-25010 | ||||
| Linked diagrams | ||||
| 8603 | ||||
