ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109-0308)

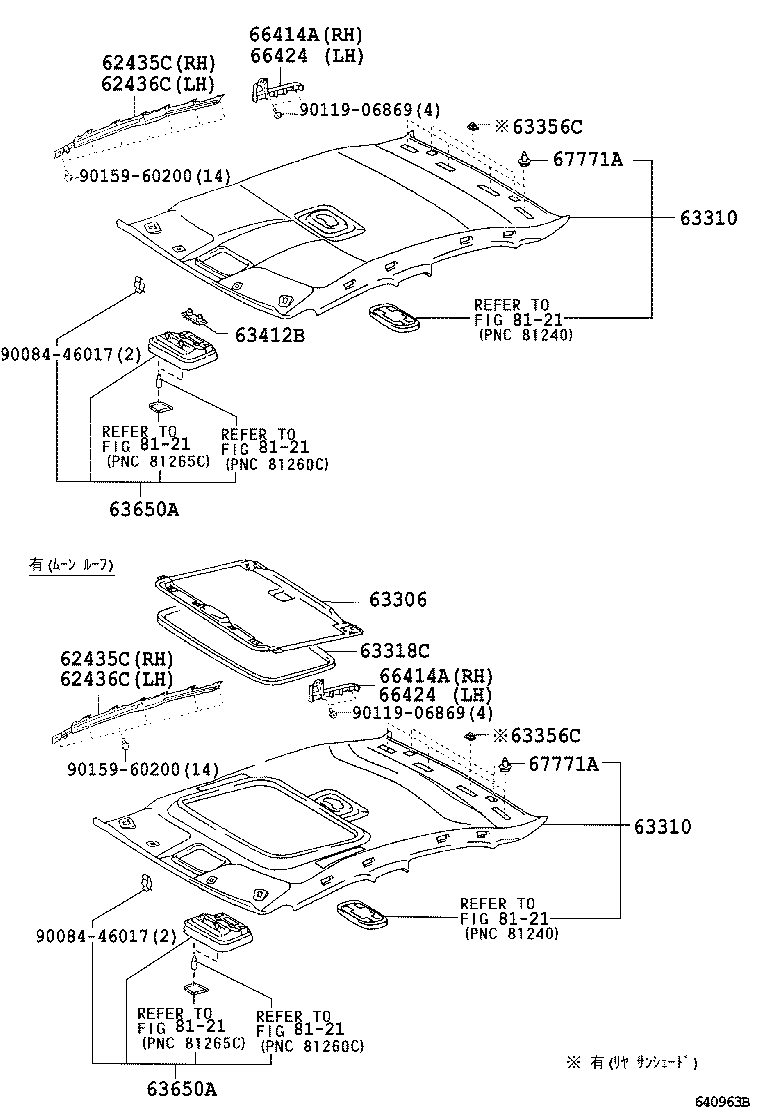

Click highlighted areas on diagram

diagram 62435C 62435C 62436C 62436C 63306 63310 63310 63318C 63356C 63356C 63412B 63650A 63650A 66414A 66414A 67771A 67771A 8121 8121 8121 8121 8121 8121 9008446017 9008446017 9011906869 9011906869 9015960200 9015960200
Part # Description Qty Price
62435C - PAD, ROOF SIDE RAIL GARNISH, RH
62435-33010

ACV3#..24G

 1
62435-33010

ACV3#..24G

 1
62435C - PAD, ROOF SIDE RAIL GARNISH, RH
62435-33010

ACV3#..24G

 1
62435-33010

ACV3#..24G

 1
62436C - PAD, ROOF SIDE RAIL GARNISH, LH
62436-33010

ACV3#..24G

 1
62436-33010

ACV3#..24G

 1
62436C - PAD, ROOF SIDE RAIL GARNISH, LH
62436-33010

ACV3#..24G

 1
62436-33010

ACV3#..24G

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-33070A0

ACV3#..24G

IVORY,TRIM4#

 1
63306-33070A0

ACV3#..24G

IVORY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33410A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33400A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33380A0

ACV3#..24G

IVORY,TRIM4#

 1
63310-33390A0

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33410A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33400A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33380A0

ACV3#..24G

IVORY,TRIM4#

 1
63310-33390A0

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-33031A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63318-33030A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63318-33031A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63356C - HOLDER, SUNSHADE TRIM
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356C - HOLDER, SUNSHADE TRIM
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63412B - RETAINER, ROOF CONSOLE
63412-33010

ACV3#

 1
63412-33010

ACV3#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-33010

ACV3#..24G

 1
66414-33010

ACV3#..24G

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-33010

ACV3#..24G

 1
66414-33010

ACV3#..24G

 1
67771A - RETAINER, ROOF HEADLINING
67771-12040

ACV3#

 4
67771-12040

ACV3#

 4
67771A - RETAINER, ROOF HEADLINING
67771-12040

ACV3#

 4
67771-12040

ACV3#

 4
Common parts
90084-46017
90119-06869
90159-60200
Linked diagrams
8121

(0308- )

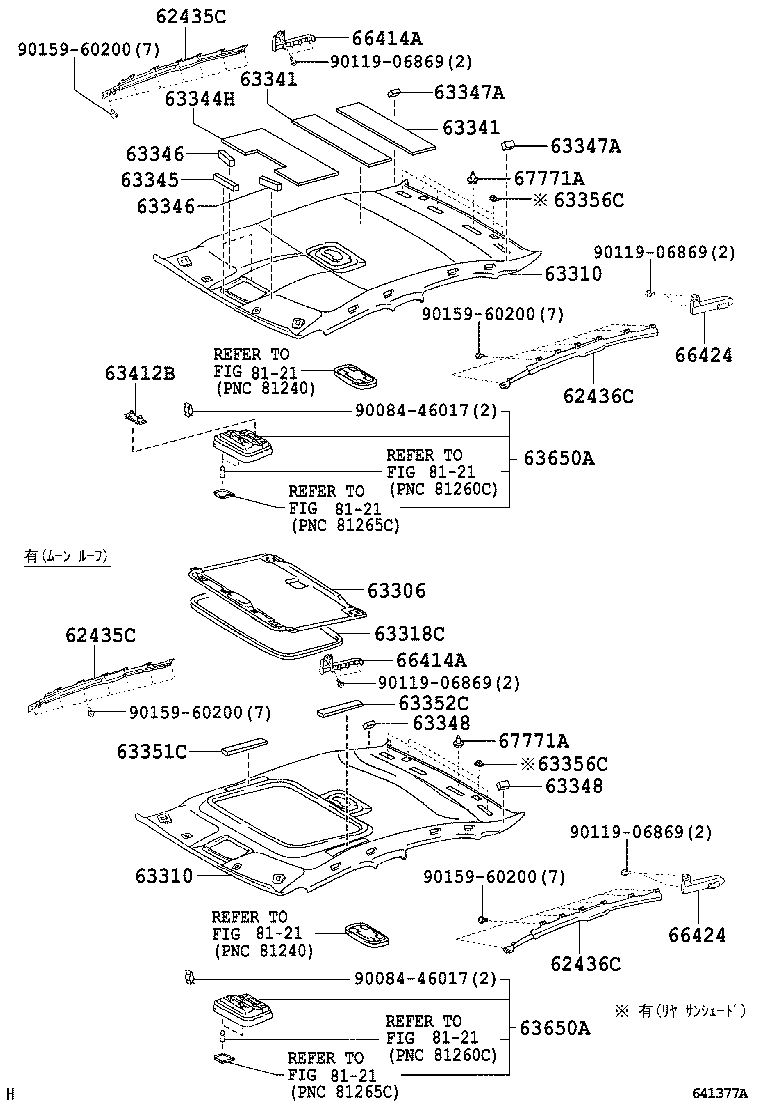

Click highlighted areas on diagram

diagram 62435C 62435C 62436C 62436C 63306 63310 63310 63318C 63341 63341 63344H 63345 63346 63346 63347A 63347A 63348 63348 63351C 63352C 63356C 63356C 63412B 63650A 63650A 66414A 66414A 66424 66424 67771A 67771A 8121 8121 8121 8121 8121 8121 9008446017 9008446017 9011906869 9011906869 9011906869 9011906869 9015960200 9015960200 9015960200 9015960200
Part # Description Qty Price
62435C - PAD, ROOF SIDE RAIL GARNISH, RH
62435-33010

ACV3#..24G

 1
62435-33010

ACV3#..24G

 1
62435C - PAD, ROOF SIDE RAIL GARNISH, RH
62435-33010

ACV3#..24G

 1
62435-33010

ACV3#..24G

 1
62436C - PAD, ROOF SIDE RAIL GARNISH, LH
62436-33010

ACV3#..24G

 1
62436-33010

ACV3#..24G

 1
62436C - PAD, ROOF SIDE RAIL GARNISH, LH
62436-33010

ACV3#..24G

 1
62436-33010

ACV3#..24G

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-33070A0

ACV3#..24G

IVORY,TRIM4#

 1
63306-33070A0

ACV3#..24G

IVORY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33410A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33400A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33380A0

ACV3#..24G

IVORY,TRIM4#

 1
63310-33390A0

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-33410A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33400A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33933A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63310-33932A1

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33380A0

ACV3#..24G

IVORY,TRIM4#

 1
63310-33390A0

ACV3#..24G

ｱﾘ(ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63310-33934A1

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ﾘﾔ ｻﾝｼｴ-ﾄﾞ),IVORY,TRIM4#

 1
63310-33931A1

ACV3#..24G

IVORY,TRIM4#

 1
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-33031A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63318-33030A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63318-33031A0

ACV3#..24G

長さ=2360,IVORY,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-20330

ACV3#

 2
63341-20330

ACV3#

 2
63341-20330

ACV3#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-20330

ACV3#

 2
63341-20330

ACV3#

 2
63341-20330

ACV3#

 2
63344H - PAD, ROOF SILENCER, NO.4
63344-33050

ACV3#

 1
63344-33050

ACV3#

 1
63344-33050

ACV3#

 1
63345 - PAD, ROOF SILENCER, NO.5
63345-33040

ACV3#

 2
63345-33040

ACV3#

 2
63345-33040

ACV3#

 2
63346 - PAD, ROOF SILENCER, NO.6
63345-33040

ACV3#

 2
63346-33040

ACV3#

 2
63346-33040

ACV3#

 2
63346-33040

ACV3#

 2
63346 - PAD, ROOF SILENCER, NO.6
63345-33040

ACV3#

 2
63346-33040

ACV3#

 2
63346-33040

ACV3#

 2
63346-33040

ACV3#

 2
63347A - PAD, ROOF SILENCER, NO.7
63347-33010

ACV3#

 2
63347-33010

ACV3#

 2
63347-33010

ACV3#

 2
63347A - PAD, ROOF SILENCER, NO.7
63347-33010

ACV3#

 2
63347-33010

ACV3#

 2
63347-33010

ACV3#

 2
63348 - PAD, ROOF SILENCER, NO.8
63348-33010

ACV3#

 2
63348-33010

ACV3#

 2
63348-33010

ACV3#

 2
63348 - PAD, ROOF SILENCER, NO.8
63348-33010

ACV3#

 2
63348-33010

ACV3#

 2
63348-33010

ACV3#

 2
63351C - PAD, ROOF HEADLINING
63351-33020

ACV3#

 1
63351-33020

ACV3#

 1
63351-33020

ACV3#

 1
63352C - PAD, ROOF HEADLINING, END
63352-33010

ACV3#

 1
63352-33010

ACV3#

 1
63352-33010

ACV3#

 1
63356C - HOLDER, SUNSHADE TRIM
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356C - HOLDER, SUNSHADE TRIM
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63356-22010A0

ACV3#..24G

IVORY,TRIM4#

 2
63412B - RETAINER, ROOF CONSOLE
63412-33010

ACV3#

 1
63412-33010

ACV3#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650A - BOX ASSY, ROOF CONSOLE
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA060A0

ACV3#..24G

IVORY,TRIM4#

 1
63650-AA070A0

ACV3#..24G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-33010

ACV3#..24G

 1
66414-33010

ACV3#..24G

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-33010

ACV3#..24G

 1
66414-33010

ACV3#..24G

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-33010

ACV3#..24G

 1
66424-33010

ACV3#..24G

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-33010

ACV3#..24G

 1
66424-33010

ACV3#..24G

 1
67771A - RETAINER, ROOF HEADLINING
67771-12040

ACV3#

 4
67771-12040

ACV3#

 4
67771A - RETAINER, ROOF HEADLINING
67771-12040

ACV3#

 4
67771-12040

ACV3#

 4
Common parts
90084-46017
90119-06869
90159-60200
Linked diagrams
8121
