ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

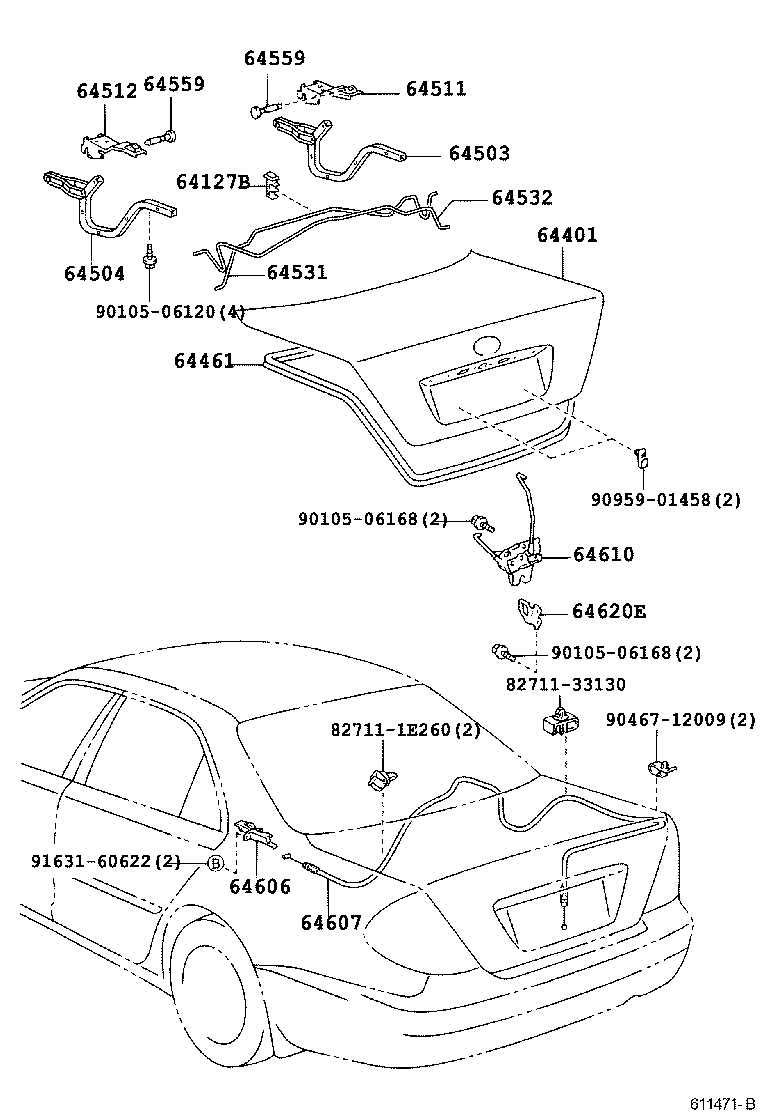

Click highlighted areas on diagram

diagram 64127B 64401 64461 64503 64504 64511 64512 64531 64532 64559 64559 64606 64607 64610 64620E 827111E260 8271133130 9010506120 9010506168 9010506168 9046712009 9095901458 9163160622
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33041

ACV3#

 1
64127-33041

ACV3#

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-33300

ACV3#..24G

 1
64401-33300

ACV3#..24G

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-33050

ACV3#

 1
64461-33051

ACV3#

 1
64461-33051

ACV3#

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-33070

ACV3#

 1
64503-33070

ACV3#

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-33070

ACV3#

 1
64503-33070

ACV3#

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-33050

ACV3#

 1
64511-33050

ACV3#

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-33050

ACV3#

 1
64512-33050

ACV3#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-33140

ACV3#..24G

 1
64531-33140

ACV3#..24G

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-33140

ACV3#..24G

 1
64532-33140

ACV3#..24G

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

ACV3#

 2
64559-32020

ACV3#

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

ACV3#

 2
64559-32020

ACV3#

 2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-53010

ACV3#

 1
64606-53010

ACV3#

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-33070

ACV3#

 1
64607-33110

ACV3#

 1
64607-33110

ACV3#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-33090

ACV3#

 1
64600-33091

ACV3#

 1
64600-33091

ACV3#

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-53010

ACV3#

 1
64621-53010

ACV3#

 1
Common parts
82711-1E260
82711-33130
90105-06120
90105-06168
90467-12009
90959-01458
91631-60622
