Toyota Camry ACV35 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
JP
CAMRY
ACV35-AEPNK (2001)
6104 - ROOF PANEL & BACK WINDOW GLASS

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-33081	ACV3# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ	12/2002 - 08/2003	1
63201-33083	ACV3# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ	08/2004 - 12/2999	1
63201-33082	ACV3# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ	08/2003 - 06/2004	1
63201-33080	ACV3# *TT,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ	09/2001 - 12/2002	1
63201-33082	ACV3# *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ	06/2004 - 08/2004	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-33090A0	ACV3#..24G IVORY,TRIM4#,NO.1	09/2001 - 01/2002	1
63200-33091A0	ACV3#..24G IVORY,TRIM4#,NO.1	06/2004 - 12/2999	1
63203-33040	ACV3# NO.2	09/2001 - 06/2004	1
63200-33091A0	ACV3#..24G IVORY,TRIM4#,NO.1	01/2002 - 06/2004	1
63203-33040	ACV3# NO.2	06/2004 - 12/2999	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63200-33090A0	ACV3#..24G IVORY,TRIM4#,NO.1	09/2001 - 01/2002	1
63200-33091A0	ACV3#..24G IVORY,TRIM4#,NO.1	06/2004 - 12/2999	1
63203-33040	ACV3# NO.2	09/2001 - 06/2004	1
63200-33091A0	ACV3#..24G IVORY,TRIM4#,NO.1	01/2002 - 06/2004	1
63203-33040	ACV3# NO.2	06/2004 - 12/2999	1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-33030	ACV3#	01/2002 - 06/2004	1
63205-33030	ACV3#	06/2004 - 12/2999	1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-33040	ACV3#	09/2001 - 06/2004	1
63217-33040	ACV3#	06/2004 - 12/2999	1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63217-33040	ACV3#	09/2001 - 06/2004	1
63217-33040	ACV3#	06/2004 - 12/2999	1
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-33020	ACV3#	09/2001 - 06/2004	4
63236-33020	ACV3#	06/2004 - 12/2999	4
63249E - HOSE, SLIDING ROOF DRAIN
63249-33060	ACV3#	06/2004 - 12/2999	2
63249-33060	ACV3#	09/2001 - 06/2004	2
63249F - HOSE, SLIDING ROOF DRAIN
63249-33071	ACV3#	06/2004 - 03/2005	2
63249-33071	ACV3#	04/2004 - 06/2004	2
63249-33072	ACV3#	04/2005 - 12/2999	2
63249-33070	ACV3#	09/2001 - 04/2004	2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-33050	ACV3#	09/2001 - 06/2004	1
63251-33061	ACV3#	08/2004 - 12/2999	1
63251-33060	ACV3#	06/2004 - 08/2004	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-33041	ACV3#	01/2002 - 06/2004	1
63260-33040	ACV3#	09/2001 - 01/2002	1
63260-33041	ACV3#	06/2004 - 12/2999	1
Common parts
82711-33560
90119-06357
90119-06917
90159-50336
90179-06274
90467-14001
90469-15002
90959-01434
91651-60614
Linked diagrams
6402

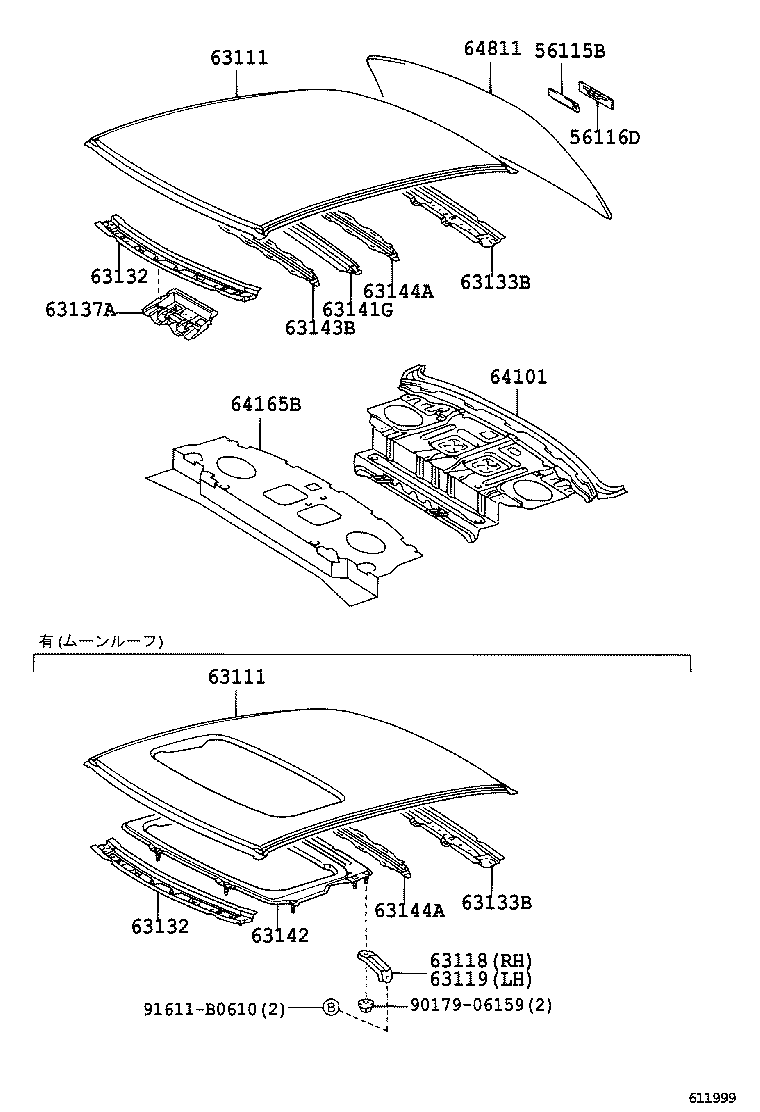

ILLUST NO. 1 OF 2(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30100	ACV3#	09/2001 - 06/2004	2
56115-30100	ACV3#	06/2004 - 12/2999	1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050	ACV3#	09/2001 - 06/2004	2
56116-22050	ACV3#	06/2004 - 12/2999	1
63111 - PANEL, ROOF
63111-33200	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2001 - 06/2004	1
63111-33190	ACV3#	06/2004 - 12/2999	1
63111-33190	ACV3#	09/2001 - 06/2004	1
63111-33200	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/2004 - 12/2999	1
63111 - PANEL, ROOF
63111-33200	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2001 - 06/2004	1
63111-33190	ACV3#	06/2004 - 12/2999	1
63111-33190	ACV3#	09/2001 - 06/2004	1
63111-33200	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/2004 - 12/2999	1
63118 - SUPPORT, ROOF PANEL, RH
63118-33010	ACV3#	09/2001 - 06/2004	1
63118-33010	ACV3#	06/2004 - 12/2999	1
63119 - SUPPORT, ROOF PANEL, LH
63118-33010	ACV3#	06/2004 - 12/2999	1
63118-33010	ACV3#	09/2001 - 06/2004	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-33040	ACV3#	09/2001 - 06/2004	1
63132-33040	ACV3#	06/2004 - 12/2999	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-33040	ACV3#	09/2001 - 06/2004	1
63132-33040	ACV3#	06/2004 - 12/2999	1
63133B - FRAME, BACK WINDOW
63133-33040	ACV3#	06/2004 - 12/2999	1
63133-33040	ACV3#	09/2001 - 06/2004	1
63133B - FRAME, BACK WINDOW
63133-33040	ACV3#	06/2004 - 12/2999	1
63133-33040	ACV3#	09/2001 - 06/2004	1
63137A - BRACKET, DOME LAMP, NO.1
63137-33070	ACV3#	09/2001 - 06/2004	1
63137-33070	ACV3#	06/2004 - 12/2999	1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-33050	ACV3#	06/2004 - 12/2999	1
63141-33050	ACV3#	09/2001 - 06/2004	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-33040	ACV3#	09/2001 - 06/2004	1
63142-33040	ACV3#	06/2004 - 12/2999	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-33050	ACV3#	06/2004 - 12/2999	1
63143-33050	ACV3#	09/2001 - 06/2004	1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-33070	ACV3#	09/2001 - 06/2004	1
63144-33080	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/2004 - 12/2999	1
63144-33070	ACV3#	06/2004 - 12/2999	1
63144-33080	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2001 - 06/2004	1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-33070	ACV3#	09/2001 - 06/2004	1
63144-33080	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	06/2004 - 12/2999	1
63144-33070	ACV3#	06/2004 - 12/2999	1
63144-33080	ACV3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	09/2001 - 06/2004	1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-33260	ACV3#	06/2004 - 12/2999	1
64101-33260	ACV3#	09/2001 - 06/2004	1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-33061	ACV3#	06/2004 - 08/2004	1
64165-33060	ACV3#	09/2001 - 07/2003	1
64165-33061	ACV3#	07/2003 - 06/2004	1
64165-33062	ACV3#	08/2004 - 12/2999	1
64811 - GLASS, BACK WINDOW
64811-33410	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ	09/2001 - 12/2002	1
64811-33500	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	12/2002 - 06/2004	1
64811-33420	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	09/2001 - 12/2002	1
64811-33490	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ	12/2002 - 06/2004	1
64801-33240	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ	06/2004 - 12/2999	1
64801-33250	ACV3# *UVCEHTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞｱﾝﾃﾅ)	06/2004 - 12/2999	1
Common parts
90179-06159
91611-B0610
