Toyota Camry ACV35 CONSOLE BOX & BRACKET

Manufacturers Home
Toyota
JP
CAMRY
ACV35-AEPNK (2001)
5806 - CONSOLE BOX & BRACKET

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

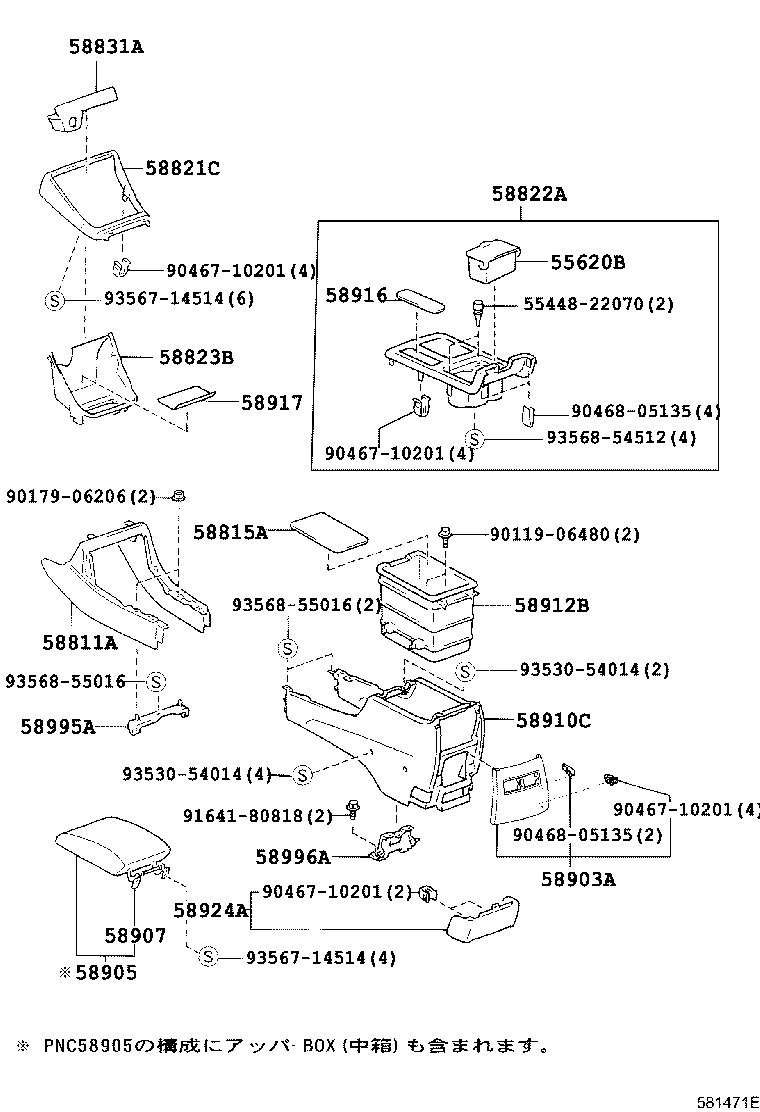

(0109-0406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-33120	ACV3#..24G	09/2001 - 06/2004	1
55620-33120	ACV3#..24G	06/2004 - 12/2999	1
58811A - BOX, CONSOLE, FRONT
58811-33080E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58811-33100E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58815A - CARPET, CONSOLE BOX
58815-33080	ACV3#	09/2001 - 06/2004	1
58815-33080	ACV3#	06/2004 - 12/2999	1
58821C - PANEL, CONSOLE, UPPER
58821-33360	ACV3#..24G	09/2001 - 06/2004	1
58822A - PANEL, CONSOLE, UPPER REAR
58805-33050	ACV3#..24G	06/2004 - 12/2999	1
58805-33050	ACV3#..24G	09/2001 - 06/2004	1
58823B - BOX, CONSOLE COMPARTMENT
58823-33030	ACV3#	09/2001 - 06/2004	1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-33040	ACV3#	09/2001 - 06/2004	1
58831-33080	ACV3#..24G	06/2004 - 12/2999	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-33050E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58903-33050E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-33270E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58905-33270E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-33080	ACV3#	06/2004 - 12/2999	1
58907-33080	ACV3#	09/2001 - 06/2004	1
58910C - BOX ASSY, CONSOLE, REAR
58911-33120E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58911-33120E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58912B - BOX, REAR CONSOLE, LOWER
58912-33110	ACV3#	09/2001 - 06/2004	1
58912-33110	ACV3#	06/2004 - 12/2999	1
58916 - MAT, BOX BOTTOM
58916-33040	ACV3#	09/2001 - 06/2004	1
58916-33040	ACV3#	06/2004 - 12/2999	1
58917 - MAT, BOX BOTTOM, NO.2
58917-33070	ACV3#	09/2001 - 06/2004	1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-33020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58924-33020E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-33030	ACV3#	09/2001 - 06/2004	1
58995-33030	ACV3#	06/2004 - 12/2999	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-33030	ACV3#	09/2001 - 06/2004	1
58996-33030	ACV3#	06/2004 - 12/2999	1
Common parts
55448-22070
90119-06480
90179-06206
90467-10201
90468-05135
91641-80818
93530-54014
93567-14514
93568-54512
93568-55016

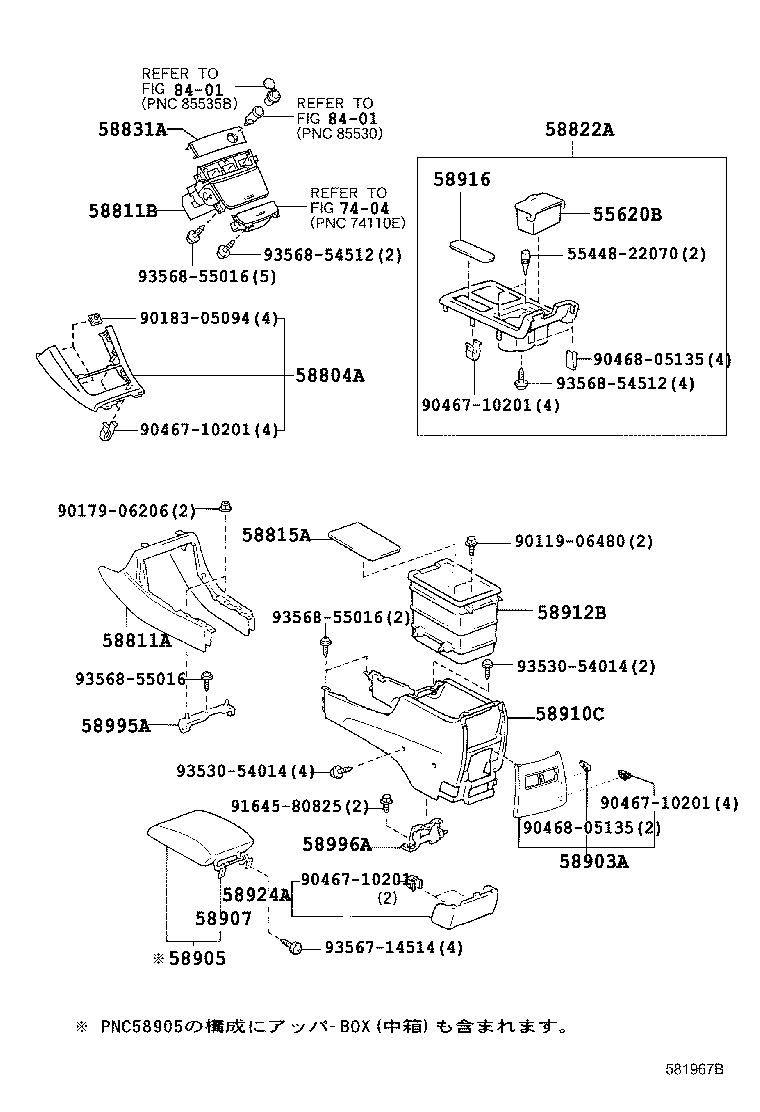

(0406- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-33120	ACV3#..24G	09/2001 - 06/2004	1
55620-33120	ACV3#..24G	06/2004 - 12/2999	1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-33580	ACV3#..24G	06/2004 - 12/2999	1
58811A - BOX, CONSOLE, FRONT
58811-33080E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58811-33100E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58811B - BOX, CONSOLE
58802-33020	ACV3#..24G	06/2004 - 12/2999	1
58815A - CARPET, CONSOLE BOX
58815-33080	ACV3#	09/2001 - 06/2004	1
58815-33080	ACV3#	06/2004 - 12/2999	1
58822A - PANEL, CONSOLE, UPPER REAR
58805-33050	ACV3#..24G	06/2004 - 12/2999	1
58805-33050	ACV3#..24G	09/2001 - 06/2004	1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-33040	ACV3#	09/2001 - 06/2004	1
58831-33080	ACV3#..24G	06/2004 - 12/2999	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-33050E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58903-33050E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-33270E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58905-33270E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-33080	ACV3#	06/2004 - 12/2999	1
58907-33080	ACV3#	09/2001 - 06/2004	1
58910C - BOX ASSY, CONSOLE, REAR
58911-33120E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58911-33120E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58912B - BOX, REAR CONSOLE, LOWER
58912-33110	ACV3#	09/2001 - 06/2004	1
58912-33110	ACV3#	06/2004 - 12/2999	1
58916 - MAT, BOX BOTTOM
58916-33040	ACV3#	09/2001 - 06/2004	1
58916-33040	ACV3#	06/2004 - 12/2999	1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-33020E0	ACV3#..24G FAWN,TRIM4#	09/2001 - 06/2004	1
58924-33020E0	ACV3#..24G FAWN,TRIM4#	06/2004 - 12/2999	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-33030	ACV3#	09/2001 - 06/2004	1
58995-33030	ACV3#	06/2004 - 12/2999	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-33030	ACV3#	09/2001 - 06/2004	1
58996-33030	ACV3#	06/2004 - 12/2999	1
Common parts
55448-22070
90119-06480
90179-06206
90183-05094
90467-10201
90468-05135
91645-80825
93530-54014
93567-14514
93568-54512
93568-55016
Linked diagrams
7404
8401

ACV35-AEPNK (2001)

(0109-0406)

(0406- )
